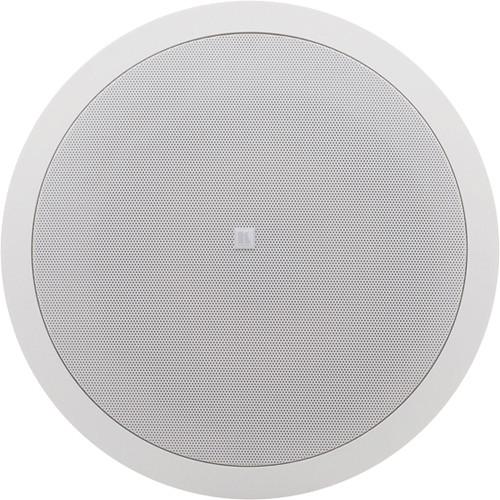

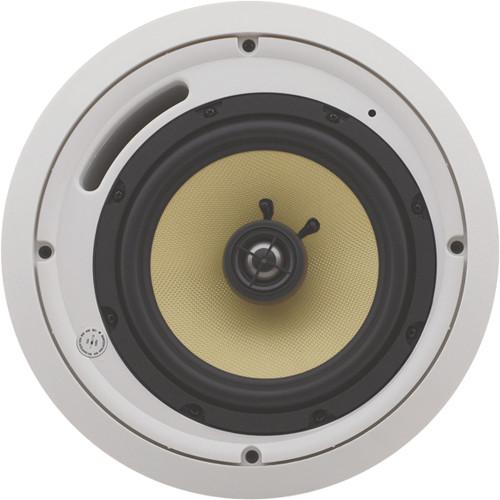

Product description The pair of white Yarden 8-C Closed−Back Ceiling Speakers from Kramer is a 2-way, 8" coaxial ceiling speaker set, which features a Kevlar woofer and a 1" titanium dome tweeter with a multi−tap power transformer. The speakers have a frequency response of 85 Hz to 20 kHz @ ±3 dB, and will handle up to 64 watts, RMS.
The Yarden 8-C features a 2nd level cross-over design, and the user has the option of selecting between 8Ω usage (bypassing the transformer) and 70V/100V power settings, which are suitable for an array installation. The package includes: 2 speakers (1 pair), and accessories, including a ceiling mounting kit, a template, and the user manual. - Can be used in conference rooms, boardrooms, classrooms, clubs, hotels, and restaurants
- UL 1480 and UL 2043 approved
- Ships with ceiling mounting kit
- Selection between 8Ω usage (bypassing the transformer) and 70V/100V power settings
- Suitable for array installations
In the Box Kramer Yarden 8-C 8" 2-Way Closed-Back Ceiling Speaker (Pair, White) Installation Bracket Ceiling Mounting Kit (complete) Safety Cord Attached to Grille Cutout Template Quick-start Guide Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Yarden 8-C 8" 2-Way Closed-Back Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Yarden 8-C 8" 2-Way Closed-Back Ceiling Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKramer YARDEN 8-C (W) Specs | Speaker Type | 2-Way, coaxial, closed-back ceiling speaker | | Woofer | 8" (200 mm) polypropylene with rubber surround | | Tweeter | 1" (25.4 mm) titanium dome | | Frequency Response | 85 Hz to 20 kHz @ ±3 dB, 65 Hz to 20 kHz @ −10 dB | | Sensitivity | 87 dB SPL, 1 W @ 1 m | | Maximum SPL | Continuous: 104 dB, peak: 107 dB | | Impedance | 8 ohms (transformer tap in off position) | | Transformer Taps | 70 V: 64 W /32 W /16 W / 8 W / 4 W /Off (Lo−Z)
100 V : 64 W / 32 W / 16 W / 8 W /Off (Lo−Z) | | Power Handling | 64, 180 W continuous program | | Crossover Frequency | 6.3 kHz | | Coverage Angle | 105° | | Directivity Factor | 4.6 averaged 1 kHz to 10 kHz | | Directivity Index | 6.5 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal block | | Material of Construction | ABS bezel, aluminum grill, metal back can | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Storage Temperature | −40 to 158°F (−40 to +70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (Diam. x Depth) | 12 x 8.9" (30.5 x 2.6 cm) external x mounting depth | | Cutout Diameter | 10.75" (27.3 cm) | | Speaker Weight | 10.8 lb (4.9 kg) (approximate, single speaker) |
