User Manual for Kramer Yarden 8-CH 8" Closed-Back 2-Way Ceiling Speakers Click to enlarge the picture
Contents of the user manual for the Kramer Yarden 8-CH 8" Closed-Back 2-Way
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
 |
User manual for the Kramer Yarden 8-CH 8" Closed-Back 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

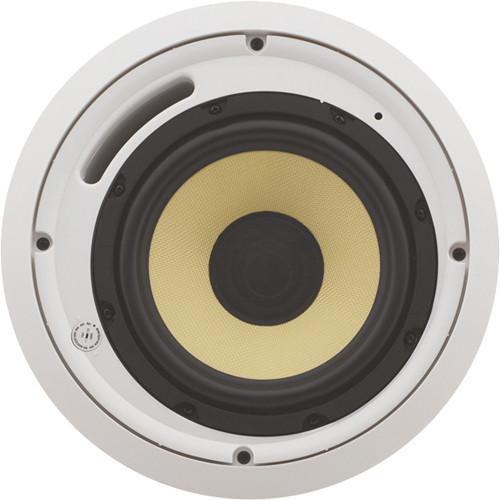

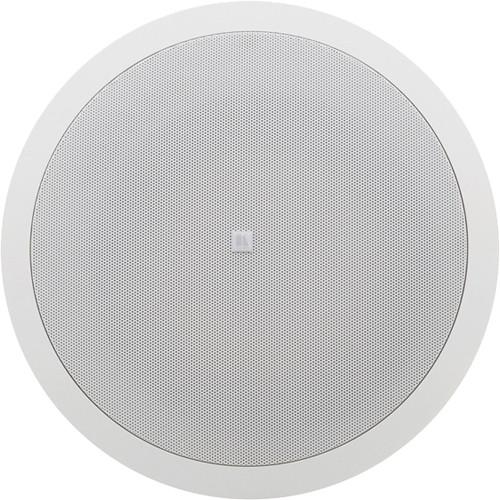

Product description The pair or white Yarden 8-CH 8" Closed-Back 2-Way Ceiling Speakers from Kramer is a set of 2 speakers, with the 8" woofers made from Kevlar complemented by 1.4" titanium dome tweeters. They feature a frequency response of 90 Hz to 20 kHz @ ±3 dB and each speaker will handle 64W RMS of power.

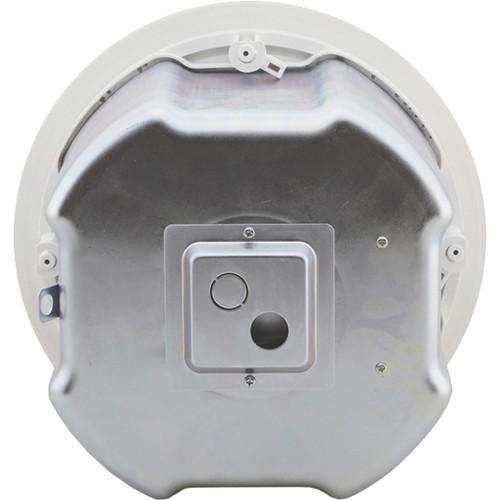

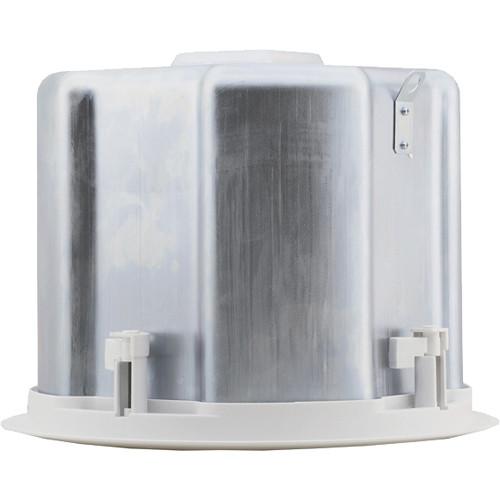

The Yarden 8−CH is a directional, closed−back speaker and is designed to feature improved speech intelligibility and musical clarity in difficult acoustics venues and high ceiling rooms. The speaker is engineered to focus specific frequencies and creates a narrow listening area directly under the speaker. It features a multi−tap power transformer for selecting 8-ohms (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The 8-CH is suitable for use in conference rooms, boardrooms, classrooms, hotels and restaurants. - 2-Way Kevlar coaxial speakers
- Highly directional speakers for a narrow listening area
- 8 ohm or multi-tap 70 or 100V transformer operation
- Suitable for conference room, boardroom, classroom, hotel and restaurant usage
- UL 1480 and UL 2043 approved
- Ships with ceiling mounting kit
- Selectable multi−tap power transformer for either 8-ohms (bypassing the transformer) or 70V/100V power settings
- Suitable for array installation
In the Box Kramer Yarden 8-CH 8" Closed-Back 2-Way Ceiling Speakers (Pair, White) 2 x Installation Brackets 2 x Safety Cord Attached to Grilles Ceiling Mounting Kit Cutout Template Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Yarden 8-CH 8" Closed-Back 2-Way Ceiling Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Yarden 8-CH 8" Closed-Back 2-Way Ceiling Speakers can be downloaded in PDF format at the link stated below.
Technical parametersKramer YARDEN 8-CH(W) Specs | Speaker Type | 2-Way, coaxial, closed-back ceiling speaker | | Woofer | 8" (200 mm) Kevlar with rubber surround | | Tweeter | 1.4" (34.5 mm) titanium dome | | Frequency Response | 70 Hz to 20 kHz @−10 dB, 90 Hz to 20 kHz @±3 dB | | Sensitivity | 90 dB SPL, 1 W @ 1 m | | Maximum SPL | Continuous: 104 dB, peak: 107 dB | | Impedance | 8 ohms (transformer tap in off position) | | Transformer Taps | 70 V - 64 W /32 W /16 W /8 W /4 W /Off (Lo−Z),
100 V - 64 W /32 W /16 W /8 W / Off (Lo−Z) | | Power Handling | 64 W RMS, 180 W continuous program | | Crossover Frequency | 6.3 kHz | | Coverage Angle | 110° | | Directivity Factor | 4.6 averaged 1kHz to 10kHz | | Directivity Index | 6.5 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal block | | Material of Construction | ABS bezel, aluminum grill, metal back can | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Storage Temperature | −40 to 158°F (−40 to +70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (Diam. x Depth) | 12 x 8.9" (30.5 x 22.6 cm ) | | Cutout Diameter | 10.75" (27.3 cm) | | Speaker Weight | 12.1 lb (5.5 kg) (approximate, single speaker) |
