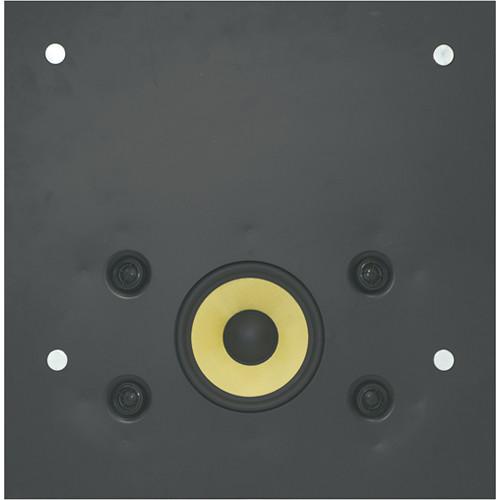

User Manual for Kramer Yarden 8-T 8" High-Performance, Ceiling Tile Stereo Speaker Click to enlarge the picture
Contents of the user manual for the Kramer Yarden 8-T 8" High-Performance, Ceiling
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
|
User manual for the Kramer Yarden 8-T 8" High-Performance, Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The white Yarden 8−T High−Performance Ceiling Tile Stereo Speaker from Kramer is a 2-way, 8" stereo speaker tile, which features a Kevlar cone woofer with rubber surround, four - 0.75" pivoting titanium dome tweeters, and a complete K−overage ESD (Equal Sound Dispersion) design for almost 180 degrees of sound dispersion. The speaker has a power handling capacity of 40W RMS with a frequency response of 80 Hz to 20 kHz @±3 dB.
The 8-T features a speech mode to improve intelligibility, a music mode for an extra wide frequency response, and stereo and mono modes to fit almost any type of installation. It also features a magnetically held grille (with two security screws) for time saving installation, a 2nd level cross−over design, and a multi−tap power transformer for selecting in stereo 8, or in mono, 4 ohms (bypassing the transformer), or 70V/100V power settings that are suitable for an array installation. The Yarden 8−T comes equipped with two differing grilles from which to choose from.
The speaker is suitable for use in conference rooms, boardrooms, classrooms, hotels, clubs, and restaurants. - Ships with ceiling mounting kit
- UL 1480 and UL 2043 approved
- 2-Way ceiling tile speaker
- Built-in power amplifier - 40W RMS, 110W continuous program
- 3 Inputs with individual volume control with master volume control
- Four pivoting 0.75" titanium dome tweeters
- Stereo speaker capability
- Selectable multi−tap power transformer for stereo 8, or in mono, 4 ohms (bypassing the transformer), or 70V/100V power settings
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Yarden 8-T 8" High-Performance, Ceiling Tile Stereo Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Yarden 8-T 8" High-Performance, Ceiling Tile Stereo Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKramer YARDEN 8-T(W) Specs | Speaker Type | 2-Way ceiling tile speaker | | Woofer | 8" (200mm) Kevlar cone with rubber surround | | Tweeter | Four x 0.75" (1.90 cm) titanium pivoting tweeters | | Frequency Response | 65 Hz to 20 kHz @−10 dB, 80 Hz to 20 kHz @±3 dB | | Impedance | 8 ohm stereo, 4 ohm mono (transformer tap in off position) | | Transformer Taps | Stereo:
70 V: 3.75 W /7.5 W /15 W /30 W
100 V: 7.5 W /15 W /30 W
Mono:
70 V: 7.5 W /15 W /30 W /60 W
100 V: 15 W /30 W /60 W | | Sensitivity | 87 dB SPL, 1 W @ 1m | | Power Handling | 40W RMS, 110W continuous program | | Crossover Frequency | 2.175 kHz | | Directivity Factor | 9.43 averaged 1 kHz to 10 kHz | | Directivity Index | 9.5 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal block connectors | | Controls | Mono/Stereo select switch, Music/Speech select switch | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Storage Temperature | −40 to 158°F (−40 to +70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (Diam. x Depth) | 23.6 x 23.6 x 3.9"(60 x 60 x 10cm) (tile size)
23.4 x 23.4 x 3.9" (59.5 x 59.5 x 10 cm) (tile size) for any region with suspended ceiling tiles of 23.4" (59.5 cm) | | Material of Construction | Frame, steel grills 23.4 x 23.4" (595 x 595 mm)size 1
23.6 x 23.6 (600 x 600 mm) size 2 | | Speaker Weight | 19.3 lb (8.8 kg) (approximate) |
