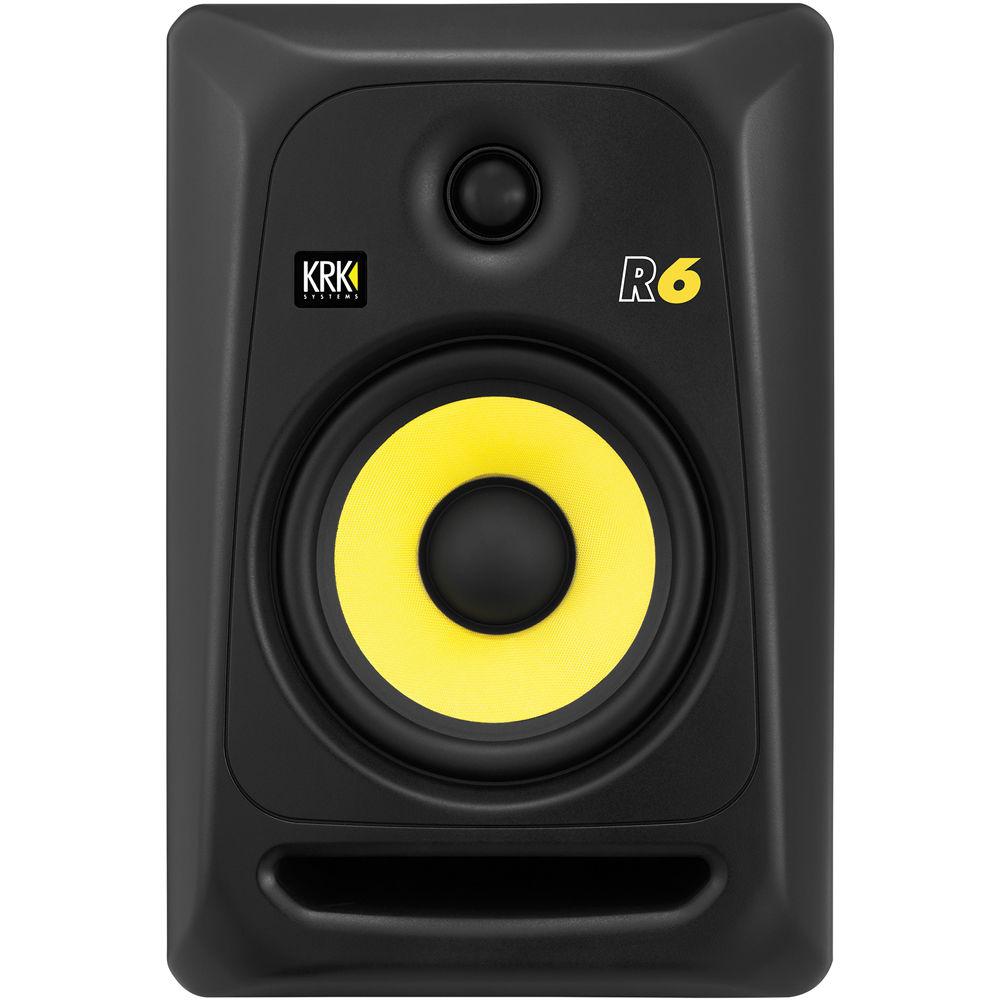

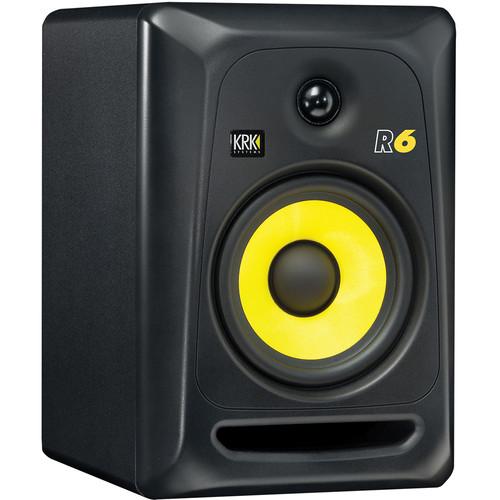

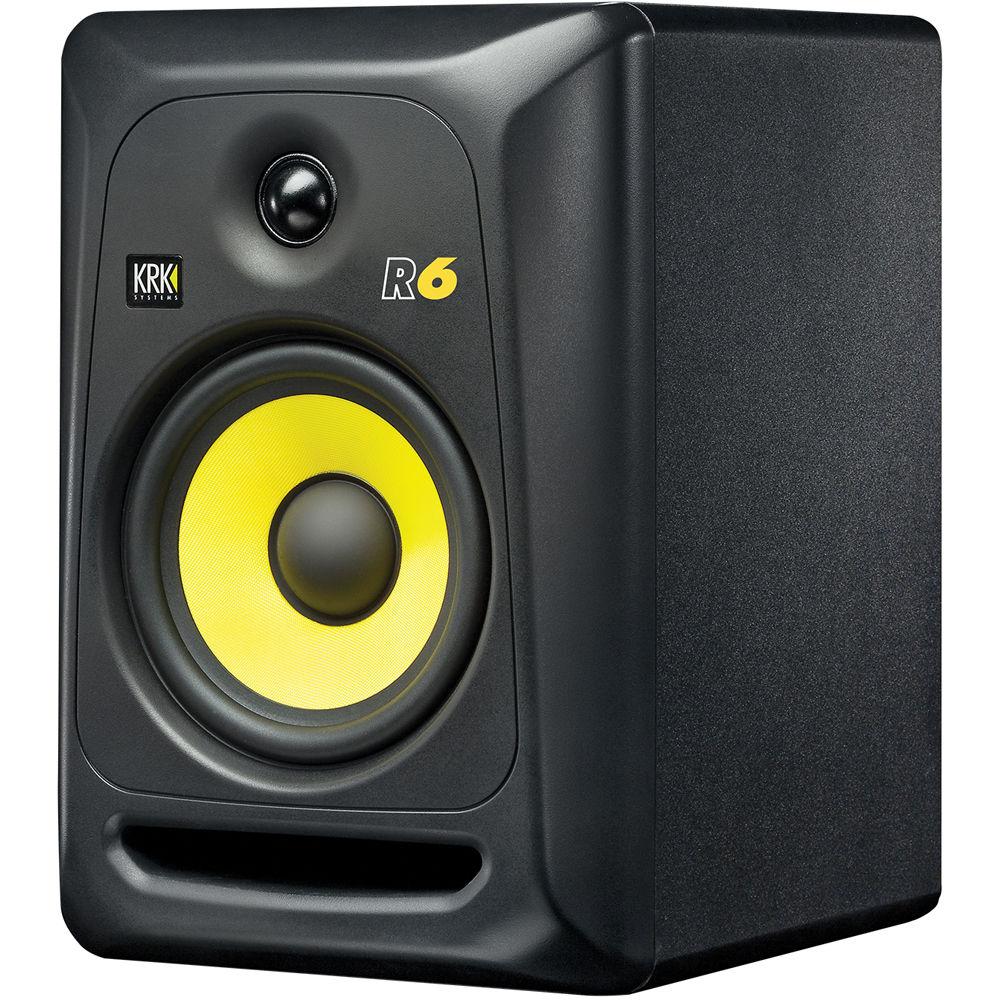

Product description The R6 from KRK is a two-way passive studio monitor for your home or professional studio. The 1" soft-dome tweeter, which provides extended response up to 34 kHz, is designed with a proprietary waveguide that is optimized for improved imaging. The 6" Aramid glass composite woofer has been engineered to deliver a clear response in the midrange along with a tight low end.
The speaker features a high frequency waveguide design that provides improved detail and off-axis imaging. Under the woofer there is a front firing port that provides an extended low frequency response while reducing boundary coupling at the same time. Additionally, the enclosure features a radically curved front plate design that cuts down on diffraction distortion. -
- Recommended Amplifier: 50W – 150W RMS @ 4 ohms
- Glass Aramid composite cone woofer
- Radically curved front plate design virtually eliminates diffraction distortion
- Front-firing port provides low freq extension without boundary coupling
- High-frequency waveguide design provides amazing detail and on and off-axis imaging
- Precision 2-way crossover delivers accurate frequency transition between woofer and tweeter
- Peak SPL: 107dB
- Frequency Response: 49 Hz - 20 kHz, +/-2 dB
UPC: 816654004147 In the Box KRK R6 - 6" Two-Way Passive Studio Monitor (Single) Limited 3-Year Warranty User Manual PDF 5.3mbsqdesbcwswbwytsftybfubutayvaaqxwbv Table of Contents
|
Upload User Manual
Have you got an user manual for the KRK R6 - 6" Two-Way Passive Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

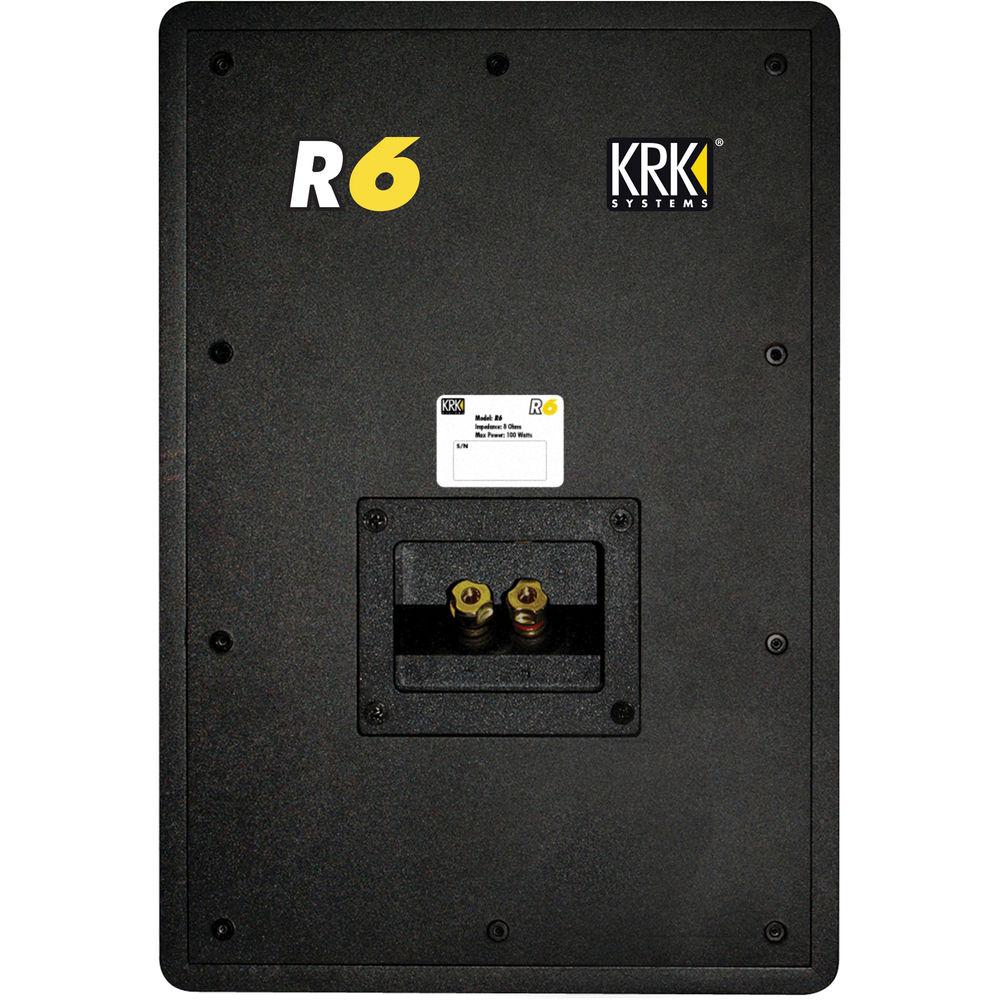

Technical parametersKRK R6 Specs | Max SPL Level | 107 dB | | Frequency Response | 49 Hz - 20 kHz, +/-2 dB | | Frequency Range | 33 Hz - 34 kHz, (-10 dB) | | Sensitivity | 81 dB (1W / 1M) | | Power Handling | Yes | | Shielding | Yes, video shielding | | Recommended Amplifier Power | 50 W - 150 W RMS @ 4 ohms | | Material | MDF, cabinet | | Connector | 5-way gold plated binding post | | Configuration | 2-way | | System Type | Passive monitor | | Drivers | High-Frequency Transducer: 1" silk dome tweeter
Low-Frequency Transducer: 6" aramid glass composite woofer | | Nominal Impedance | 4 ohms | | Dimensions | 11.4 x 8.9 x 13.1" (290 x 226 x 332 mm) | | Weight | 8.3 lb (8.3 kg) | | | | Package Weight | 18.35 lb | | Box Dimensions (LxWxH) | 17.0 x 14.5 x 11.7" |
