User Manual for KRK ROKIT 6 G3 - 73W 6" Two-Way Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the KRK ROKIT 6 G3 - 73W
- Product category: Studio Monitors KRK
- Brand: KRK
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KRK Studio Monitors
 |
User manual for the KRK ROKIT 6 G3 - 73W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KRK product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KRK user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KRK product will considerably shorten its lifespan!
|

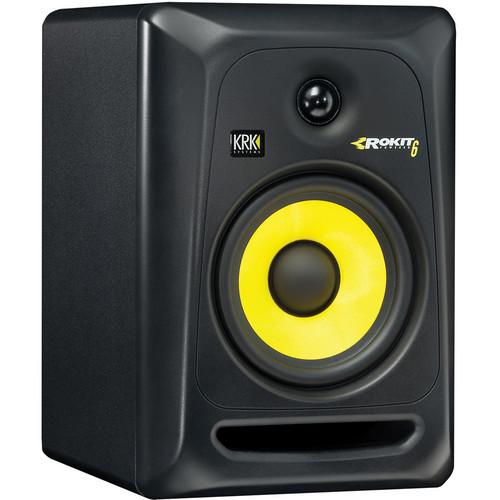

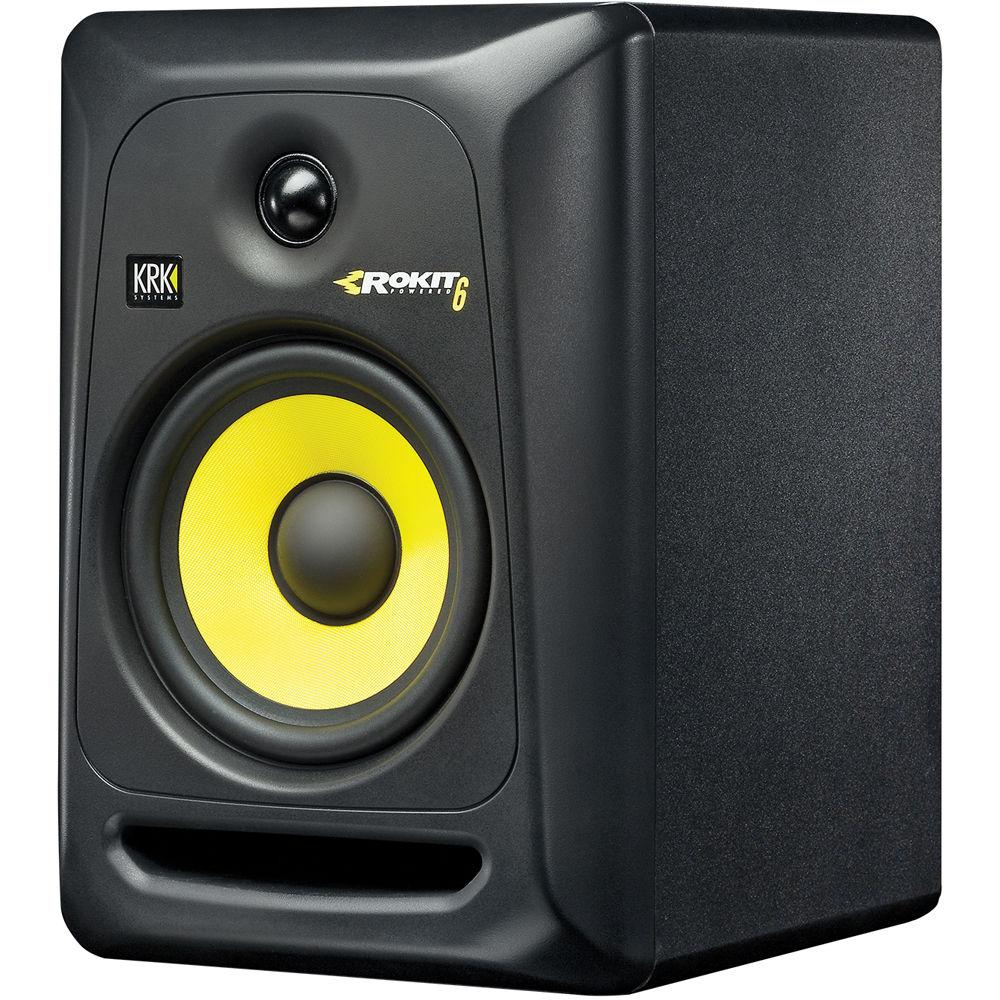

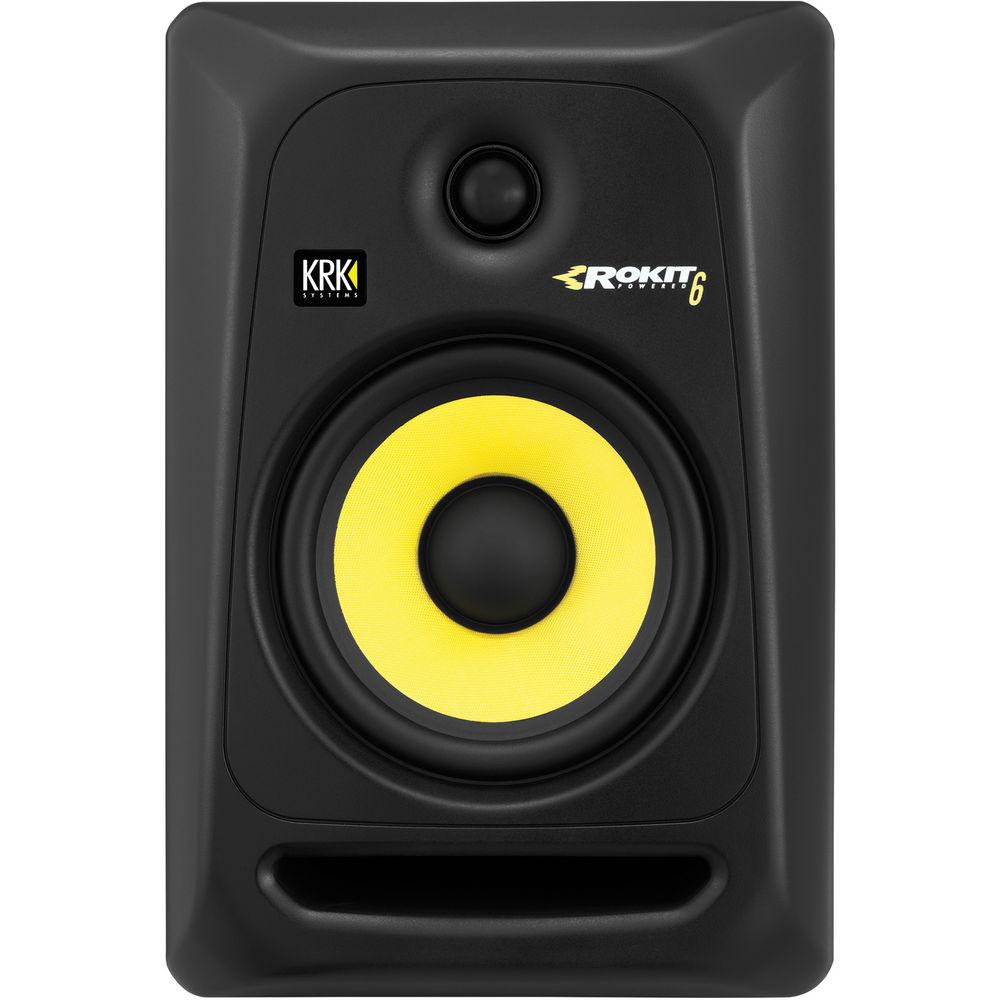

Product description The black ROKIT 6 G3 from KRK is a 73W two-way active studio monitor for your home or professional studio. Equipped with a bi-amped, class A/B amplifier that powers a 6" woofer and a 1" tweeter, the ROKIT 6 G3 is designed to offer maximum headroom with minimal distortion. The soft-dome tweeter, which provides extended response up to 35 kHz, is designed with a proprietary waveguide that is optimized for improved imaging. The aramid glass composite woofer has been engineered to deliver a clear response in the midrange along with a tight low end.
The speaker is housed in a low resonance enclosure that includes a factory installed foam pad at the bottom to provide improved isolation from the surface it's set upon. Under the woofer there is a front firing port that provides an extended low frequency response while reducing boundary coupling at the same time. Additionally, the enclosure features radiused edges that reduce distortion caused by diffraction.

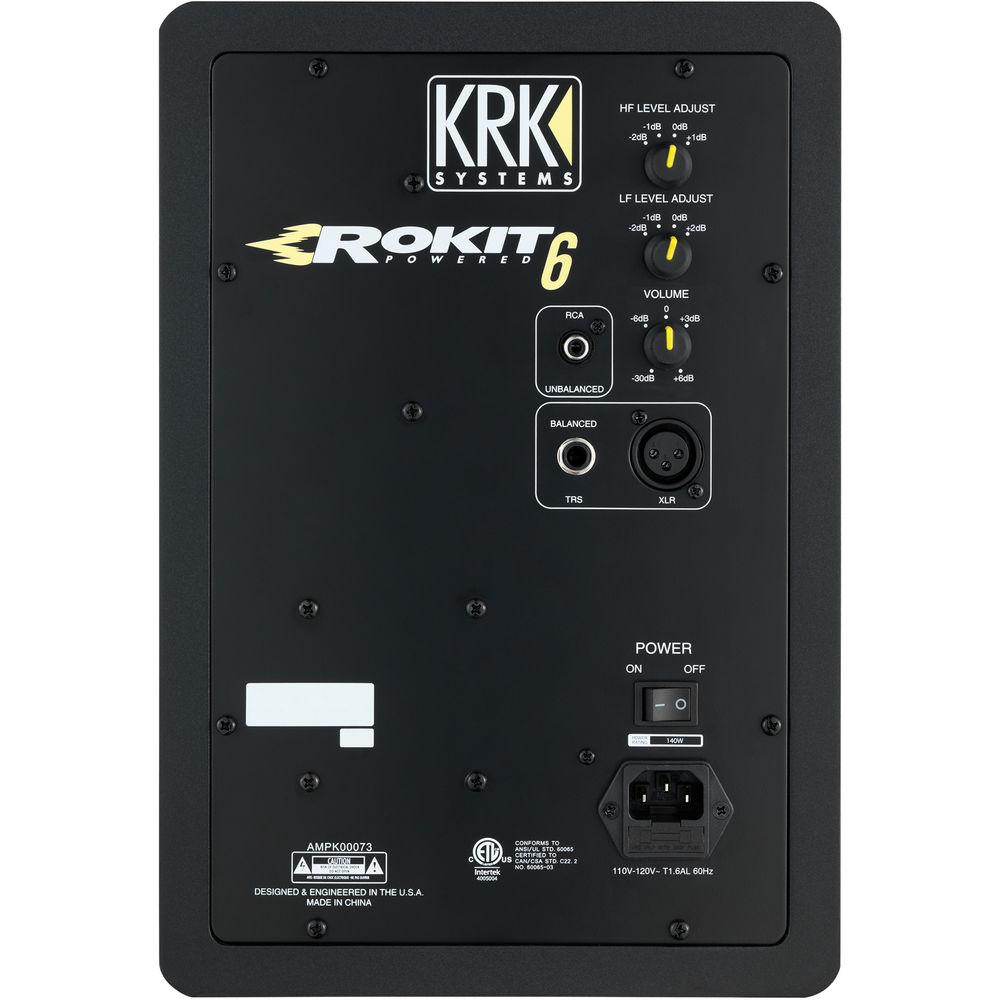

The ROKIT 6 G3 also provides flexible connectivity, allowing for input via XLR, TRS or RCA connection. It also provides both low and high frequency adjustments so you can tailor the speaker's response curve to your personal taste. - 25W high frequency power, 48W low frequency power
- 38 Hz - 35 kHz frequency range
- Gain adjustment in rear for setting maximum level
UPC: 816654003744 In the Box KRK ROKIT 6 G3 - 73W 6" Two-Way Active Studio Monitor (Single, Black) Power Cord Limited 3-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the KRK ROKIT 6 G3 - 73W 6" Two-Way Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKRK 6 G3 Specs | Configuration | 2-Way | | System Type | Active Monitor | | Transducer Type | HF - 1" silk dome tweeter
LF - 6" Aramid glass composite woofer | | Frequency Range | 38 Hz - 35 kHz (-10dB) | | Crossover Frequency | 2.3 kHz | | Power | 73 W total
25 W high frequency
48 W low frequency | | Maximum SPL | 107 dB | | Standby Mode | Auto, 30 minutes | | Cabinet | MDF | | Connector | Unbalanced 7 kOhms RCA
Balanced 10 kOhms 1/4" TRS and XLR (Pin 2 & Tip = HotPositive, Pin 3 & Ring = ColdNegative, Pin 1 & Sleeve = Ground) | | Control | HF Level Adjust (-2 dB, -1 dB, 0, +1 dB)
LF Level Adjust (-2 dB, -1 dB, 0, +2 dB)
System Volume (-30 dB to +6 dB) | | Fuse Rating | Slow blow type, 5 mm x 20 mm
100 V~, 110-120 V~ - 1.6 A - 250 V | | Dimensions | 11.4 x 8.9 x 13.1" (290 x 226 x 332 mm) | | Weight | 18.5 lb (8.4 kg) | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 15.0 x 12.2 x 10.5" |
