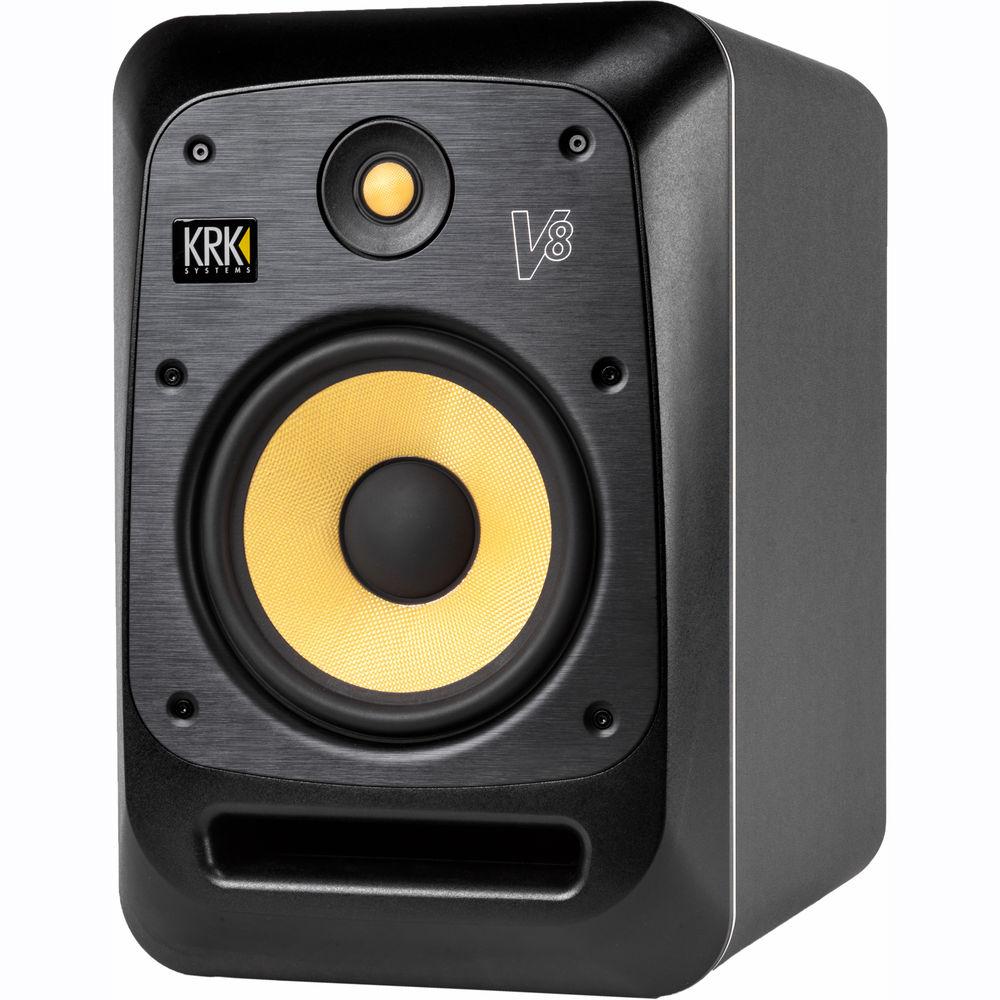

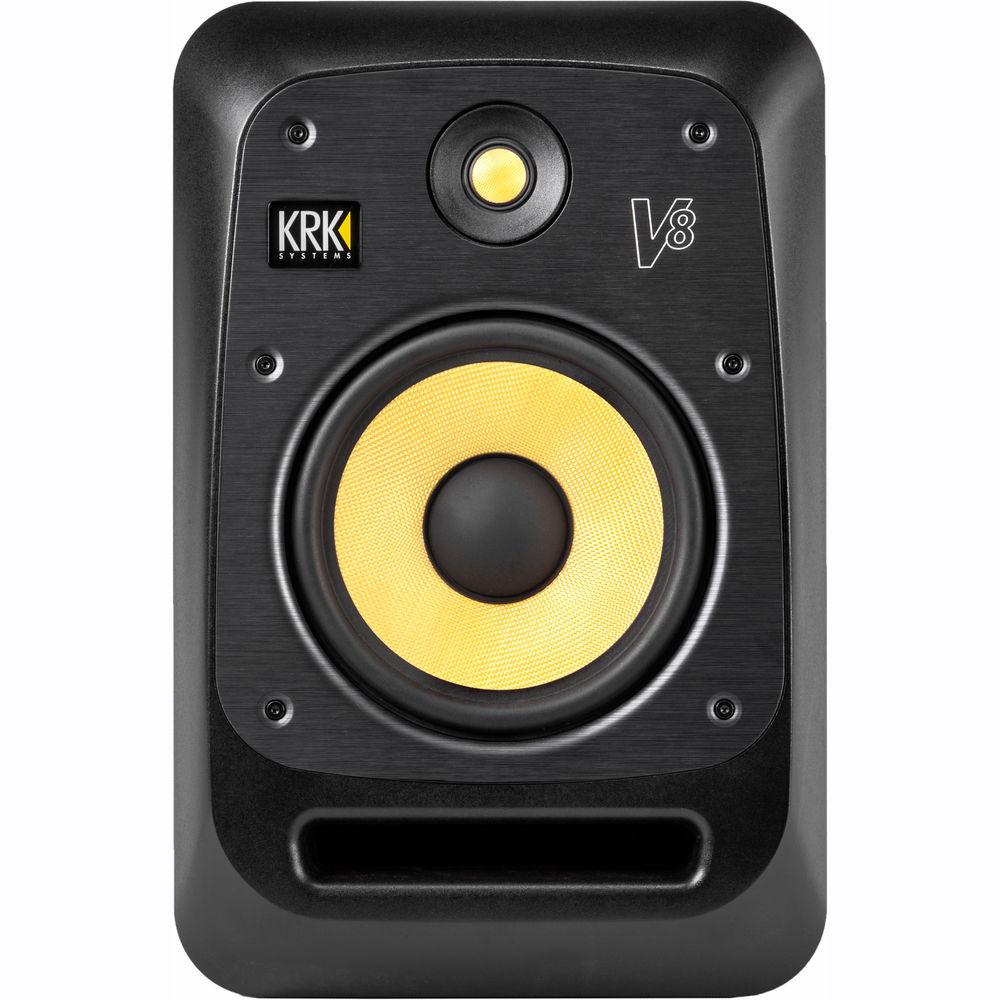

Product description The V8S4 from KRK represents the 4th iteration in their V series of powered reference monitors. This two-way monitor sports a 1" Kevlar tweeter and 8" woven-Kevlar woofer—both of them custom designed by KRK—as well as bi-amped Class-D amplification to engender an accurate transient response. It's capable of delivering 230W total (200W from the woofer, 30W from tweeter), and thus, delivers a more extended frequency range over other monitors in the V series (29 Hz to 24 kHz) as well a peak SPL of up to 118 dB.
A front-ported bass-reflex enclosure design protects against boundary coupling, providing you options when it comes to room placement. Compounded with 49 user-selectable DSP-driven EQ options, a solid aluminum front-baffle, and a built-in EVA foam pad, the monitor gives you many options in preserving frequency transparency and transient response in many less-than-optimal room scenarios. You can route signal to these monitors through its Neutrik combination TRS/XLR jack, and even stay current with future updates and features via USB. - New to Series 4
-
- New design allows monitors to be laid on side
- Specifications perform about above VXT series
- Custom-designed Kevlar tweeter technology
- One cone material across the entire frequency spectrum
- Flexibility in regards to setup and tuning options (more than 49 different EQ combination settings)
- Dimmable front light
- Aluminum front-baffle and brushed faceplate
- USB connectivity for possible future features or updates
- Notable Features
-
- KRK custom-designed Kevlar tweeter
- KRK custom-designed woven-Kevlar woofer
- Front-ported bass reflex enclosure design
- Bi-amped Class-D amplification
- Acoustic and desk-loading condition correction low-frequency EQs
- Low-, mid-, and high-frequency EQs
- 49 different DSP-driven EQ presets for room/desk correction as well as personal taste

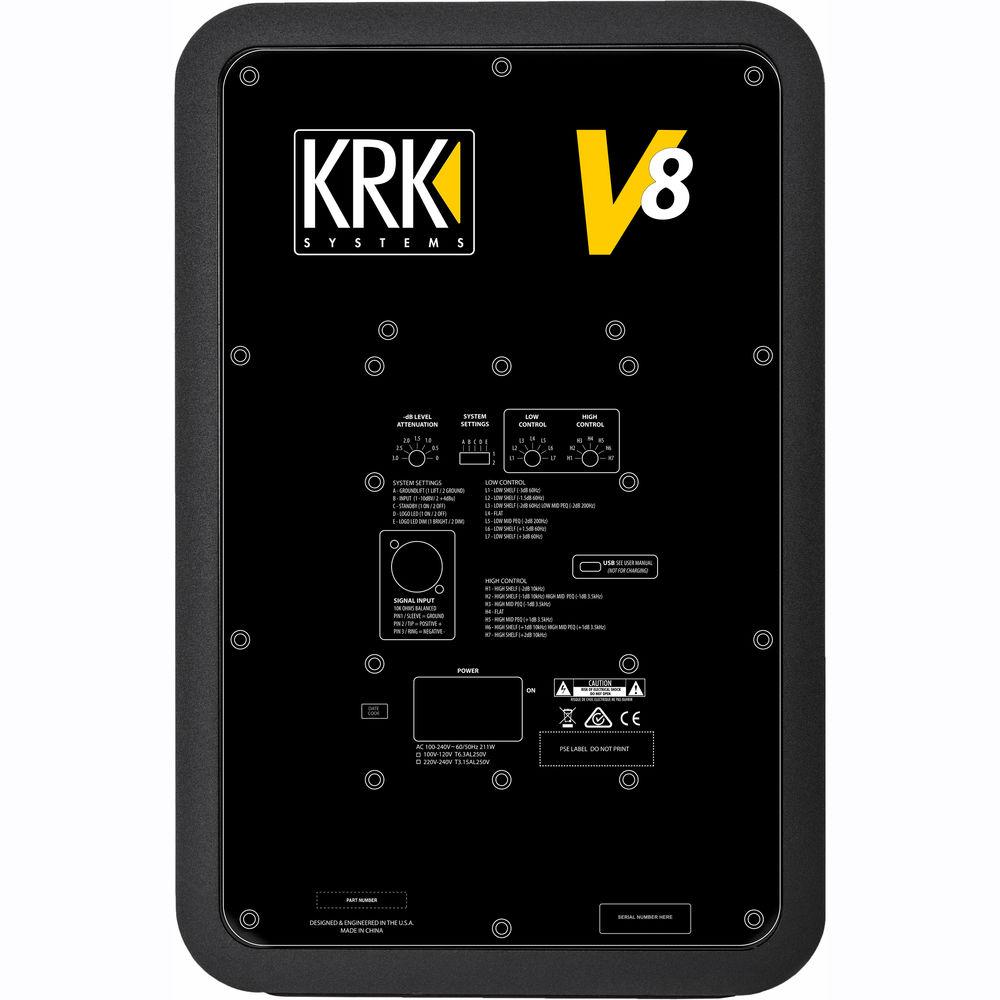

- Precise input-level attenuation switch
- Standby, ground lift, input sensitivity, and logo LED selectors

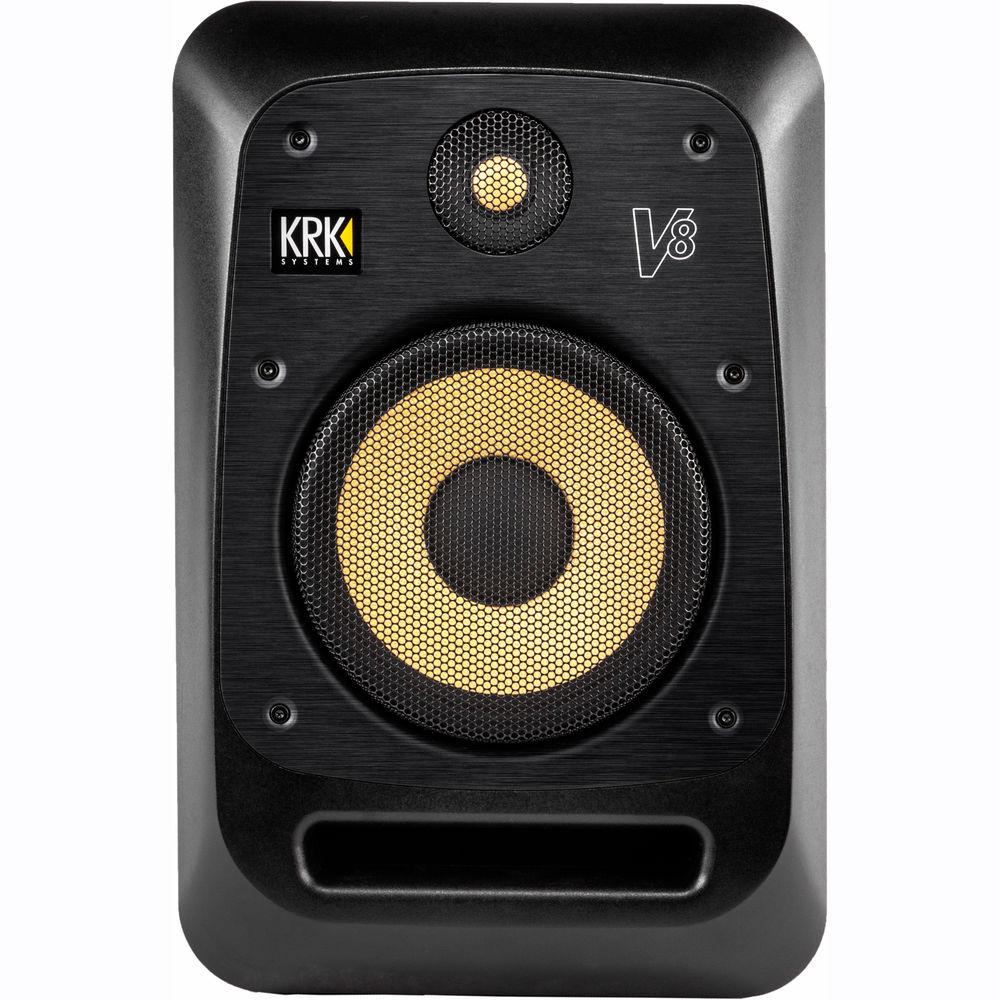

- Optional protective grille included for mobile broadcast applications
- Friction lock, Neutrik combo (XLR and TRS) connector
- Robust EVA foam pad for non-skid and acoustic isolation
- Universal threaded mounting bracket points
UPC: 816654006561 In the Box KRK V8S4 V Series - 230W 8" Powered Reference Monitor Protective Grille Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KRK V8S4 V Series - 230W 8" Powered Reference Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKRK V8 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 230 W | | Drivers | HF Driver: 1 x 1" / 2.5 cm Kevlar Dome Tweeter
LF Driver: 1 x 8" / 20.3 cm Kevlar Cone | | Amplification | HF Amplifier: Rated at 30 W
LF Amplifier: Rated at 200 W | | | | Frequency Range | 29 Hz to 24 kHz (at -10 dB) | | Frequency Response | 35 Hz to 19 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 118 dB | | | | EQ | 1 x LF Shelf: -3 to +3 dB at 75 Hz
1 x Low-Mid Notch/Peak: -2 to 0 dB at 200 Hz
1 x HF Shelf: -2 to +2 dB at 10 kHz
1 x Mid Notch/Peak: -1 to +1 dB at 3.5 kHz | | | | Crossover Frequency | 1.8 kHz | | | | I/O | 1 x Combo XLR / 1/4" Balanced Analog Input (10 kOhms) | | | | Enclosure Material | Aluminum, MDF, Metal Grille | | Mounting Points | 4 x M8 (Bottom Panel) Compatible with the KRKSTDX4A1 Pole Mount Adapter and KRKSTDX8A1 Wall Mount | | Dimensions (W x H x D) | 17.1 x 11.2 x 13.7" / 43.5 x 28.4 x 34.7 cm | | Weight | 31.8 lb / 14.4 kg | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 23.4 x 18.0 x 15.4" |
