KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer

Search your instruction manual in PDF to download

User Manual for KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer

Click to enlarge the picture
KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer Contents of the user manual for the KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer
  • Product category: Gimbal Stabilizers KumbaCam
  • Brand: KumbaCam
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for KumbaCam Gimbal Stabilizers

KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer
User manual for the KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any KumbaCam product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official KumbaCam user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a KumbaCam product will considerably shorten its lifespan!



Product description

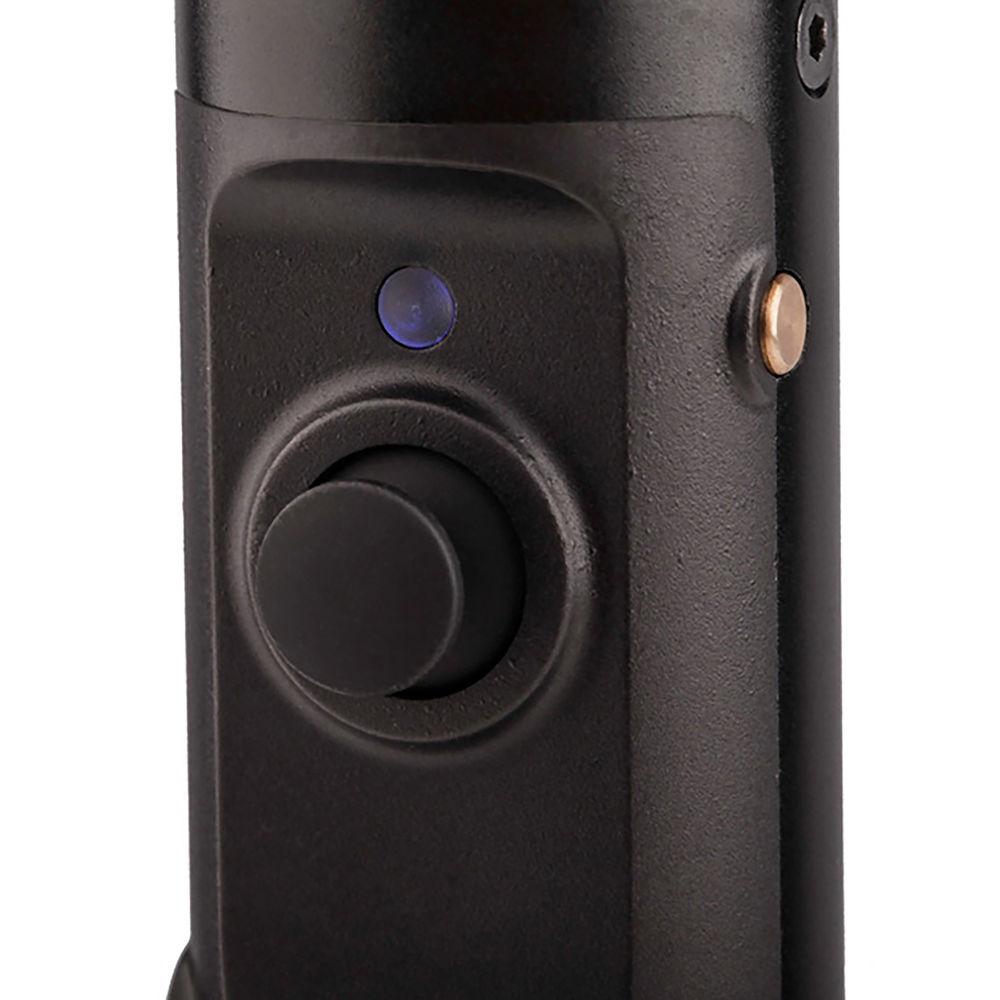

The 3-Axis Handheld GoPro Gimbal Stabilizer from KumbaCam allows you to use all the GoPro Hero cameras to shoot smooth professional quality videos. This handheld gimbal stabilizes pitch, roll, and yaw, giving you a stable shot. The handheld grip is long enough to give you different perspectives, and contains the two rechargeable Li-ion batteries. The modes include pan following, pan and pitch following, locking, and upside down mode. In addition, the stabilizer comes preconfigured and ready to use out of the box.Thanks to the four-way joystick with stepless rotational speed, you can easily adjust the roll, pitch, and yaw angles. Using the 1/4"-20 screw port at the bottom, the stabilizer can be mounted onto any photographic equipment. In addition, the stabilizer comes with a built-in 3.5mm jack for video output.
    Compatibility
  • GoPro Hero cameras
  • Lightweight, easy to carry, and simple to use
  • CNC aluminum alloy structure

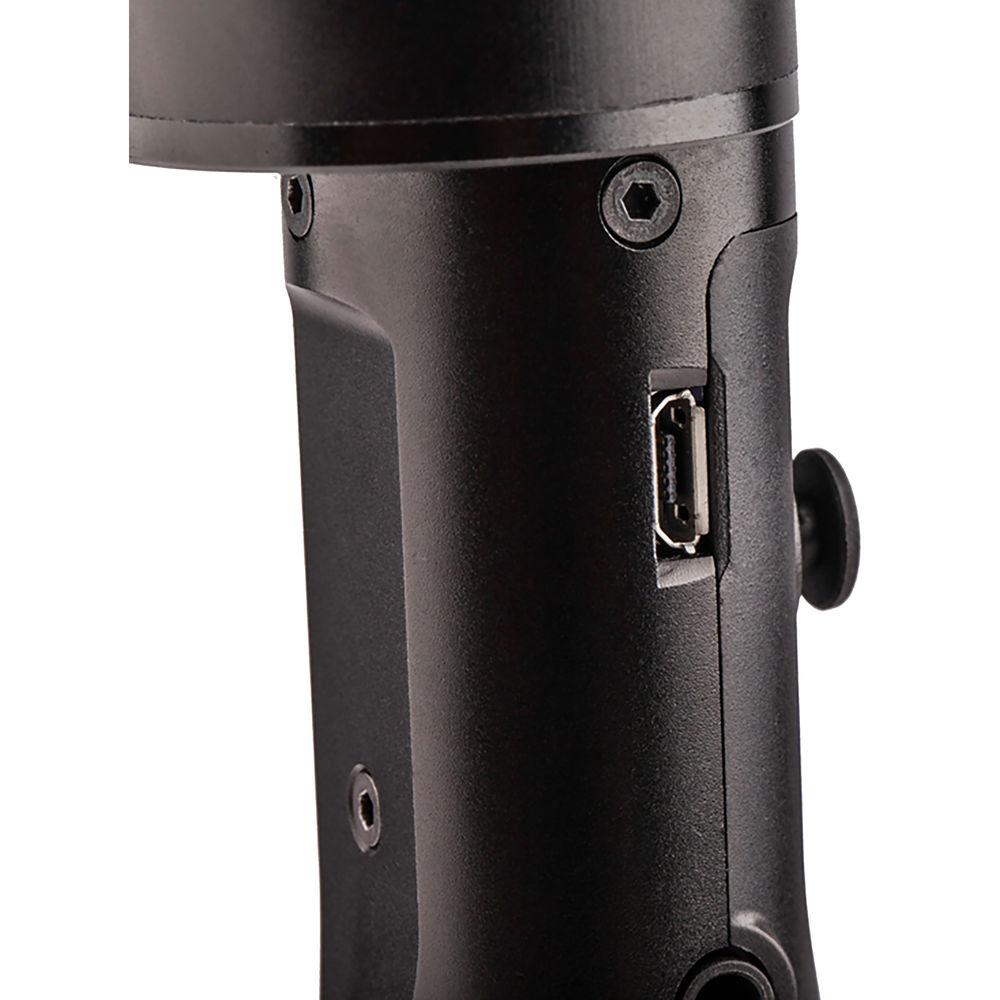

  • Power switch on the side of the handle for one-handed operation

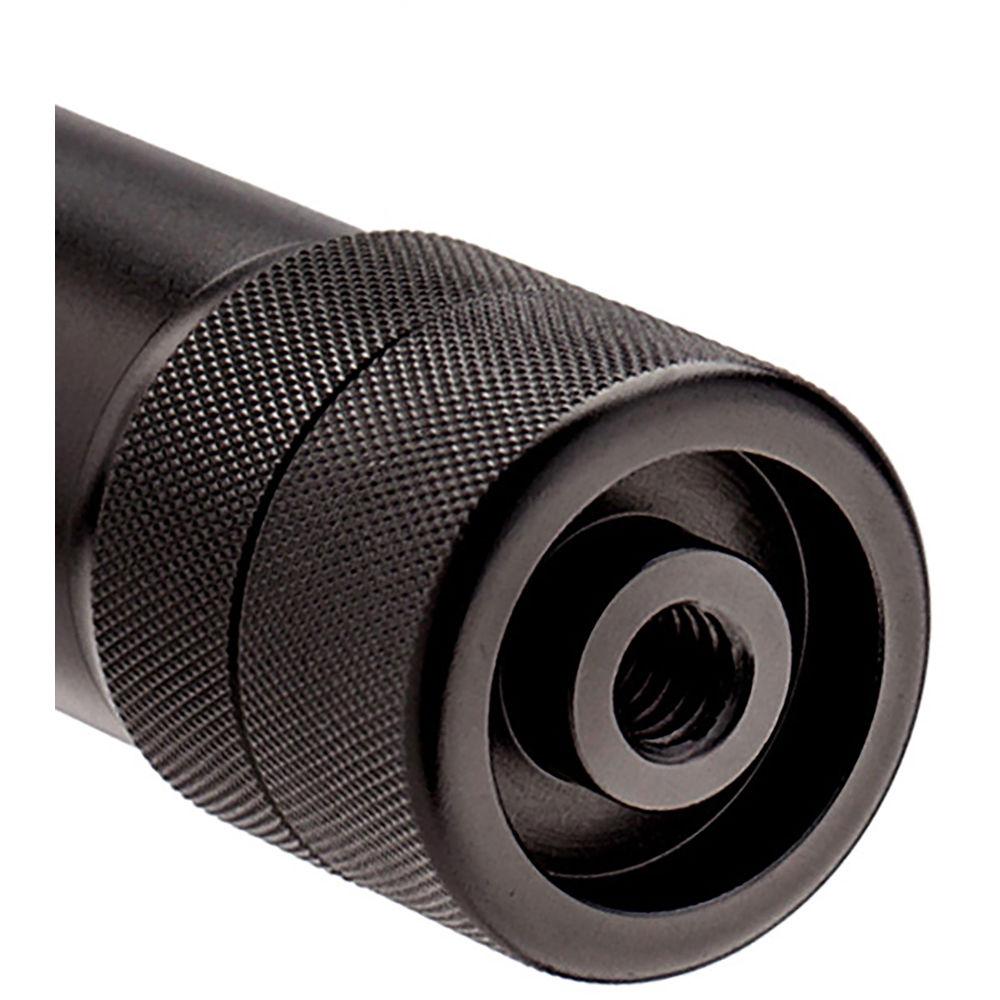

  • Threaded 1/4"-20 hole on the bottom of handle for mounting onto photography equipment

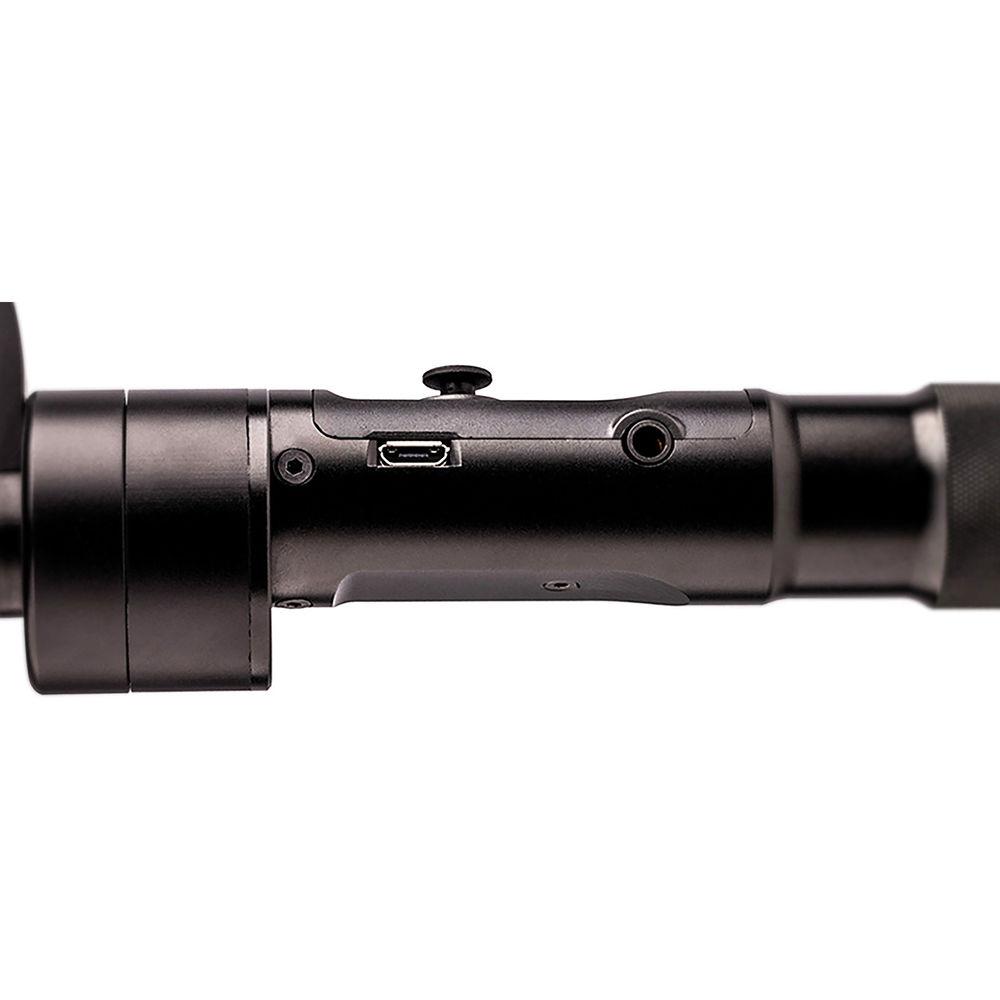

  • Video output available via 3.5mm jack
  • Seven to twelve hours of extended battery life
  • GoPro can be charged directly from the gimbal power

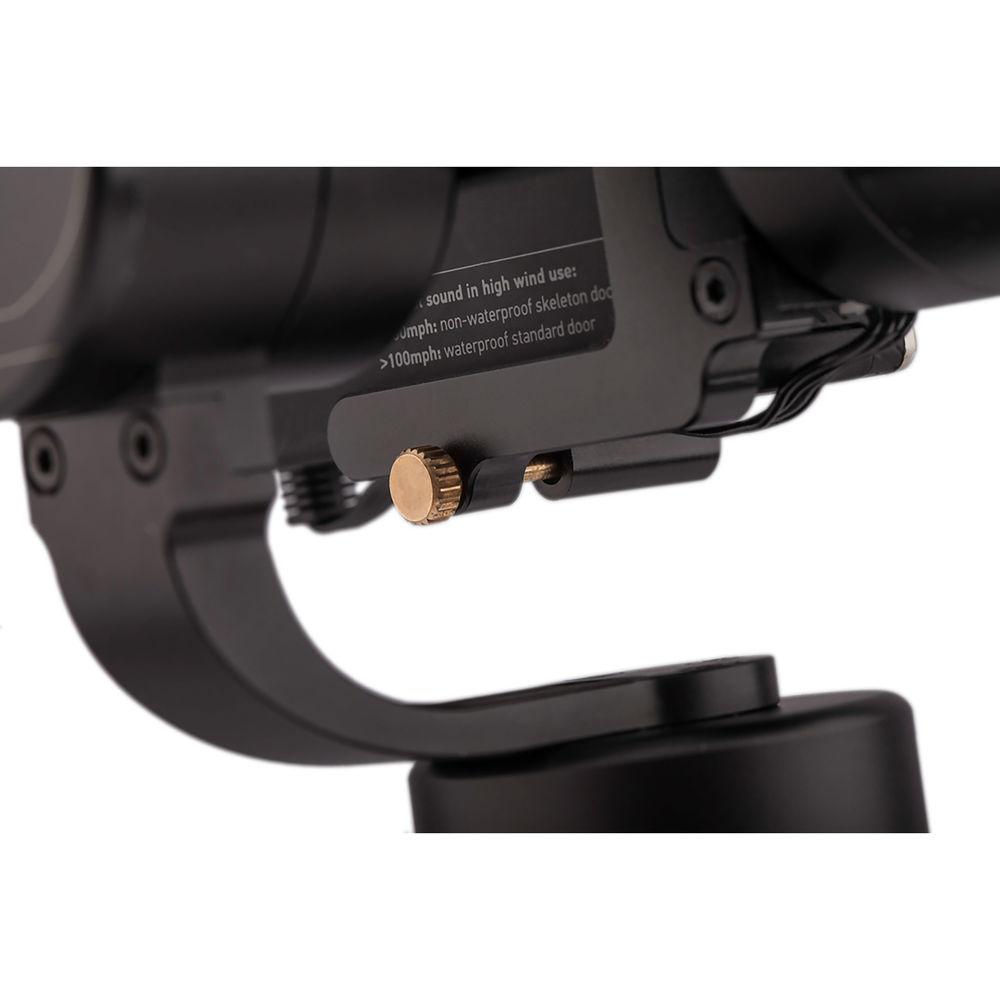

  • Thumbscrews enable quick release of camera bracket
  • Non-GUI interface
  • Plug-and-play ready
  • Supports addition of GoPro LCD BacPac to the camera

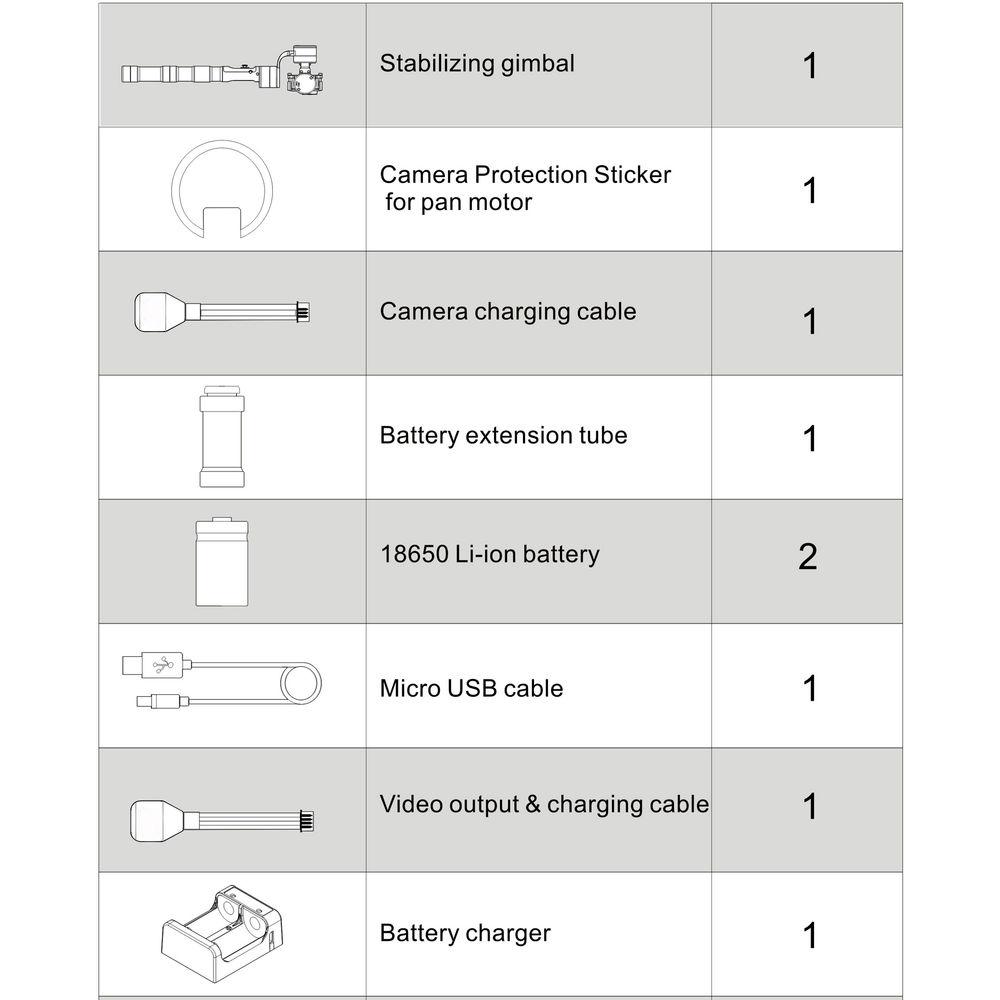

UPC: 856738006087 In the Box KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer
  • Camera Protection Sticker for Pan Motor
  • Camera Charging Cable
  • Battery Extension Tube
  • 2 x 18650 Li-ion Battery
  • Micro-USB Cable
  • Video Output and Charging Cable
  • Battery Charger
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the KumbaCam 3-Axis Handheld GoPro Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    KumbaCam KC1039 Specs

    Input Voltage Minimum: 6.8 V
    Maximum: 12.6 V
    Operating Current Minimum: 50 mAh
    Standard: 80 mAh
    Maximum: 3000 mAh
    Charging Voltage Camera
    Minimum: 4.5 V
    Standard: 4.9 V
    Maximum: 5.1 V
    Charging Current Camera
    Standard: 800 mAh
    Error Level Static Altitude Tracking Error
    Minimum: ±0.01
    Maximum: ±0.04

    Dynamic Altitude Tracking Error
    Minimum: ±0.05
    Standard: ±0.1
    Maximum: ±0.3
    Range of Movement Pitch Axis Mechanical
    Vertical: -185° (minimum), +130° (maximum)

    Roll axis Mechanical
    -40° (minimum), 40° (maximum)

    Pan Axis Mechanical
    Vertical: -160° (minimum), +160° (maximum)
    Horizontal: -45° (minimum), +45° (maximum)
    Pitch Following Rate Minimum: 1°/s
    Maximum: 50°/s
    Panning Following Rate Minimum: 1°/s
    Maximum: 80°/s
    Operating Temperature Minimum: -4°F (-20°C)
    Standard: 77°F (25°C)
    Maximum: 122°F (50°C)
    Battery Life Minimum: 11 hours
    Standard: 13 hours
    Maximum: 15 hours
    Dimensions (W x H) 3.7 x 30.2" (95.0 x 301.6 mm)

    Max Size of Supported Camera
    1.2 x 4.3" (31.0 x 42.7 mm)
    Weight 10.9 oz (310 g)
    Package Weight 1.85 lb
    Box Dimensions (LxWxH) 13.1 x 5.1 x 2.3"
