KumbaCam Advanced FPV Monitor Kit

Search your instruction manual in PDF to download

User Manual for KumbaCam Advanced FPV Monitor Kit

Click to enlarge the picture
KumbaCam Advanced FPV Monitor Kit Contents of the user manual for the KumbaCam Advanced FPV Monitor Kit
  • Product category: FPV (First Person View) Components KumbaCam
  • Brand: KumbaCam
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for KumbaCam FPV (First Person View) Components

KumbaCam Advanced FPV Monitor Kit KumbaCam Advanced FPV Monitor Kit KumbaCam Advanced FPV Monitor Kit
User manual for the KumbaCam Advanced FPV Monitor Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any KumbaCam product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official KumbaCam user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a KumbaCam product will considerably shorten its lifespan!



Product description

Monitor a live feed from your GoPro or other aircraft-mounted action camera at ranges of up to 1300' line-of-sight with the Advanced FPV Monitor Kit. The kit includes a 7", 1024 x 600 resolution monitor with integrated 5.8 GHz diversity receiver, an aircraft-mounted transmitter, car and AC chargers for the monitor battery, touch-fastener for mounting, and a case to pack it all away in. Its radio system boasts an open area range of up to 500', and supports both PAL and NTSC signals.

On the air-end, a 950 mAh, 2S LiPo batteries for powering the transmitter is included. In some cases, the battery can alternatively power from the flight battery - the difference in battery life is usually negligible. In the case of the DJI Phantom 2, the Plug-N-Play (PNP) adapter (available separately) is required to tap into the flight battery. The transmitter batteries included will charge from the original Phantom 1 charger or another 2S LiPo charger - in either case, the charger is available separately. The video input includes a USB-mini adapter that works with the GoPro HERO3, HERO3+, and HERO4. For other camera models, a separately available adapter or custom spliced cable is required.

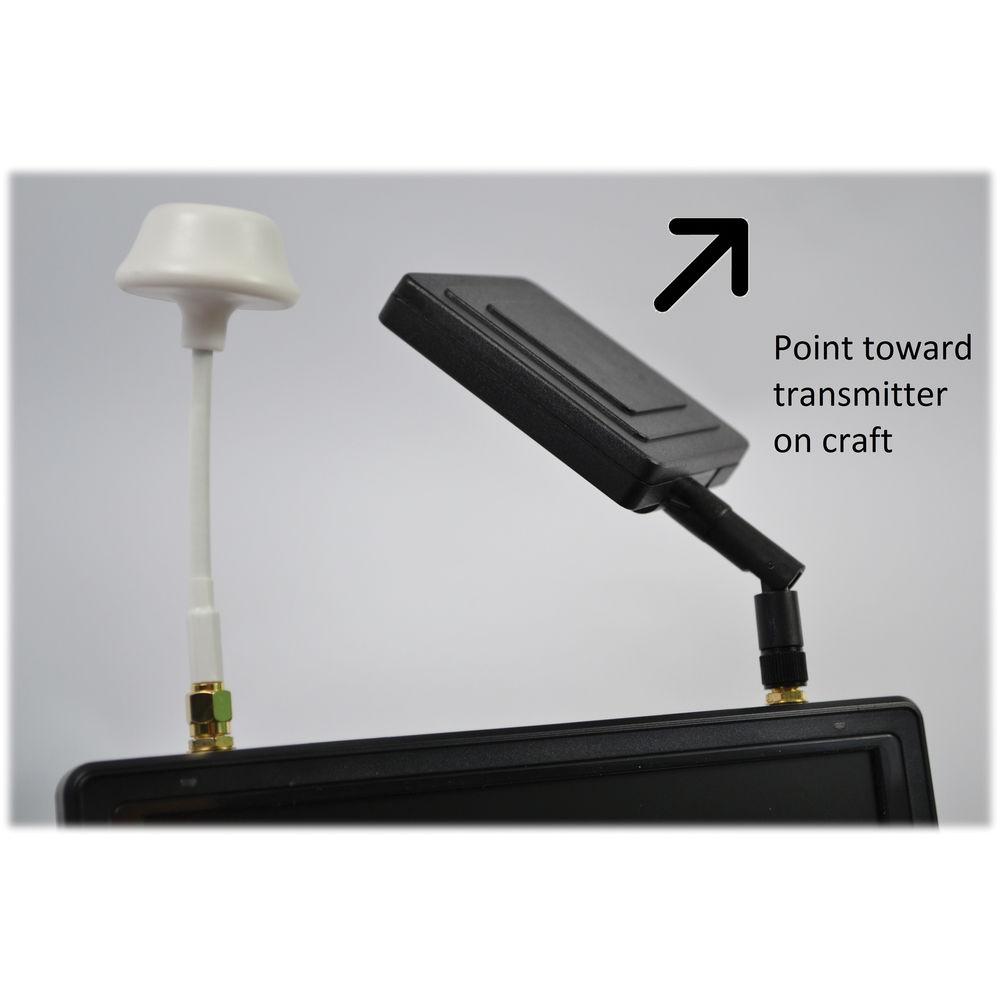

  • Diversity antennas on receiver for better reception (LED indicates antenna with best signal)
  • Monitor battery lasts 1.5 to 2 hours when receiving a signal
  • AC and car chargers included for monitor battery
  • Receiver batteries charge from Phantom 1 charger (available separately)
  • Includes monitor bracket for mounting on DJI and Futaba-style transmitters (radio controllers)
  • Includes touch-fastener for mounting transmitter on aircraft
  • Includes carry cases for monitor and included accessories

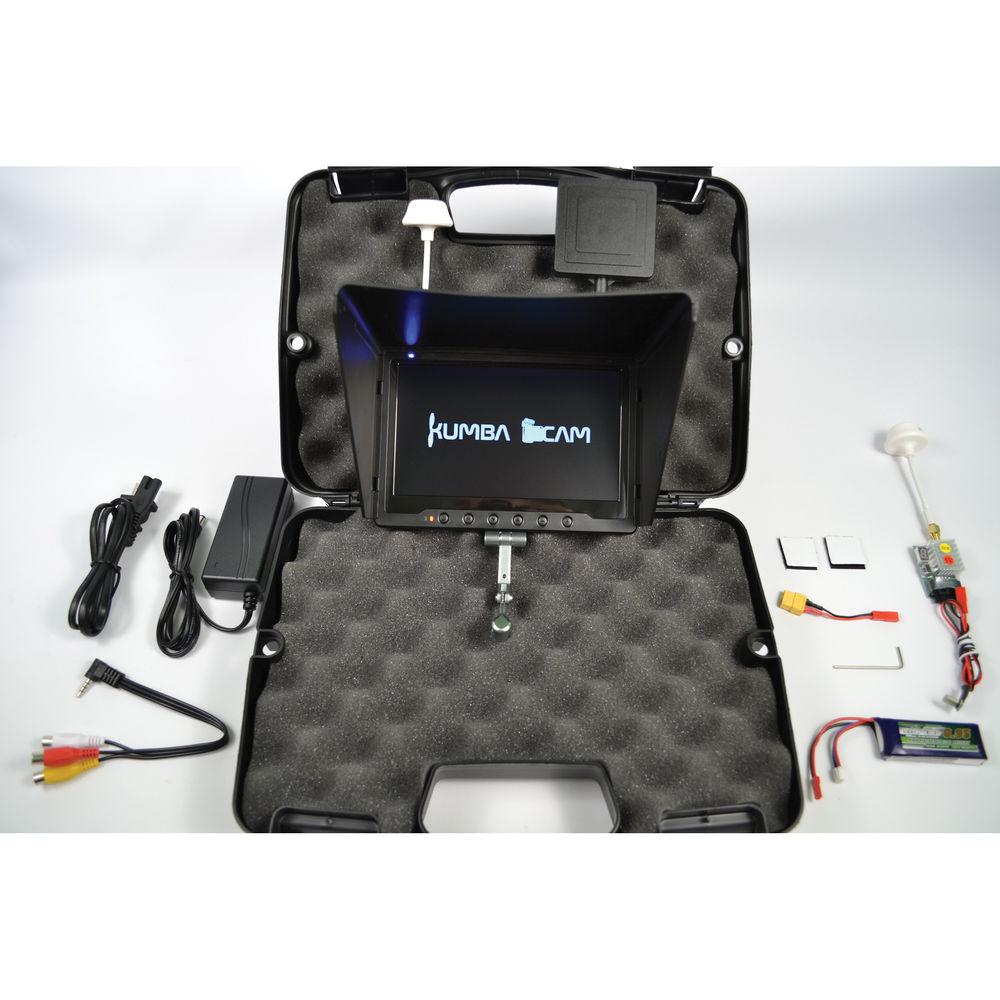

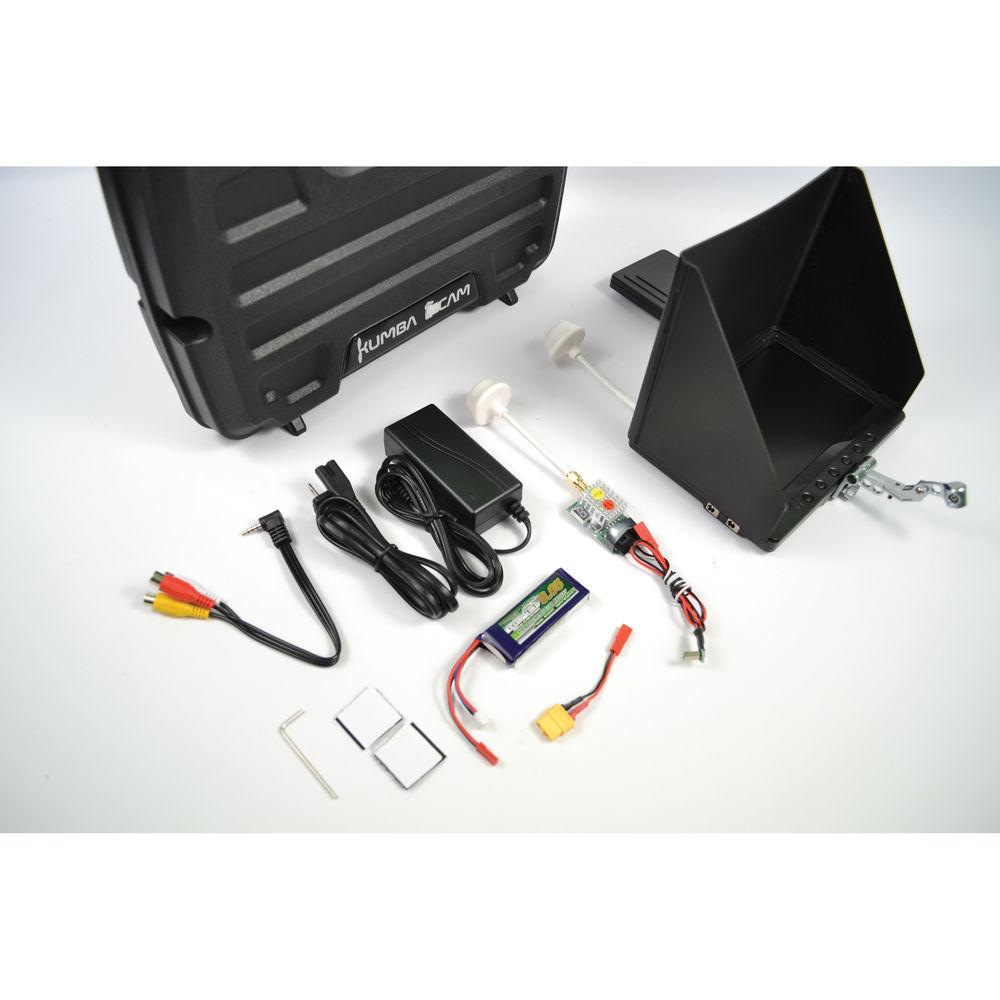

In the Box KumbaCam Advanced FPV Monitor Kit
  • AC Charger for Monitor
  • Sun Shade
  • Monitor Bracket for Transmitters with Futaba/DJI-Style Mounts
  • 5.8 GHz Video Transmitter
  • Plastic Case with Foam
  • 3 x Cloverleaf Antennas
  • Allen Key
  • 950 mAh LiPo Transmitter Battery
  • Charge Lead (to Charger Transmitter Battery with DJI Phantom 1 Charger)
  • Touch-Fastener for Transmitter Mounting
  • Limited 1-Year Warranty
