User Manual for KumbaCam Basic FPV Monitor Kit Click to enlarge the picture
Contents of the user manual for the KumbaCam Basic FPV Monitor Kit
- Product category: FPV (First Person View) Components KumbaCam
- Brand: KumbaCam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KumbaCam FPV (First Person View) Components
 |
User manual for the KumbaCam Basic FPV Monitor Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KumbaCam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KumbaCam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KumbaCam product will considerably shorten its lifespan!
|

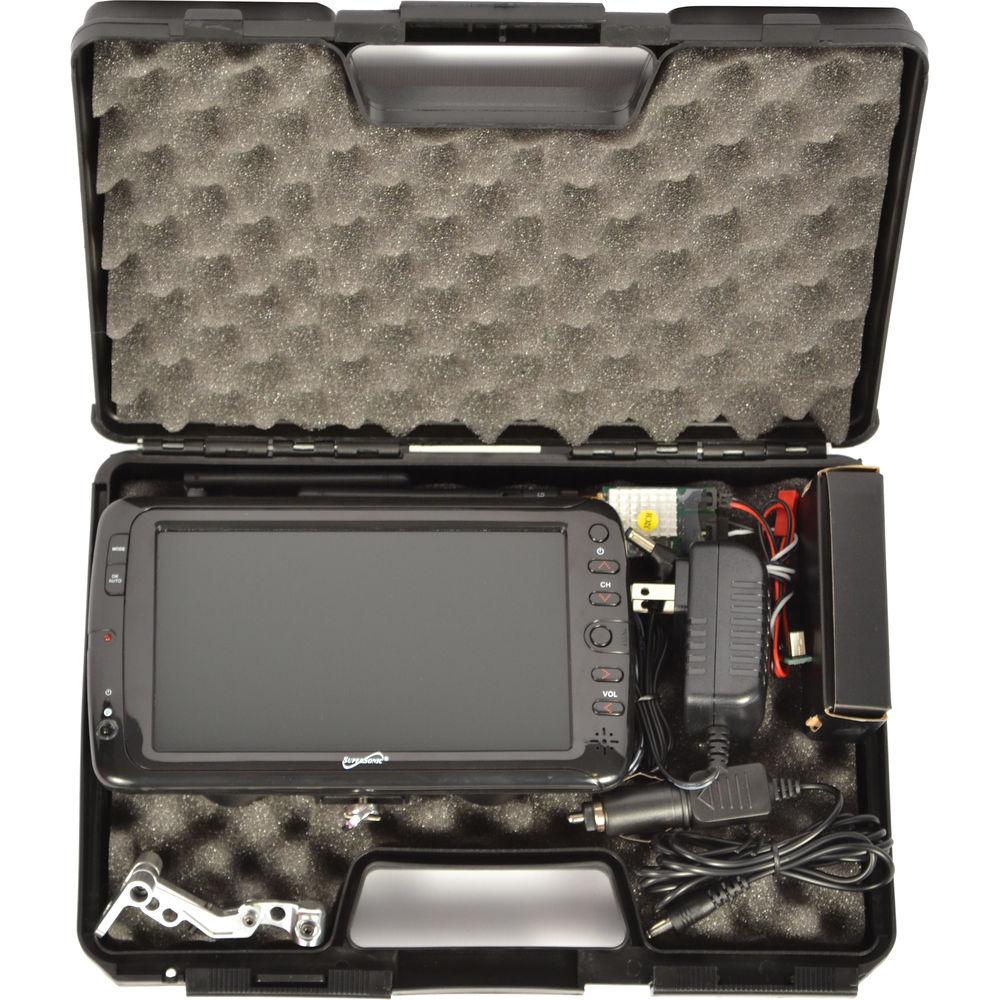

Product description Monitor a live feed from your GoPro or other aircraft-mounted action camera with the Basic FPV Monitor Kit from KumbaCam. The kit includes a 7" monitor with integrated 5.8 GHz receiver, an aircraft-mounted transmitter, car and AC chargers for the monitor battery, touch-fastener for mounting, and a hard case to pack it all away in. Its radio system boasts an open area range of up to 500', and supports both PAL and NTSC signals.
On the air-end, a 2S 460mAh battery is included that can be optionally used to power the transmitter. In some cases, the battery can alternatively power from the flight battery - the difference in battery life is usually negligible. In the case of the DJI Phantom 2, the Plug-N-Play (PNP) adapter (available separately) is required to tap into the flight battery. The transmitter battery will charge from the original Phantom 1 charger or another 2S LiPo charger - in either case, the charger is available separately. The video input includes a USB-mini adapter that works with the GoPro HERO3, HERO3+, and HERO4. For other camera models, a separately available adapter or custom spliced cable is required. - Monitor battery lasts 1.5 to 2 hours when receiving a signal
- AC and car chargers included for monitor battery
- Receiver battery charges from Phantom 1 charger (available separately)
- Includes monitor bracket for mounting on DJI and Futaba-style transmitters (radio controllers)
- Includes touch-fastener for mounting transmitter on aircraft
- Includes hard carry cases for monitor and included accessories

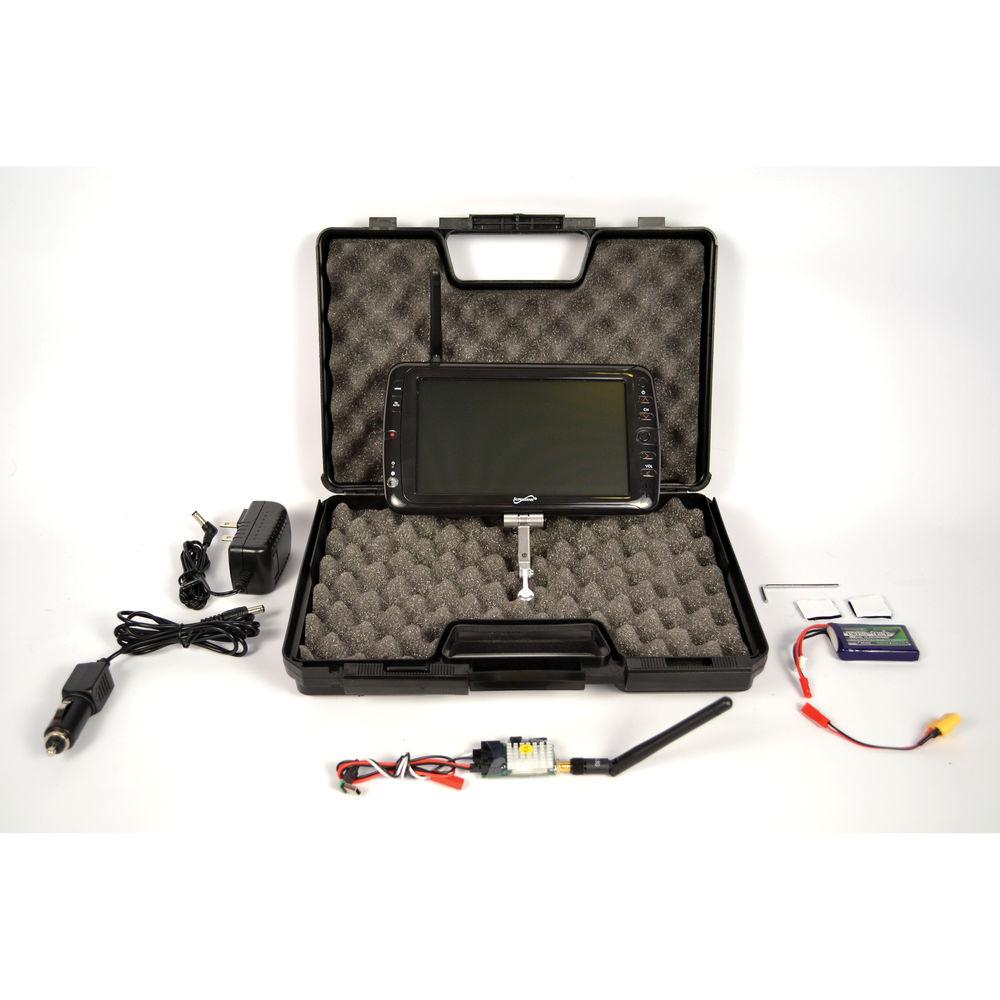

UPC: 701748994674 In the Box KumbaCam Basic FPV Monitor Kit AC Charger for Monitor Battery Car Charger for Monitor Battery Transmitter Mounting Bracket (Futaba/DJI Transmitters) 5.8 GHz Transmitter (with Detachable Antenna) Allen Key Power Adapter (to Charge Transmitter Battery on DJI Phantom 1 Charger) 460 mAh 2S LiPo Transmitter Battery Touch Fastener (for Mounting Transmitter) Mini-USB Video Adapter (for GoPro HERO3 and Later) Hard Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KumbaCam Basic FPV Monitor Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKumbaCam KC1001 Specs | | | Size | 7" | | Resolution | Not specified by manufacturer | | Supported Standards | NTSC/PAL | | Power Requirements | Internal battery or external 12V DC source | | | | Frequency | 5.8 GHz | | Range | Up to 500' / 150 m open area | | Video Signal | Analog: NTSC/PAL | | | | Frequency | 5.8 GHz | | Transmit Power | 200 mW | | Video Signal | Analog: NTSC/PAL | | Power Requirements | Supplied LiPo battery or aircraft flight battery
Note: Transmitter battery requires separately available Phantom 1 charger or equivalent
Note: Powering from the Phantom 2 flight battery requires the separately available Plug-n-Play (PNP) adapter | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 11.9 x 8.4 x 2.7" |
