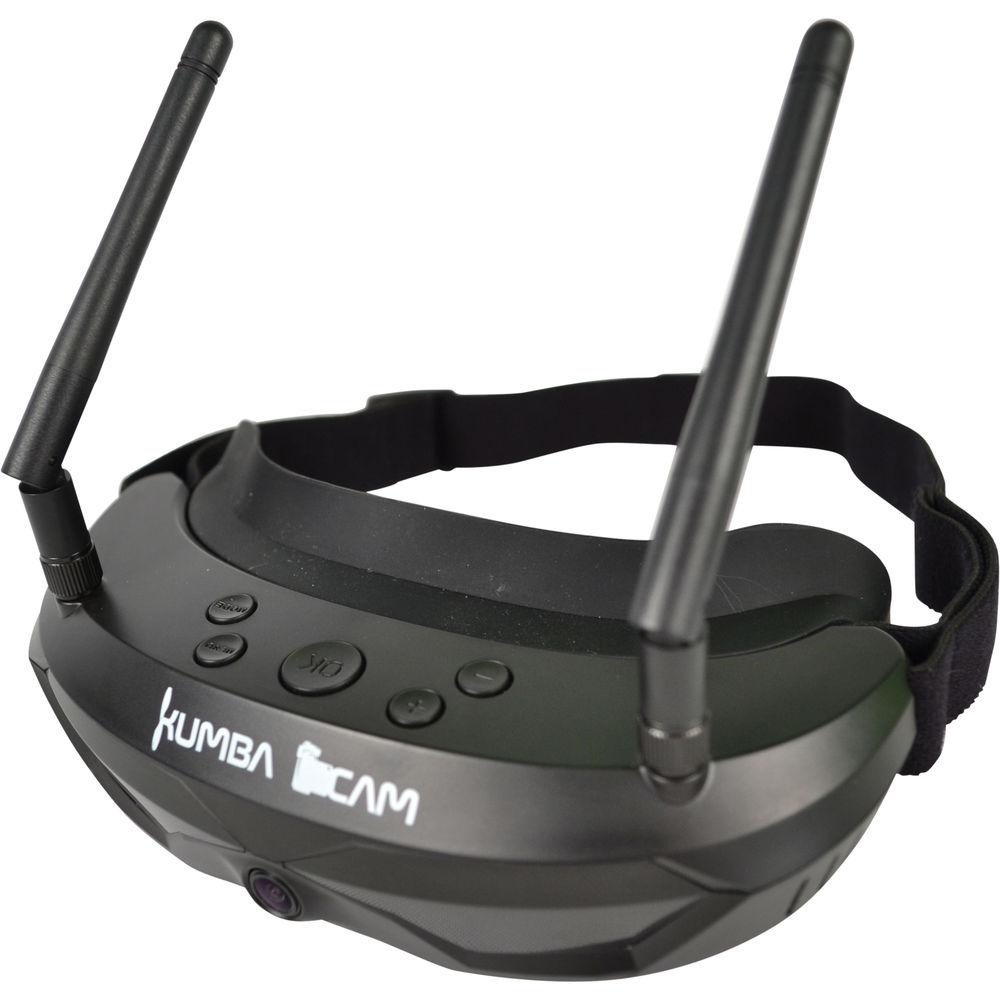

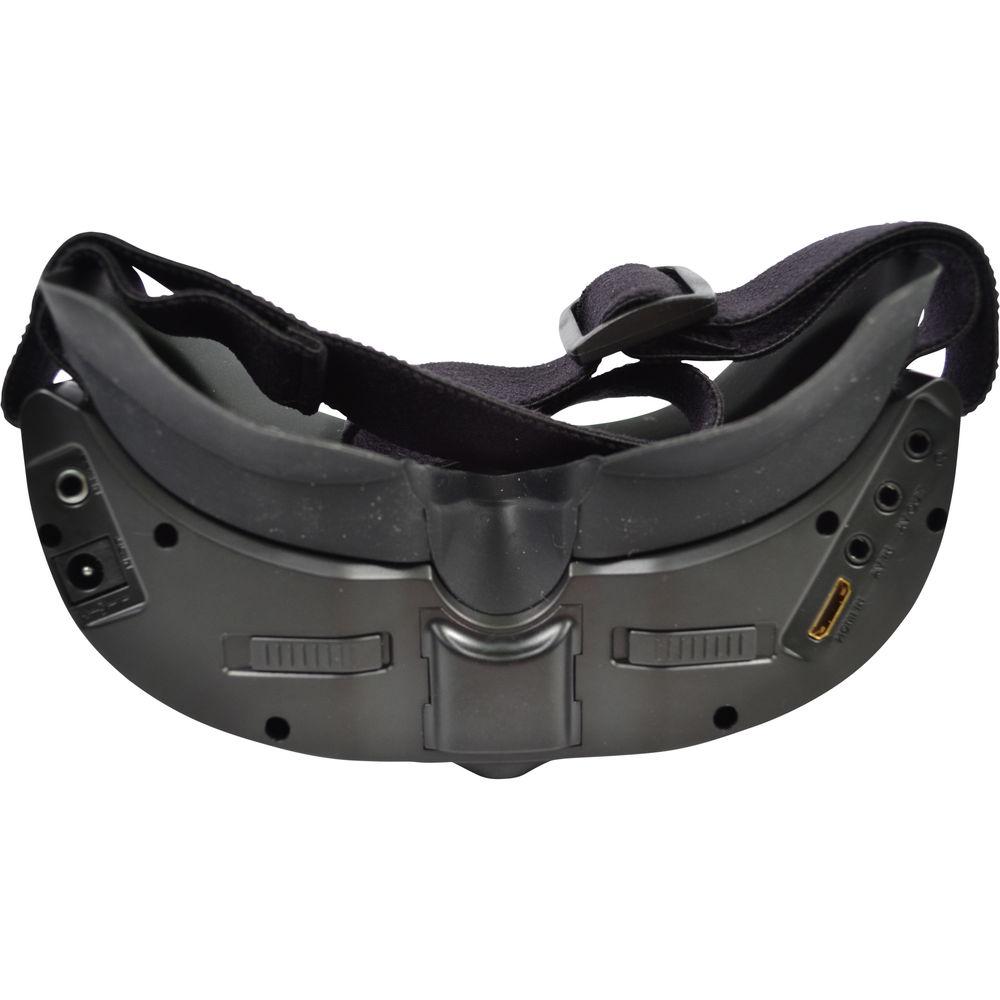

Product description The FPV Goggle Kit for Select Quadcopters for iPhone / iPad from Kumbacam features a pair of FPV goggles that have a built-in wireless 5.8 GHz video receiver. The goggles allows you to view a live feed from your aircraft's camera, giving you a first-person perspective on the action. The goggles feature a resolution of 854 x 480 (WVGA) and will work with composite A/V as well as HDMI sources. - Built-in front-facing camera allows you can see what's happening around you
- Picture-in-Picture Function allows you to see image from front camera superimposed over feed from aircraft camera
- HDMI input with support for resolutions up to 1080p at 60 Hz
- Diversity receiver with 32-channels (4 bands)
- Battery and charger included

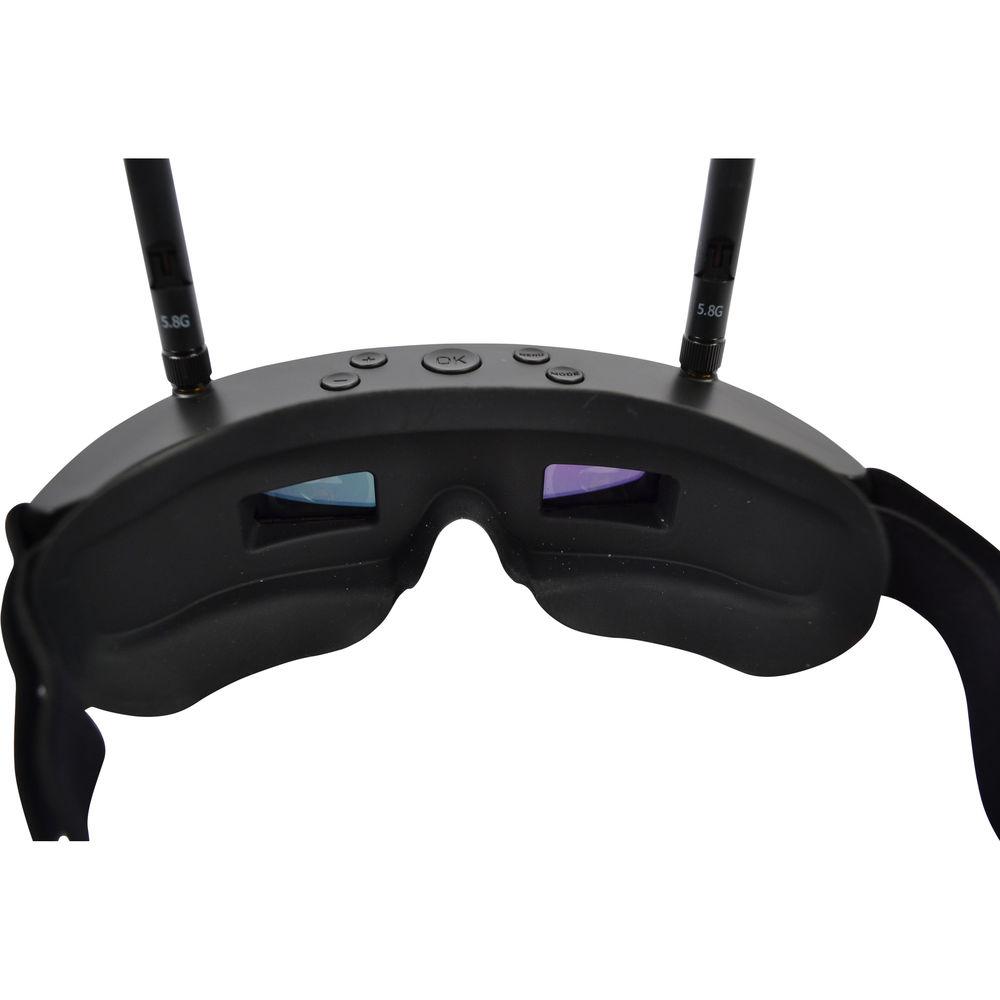

- Adjustable interpupillary distance
- Works with custom lens inserts for glasses/contacts wearers in -2, -4, -5 and -6 diopters (available separately)
- Compatible Drones
-
- DJI Inspire 1 (works with stock Inspire 1)
- DJI Phantom 2 (while using a separately available 5.8G video downlink)
- DJI Phantom 2 Vision
- DJI Phantom 2 Vision+
- Yuneec Typhoon Q500 / Q500+ / Q500 4K

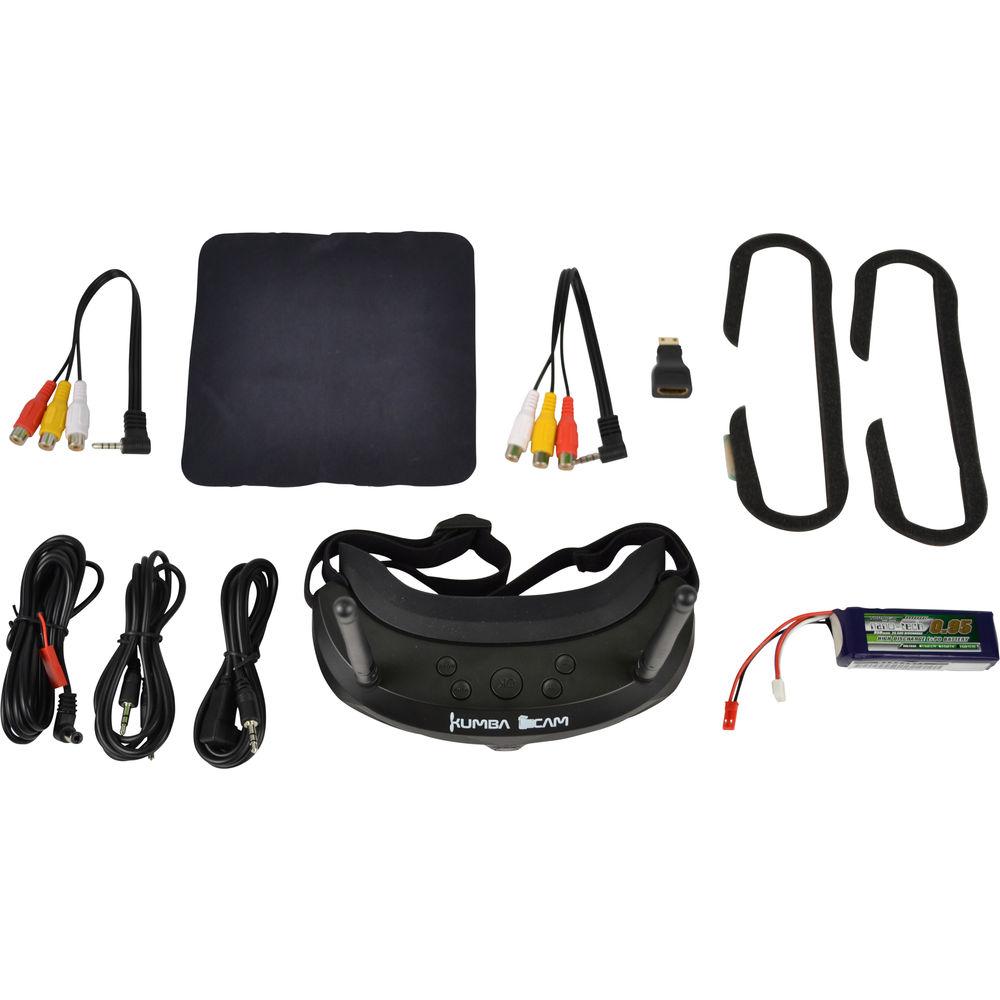

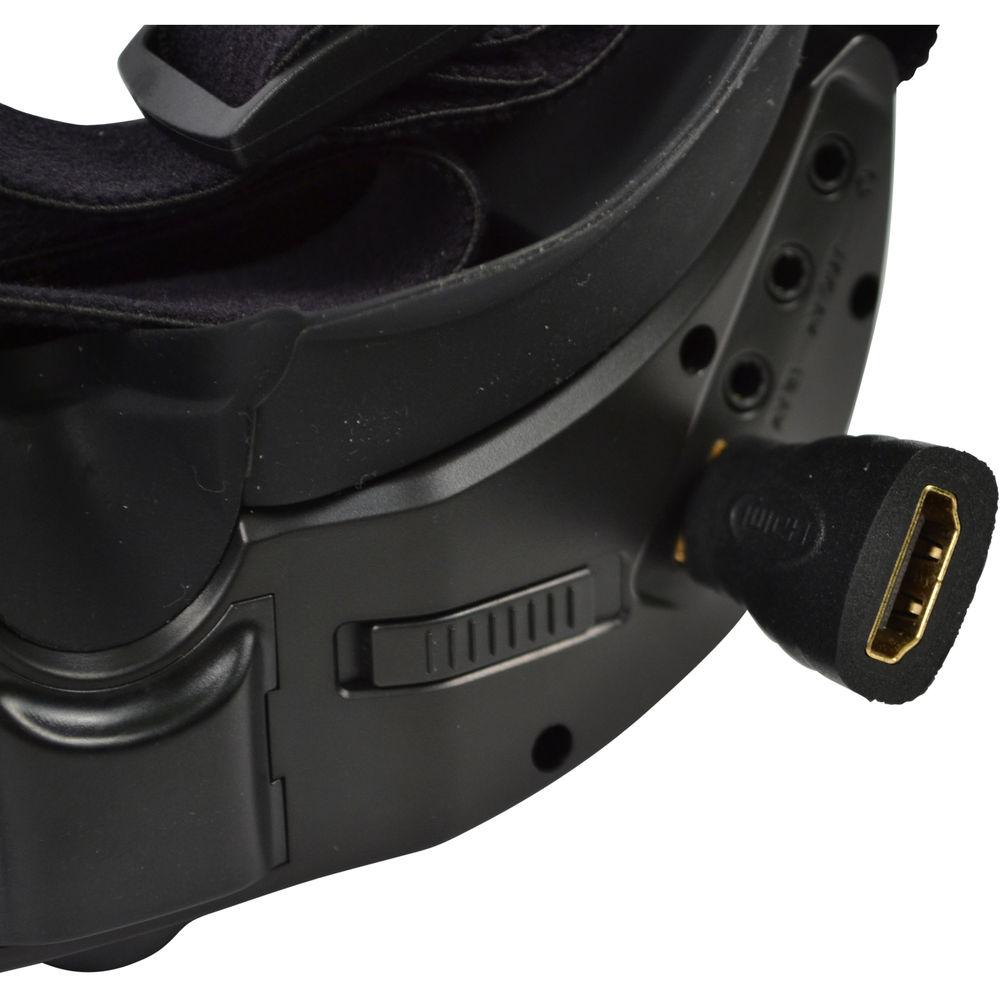

UPC: 701748994643 In the Box KumbaCam FPV Goggle Kit for Select Quadcopters (iPhone / iPad Adapter) 2 x Face Foam 2 x A/V (3 x RCA) to 3.5mm Adapter 2 x PPM Adapter HDMI Cable HDMI Adapter iPhone (Lightning) to HDMI Adapter Battery with Arm Strap Battery Charger Table of Contents
|
Upload User Manual
Have you got an user manual for the KumbaCam FPV Goggle Kit for Select Quadcopters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

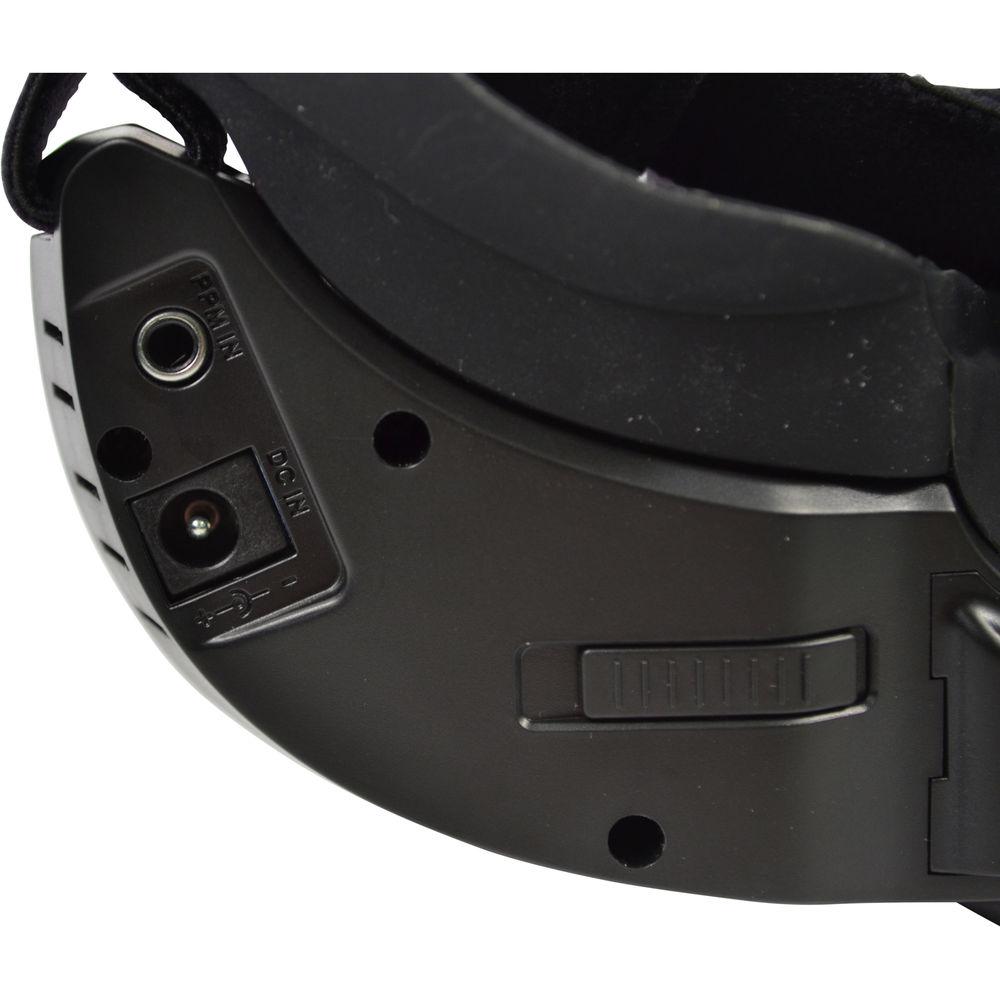

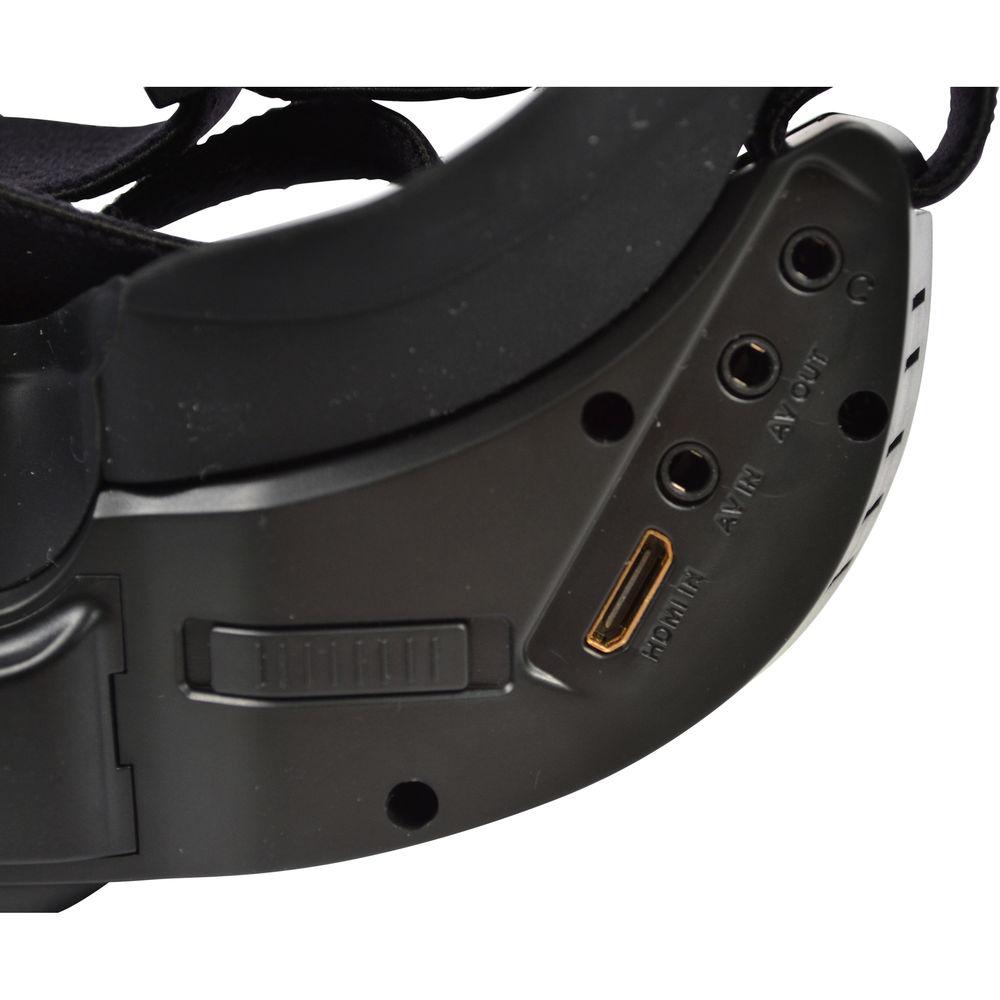

Technical parametersKumbaCam KC1024 Specs | Lens | FOV: 100° | Resolution | 640 x 480 (VGA) | | Resolution | 854 x 480 (WVGA) | FOV (Diagonal) | 30° | Brightness | 350 cd/m2 | Interpupillary Distance | 2.3 to 2.7" / 59.5 to 69.5 mm (adjustable) | Supported Signals | HDMI: Up to 1920 x 1080 at 60 Hz | | Frequency | 5.8 GHz | Sensitivity | -90 to 1 dBm | Number of Channels | 32 (4 bands x 8 channels) | Antenna Ports | 2 x RP-SMA, 50 Ohms | Diversity | Supported | Supported Standards | NTSC / PAL | | Inputs | 1 x Composite A/V on 3.5 mm connector 1 x HDMI 1 x PPM | Outputs | 1 x Composite A/V on 3.5 mm connector 1 x Headphone on 3.5 mm connector | | Package Weight | 2.8 lb | Box Dimensions (LxWxH) | 12.1 x 5.7 x 5.5" |
