User Manual for Kupo 40" Hex Grip Arm with Big Handle Click to enlarge the picture
Contents of the user manual for the Kupo 40" Hex Grip Arm with
- Product category: Extension Arms Kupo
- Brand: Kupo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kupo Extension Arms
 |
User manual for the Kupo 40" Hex Grip Arm with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kupo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kupo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kupo product will considerably shorten its lifespan!
|

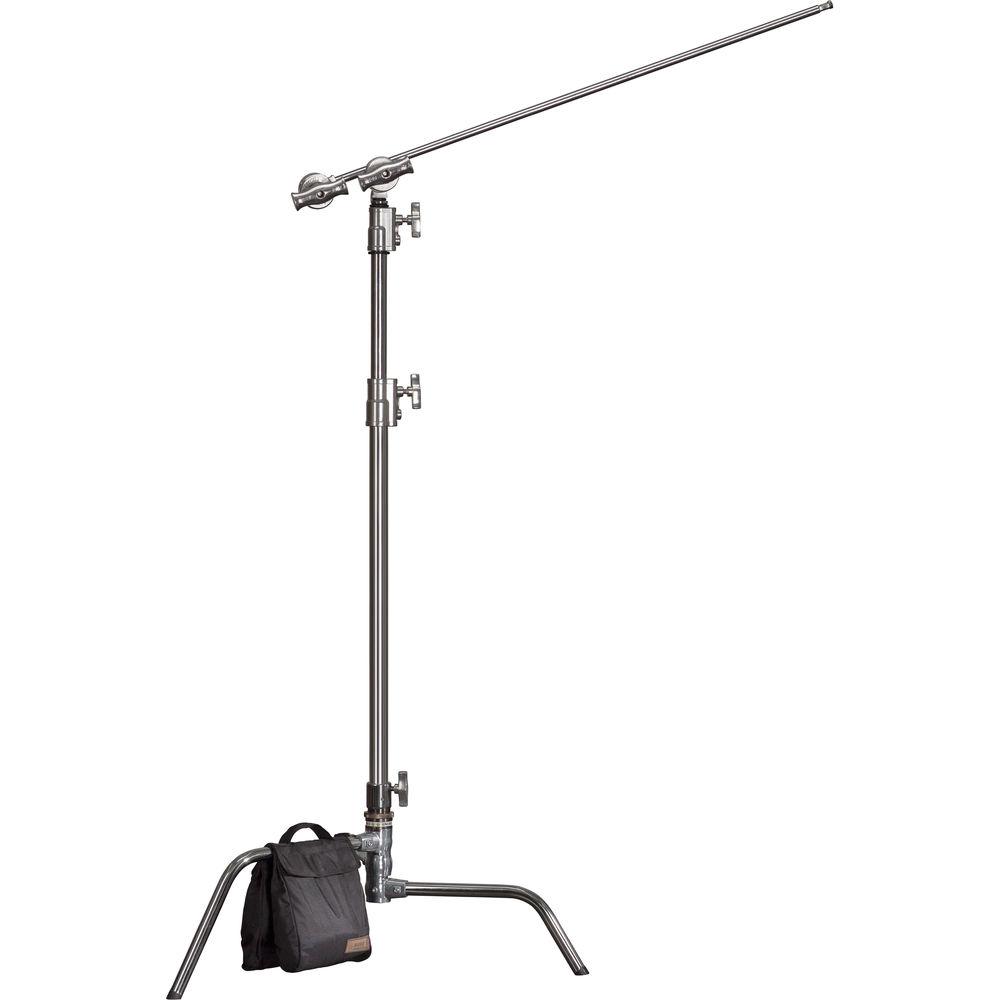

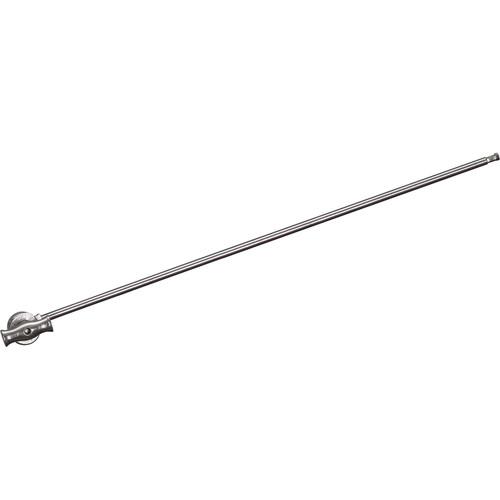

Product description With a silver machined finish, the Kupo 40" Hex Grip Arm with Big Handle has a 2-1/2" grip head mounted on the end of a 40" piece of steel tubing, which is 5/8" (16mm) in diameter. The surface of the tubing is machined to create a rough texture to ensure a non-slippery surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have 4 different sized V-shaped jaws to accept any accessory with a 5/8, 1/2, 3/8, or 1/4" mounting stud or tubing.

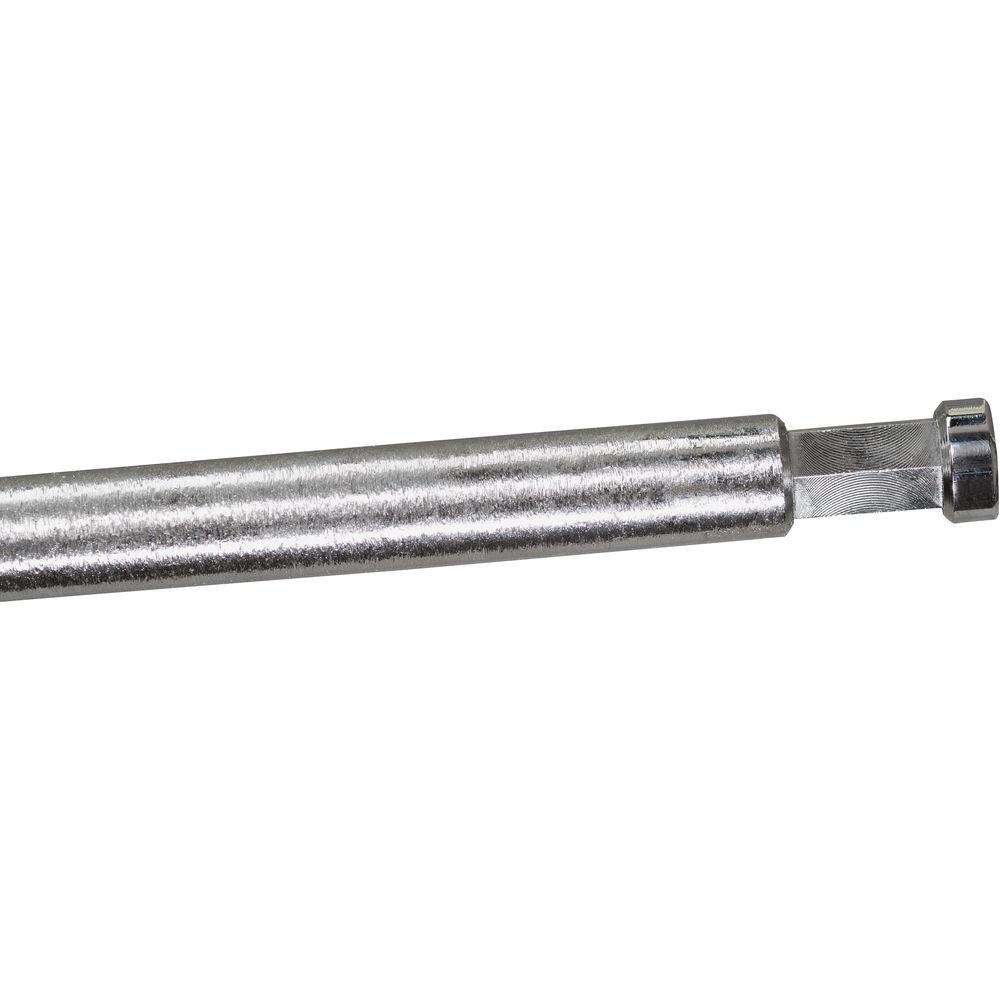

The V-shaped jaws feature teeth that securely grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T-handle and dedicated roller bearings designed for maximum torque. At the end of the 40" grip arm, you will find a baby hex-pin with 6 milled flat surfaces.

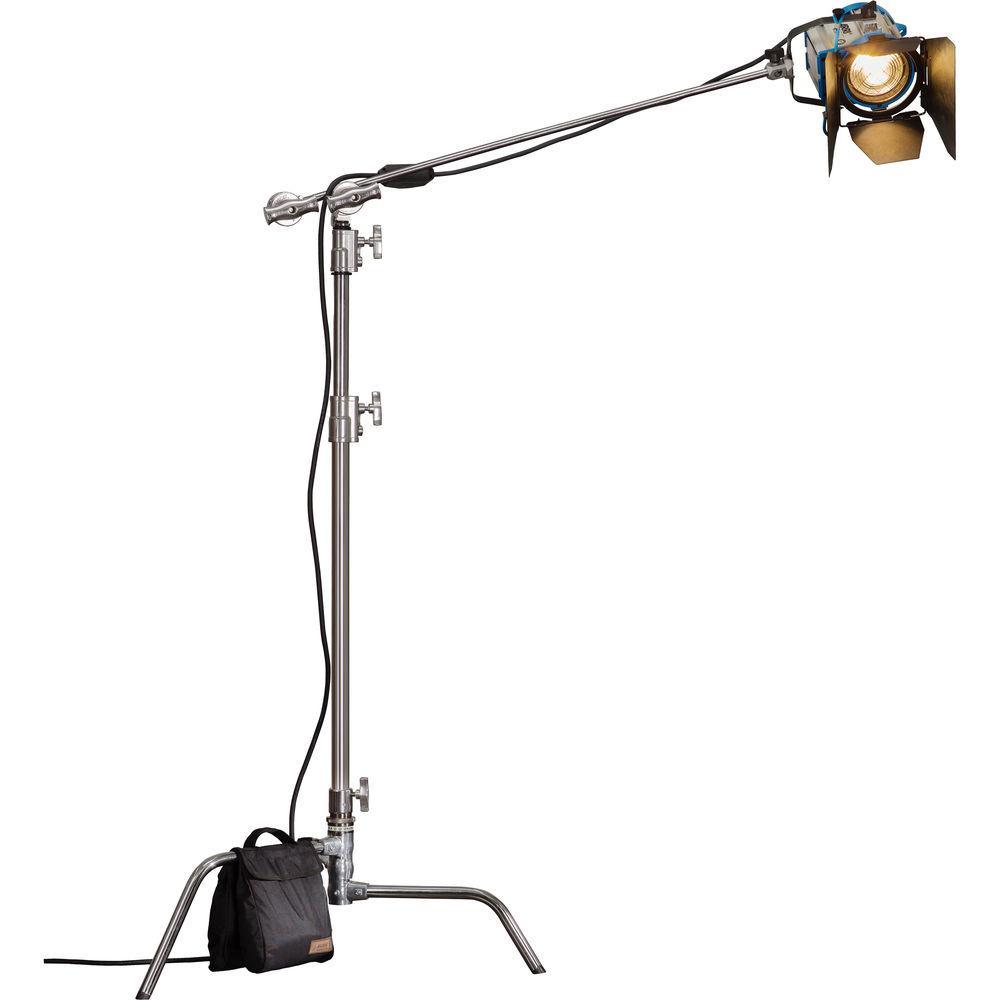

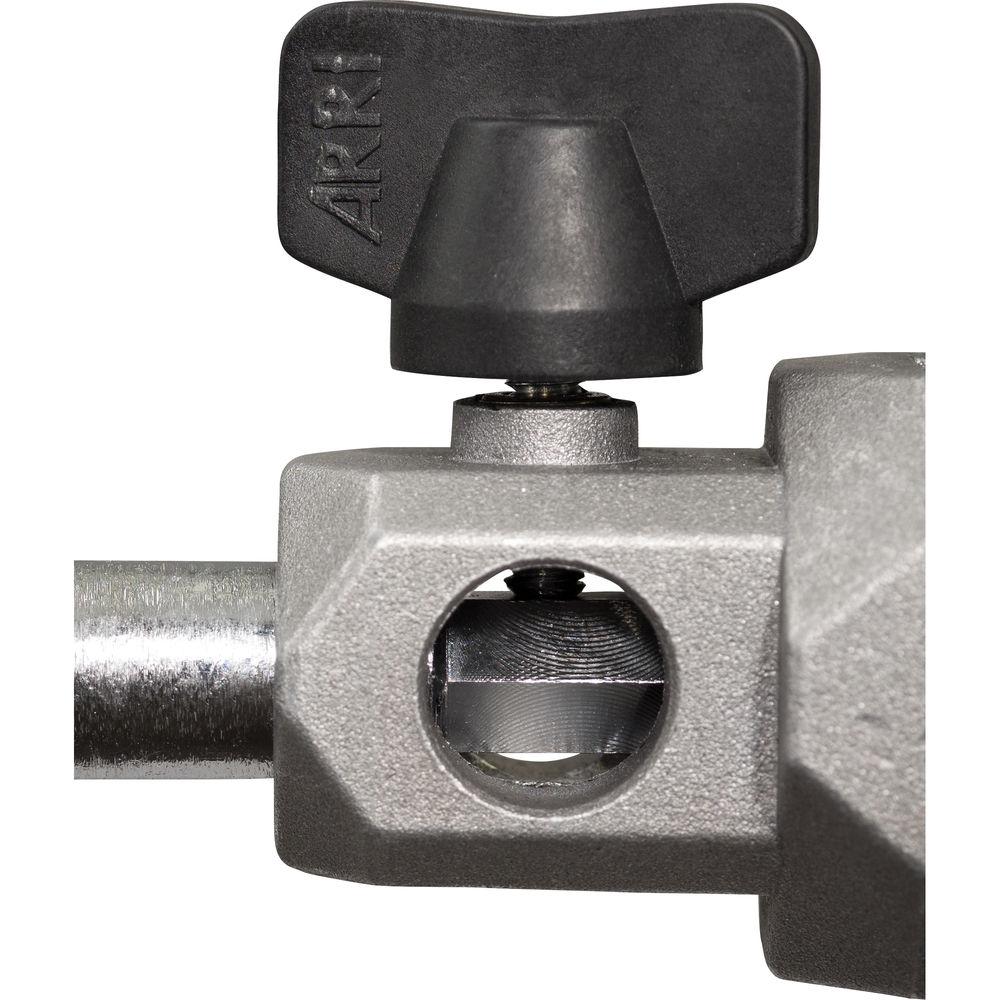

You can mount your light fixtures or accessories on the end of your grip arm like a mini boom. They won't rotate due to the set-screw of that fixture or accessory, locking onto one of the sides of the hex-pin. The grip head uses a non-slip aluminum friction disc that maintains its durability over time, offering the user positive locking strength and precise control. The grip head is constructed around a solid steel central bolt with a fixed solid pin to secure it to the aluminum casting for increased strength and durability. In the Box Kupo 40" Hex Grip Arm with Big Handle (Silver) Limited 2-Year Warranty, Extendable to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Kupo 40" Hex Grip Arm with Big Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKupo KG203711 Specs | Material | Primary: Aluminum
Secondary: Steel bar | | Diameter | Jaw:
Minimum: 0.25" (6.35 mm) Maximum: 0.62" (16.00 mm) | | Dimensions (L x H x W) | 42.8 x 2.5 x 6.2" (108.6 x 6.4 x 15.7 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 43.6 x 6.5 x 3.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
