Product description

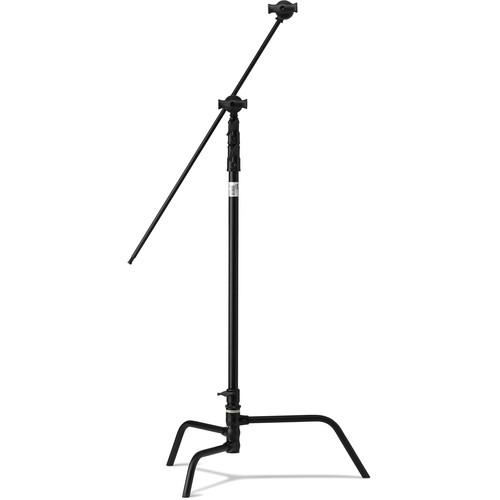

• Master C-Stand with Turtle Base (Black, 9.7') The black, 9.7' Master C-Stand with Turtle Base from Kupo is used for mounting lighting equipment and a variety of light-shaping tools and accessories.The C-Stand is a steel support with two risers and three sections that fully extend to a height of 9.7'. One great feature is the "turtle" base that detaches completely from the riser, allowing you to mount a light to it. The base has the classic wide, stable "C"-type legs that accommodate easy sandbagging and straddling of obstacles, folding flat for easy transport and storage. The detached riser can be used like a "trombone" or telescoping arm with the addition of the appropriate clamp or accessory. This 40" C-Stand features a 5/8" Baby Stud and patented ring-locking system that enables fast setup and breakdown.
• 2-1/2" Grip Head With Big Handle (Black Powder-Coated Finish) The 2-1/2" Grip Head With Big Handle from Kupo has four V-shaped jaws, an ergonomic oversized T-shaped handle with dedicated roller bearings for maximum torque, and a non-slip aluminum friction disc. This durable grip head is made of aluminum and steel and has a black powder-coated finish.
  • Four V-shaped jaws
  • Oversized T-shaped handle with dedicated roller bearings
  • Non-slip aluminum friction disc
• 40" Hex Grip Arm with Big Handle (Silver) With a silver machined finish, the Kupo 40" Hex Grip Arm with Big Handle has a 2-1/2" grip head mounted on the end of a 40" piece of steel tubing, which is 5/8" (16mm) in diameter. The surface of the tubing is machined to create a rough texture to ensure a non-slippery surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have 4 different sized V-shaped jaws to accept any accessory with a 5/8, 1/2, 3/8, or 1/4" mounting stud or tubing.

  The V-shaped jaws feature teeth that securely grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T-handle and dedicated roller bearings designed for maximum torque. At the end of the 40" grip arm, you will find a baby hex-pin with 6 milled flat surfaces.

  You can mount your light fixtures or accessories on the end of your grip arm like a mini boom. They won't rotate due to the set-screw of that fixture or accessory, locking onto one of the sides of the hex-pin. The grip head uses a non-slip aluminum friction disc that maintains its durability over time, offering the user positive locking strength and precise control. The grip head is constructed around a solid steel central bolt with a fixed solid pin to secure it to the aluminum casting for increased strength and durability.

• Limited 2-Year Warranty

• Limited 3-Year Warranty Extension After Online Registration

• 5-Year Warranty

• Limited 2-Year Warranty, Extendable to 5 Years with Registration

Also Includes

• Limited 2-Year Warranty
• Limited 5-Year Warranty Extension after Online Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Master C-Stand with Turtle Base (Black, 9.7')

  Load Capacity	22 lb / 10 kg
  Mounting Options	5/8" Stud
  Number of Sections	3
  Column Diameter	0.98" / 2.5 cm 1.18" / 3 cm 1.38" / 3.5 cm
  Maximum Working Height	9.7' / 295 cm
  Minimum Working Height	52.8" / 134 cm
  Collapsed Height	52.8" / 134 cm
  Footprint Diameter	39.37" / 100 cm
  Leg Shape	Round
  Air Cushioned	No
  Detachable Base	Yes
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Steel
  Weight	16.5 lb / 7.5 kg

  Box Dimensions (LxWxH)	53.2 x 14.0 x 14.0"

• 2-1/2" Grip Head With Big Handle (Black Powder-Coated Finish)

  Construction	Aluminum and steel
  Dimensions (LxWxH)	7.38 x 3.92 x 2.79" (18.73 x 9.96 x 7.08 cm)
  Weight	1.72 lb (0.78 kg)

  Box Dimensions (LxWxH)	8.0 x 4.4 x 2.9"

• 40" Hex Grip Arm with Big Handle (Silver)

  Material	Primary: Aluminum Secondary: Steel bar
  Diameter	Jaw: Minimum: 0.25" (6.35 mm) Maximum: 0.62" (16.00 mm)
  Dimensions (L x H x W)	42.8 x 2.5 x 6.2" (108.6 x 6.4 x 15.7 cm)
  Weight	3.0 lb (1.4 kg)

  Box Dimensions (LxWxH)	43.6 x 6.5 x 3.0"
