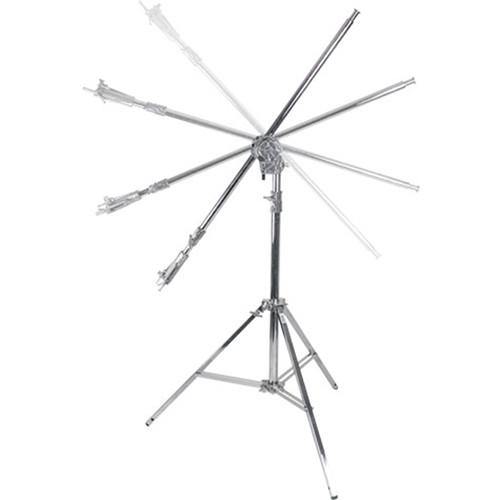

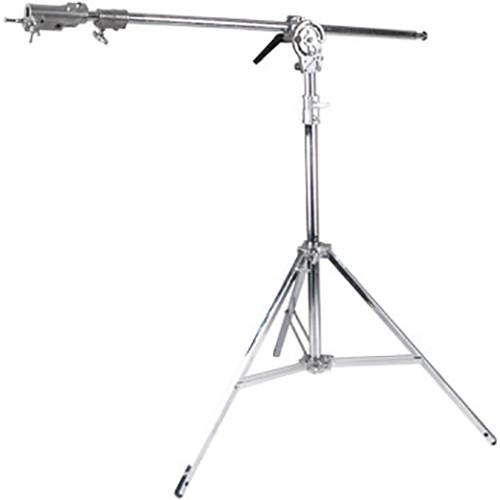

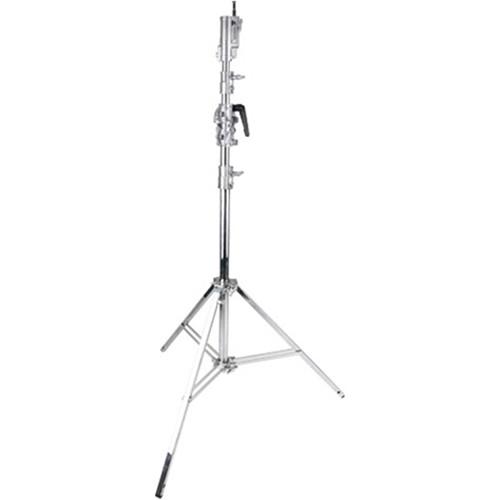

Product description Featuring a pivoting collar with adjustable level handle, the 546M K Stand from Kupo functions as a standard light stand or as a junior boom arm, with one leveling leg for stable use on uneven terrain. Ideal for supporting medium-sized light fixtures with an attached softbox or umbrella, the K Stand's four-section design offers a maximum height of 200", and a minimum height of 65.4". When used in boom configuration, the boom arm extends from 61 to 100", with a load capacity of 66 lb at minimum extension and 17.6 lb at maximum extension.
At the end of the boom arm is a multi-functional stand top with a Junior receiver, Baby receiver, and a Baby pin that can be oriented upwards or downwards, giving you versatile fixture mounting options. A 14mm diameter hole at the end of the arm is used to add counterweight bags for balancing. Optional casters are available for the stand's square-end legs for maneuverability around a set or studio. - Features
-
- Pivoting collar with adjustable lever for use as a standard light stand or boom arm
- Three risers, four sections
- Multi-function stand top with junior receiver, baby receiver, and baby pin
- Downward or upward orientation for baby pin
- 0.55" Diameter hole in end of boom arm for adding counterweight
- Chrome-plated steel construction
- One leveling leg
In the Box Kupo 546M K Stand Junior Boom Stand Limited 2-Year Warranty (Extendable to 5-Year with Online Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kupo 546M K Stand Junior Boom Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKupo KS501311 Specs | Construction | Chrome-plated steel | | Load Capacity | Minimum Extension: 66 lb (30 kg)
Maximum Extension: 17.6 lb (8 kg) | | Number of Risers | 3 | | Column Diameter | 1.8" (45 mm) / 1.6" (40 mm) / 1.4" (35 mm) / 1.2" (30 mm) | | Maximum Height | 200" (510 cm) | | Minimum Height | 65.4" (166 cm) | | Folded Length | 63" (160 cm) | | Boom Length | 61 to 110" (155 to 280 cm) | | Attachment Method | 1 x 1-1/8" (28.6 mm) Junior receiver
1 x 5/8" (15.9 mm) Baby receiver
1 x 5/8" (15.9 mm) Baby pin | | Leg Design | Square: 1 x 1" (25 x 25 mm) | | Footprint Diameter | Maximum: 52.8" (134 cm) | | Weight | 33 lb (15 kg) | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 66.0 x 8.3 x 7.0" |
