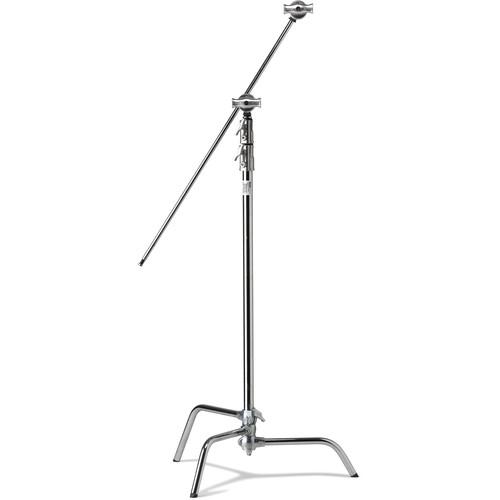

User Manual for Kupo Master C-Stand 40" Riser Sliding Leg Kit Click to enlarge the picture
Contents of the user manual for the Kupo Master C-Stand 40" Riser Sliding
- Product category: Light Stands Kupo
- Brand: Kupo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kupo Light Stands
|
User manual for the Kupo Master C-Stand 40" Riser Sliding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kupo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kupo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kupo product will considerably shorten its lifespan!
|
Product description The 10.6', Silver Master C-Stand 40" Riser Sliding Leg Kit from Kupo is used for mounting lighting equipment and a whole variety of light shaping tools and accessories The Kupo Master C-Stand with sliding base has two spring-loaded legs that open in fixed positions, while the third leg is height adjustable by loosening a locking knob and sliding it up or down the main riser section. This enables you to raise one leg higher than the others to level the stand on an incline or uneven terrain. It is especially helpful on stairs. The 40" Grip Arm with Hex Stud is a 2 1/2" grip head mounted on the end of a 40" 5/8"-diameter steel rod finished with a faceted hex stud to keep lighting fixtures in position when they are placed on the end of the arm. The surface of the tubing is stippled to create a rough texture to ensure a non-slip surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have four different sized "V" shaped jaws to accept any accessory with a 5/8", 1/2", 3/8" or 1/4" mounting stud or tubing. The V-shaped jaws have teeth that grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T-handle and dedicated roller bearings designed for maximum torque. This kit includes a stand, 2.5" grip head, and 40" grip arm with hex stud. - Master 40" Riser C-Stand with Sliding Leg (Silver, 10.6') Utilize this silver, 10.6' Master 40" Riser C-Stand with Sliding Leg from Kupo to mount your lighting equipment and a whole variety of light shaping tools and accessories. The Kupo Master C-Stand with Sliding Base has two spring-loaded legs that open in fixed positions, while the third leg is height-adjustable by loosening a locking knob and sliding it up and down the main riser section. This enables you to raise one leg higher than the others to level the stand on an incline or uneven terrain, or to mount your lighting equipment on a set of stairs.C-Stands get their sizing from the length of their riser sections. This 40" double riser stand has two telescoping risers and one main section for a total of 60". Add the height of the base and you arrive at your maximum height. All Century Stands feature a unique base specially designed with three varied leg heights. This enables the user to stack or "nest" the stand bases so that the risers are just inches apart from one another for use in close proximity, mounting of lights and other grip equipment, or easy storage. This Master C-Stand features a zinc alloy casting on its base that's five times stronger than aluminum and can sustain the weight of heavy sandbags or a person standing on the base. The aluminum cast locking collars are outfitted with a stainless steel heli-coil that protects the aluminum from being damaged by the knob's stainless steel bolt for strength and durability.
- 2-1/2" Grip Head With Big Handle (Chrome-Plated Finish) The 2-1/2" Grip Head With Big Handle from Kupo has four V-shaped jaws, an ergonomic oversized T-shaped handle with dedicated roller bearings for maximum torque, and a non-slip aluminum friction disc. This durable grip head is made of aluminum and steel and has a chrome-plated finish.
- Oversized T-shaped handle with dedicated roller bearings
- Non-slip aluminum friction disc
- 40" Hex Grip Arm with Big Handle (Black) With a black powder-coated finish, the Kupo 40" Hex Grip Arm with Big Handle has a 2-1/2" grip head mounted on the end of a 40" piece of steel tubing, which is 5/8" (16mm) in diameter. The surface of the tubing is machined to create a rough texture to ensure a non-slippery surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have 4 different sized V-shaped jaws to accept any accessory with a 5/8, 1/2, 3/8, or 1/4" mounting stud or tubing.
The V-shaped jaws feature teeth that securely grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T-handle and dedicated roller bearings designed for maximum torque. At the end of the 40" grip arm, you will find a baby hex-pin with 6 milled flat surfaces.
You can mount your light fixtures or accessories on the end of your grip arm like a mini boom. They won't rotate due to the set-screw of that fixture or accessory, locking onto one of the sides of the hex-pin. The grip head uses a non-slip aluminum friction disc that maintains its durability over time, offering the user positive locking strength and precise control. The grip head is constructed around a solid steel central bolt with a fixed solid pin to secure it to the aluminum casting for increased strength and durability. In the Box Bundle Items Master 40" Riser C-Stand with Sliding Leg (Silver, 10.6') vavtqafzaazcabxdvzwweywabssxqca - Limited 3-Year Warranty Extension after Online Registration
2-1/2" Grip Head With Big Handle (Chrome-Plated Finish) 40" Hex Grip Arm with Big Handle (Black) - Limited 2-Year Warranty, Extendable to 5 Years with Registration
Also Includes - Limited 2-Year Warranty
- Limited 2-Year Warranty Extension after Online Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kupo Master C-Stand 40" Riser Sliding Leg Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Master 40" Riser C-Stand with Sliding Leg (Silver, 10.6')
| Load Capacity | 22.05 lb / 10 kg | | Mounting Options | 5/8" Stud | | Number of Sections | 3 | | Column Diameter | 0.98" / 2.5 cm
1.18" / 3 cm
1.38" / 3.5 cm | | Maximum Working Height | 127.2" / 323 cm | | Minimum Working Height | 52.8" / 134 cm | | Collapsed Height | 52" / 132 cm | | Footprint Diameter | 39.37" / 100 cm | | Leg Shape | Round | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | Yes | | Reverse Legs | No | | Finish | Chrome | | Material | Steel | | Weight | 14.1 lb / 6.4 kg | | | | Box Dimensions (LxWxH) | 54.75 x 22.0 x 3.0" | - 2-1/2" Grip Head With Big Handle (Chrome-Plated Finish)
| Construction | Aluminum and steel | | Dimensions (LxWxH) | 7.38 x 3.92 x 2.79" (18.73 x 9.96 x 7.08 cm) | | Weight | 1.72 lb (0.78 kg) | | | | Box Dimensions (LxWxH) | 8.0 x 4.4 x 2.9" | - 40" Hex Grip Arm with Big Handle (Black)
| Material | Primary: Aluminum
Secondary: Steel bar | | Diameter | Jaw:
Minimum: 0.25" (6.35 mm) Maximum: 0.62" (16.00 mm) | | Dimensions (L x H x W) | 42.8 x 2.5 x 6.2" (108.6 x 6.4 x 15.7 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Box Dimensions (LxWxH) | 43.8 x 6.5 x 3.4" |
