Product description

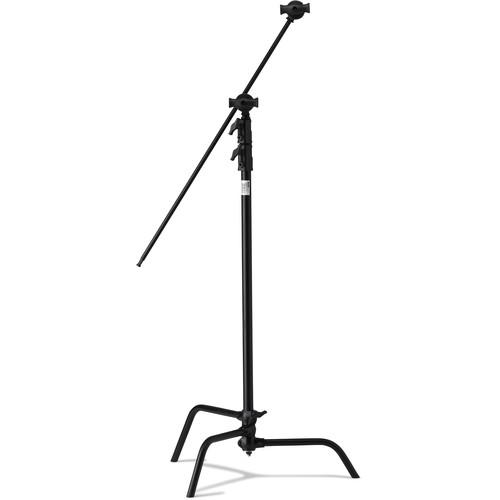

• Master 40" Riser C-Stand with Sliding Leg (Black, 10.6') Utilize this black, 10.6' Master 40" Riser C-Stand with Sliding Leg from Kupo to mount your lighting equipment and a whole variety of light shaping tools and accessories. The Kupo Master C-Stand with Sliding Base has two spring-loaded legs that open in fixed positions, while the third leg is height-adjustable by loosening a locking knob and sliding it up and down the main riser section. This enables you to raise one leg higher than the others to level the stand on an incline or uneven terrain, or to mount your lighting equipment on a set of stairs.C-Stands get their sizing from the length of their riser sections. This 40" double riser stand has two telescoping risers and one main section for a total of 60". Add the height of the base and you arrive at your maximum height. All Century Stands feature a unique base specially designed with three varied leg heights. This enables the user to stack or "nest" the stand bases so that the risers are just inches apart from one another for use in close proximity, mounting of lights and other grip equipment, or easy storage. This Master C-Stand features a zinc alloy casting on its base that's five times stronger than aluminum and can sustain the weight of heavy sandbags or a person standing on the base. The aluminum cast locking collars are outfitted with a stainless steel heli-coil that protects the aluminum from being damaged by the knob's stainless steel bolt for strength and durability.
• 2-1/2" Grip Head With Big Handle (Black Powder-Coated Finish) The 2-1/2" Grip Head With Big Handle from Kupo has four V-shaped jaws, an ergonomic oversized T-shaped handle with dedicated roller bearings for maximum torque, and a non-slip aluminum friction disc. This durable grip head is made of aluminum and steel and has a black powder-coated finish.
  • Four V-shaped jaws
  • Oversized T-shaped handle with dedicated roller bearings
  • Non-slip aluminum friction disc
• 40" Hex Grip Arm with Big Handle (Silver) With a silver machined finish, the Kupo 40" Hex Grip Arm with Big Handle has a 2-1/2" grip head mounted on the end of a 40" piece of steel tubing, which is 5/8" (16mm) in diameter. The surface of the tubing is machined to create a rough texture to ensure a non-slippery surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16 mm) receiver. The discs have 4 different sized V-shaped jaws to accept any accessory with a 5/8, 1/2, 3/8, or 1/4" mounting stud or tubing.

  The V-shaped jaws feature teeth that securely grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T-handle and dedicated roller bearings designed for maximum torque. At the end of the 40" grip arm, you will find a baby hex-pin with 6 milled flat surfaces.

  You can mount your light fixtures or accessories on the end of your grip arm like a mini boom. They won't rotate due to the set-screw of that fixture or accessory, locking onto one of the sides of the hex-pin. The grip head uses a non-slip aluminum friction disc that maintains its durability over time, offering the user positive locking strength and precise control. The grip head is constructed around a solid steel central bolt with a fixed solid pin to secure it to the aluminum casting for increased strength and durability.

• Limited 2-Year Warranty

• Limited 3-Year Warranty Extension after Online Registration

• 5-Year Warranty

• Limited 2-Year Warranty, Extendable to 5 Years with Registration

Also Includes

• Limited 2-Year Warranty
• Limited 2-Year Warranty Extension after Online Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Master 40" Riser C-Stand with Sliding Leg (Black, 10.6')

  Load Capacity	22.05 lb / 10 kg
  Mounting Options	5/8" Stud
  Number of Sections	3
  Column Diameter	0.98" / 2.5 cm 1.18" / 3 cm 1.38" / 3.5 cm
  Maximum Working Height	127.2" / 323 cm
  Minimum Working Height	52.8" / 134 cm
  Collapsed Height	52" / 132 cm
  Footprint Diameter	39.37" / 100 cm
  Leg Shape	Round
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	Yes
  Reverse Legs	No
  Finish	Black
  Material	Steel
  Weight	14.1 lb / 6.4 kg

  Box Dimensions (LxWxH)	56.5 x 22.0 x 2.0"

• 2-1/2" Grip Head With Big Handle (Black Powder-Coated Finish)

  Construction	Aluminum and steel
  Dimensions (LxWxH)	7.38 x 3.92 x 2.79" (18.73 x 9.96 x 7.08 cm)
  Weight	1.72 lb (0.78 kg)

  Box Dimensions (LxWxH)	8.0 x 4.4 x 2.9"

• 40" Hex Grip Arm with Big Handle (Silver)

  Material	Primary: Aluminum Secondary: Steel bar
  Diameter	Jaw: Minimum: 0.25" (6.35 mm) Maximum: 0.62" (16.00 mm)
  Dimensions (L x H x W)	42.8 x 2.5 x 6.2" (108.6 x 6.4 x 15.7 cm)
  Weight	3.0 lb (1.4 kg)

  Box Dimensions (LxWxH)	43.6 x 6.5 x 3.0"
