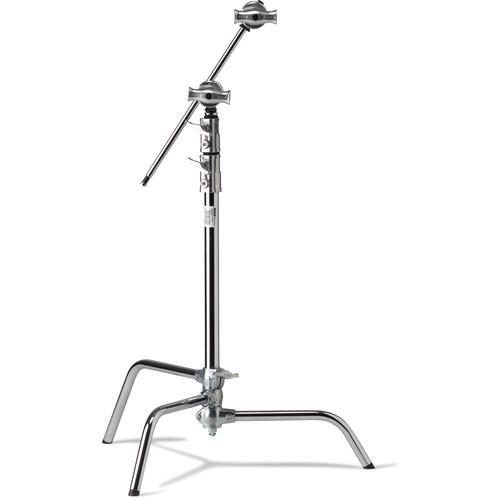

User Manual for Kupo Master C-Stand with 20" Riser and Sliding Leg Kit Click to enlarge the picture
Contents of the user manual for the Kupo Master C-Stand with 20" Riser
- Product category: Light Stands Kupo
- Brand: Kupo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kupo Light Stands
|
User manual for the Kupo Master C-Stand with 20" Riser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kupo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kupo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kupo product will considerably shorten its lifespan!
|
Product description The silver Master C-Stand with 20" Riser and Sliding Leg Kit from Kupo is essential on set for everything from holding flags and reflectors to mounting lights. The kit contains a Master C-Stand with a single leg that's height adjustable for uneven terrain. A 2-1/2" removable grip head with a large T-handle is included, as is a 20" grip arm with a permanently attached 2-1/2" grip head. The arm has a hex attachment at its end to prevent light fixtures from twisting when mounted. - Master 20" Riser C-Stand with Sliding Leg (Silver, 6.5') A staple of the film and video industry, the silver 6.5' Master 20" Riser C-Stand with Sliding Leg from Kupo is designed to support light fixtures and other grip gear on set or on location.While two of the legs are spring-loaded, the distinguishing feature of this stand is the height-adjustable third leg. By loosening a locking knob and sliding it up and down the main riser section, this sliding leg enables the user to raise one leg higher than the others to accommodate rough or uneven terrain, or to position it in tight spaces.This 20" double riser stand has two telescoping risers and one main section, for a total of 60". The 17.95" base brings its total height to 77.95" (6.5'). The legs nest together for efficacious storage and transport.Five times stronger than aluminum, the Master C-Stand's base is made of zinc alloy to sustain the weight of heavy sandbags or other equipment. The aluminum cast locking collars are outfitted with stainless steel Heli-Coil that protects the risers from damage.
- 2-1/2" Grip Head With Big Handle (Chrome-Plated Finish) The 2-1/2" Grip Head With Big Handle from Kupo has four V-shaped jaws, an ergonomic oversized T-shaped handle with dedicated roller bearings for maximum torque, and a non-slip aluminum friction disc. This durable grip head is made of aluminum and steel and has a chrome-plated finish.
- Oversized T-shaped handle with dedicated roller bearings
- Non-slip aluminum friction disc
- 20'' Hex Grip Arm (Silver) Often paired with a C-Stand, the silver 20" Hex Grip Arm from Kupo has a 5/8" hex pin at one end of a 20" textured, non-slip steel tube and a 2-1/2" grip head at the other. The hex pin has 6 milled flat surfaces so that you can attach a light to it without it turning and use the arm like a mini boom. The grip head has a pair of rotating discs attached to a 5/8" receiver. The discs have 4 V-shaped jaws to accept 5/8", 1/2", 3/8" or 1/4" accessories like flags, scrims or even another grip arm. The jaws are locked down by an oversized, ergonomic T-handle.
In the Box Bundle Items Master 20" Riser C-Stand with Sliding Leg (Silver, 6.5') bbvxbrtstcwcbbdywsvbar - Limited 3-Year Warranty Extension after Online Registration
2-1/2" Grip Head With Big Handle (Chrome-Plated Finish) 20'' Hex Grip Arm (Silver) - Limited 3-Year Warranty Extension after Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kupo Master C-Stand with 20" Riser and Sliding Leg Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Master 20" Riser C-Stand with Sliding Leg (Silver, 6.5')
| Load Capacity | 22.05 lb / 10 kg | | Mounting Options | 5/8" Stud | | Number of Sections | 3 | | Column Diameter | 0.98" / 2.5 cm
1.18" / 3 cm
1.38" / 3.5 cm | | Maximum Working Height | 77.2" / 196 cm | | Minimum Working Height | 34.3" / 87 cm | | Collapsed Height | 35.8" / 91 cm | | Footprint Diameter | 39.37" / 100 cm | | Leg Shape | Round | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | Yes | | Reverse Legs | No | | Finish | Chrome | | Material | Steel | | Weight | 12.1 lb / 5.5 kg | | | | Box Dimensions (LxWxH) | 38.0 x 22.0 x 3.0" | - 2-1/2" Grip Head With Big Handle (Chrome-Plated Finish)
| Construction | Aluminum and steel | | Dimensions (LxWxH) | 7.38 x 3.92 x 2.79" (18.73 x 9.96 x 7.08 cm) | | Weight | 1.72 lb (0.78 kg) | | | | Box Dimensions (LxWxH) | 8.0 x 4.4 x 2.9" | - 20'' Hex Grip Arm (Silver)
| Material of Construction | Steel and aluminum | | Attachments | 5/8" (16 mm) Receiver
5/8", 1/2", 3/8", 1/4" (16 mm, 12.7 mm, 9.5 mm, 6.35 mm) jaws | | | | Box Dimensions (LxWxH) | 21.6 x 6.6 x 2.9" |
