User Manual for Kurzweil Artis7 76 Key Stage Piano Click to enlarge the picture
Contents of the user manual for the Kurzweil Artis7 76 Key Stage Piano
- Product category: Stage Pianos & Organs Kurzweil
- Brand: Kurzweil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kurzweil Stage Pianos & Organs
 |
User manual for the Kurzweil Artis7 76 Key Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kurzweil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kurzweil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kurzweil product will considerably shorten its lifespan!
|

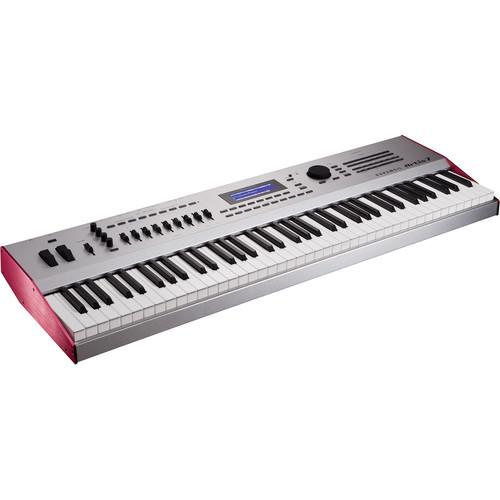

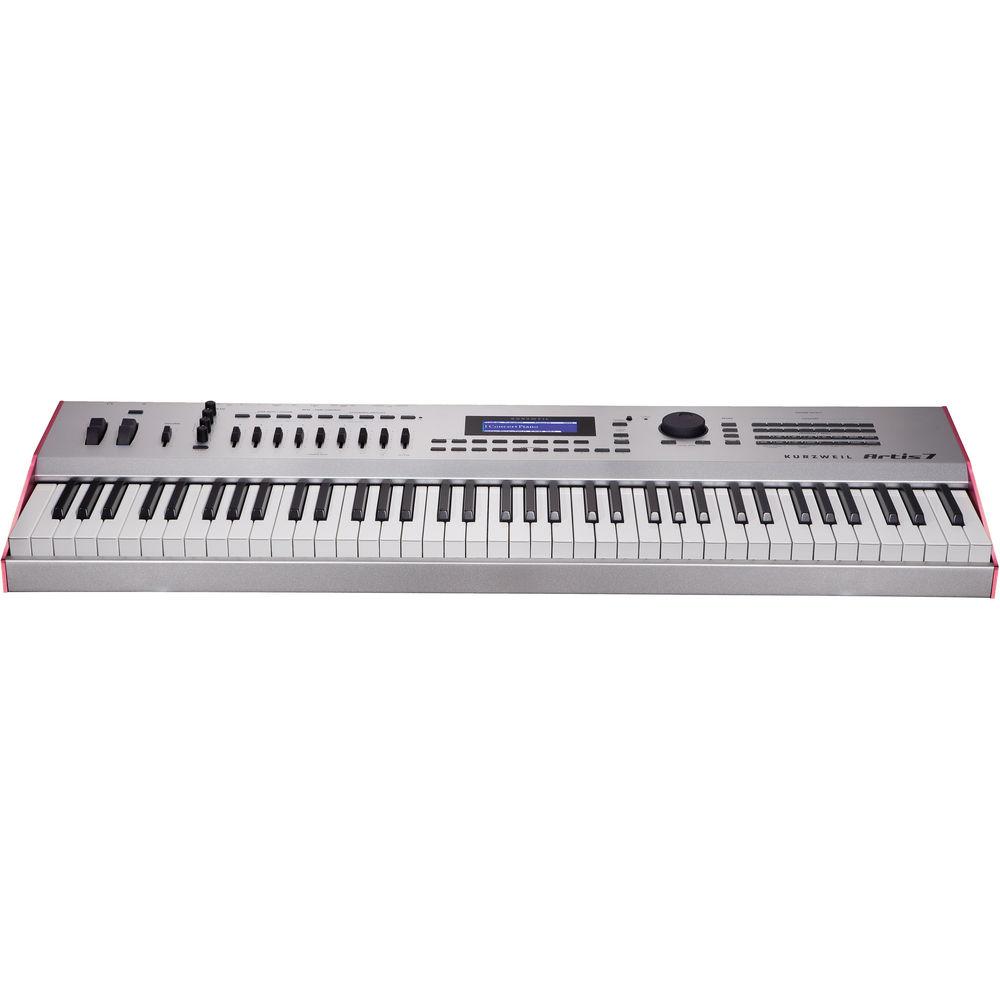

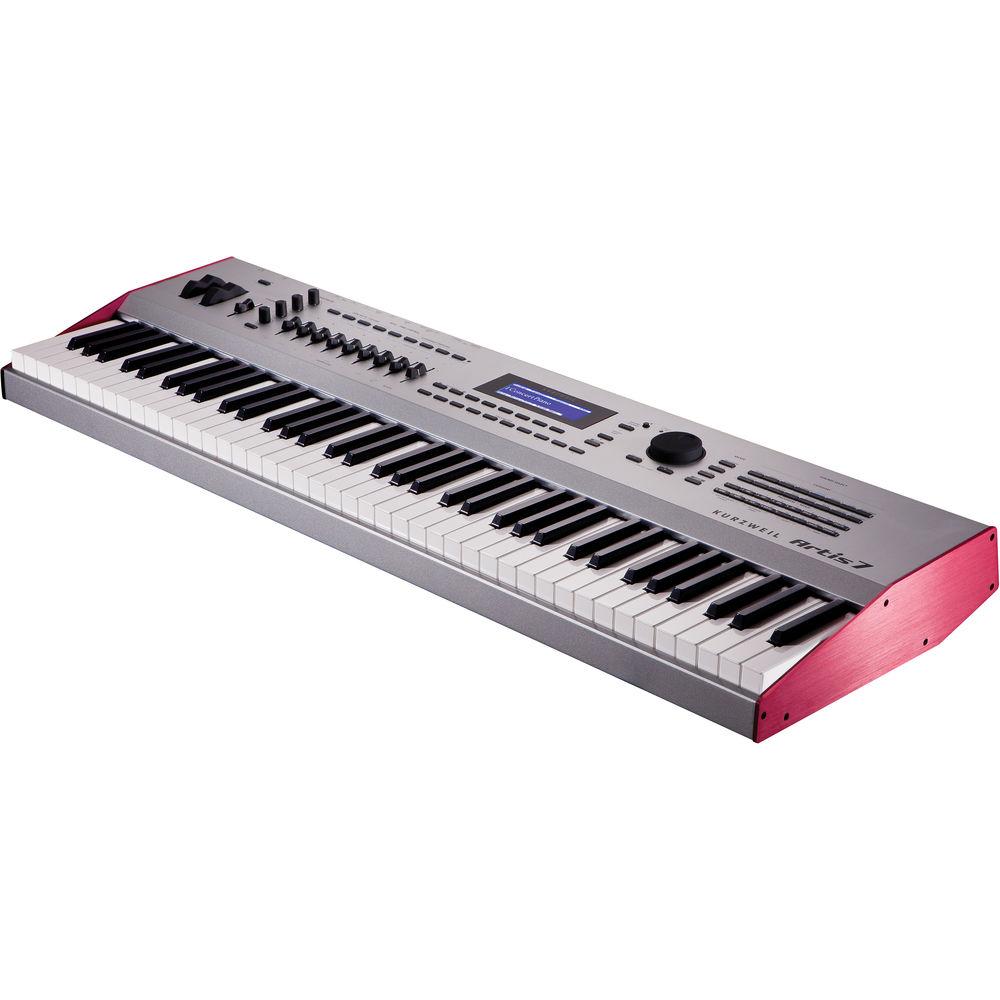

Product description The Kurzweil Artis7 76-Key Stage Piano (Semi-Weighted Keyboard) is designed for both recording studio and live performance applications. The keyboard features a Fatar TP-8 semi-weighted keyboard to enable expressive playing with realistic dynamics. The keyboard can be divided into four zones with split/layer, extensive MIDI, individual zone volume, and mute controls. The unit includes 32 realistic stage piano sounds from the German 9' Grand Piano as well as classic Hammond, Vox, and Farfisa organ models from the KB3 ToneReal Organs. It also comes with 256 factory programs and 256 multis, including some of the best sounds from the company's PC3K and Kore 64 collections, such as new pianos, vintage electric pianos, clavinets, synthesizers, string sections, orchestras, guitars, percussion, and more. To further enhance your sound, the unit includes a powerful FX engine with award winning reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more.

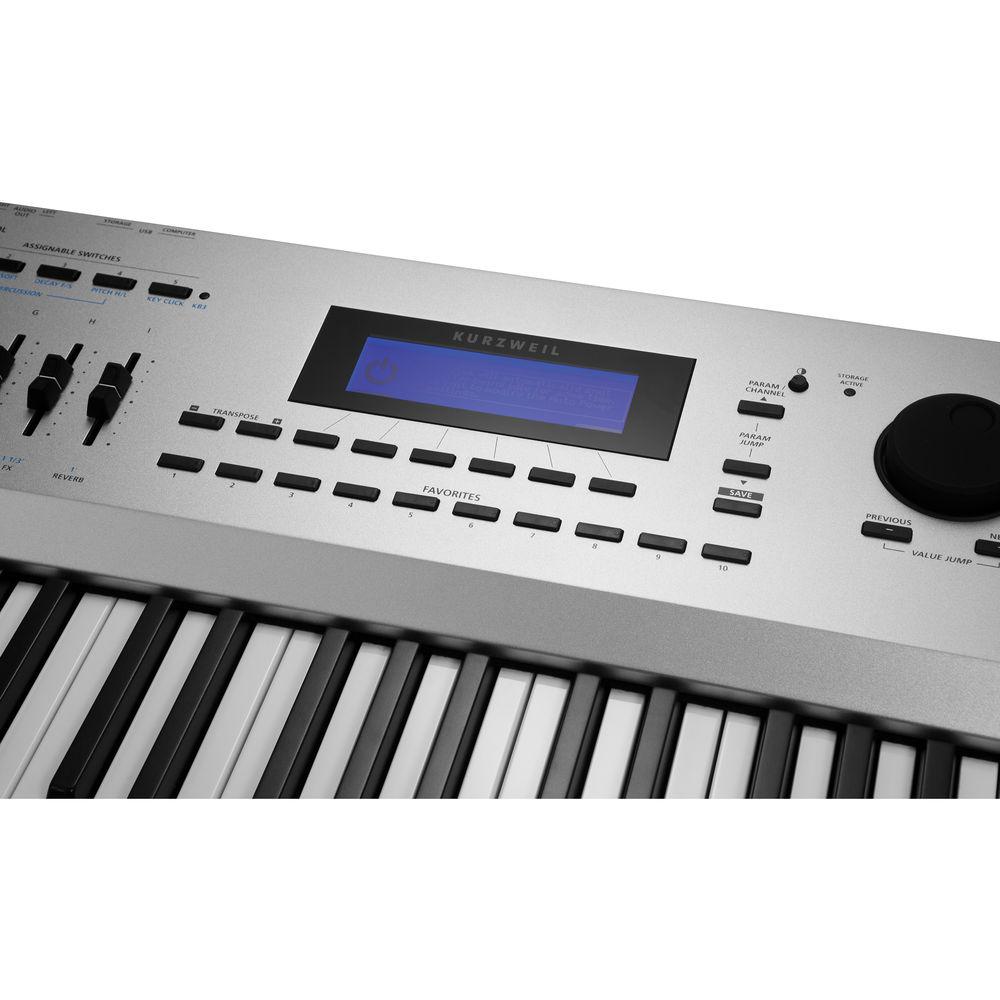

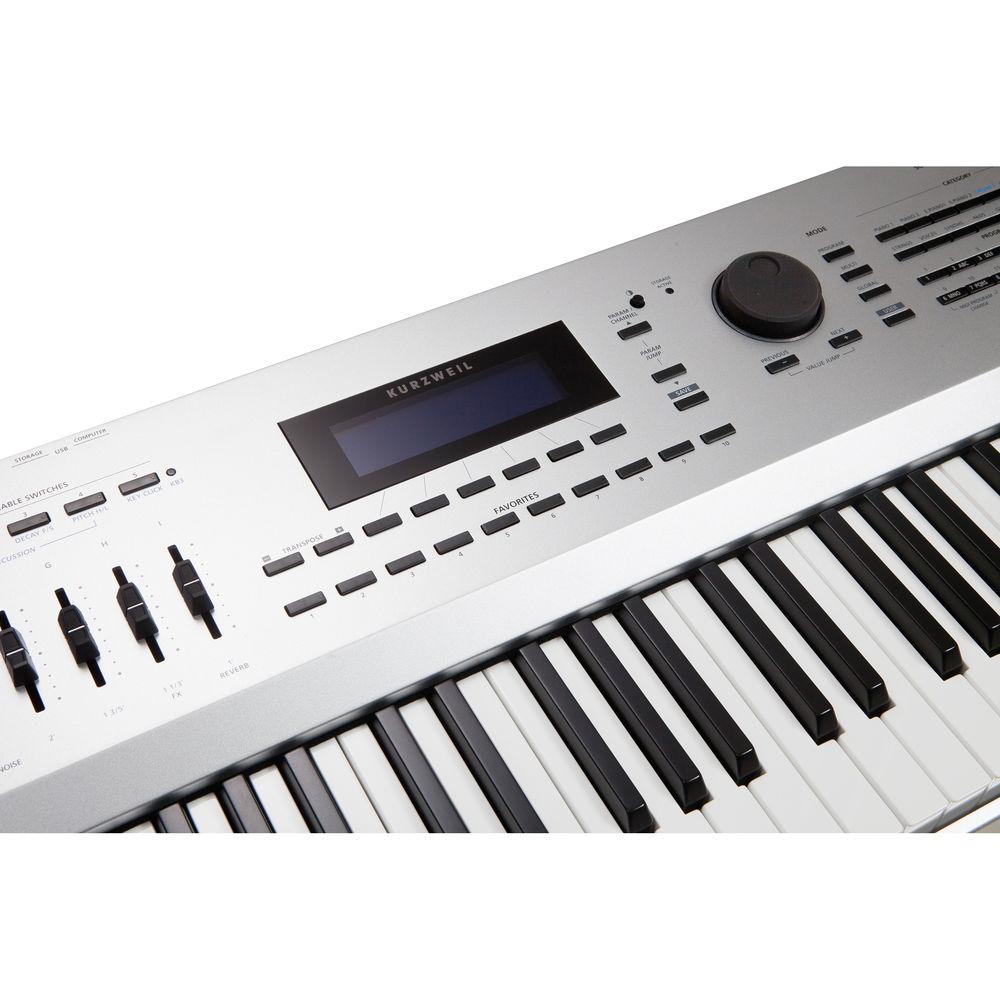

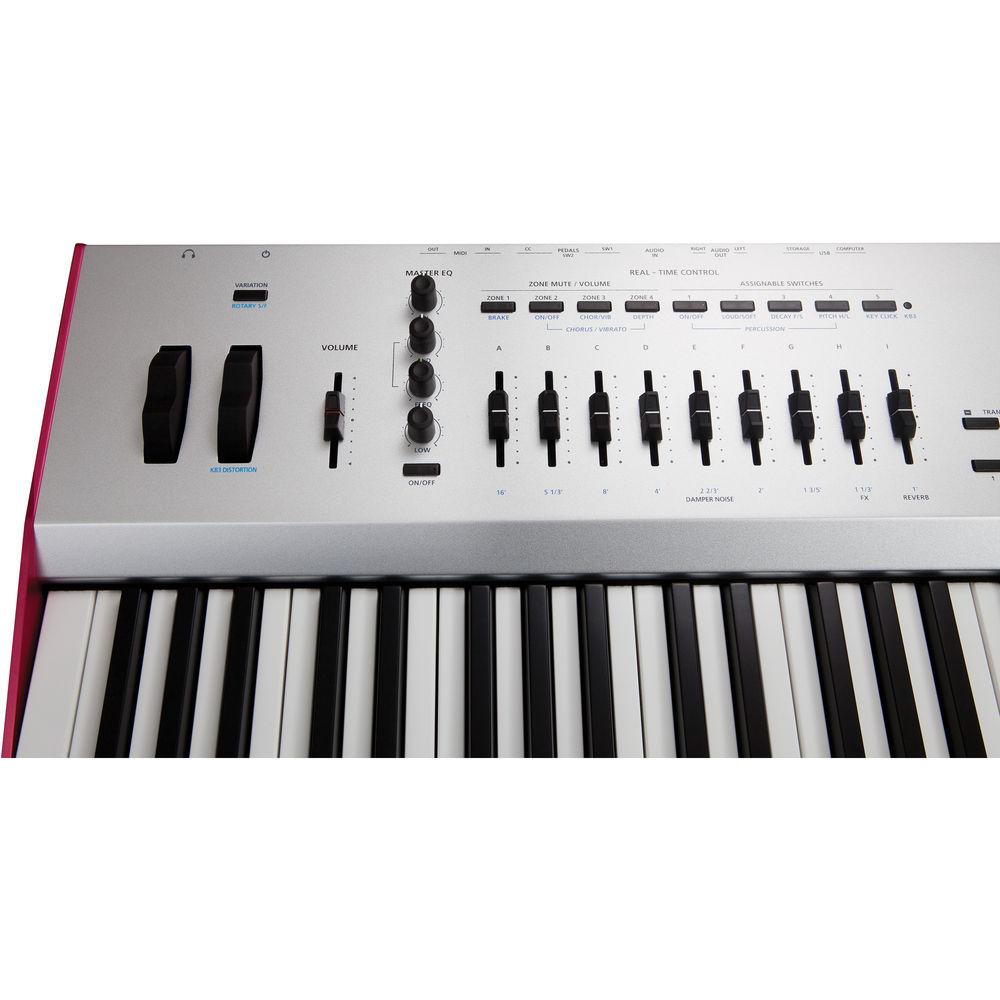

For physical controls, the keyboard features a 3-band master EQ for bass, treble, and a sweepable midrange, as well as nine sliders, six switches, two front-panel mounted wheels, dedicated -/+ transpose buttons, category and program/multi selection buttons, ten favorite sound preset buttons, two switch pedal inputs, and one continuous control pedal input. The unit comes with a sustain/switch pedal.

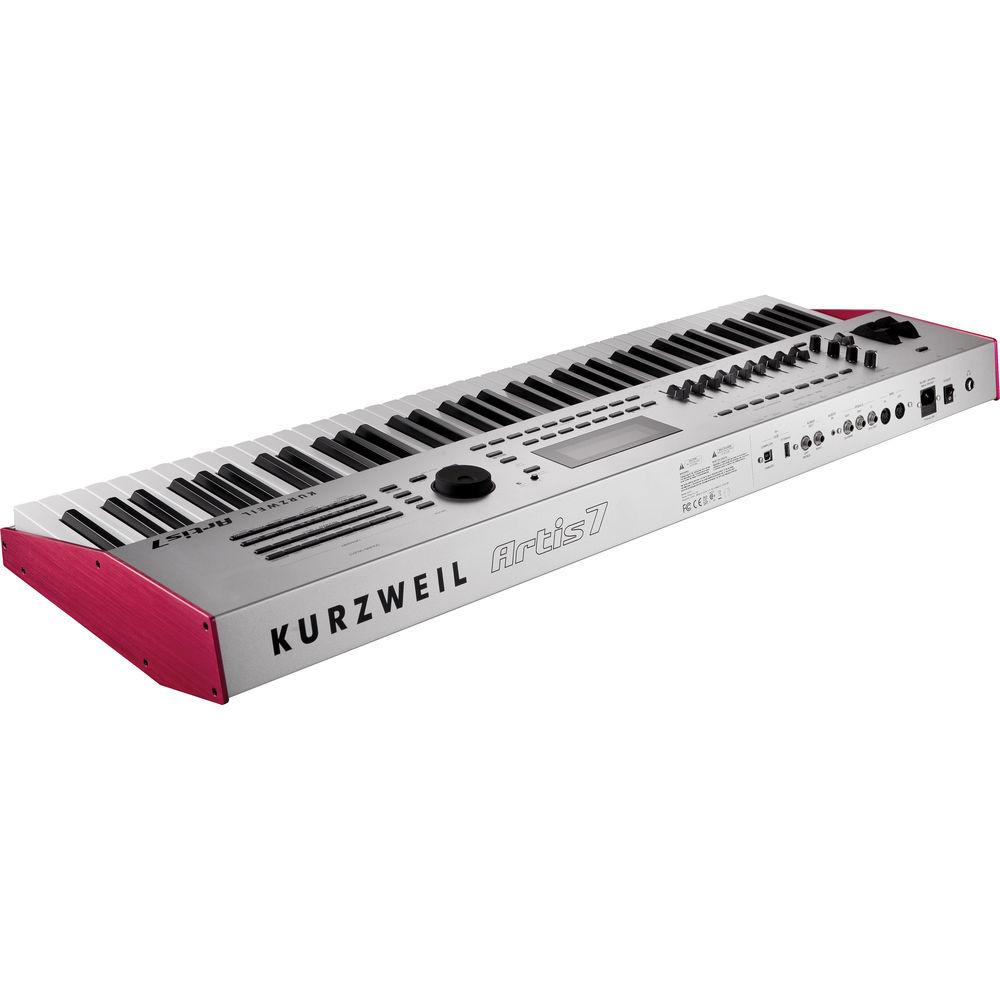

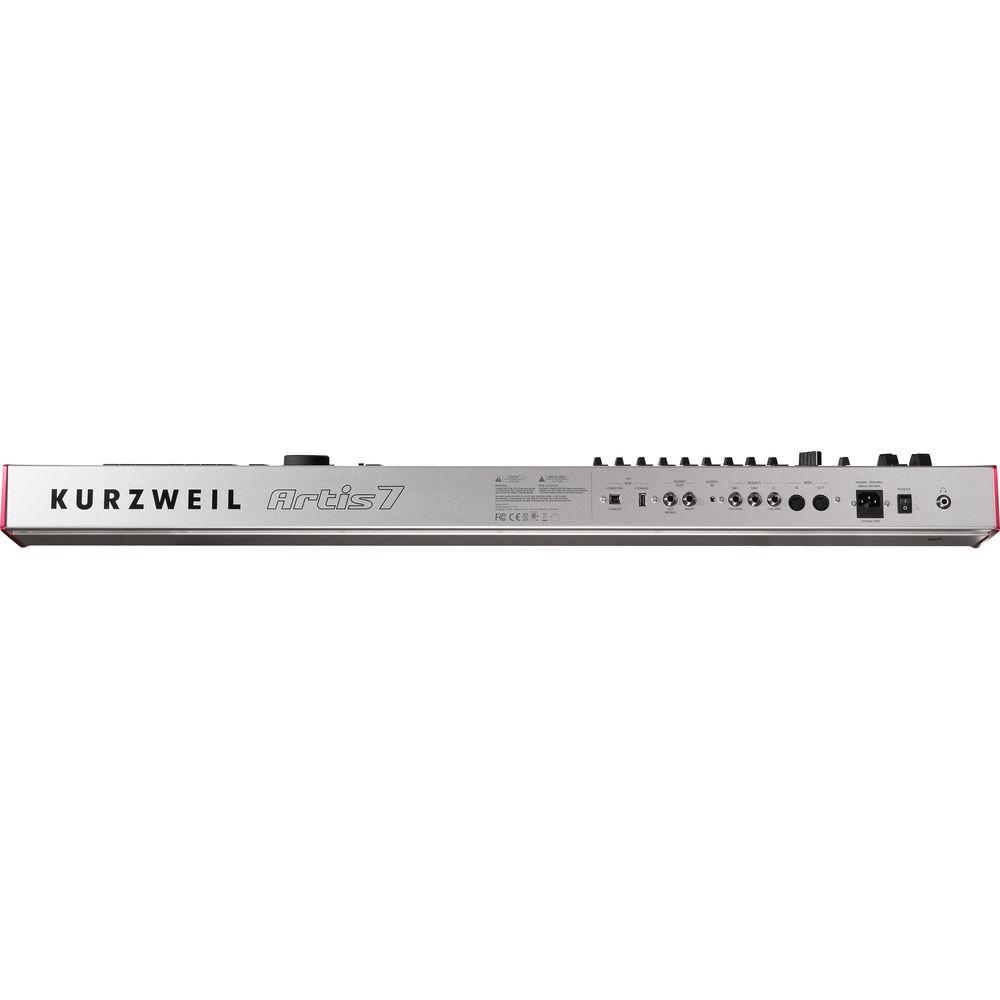

The back panel of the unit features 1/4" inputs for sustain and volume pedals, as well as an 1/8" audio input for playing along with a mobile device such as a smartphone or MP3 player. A pair of 1/4" outputs allow you to connect the keyboard to external amplifiers, and a 1/4" headphone output allows you to practice and track with your favorite headphones. MIDI in and out on 5-pin connectors allow for interfacing with MIDI sequencers and other compatible devices. Two USB ports (one Type B and one Type A) allow you to connect the unit to tablets, computers, and USB storage drives for interfacing, recording, and firmware updates. A desktop editor software program can be downloaded for free that allows you to edit patches in greater detail using a computer. - German 9' Grand Piano
- Provides 32 different programs with realistic tone and expression controls that pair well with the keyboard's Fatar TP-8 semi-weighted keys
- KB3 ToneReal Organs
- Models organ sounds after classic Hammond, Voc, and Farfisa organs with realistic controls including nine drawbars
- 256 Factory Programs
- Provides sounds from the PC3K and Kore 64 collections plus new piano, vintage electric pianos, clavinets, synthesizer, rich and realistic string sections and orchestras, guitars, percussion, and more
- 256 Factory Multis
- Provides up to four zones with split/layer modes with extensive MIDI, individual zone volume, and mute controls
- Powerful FX Engine
- Provides reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more

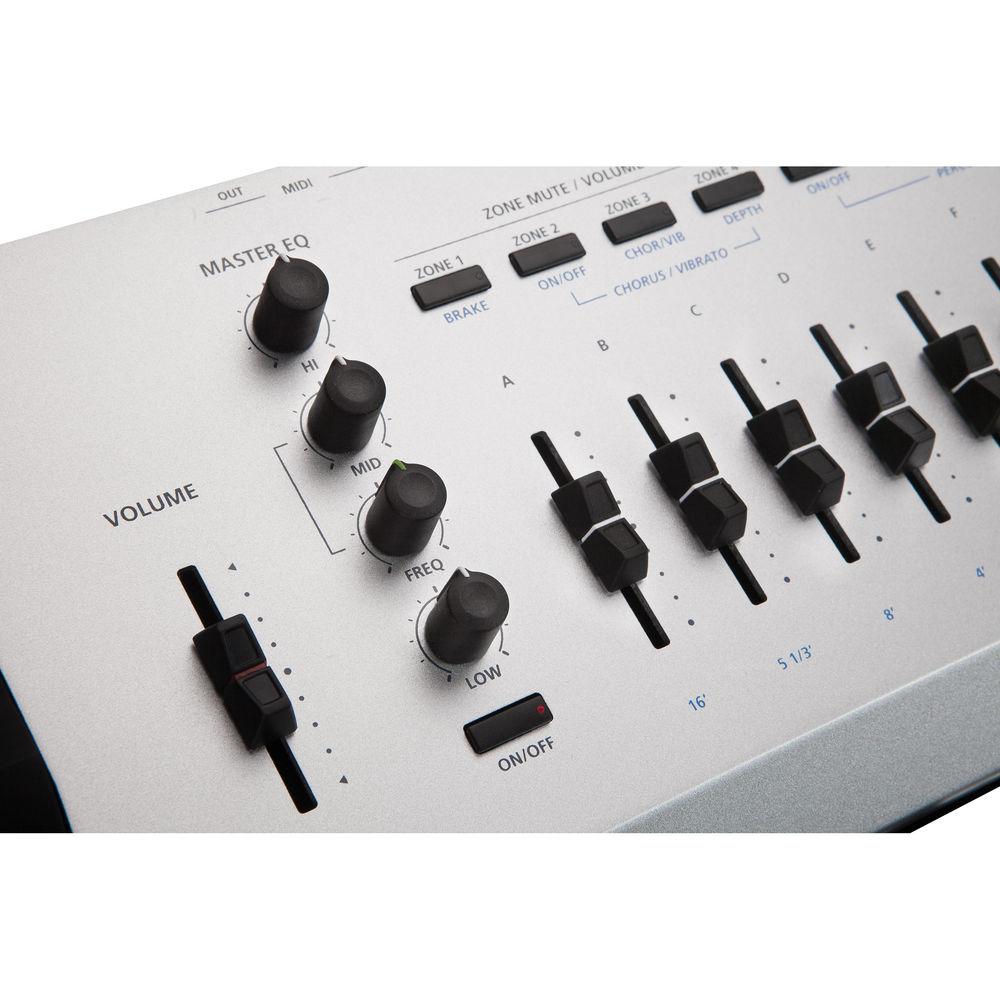

- Front-Panel 3-Band Master EQ
- Allows for independent control over bass, midrange, and treble
- 22 Programmable Physical Controllers
- Offers 9 sliders, 6 switches, 2 front-panel mounted wheels, 2 switch pedal inputs, and 1 continuous control pedal input
- Easy Access Transpose Buttons
- Offers dedicated -/+ controls conveniently located just below the display

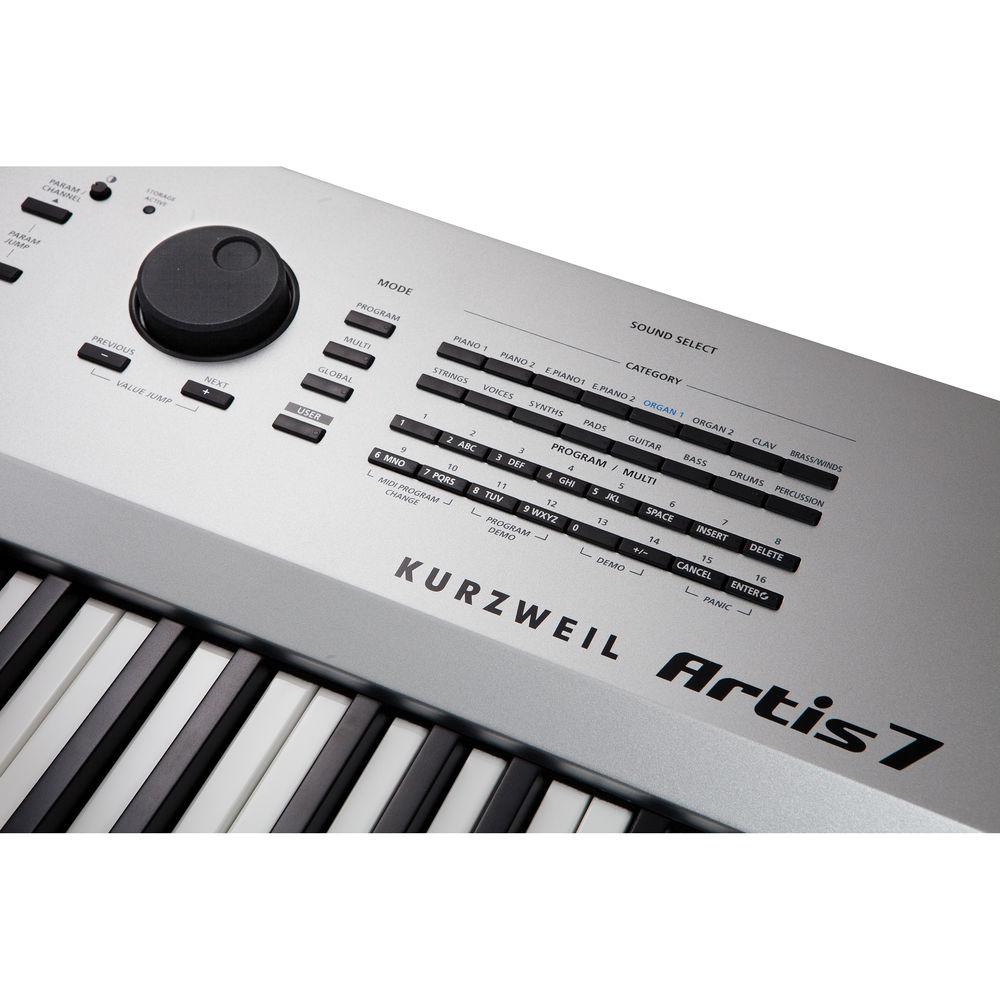

- Sound Selection
- Offers easy controls for category and program/multi section with the option of saving your own preset for each category
- Favorite Section
- Allows you to access your ten favorite sounds with the push of one button
- Desktop Editor
- Allows you to edit the keyboard's programs and multis
UPC: 883793203298 In the Box Kurzweil Artis7 76 Key Stage Piano (Semi Weighted Keyboard) Power Cable Switch Pedal Type A to Type B USB Cable 4 x Self-Adhesive Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kurzweil Artis7 76 Key Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKurzweil ARTIS-7 Specs | I/O | 1x USB Type B (for computer and tablet)
1x USB Type A (for USB storage)
1x MIDI 5-pin input
1x 1/8" Audio In
1x 1/4" Switch/Sustain pedal 1 (SW1)
1x 1/4" Switch/Sustain pedal 2 (SW2)
1x 1/4" Continuous control pedal (CC volume)
1x MIDI 5-pin output
2x 1/4" Left (mono) and right stereo audio outputs | | Keyboard | 76-note semi-weighted action with velocity-sensitive keys (Fatar TP-8) | | Display | 240x64 pixel monochrome LCD with front-panel contrast adjust. | | Polyphony | 128-Voice Polyphony, dynamically allocated | | Multitimbral | 16 parts (one per MIDI channel) | | Layer | Easy access with adjustable relative volume (up to 4 zones) | | Programs | Factory: 256 factory programs with German Grand Piano along with a wide selection of sounds from the PC3 and KORE 64 expansion
Factory Multis: 256
User: 256 | | General MIDI | No | | EQ Controls | Dedicated front-panel 3-band EQ with sweepable mid and on/off switch. | | Effects | Reverbs, delays, choruses, flangers, phasers, EQs, distortions, rotary speaker simulators, compressors, and more.
16 total FX units | | Controllers | Front panel-mounted pitch and mod wheel
9x front-panel sliders
9x KB3 control switches/control/zone mute switches
1x variation switch
2x transpose switches
2x switch pedal inputs (1 switch/sustain pedal is included)
1x continuous control pedal input | | Analog Inputs | 1x stereo 1/8" back-panel input for connecting to mobile devices | | Analog Outputs | 2x 1/4" balanced TRS Analog (24-bit DACS) | | Analog Output | +21 dBu maximum output | | Output Impedance | 400 Ohms | | Headphones | 1x 1/4" headphone output | | Maximum Headphone Output Level | 130 mW | | Headphone Impedance | 32 Ohms | | MIDI | In and out | | USB | Complete MIDI functionality over USB
User program/multi file transfer to/from PC/Mac/Flash drive
Operating System updates from PC/Mac/Flash drive | | Updates | OS updates over USB and/or Flash drive | | Power | 100 to 240 VAC 50-60 Hz | | Dimensions (H x L x D) | 4.37" x 42.40 x 14.17" (11.10 x 107.70 x 36.00 cm)
With bottom feet and knobs: 4.86 x 42.40 x 14.17" (12.34 x 107.70 x 36.00 cm) | | Weight | 27.7 lb (12.6 kg) | | | | Package Weight | 42.85 lb | | Box Dimensions (LxWxH) | 50.0 x 26.0 x 9.0" |
