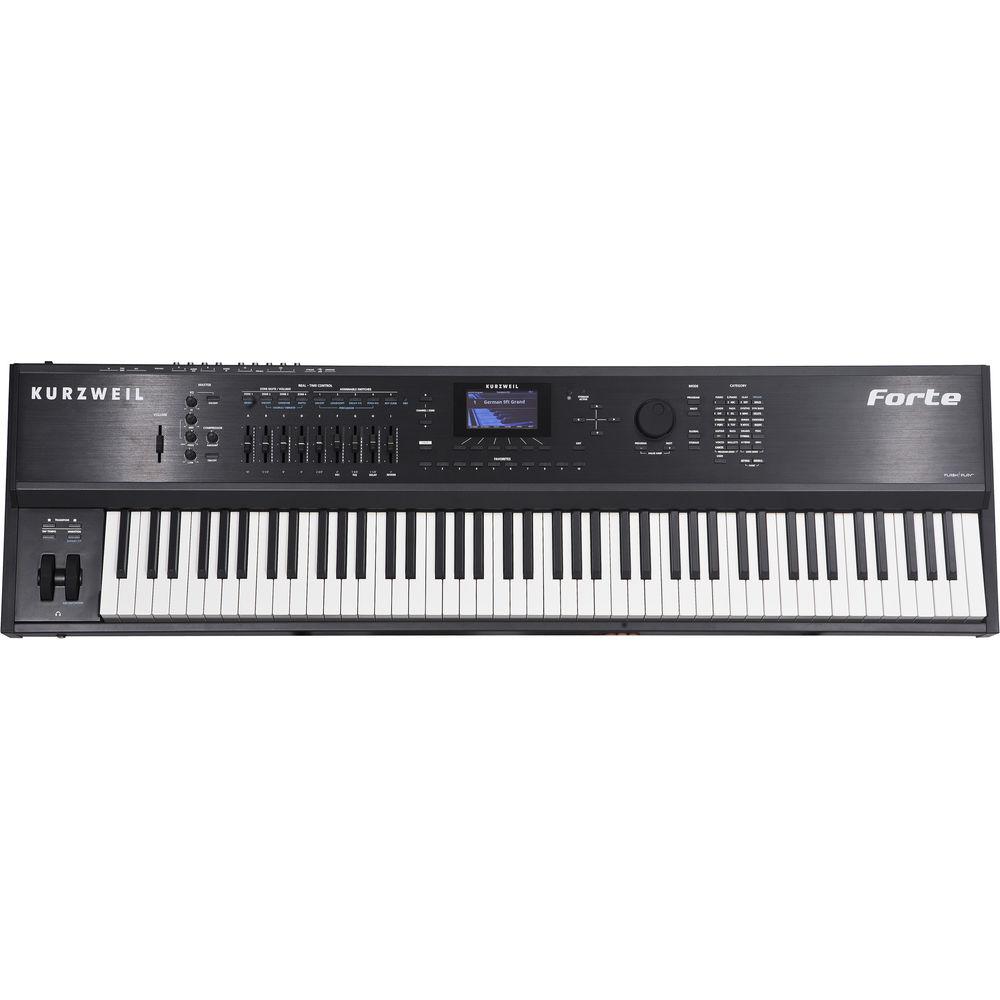

User Manual for Kurzweil Forte SE - Stage Piano Click to enlarge the picture
Contents of the user manual for the Kurzweil Forte SE - Stage Piano
- Product category: Digital Pianos Kurzweil
- Brand: Kurzweil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kurzweil Digital Pianos
 |
User manual for the Kurzweil Forte SE - Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kurzweil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kurzweil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kurzweil product will considerably shorten its lifespan!
|

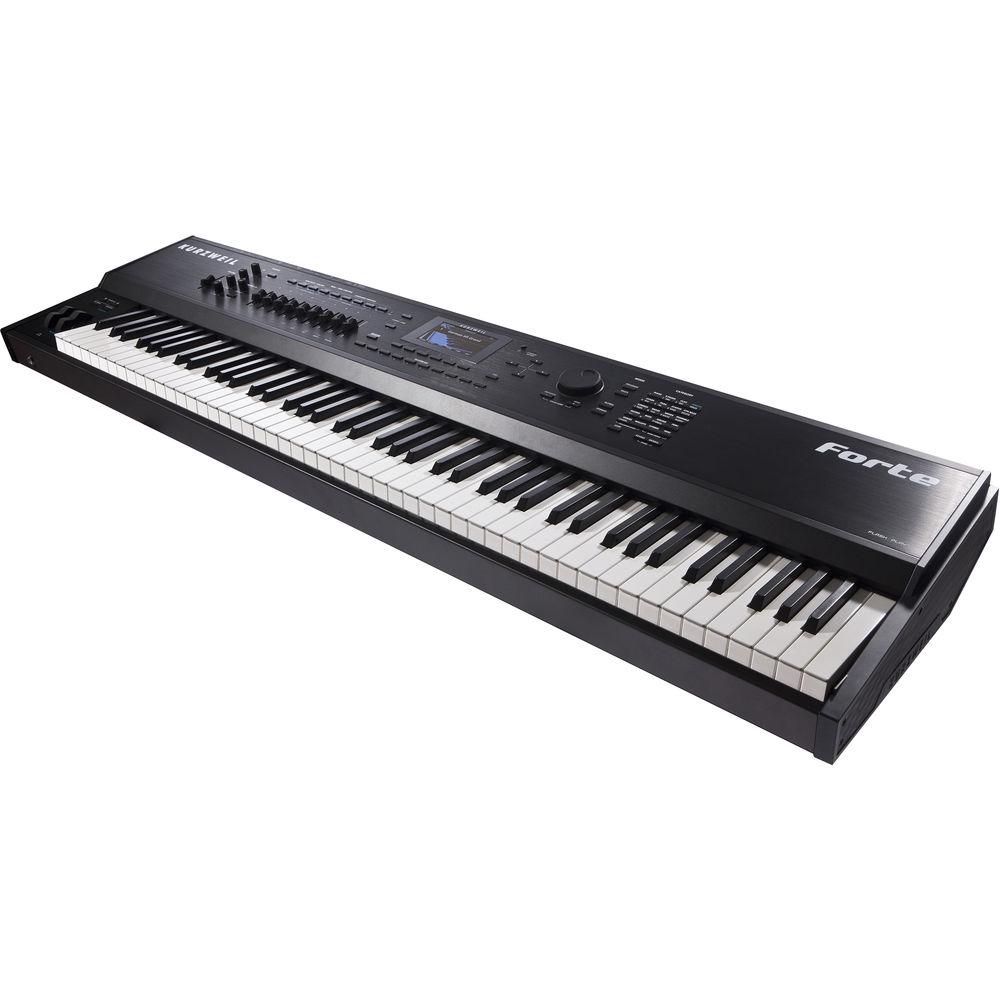

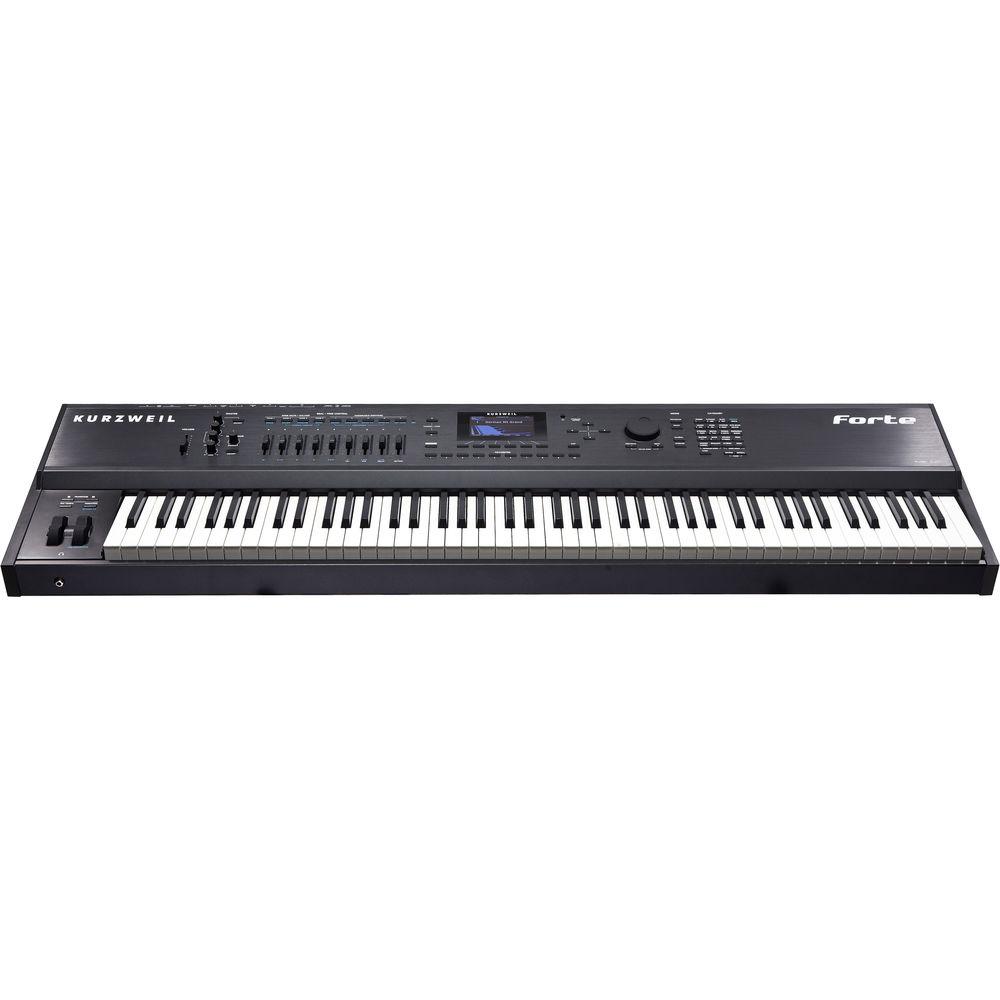

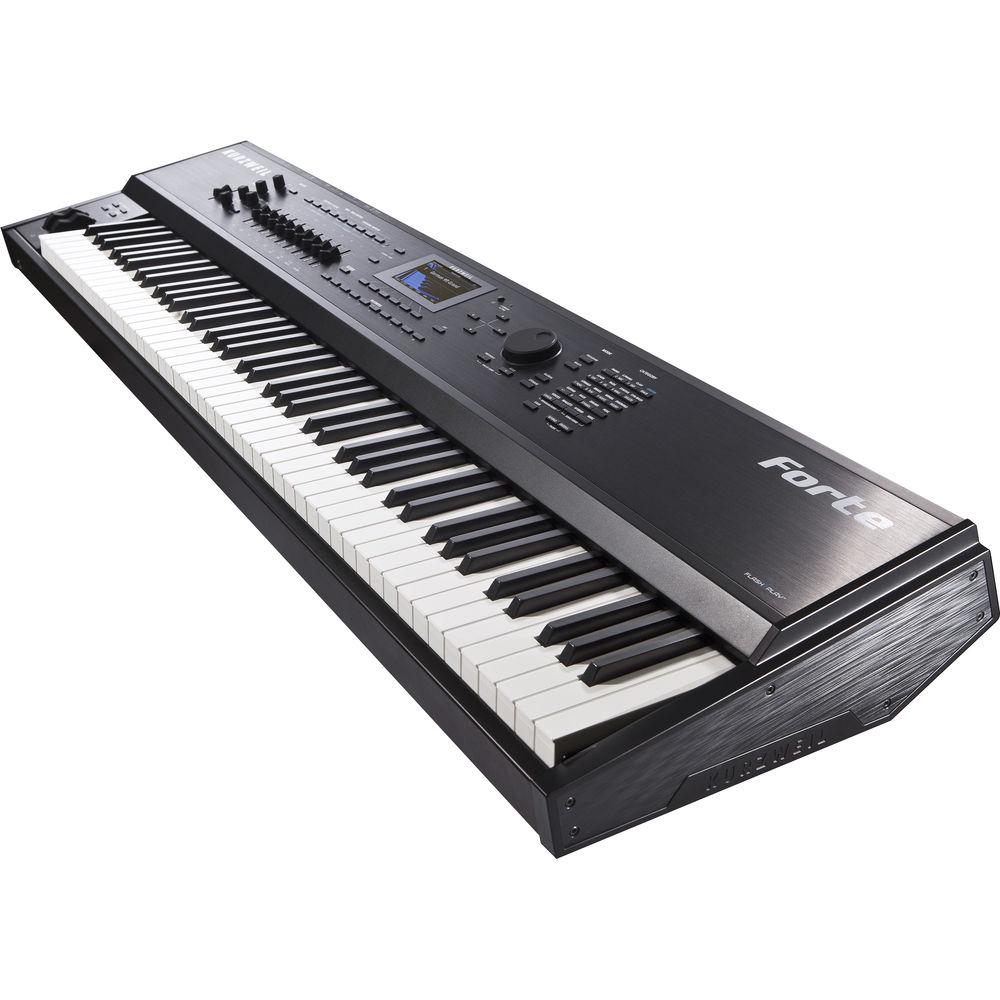

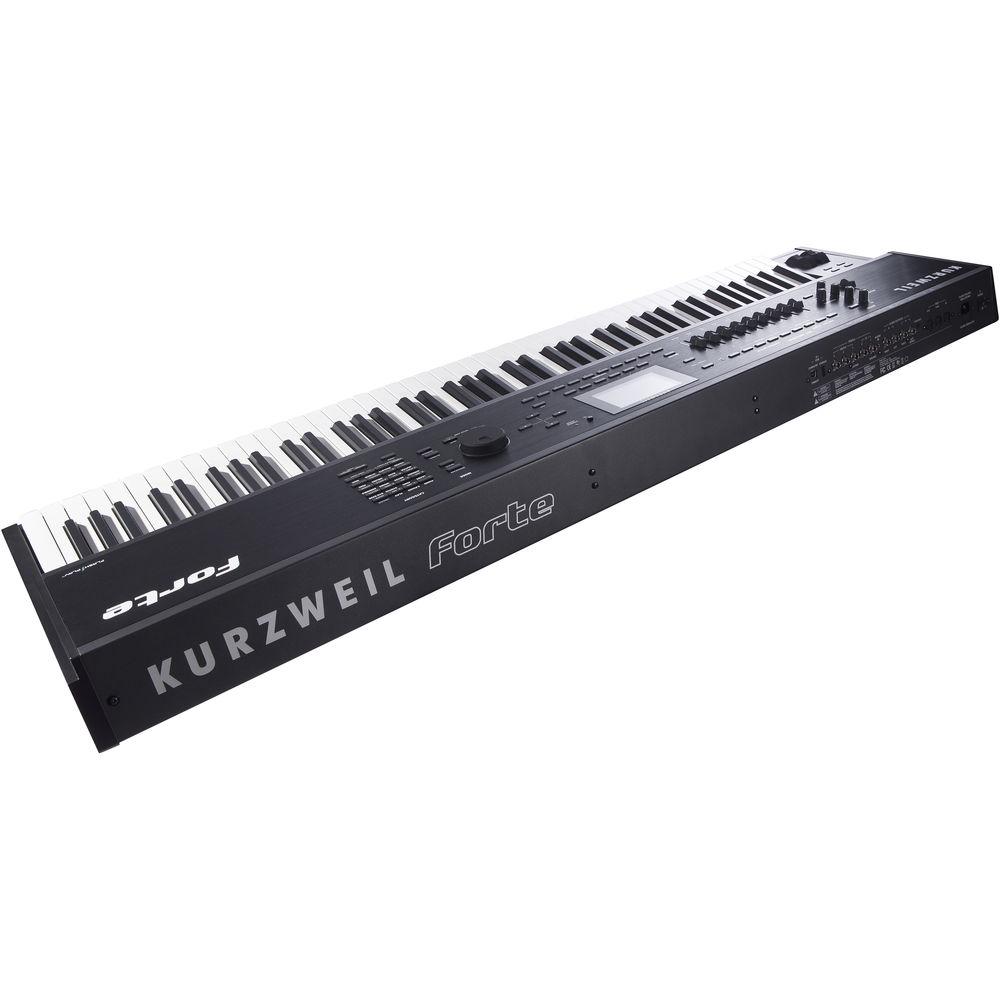

Product description The Forte SE from Kurzweil is an 88-key stage piano featuring Japanese and German grand pianos with modeled string resonance, electric pianos, clav, crotales, celeste, harpsichord, along with a selection of sounds from the company's PC3 Series and KORE 64 expansions . A total of 2 GB of samples can be instantly loaded via the company's Flash-Play technology, and triggered via the fully weighted hammer-action keyboard with monophonic aftertouch.
The instrument's V.A.S.T. (Variable Architecture Synthesis Technology) is accessible directly from the front panel, with thirty-two layers per program, each offering its own signal path and a host of modular DSP tools. Twenty-eight programmable physical controllers provide detailed editing functions of both the sounds and the extensive effects. A dedicated front-panel master EQ aids in sculpting the sounds.
Up to eight independent arpeggiators are available (one per program, eight per multi) along with a new "Step Sequencer" environment. The effects engine includes reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more, all fully editable from the user-interface. Easy category and program/multi selection is further enhanced by loading favorite sounds with a single button press. - 88-key fully weighted Italian hammer-action keyboard with aftertouch
- 2 GB of sounds featuring a High-Definition Japanese Grand, a German D Grand as well as electric piano, clav, celeste, crotales and harpsichords, along with a wide selection of sounds from the PC3 and KORE 64 expansion
- Kurzweil String Resonance delivers piano-string resonance modeling for enhanced acoustic piano performance
- Flash-Play allows for calling up the 2 GB sample content with zero-load time
- Effects engine includes reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more all fully editable from the user-interface
- Up to eight independent arpeggiators (one per program, eight per multi) and "Step Sequencer" environment

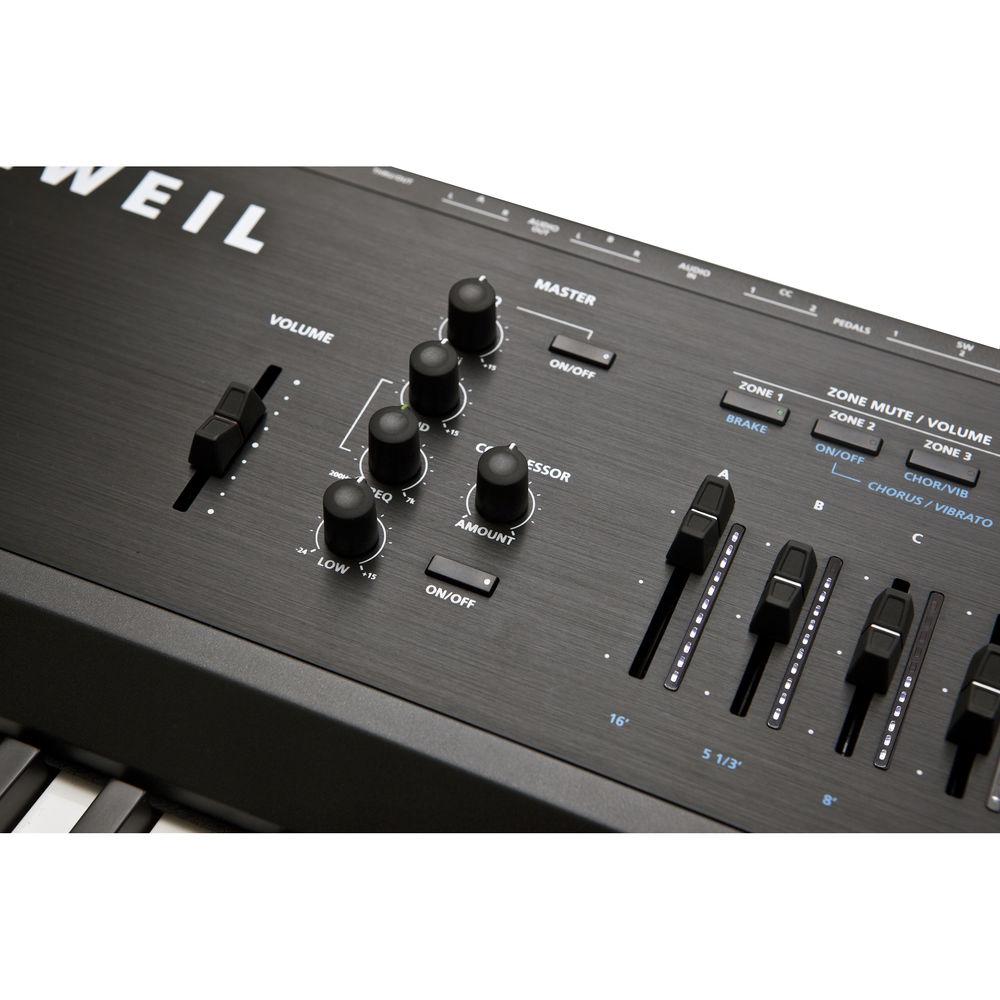

- Front-panel 3-band EQ featuring bass, treble and sweepable midrange
- Twenty-eight programmable physical controllers
- Dedicated transpose, tap tempo and sound-variation controls conveniently located right above the pitch/modulation wheels
- Easy category and program/multi selection
- Save custom preset for each category
- Access favorite sounds with a single button press
- MIDI I/O with USB functionality
- Software editors available for editing programs, multis and effects available for Mac OS X, Windows, and iOS
UPC: 883793203816 In the Box Kurzweil Forte SE - Stage Piano AC Cable USB Cable Sustain Pedal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kurzweil Forte SE - Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKurzweil KFORTE-SE Specs | Keyboard | 88-note fully weighted hammer-action with velocity and aftertouch (Fatar TP/100L) | | Polyphony | 128 Voice, dynamically allocated | | Multitimbral | 16 parts (one per MIDI channel)
Quick Split/Layer easy access with adjustable relative volume (up to 8 zones) | | Presets | Factory Single: 256
User Single : 1024
Factory Multis: 100
User Multis: 1024 | | Effects | Master Section: Front-panel 3-band EQ with sweepable mid and on/off switch
Hundreds of effect chains incorporated into programs, featuring reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
16 FX units, total | | Controllers | 1 x Pitch wheel
1 x Modulation wheel

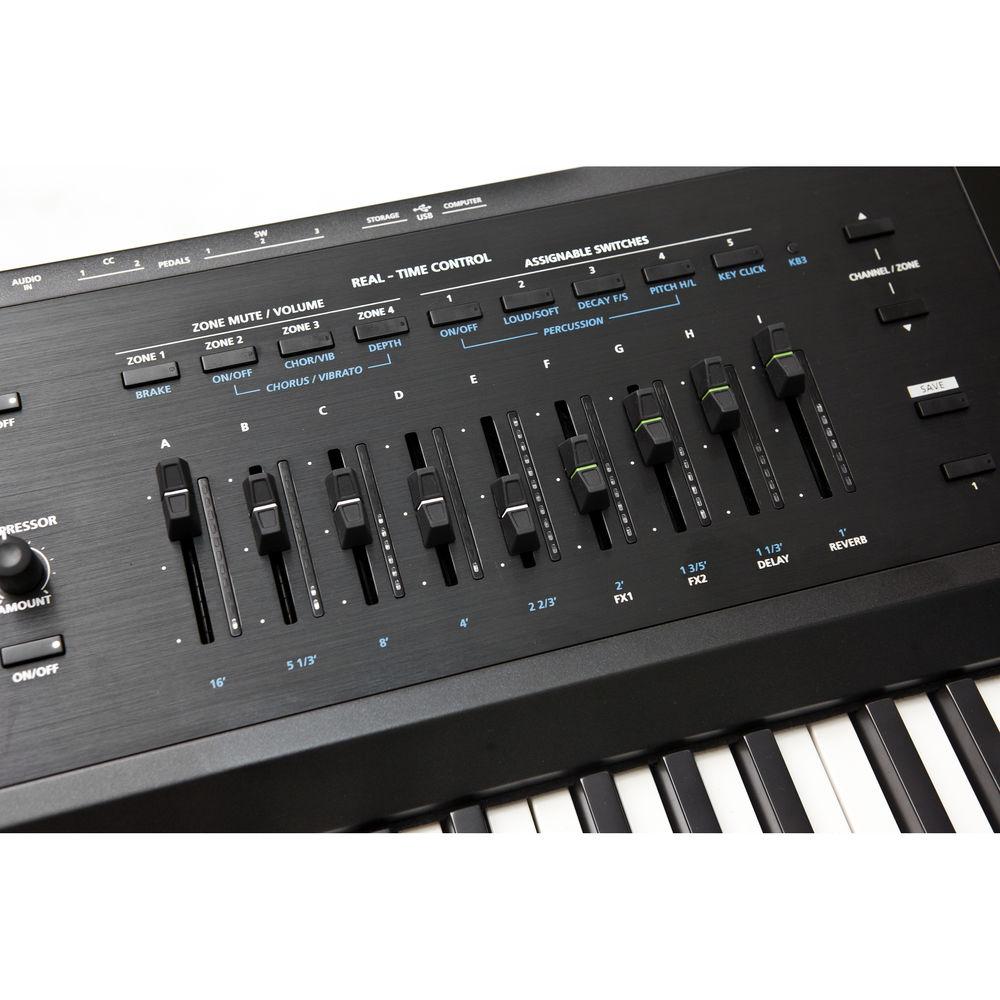

9 x Front panel sliders
9 x switches (assignable/zone mutes/KB3 control)
1 x Variation switch
1 x Arp switch
2 x Transpose switches
2 x Switch pedal inputs* (includes single switch/sustain pedal)
1 x Continuous control pedal input
1 x Mono pressure aftertouch

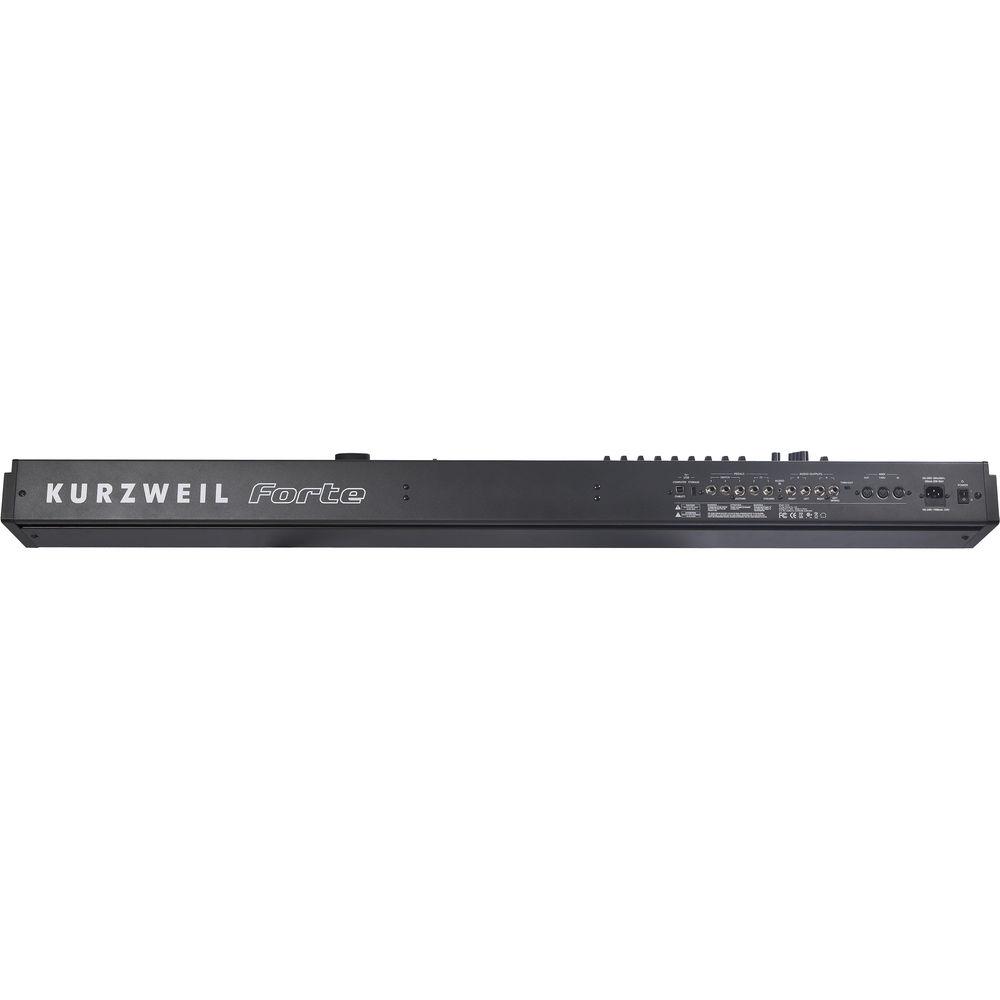

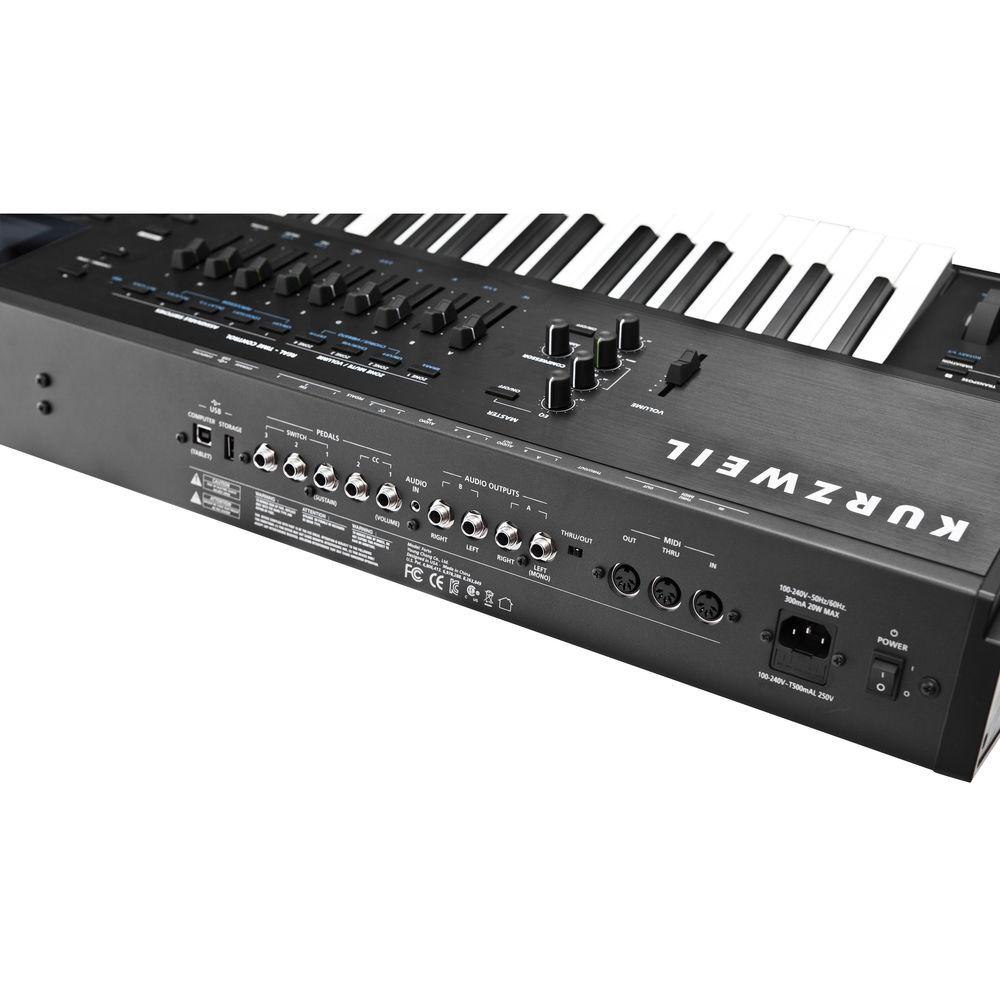

*Supports dual switch and half-damper for pianos - dual and half-damper pedals sold separately | | Arpeggiator | 1-per Program, 8-per Multi | | Audio Inputs | 1 x 1/8" TRS stereo mini for MP3 players or other audio sources for accompaniment playback (rear panel) | | Audio Outputs | 2 x 1/4" TRS, balanced (24-bit DACs)
1 x 1/4" TRS Headphone (front panel) | | Output Level | Main Out: +21 dBu maximum
Headphone: 130 mW into 32-Ohm headphones | | Output Impedance | 50-Ohm balanced source | | Other Connectors | 1 x USB Type-A
1 x USB Type-B
2 x 5-pin DIN MIDI In, Out | | Storage | USB flash drive (not included) | | Display | 240 x 64 pixel monochrome LCD with front-panel contrast adjust | | Power Requirements | 100~240 VAC 50/60 Hz
10 W power consumption | | Dimensions (WxDxH) | 48.9 x 15.2 x 5.2" (1242 x 386 x 132 mm) | | Weight | 40.8 lb (18.5 kg) | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 54.5 x 19.75 x 10.0" |
