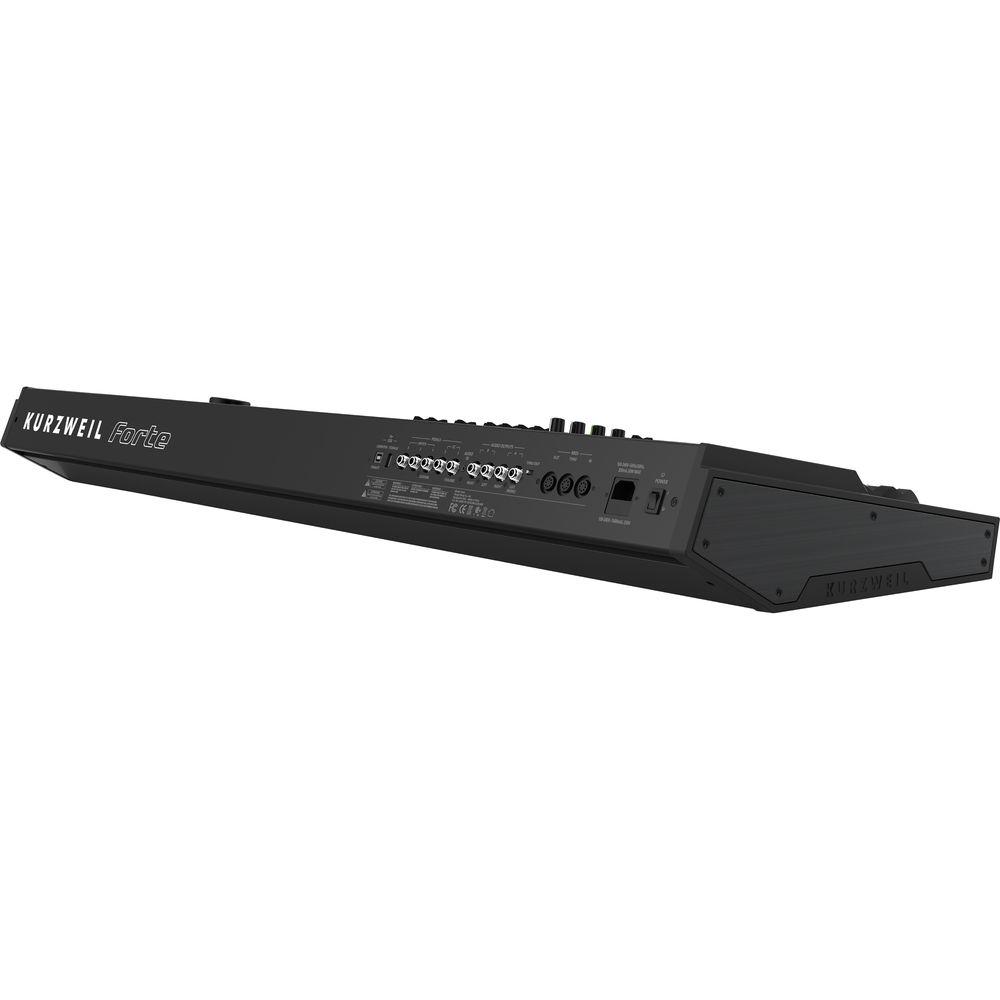

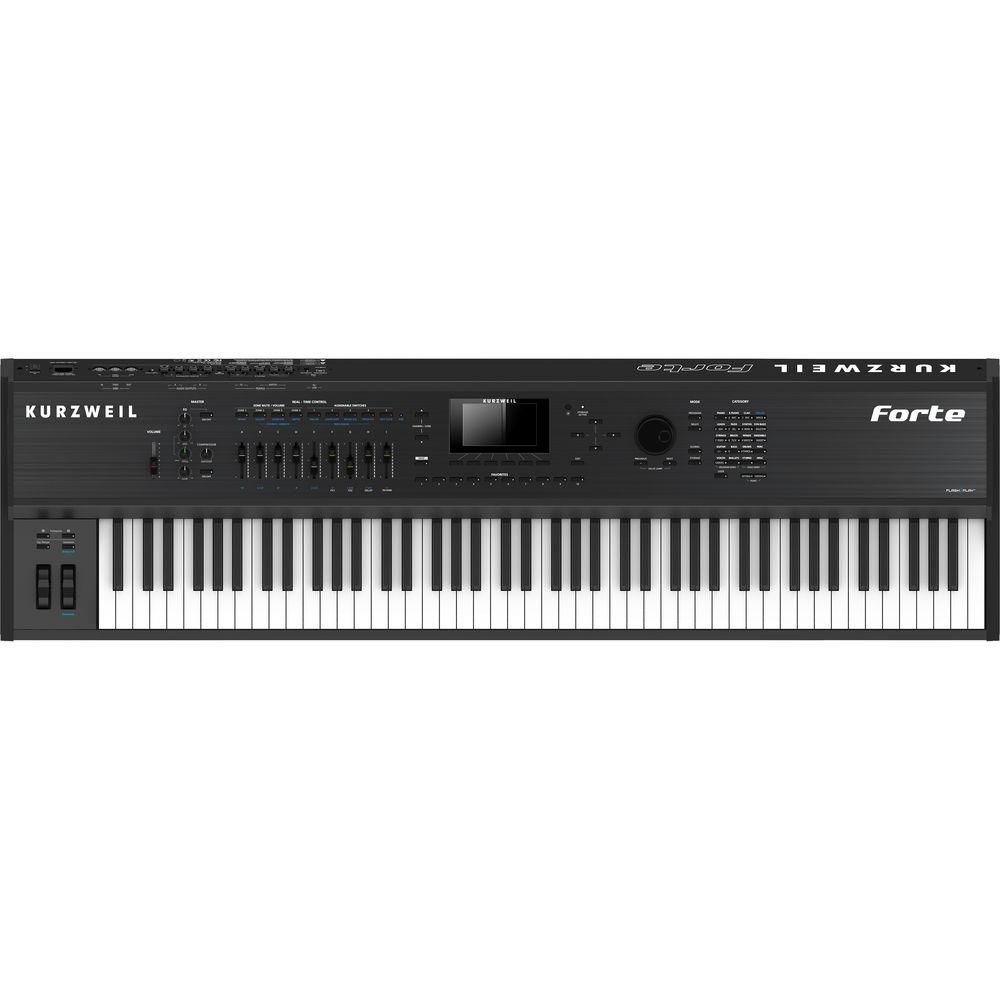

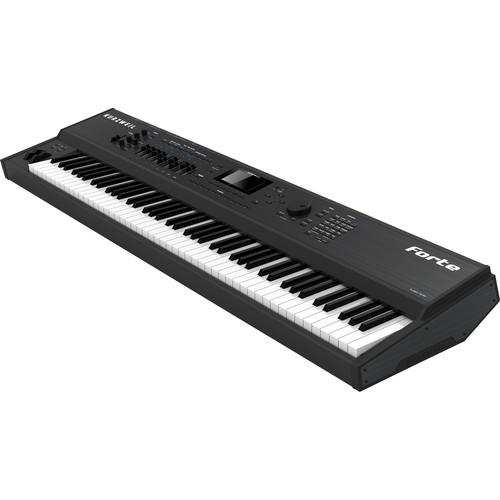

User Manual for Kurzweil Forte - Stage Piano Click to enlarge the picture
Contents of the user manual for the Kurzweil Forte - Stage Piano
- Product category: Stage Pianos & Organs Kurzweil
- Brand: Kurzweil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kurzweil Stage Pianos & Organs
 |
User manual for the Kurzweil Forte - Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kurzweil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kurzweil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kurzweil product will considerably shorten its lifespan!
|
Product description The Forte from Kurzweil is an 88-key stage piano featuring Japanese and German grand pianos, vintage '77 and '73 tine electric pianos, wurly, clav, harpsichord, celeste, and more. A total of 16 GB of samples can be instantly loaded via the company's Flash-Play technology, and triggered via the fully weighted hammer-action keyboard with aftertouch.
Additionally, the keyboard contains the B3 ToneReal organs modeled after classic Hammond, Vox and Farfisa units, with organ tones adjustable via nine realistic drawbars with LED ladders. Twenty-three programmable physical controllers provide detailed editing functions of both the sounds and the extensive effects. The user interface has been enhanced by the addition of a widescreen color LCD display.
A dedicated front-panel master EQ and compressor aid in sculpting the sounds. The effects engine includes reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more. Effect chains, sixteen-part multitimbral, four independent zones, full USB implementation and full MIDI connectivity make the Forte a complete package. A cross platform software editor is also available. - 88-key fully weighted Italian hammer-action keyboard with aftertouch
- 16 GB of new sounds featuring German and Japanese concert grand pianos, as well as Rhodes, Wurlitzer, clav and harpsichords, along with a wide selection of sounds from the PC3 and KORE 64 expansion
- Flash-Play allows for calling up the 16 GB sample content with zero-load time
- KB3 ToneReal organs modeled after classic Hammond, Vox and Farfisa organs and featuring nine realistic drawbars
- FX engine includes reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more
- Front panel master compressor and 3-band EQ with the EQ section featuring bass, treble and sweepable midrange
- Twenty-three programmable physical controllers
- Dedicated transpose, tap tempo and sound variation controls conveniently located right above the pitch/modulation wheels
- Easy category and program/multi selection
- Save custom preset for each category
- Access ten favorite sounds with a single button press
- Complete MIDI functionality over USB
- Software editors available for editing programs, multis and effects available for Mac OS X, Windows, and iOS
- Operating system updates from a PC, Mac, or flash drive
UPC: 883793203113 In the Box Kurzweil Forte - Stage Piano AC Cable Sustain Pedal One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kurzweil Forte - Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKurzweil KFORTE Specs | Keyboard | 88 note fully weighted hammer-action with velocity and aftertouch (Fatar TP/40L) | | Polyphony | 128 Voice, dynamically allocated | | Multitimbral | 16 parts (one per MIDI channel)
Quick Split/Layer easy access with adjustable relative volume (up to 4 zones) | | Presets | Factory Single : Japanese and German Grands, Rhodes, Wurlitzer, Clav and Harpsichord along with a selection of sounds from the PC3 and KORE 64 expansion
User Single : 256
Factory Multis: Not specified by manufacturer
User Multis: 256 | | Effects | Master Section: Front-panel 3-band EQ with sweepable mid and on/off switch
Front-panel single-knob master compressor with separate on/off bypass switch
1,000+ effect chains*, incorporated into programs and featuring reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more
32 FX units, total
*Editing of FXChains requires the Desktop Editor software | | Controllers | 1 x Pitch wheel
1 x Modulation wheel
9 x Front panel sliders (with LED ladders)
9 x KB3 (organ) control switches/control/zone mute switches
1 x Variation switch
1 x Tap tempo switch
2 x Transpose switches
3 x Switch pedal inputs (includes single switch/sustain pedal)
2 x Continuous control pedal input
Mono pressure aftertouch | | Audio Inputs | 1 x 1/8" TRS stereo mini for MP3 players or other audio sources for accompaniment playback (rear panel) | | Audio Outputs | 4 x 1/4" TRS, balanced (2 pairs)
1 x 1/4" TRS Headphone (front panel) | | Output Level | Main Out: +21 dBu maximum
Headphone: 130 mW into 32 Ω | | Output Impedance | 400 Ω balanced source | | Other Connectors | 1 x USB Type-A
1 x USB Type-B
3 x 5-pin DIN MIDI In, Out, Thru | | Storage | USB flash drive (not included) | | Display | 480 x 272 pixel color LCD with front-panel contrast adjust | | Power Requirements | 100~240 VAC 50/60 Hz
10 W power consumption | | Dimensions (WxDxH) | 54.5 x 15.5 x 5.5" (1385 x 395 x 140 mm) | | Weight | 49.6 lb (22.5 kg) | | | | Package Weight | 63.05 lb | | Box Dimensions (LxWxH) | 62.0 x 20.05 x 10.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
