User Manual for Kurzweil MP10F-SR Digital Piano Satin Rosewood Click to enlarge the picture
Contents of the user manual for the Kurzweil MP10F-SR Digital Piano Satin Rosewood
- Product category: Digital Pianos Kurzweil
- Brand: Kurzweil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kurzweil Digital Pianos
 |
User manual for the Kurzweil MP10F-SR Digital Piano Satin Rosewood contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kurzweil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kurzweil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kurzweil product will considerably shorten its lifespan!
|

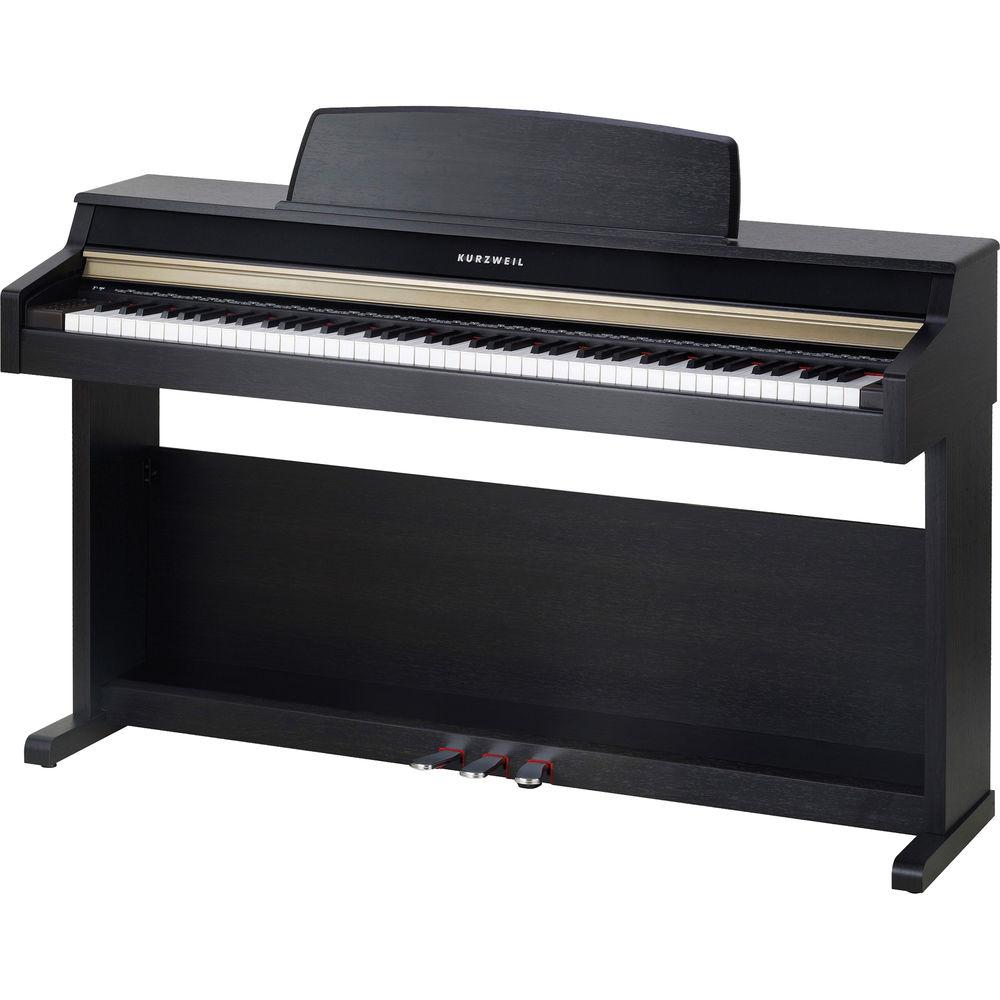

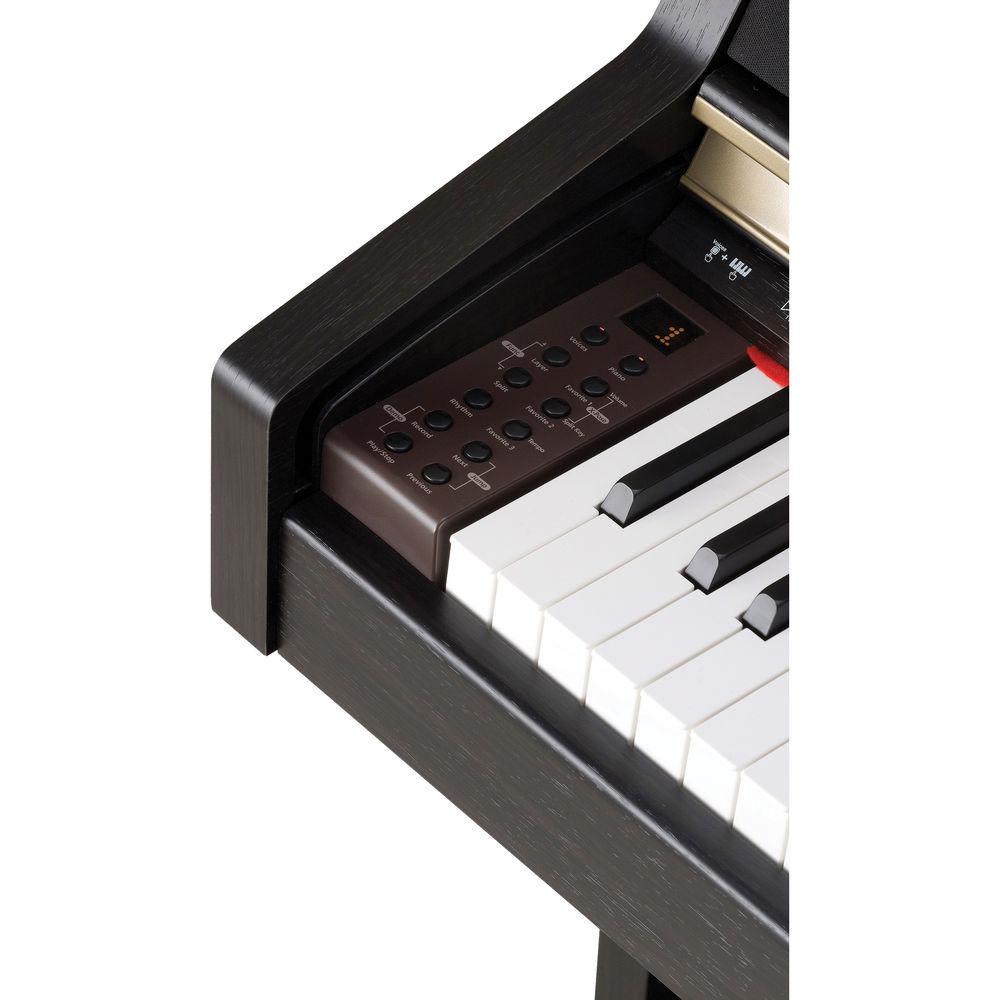

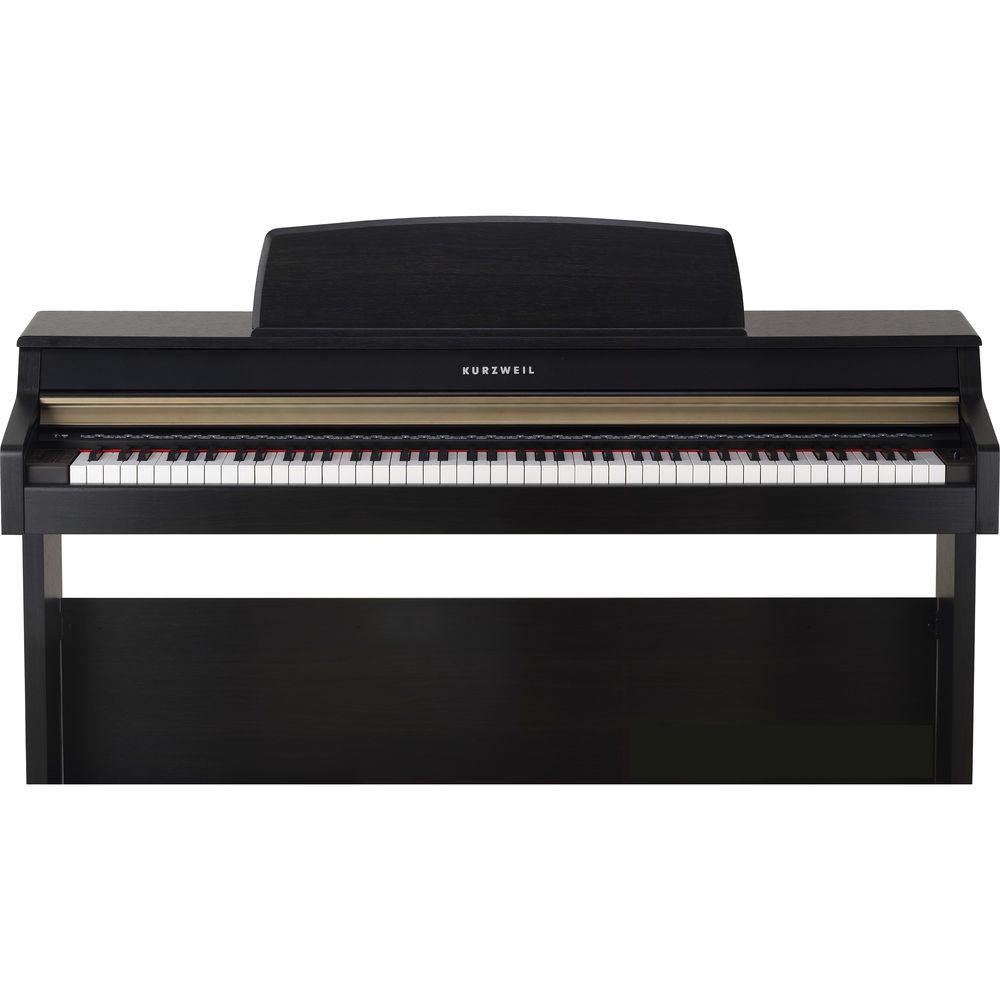

Product description The satin rosewood MP10F-SR Digital Piano from Kurzweil features a traditional spinet-piano design while still offering all of the modern benefits of a digital keyboard. There are angled, tuned, and ported woofer enclosures for providing deep bass and heightened sound dispersion, complementing the instrument's broad sound set. Tweeters placed directly behind the keys create a wide stereo soundfield for both the player and the audience. The MP-10's simple and intuitive sound panel is angled for improved visibility and use, and the piano also contains an easy-slide key cover.
The piano's keyboard is constructed by the Fatar company, and contains Real-Grand Hammer Action for a professional and reliable instrument. The keyboard uses a hammer motion, rather than a key motion, providing the maximum accurate dynamic control. The hammer weight is graded through four gradual zones, from light in the treble-end to heavy in the bass-end. The action also features an escapement which reproduces the let-off and jack-engagement feel of a real acoustic piano. There are three built-in standard acoustic piano pedals; the sustain, the sostenuto and the soft, as well as a 30W 2-way four speaker sound system.
A Mara sound chip and VAST architecture are used to create realistic and playable instrument sounds. The digital signals are then realized through hand-matched amplifiers and speakers to produce an intimate sound field. The piano's sonic pallet includes sounds from the company's Triple Strike Grand Piano, as well as a large variety of categorized instrument selections. There are three favorite buttons for saving presets and custom combinations, and the piano also offers split and layering features for an added dimension to your music. - Well-made Fatar keyboard from Italy
- Traditional spinet-piano design
- Angled sound panel and easy-slide key cover
- Sustain, sostenuto, and soft standard piano pedals
- Optional volume/expression-pedal input
- Six presets and 200 built-in programs
- Split and layers for additional dimension to your music
- Included matching piano bench
UPC: 883793806840 In the Box Kurzweil MP10F-SR Digital Piano Satin Rosewood Matching Piano Bench Limited 3-Year Warranty on Parts (2 Years for Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kurzweil MP10F-SR Digital Piano Satin Rosewood in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kurzweil MP10F-SR Digital Piano Satin Rosewood can be downloaded in PDF format at the link stated below.
Technical parametersKurzweil MP10F Specs | Keyboard | Fatar TP/40L | | Notes | 88 | | Keyboard Sensitivity | 10 selectable response levels | | Display | Scrolling alphnumeric LED | | Polyphony | 64 voice | | Presets | 3 | | Built-In Programs | 88 | | Splits/Layers | Quick split/layer, adjustable relative volume | | Transpose | Full transposition, +/- two octaves | | Tune | +/- 100 Cents | | Effects | Dual ambience and effect processors (reverberation and chorus) | | Demo Songs | 51 piano demos | | Drum Patterns | 78 | | Recorder | 1-track, 9-song capacity | | Sound System | 30 W, 2-way 4-speaker system | | Power | 90 to 250 V free voltage external power supply | | Audio In | Stereo left/right RCA line ins | | Audio Out | Stereo left/right RCA line outs | | MIDI | MIDI in and out connectors
No general MIDI | | Connections | 1 x USB port
2 x 1/4" stereo headphone outs | | Pedals | 3 x switchable type (sustain, sostenuto, soft) | | Additional Features | Metronome | | Dimensions | 34.7 x 56.0 x 18.5" / 88.0 x 142.2 x 47.0 cm | | Weight | 114.5 lb / 51.9 kg |
