User Manual for Kurzweil SP6 88-Key Stage Piano Click to enlarge the picture
Contents of the user manual for the Kurzweil SP6 88-Key Stage Piano
- Product category: Stage Pianos & Organs Kurzweil
- Brand: Kurzweil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kurzweil Stage Pianos & Organs
 |
User manual for the Kurzweil SP6 88-Key Stage Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kurzweil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kurzweil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kurzweil product will considerably shorten its lifespan!
|

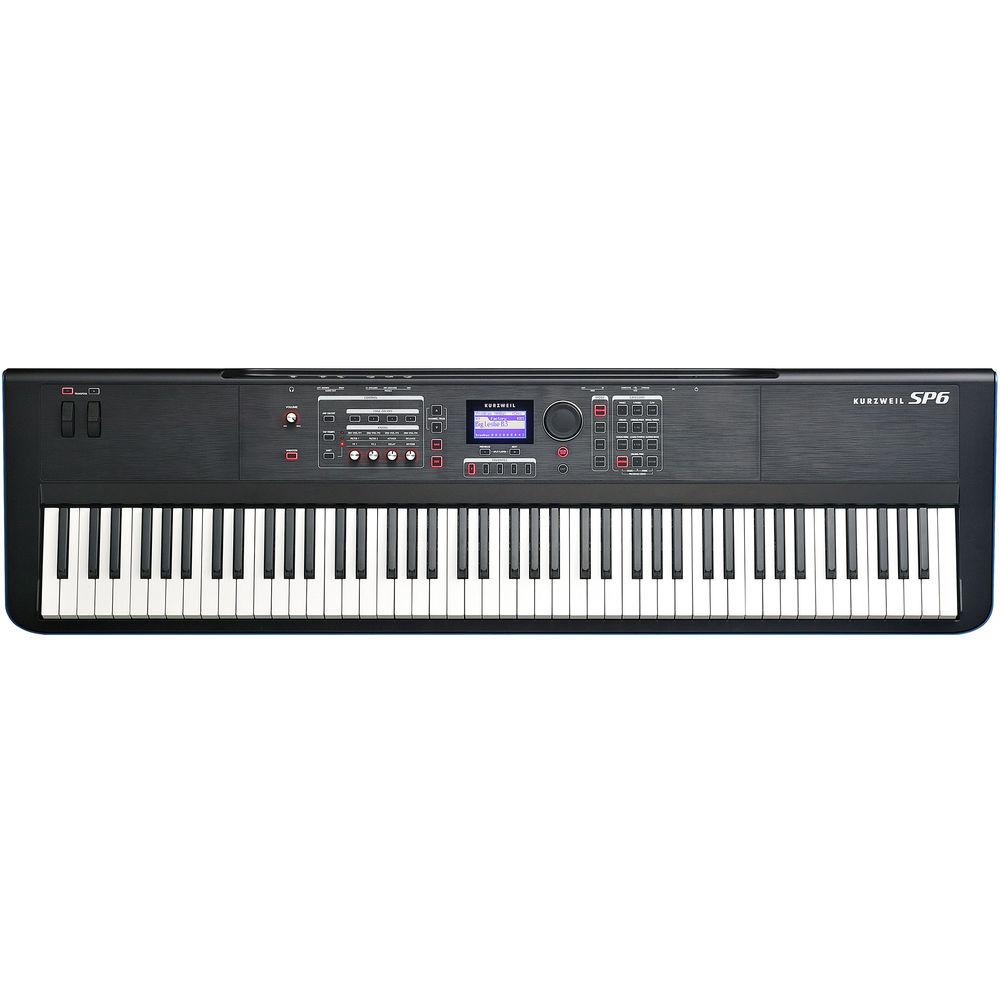

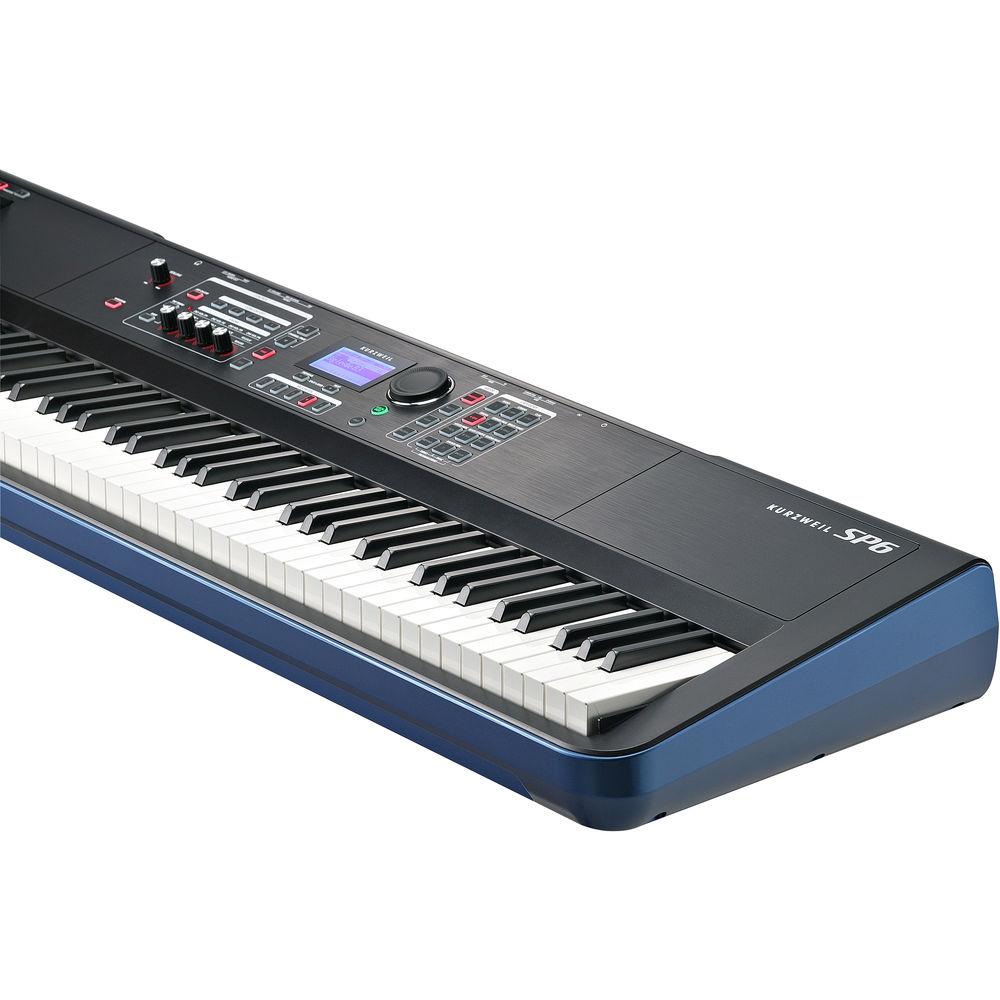

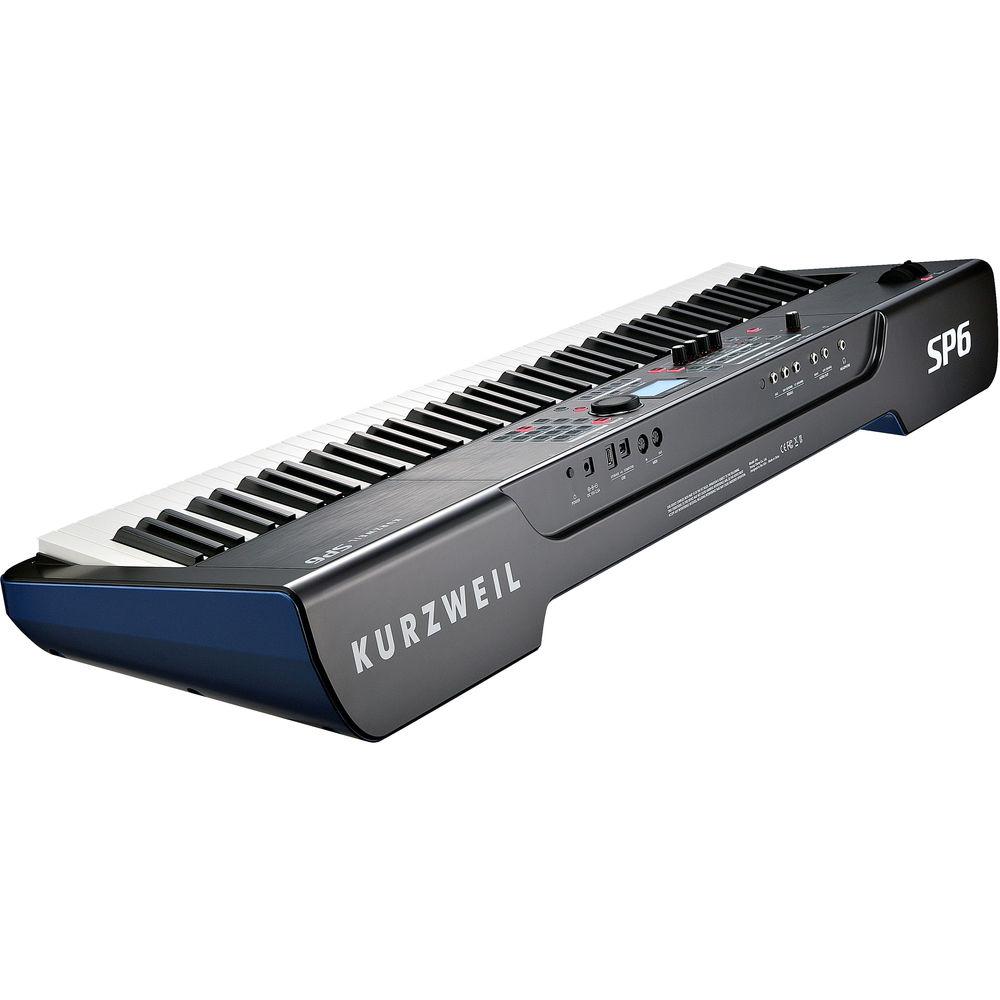

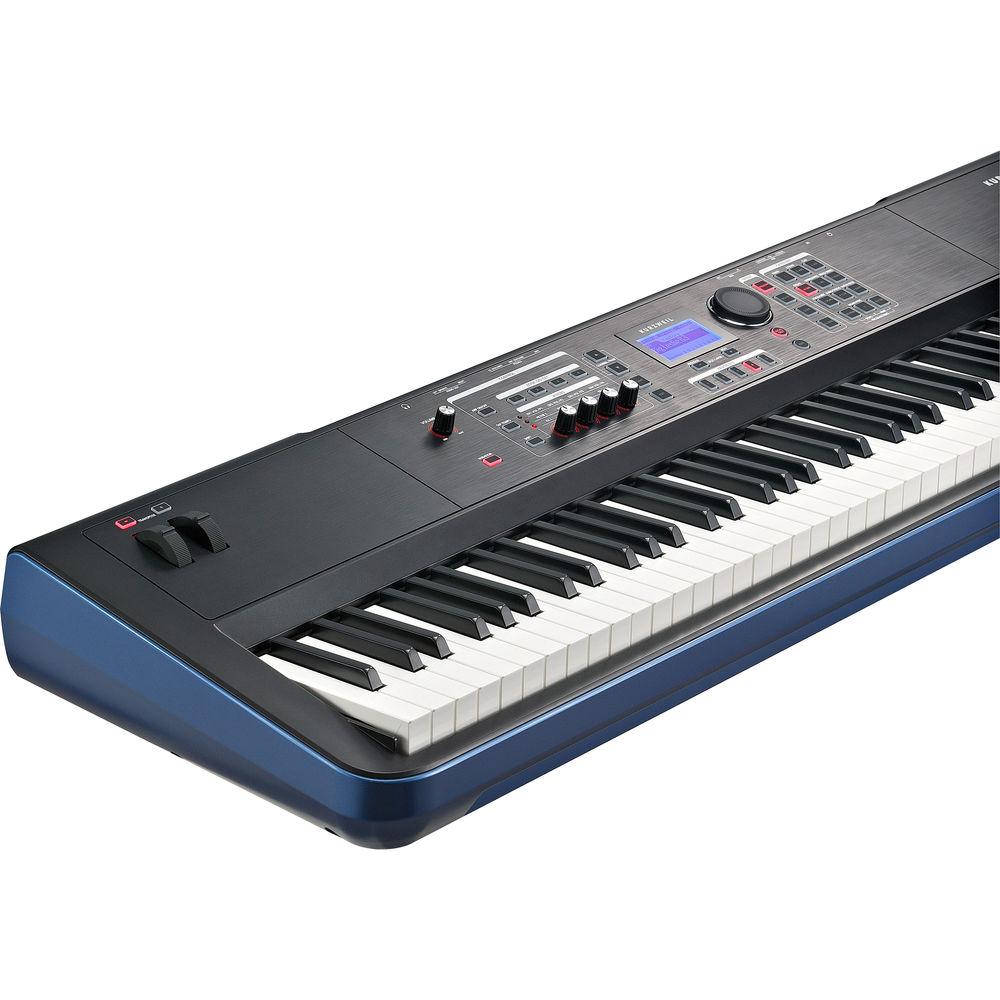

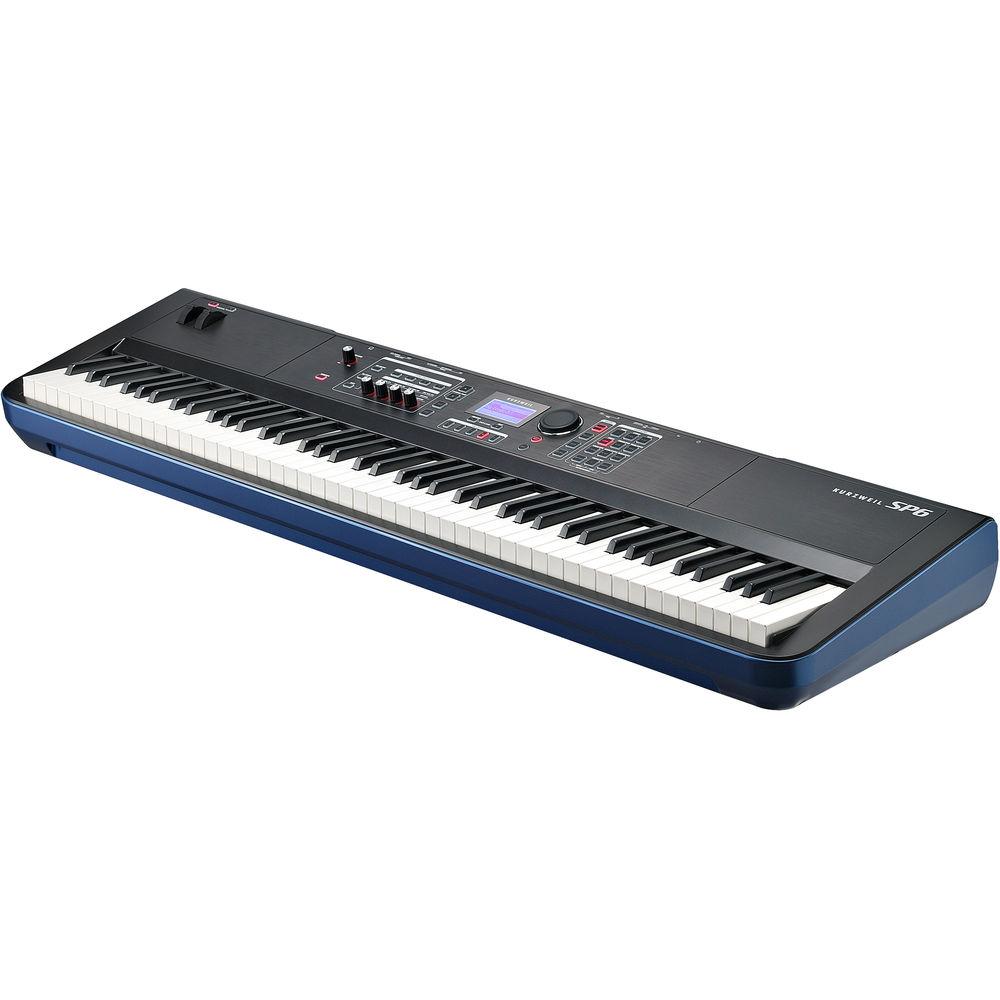

Product description The SP6 88-Key Stage Piano from Kurzweil follows the standard established by Kurzweil's Forte, Forte SE, and PC3 series keyboards while taking sound quality and performance to new heights in a lightweight (27 lb) instrument. In addition to using samples from Japanese and German D grands, the SP6 includes electro piano, clavinet, celeste, crotales, and harpsichord instrument sounds that can be used for live stage or studio applications.The 88-key, fully weighted, hammer-action keyboard is powered by Flash-Play. It boots the instrument in 11 seconds with 2GB of on-board sample content. With 32 FX, you can select reverbs, delays, choruses, flangers, phasers, compressors, and more effects to tweak your sound. The stage piano features 256 factory programs, 1024 user programs, and 130 factory multi programs that have 128-voice polyphony.In addition, the KB6's KB3 ToneReal Organs module is designed after the classic Hammond, Vox, and Farfisa organs. Other features include a 128 x 64-pixel monochrome LCD display, the Kurzweil String Resonance (KSR), which provides piano-string resonance modeling for an enhanced acoustic piano performance. Furthermore, arpeggiators, pitch modulation, 20 MIDI controllers, quick sound selection, and easy access controls make the SP6 88-Key Stage Piano suitable for any style of music. - 2 Gigabytes of Sounds
- The Japanese and German D grand pianos have been optimized for the SP6 and feature "KSR" Kurzweil string resonance. The SP6 offers all the sample content from the Forte SE and features a wide selection of tailored sounds from the Forte and Forte SE (EP, Clav, Celeste, Crotales, Harpsichord), as well as PC3 Series and KORE 64 expansions.
- Flash-Play Technology
- The SP6 boots in 11 seconds with 2GB of on-board sample content. It has zero-loading time, DSP, and offers quick performance. Load programs from the Forte, Forte SE, and PC3 family*.
*some restrictions apply - Powerful FX Engine
- Experience more simultaneous FX in your performance, multis, and external sequencing—and tweak them with dedicated knob assignments. Featuring 32 FX units of horsepower such as reverbs, delays, choruses, flangers, phasers, distortions, rotary amplifiers, compressors, and more.
- K.S.R. Kurzweil String Resonance
- Piano string-resonance modeling for real acoustic piano performance.
- KB3 ToneReal Organs
- These organs are modeled after the classic Hammond, Vox, and Farfisa organs, and feature real-time performance controls.
- Gig-Lite
- The SP6 is a professional 88-note keyboard that weighs only 27 pounds.
- 88-Note, Hammer-Action Keyboard
- Every sound within the SP6 is matched to its 88-note, fully weighted hammer-action keyboard. Further tailor the SP6 response to your playing style via 10 selectable key-velocity maps.
- 4 Arpeggiators
- Activate up to 4 independent arpeggiators (1 per program, 4 per Multi) with dedicated on/off and tap tempo buttons.
- 20 MIDI Controllers

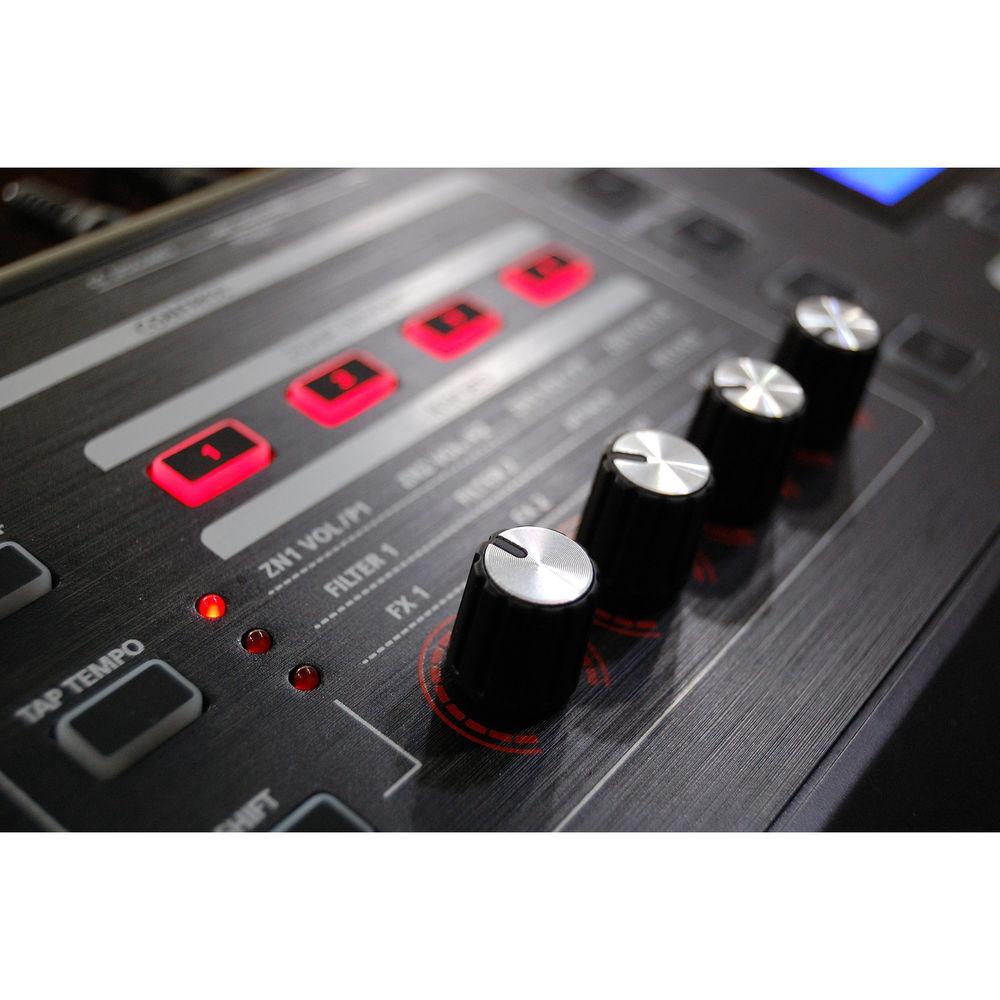

- Maximize your real-time control over presets via the SP6's 4 knobs, 1 switch, 2 wheels, 2 dual-switch pedal inputs, and 1 continuous control pedal input.

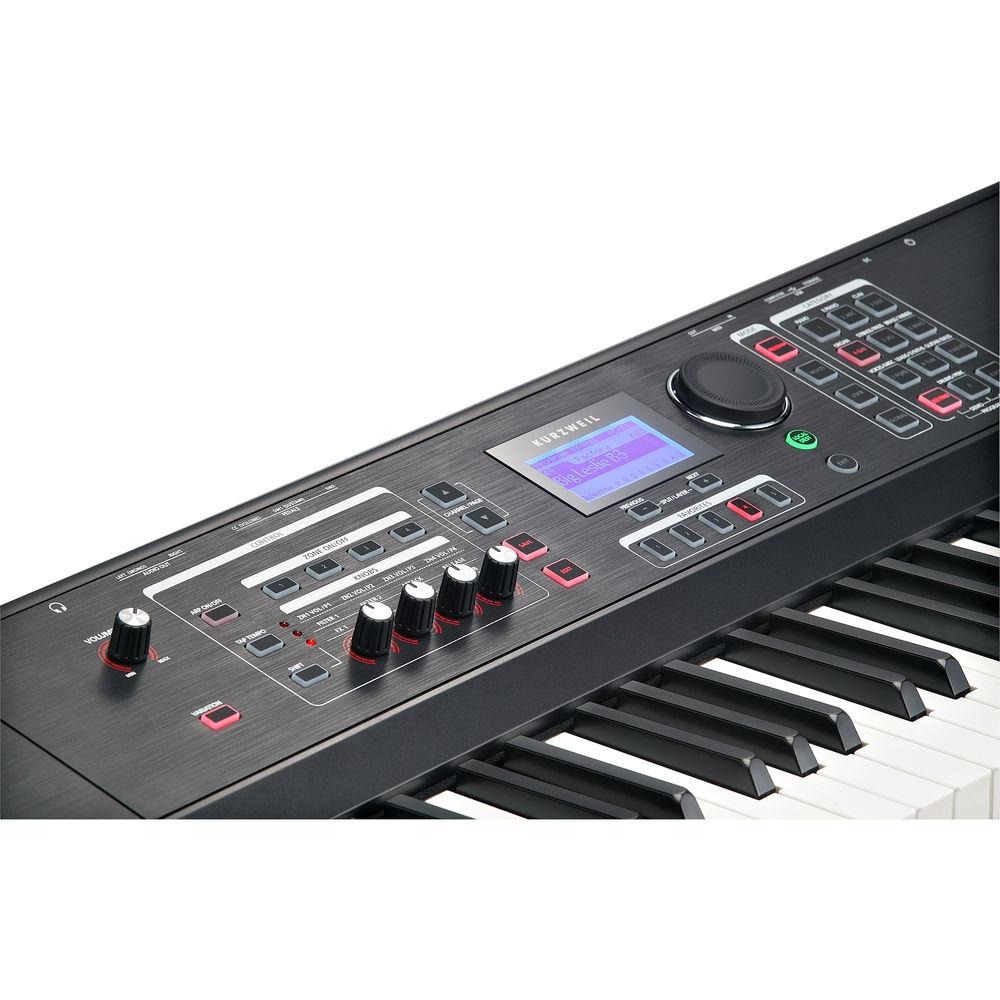

- Easy-Access Controls
- Pitch/modulation wheels with dedicated +/- transpose and sound variation controls are located on the front panel.
- User-Interface Sound Selection
- Quickly audition each sound per program with the SP6's easy category and program/multi selection and assignment. Access sounds with one button press located right below the SP6's display.
- Software Editors
- Get deeper into editing your SP6 using free external software editors for Mac OS X, Windows computers, and iOS devices.
UPC: 883793411211 In the Box Kurzweil SP6 88-Key Stage Piano Power Cable Switch Pedal USB Cable 4 x Self-Adhesive Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kurzweil SP6 88-Key Stage Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKurzweil SP6 Specs | Keyboard | 88-note, fully weighted hammer-action with velocity-sensitive keys | | Display | 128 x 64-pixel monochrome LCD | | Polyphony | 128-voice polyphony, dynamically allocated | | Multitimbral | 16 parts (one per MIDI channel) | | Architecture | VAST: Variable Architecture Synthesis Technology
KB3: ToneReal emulation
VA1: Anti-aliasing, power-shaped oscillators and DSP processing from Kurzweil's VA1 concept synth | | Layer | Quick Split/Layer: Easy access with adjustable relative volume (up to 4 zones) | | Factory Programs | 256 | | Preset/User Programs | 1024 | | Multis | Factory: 130
User: 1024 | | Favorite | 5 | | Compatibility | 100% compatibility with Forte SE programs
Load sounds from the Forte and PC3 family programs*
*some restrictions apply | | General MIDI | No | | Strings | Kurzweil Resonance: Yes | | Damping Factor | Piano Damper Noise: Yes | | Effects | Hundreds of complex effect chains, incorporated into programs featuring reverbs, delays, chorus, flange, phaser, EQs, distortions, rotary speaker simulators, compressors, and more. 32 total FX units | | Controllers | Pitch wheel, modulation wheel, 4 front panel knobs (configured as 4x3= 12 virtual controls), 1 variation switch, 1 arp switch, 2 transpose switches, 1 tap tempo switch, *2 dual-switch pedal inputs, and 1 continuous control pedal inputs

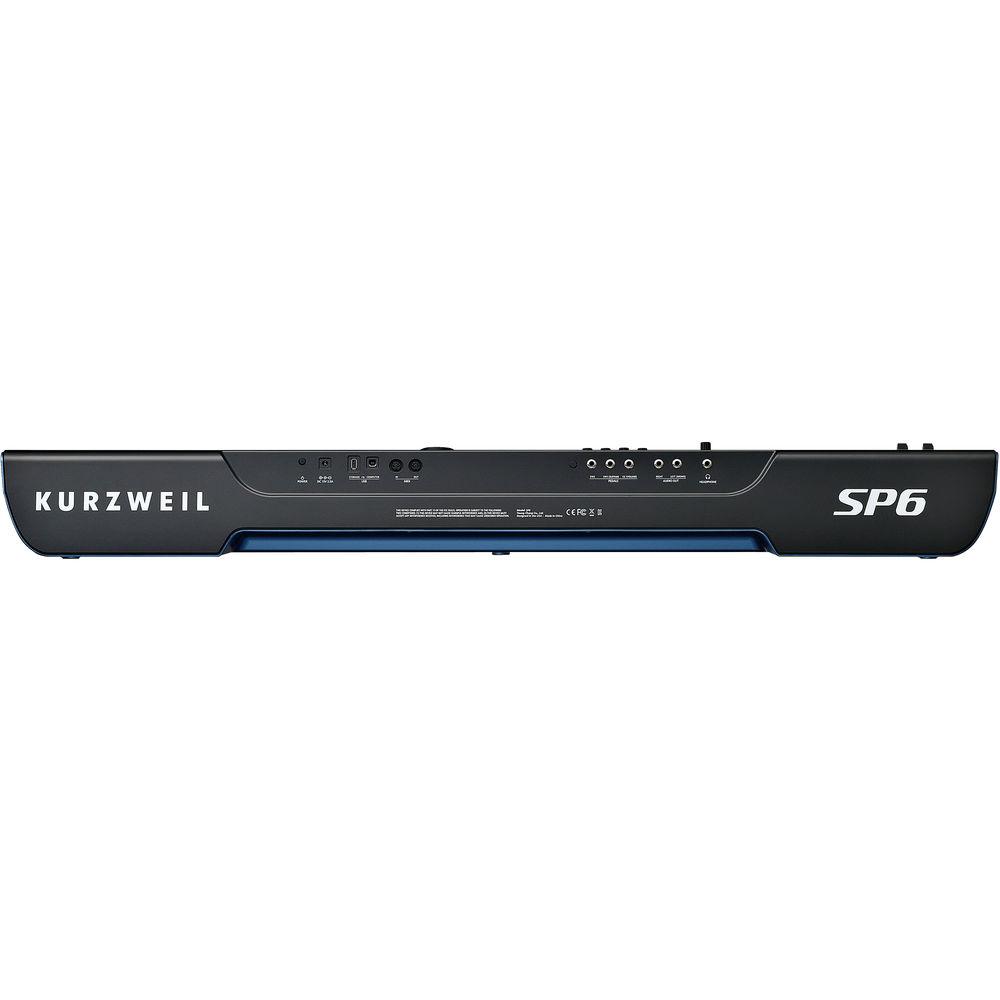

*one switch/sustain pedal is included; supports dual switch and half-damper for pianos/dual & half-damper pedals sold separately | | Arpeggiator | 1 x per program, 4 x per multi | | Inputs/Outputs | Analog Outputs: Two 1/4" balanced TRS analog (32-bit DACs)
Headphones: 1 rear-panel 1/4" headphone output (130 mW into 32 Ohms headphones) MIDI: In, out
USB: Two USB ports (one Type-A, one Type-B)
Complete MIDI functionality over USB User program/setup file transfer to/from Windows computer/Mac
Operating system updates from Windows computer/Mac/flash drive | | Software | Editors: External editors for Mac OS X, Windows computers, and iOS devices
OS updates over USB and/or Flash Drive | | Power | External 15 VDC, 2.5 A power supply | | Dimensions (H x D x W) | 5.7 x 15.0 x 52.5" (14.6 x 38.1 x 133.4 cm) | | Weight | 27.3 lb (12.4 kg) | | | | Package Weight | 47.65 lb | | Box Dimensions (LxWxH) | 67.0 x 20.0 x 11.0" |
