User Manual for Kurzweil UNiTE-2 Two-Channel USB 2.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the Kurzweil UNiTE-2 Two-Channel USB 2.0 Audio
- Product category: Audio Interfaces & Systems Kurzweil
- Brand: Kurzweil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kurzweil Audio Interfaces & Systems
 |
User manual for the Kurzweil UNiTE-2 Two-Channel USB 2.0 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kurzweil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kurzweil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kurzweil product will considerably shorten its lifespan!
|

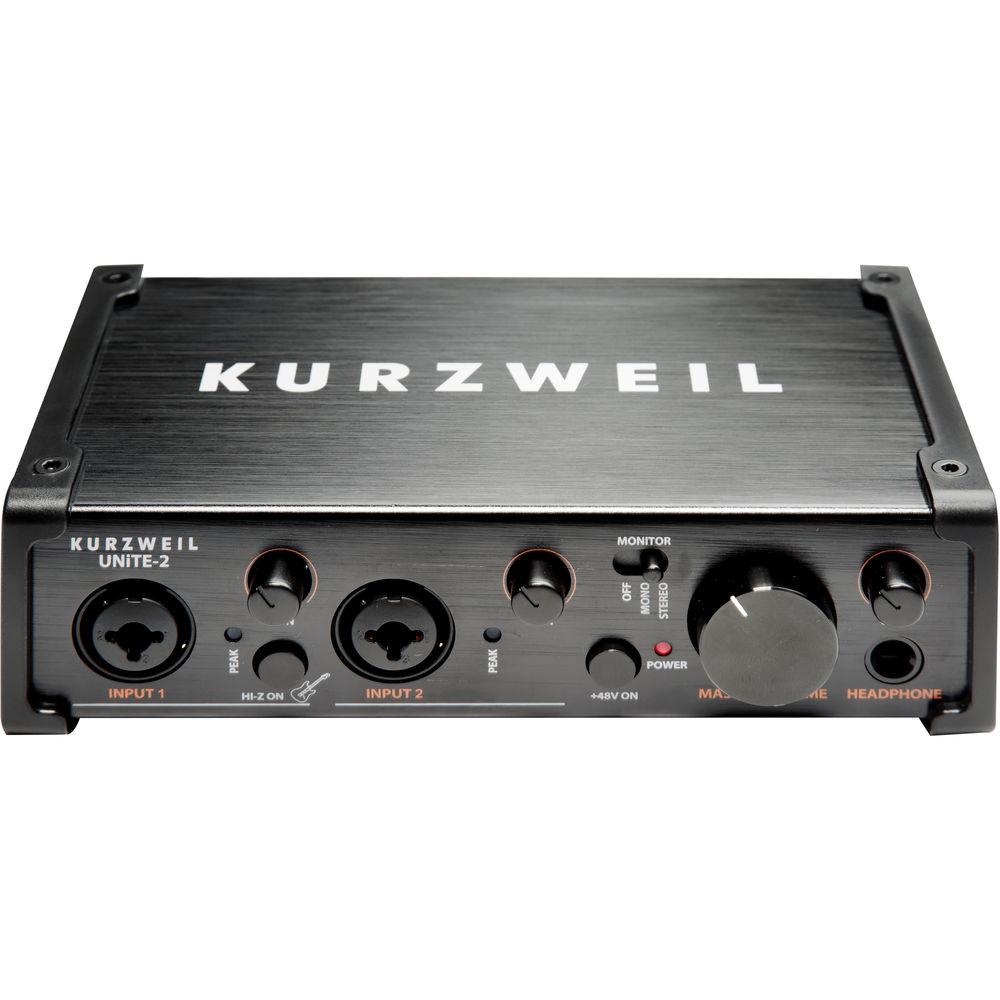

Product description The UNiTE-2 Two-Channel USB 2.0 Audio Interface from Kurzweil is a two input, two output interface with +48V phantom power support and one switchable Hi-Z instrument input. When paired with an optional microphone (sold separately), the audio interface can be used to capture audio for Mac or Windows computers using the included Bitwig Studio 8-Track software or the DAW host software of your own.The UNiTE-2 features 24-bit / 96 kHz AD/DA converters, individual L/R outputs via balanced 1/4" TRS connectors, and a front panel 1/4" headphone output connector for monitoring. Other features include: front panel controls for channel input gain with peak indicators, a monitor switch for real-time mono or stereo monitoring, and a front-panel phantom power on/off switch. - Get In
- Two combo microphone/line inputs (with +48V phantom power support) and 1 switchable Hi-Z instrument input.
- Get Out

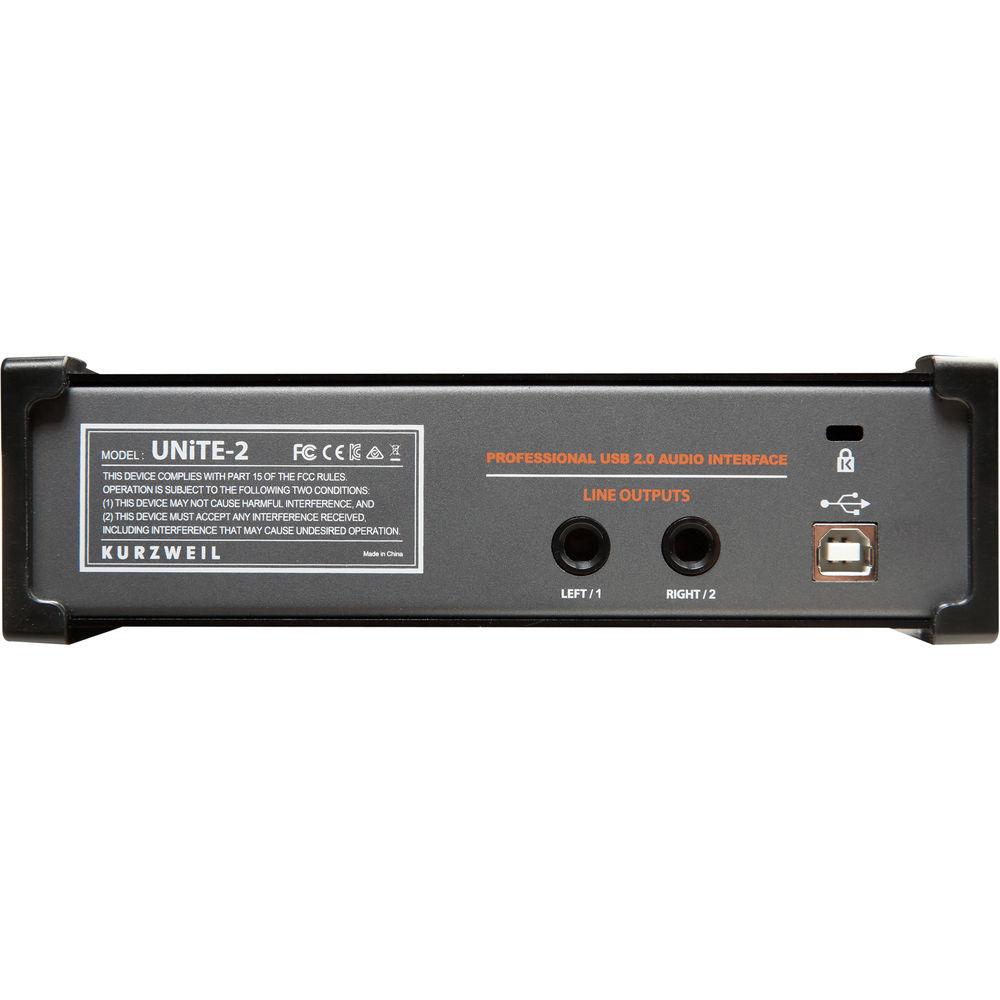

- Individual L/R outputs via balanced 1/4" TRS connectors. Front-panel headphone output with stereo 1/4" connector.
- Make the Conversion
- 24-bit / 96 kHz AD/DA converters.
- USB
- Bus power and full-speed USB 2.0. No external power connection required.
- Controls
- Intuitive and convenient front-panel controls for channel input gain (with peak indicators), monitor, phantom power on/off, headphone, and master volume.
- Compatibility
- Cross-platform compatibility for Windows (7, 8.1, 10 with ASIO 2.0, MMe, WDM and DirectSound), and Mac OSX (10.7 or later via the native CoreAudio USB Audio driver; no driver installation required).
- Bitwig Studio-8 Included
- Bitwig Studio 8-Track is the sketch pad for your musical ideas.
UPC: 883793015600 In the Box Kurzweil UNiTE-2 Two-Channel USB 2.0 Audio Interface Bitwig Studio 8-Track Software Limited 1-Year Warranty for Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the Kurzweil UNiTE-2 Two-Channel USB 2.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKurzweil UNITE-2 Specs | | | Channels of I/O | Analog:
2 Inputs / 2 Outputs | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Display and Indicators | 2 x LEDs (Peak and Power) | | | | Host Connection | 1 x USB Type-A (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" (6.3 mm) TRS Balanced Line Output
1 x 1/4" (6.3 mm) TRS Balanced Headphone Output | | Phantom Power | +48 V (On 2 Channels) | | Digital I/O | None | | MIDI I/O | None | | Memory Card Slot | None | | | | Dynamic Range | A/D Converters:
102 dBA
D/A Converters:
108 dBA | | Sample Rates | Up to 96 kHz (2-Channel Playback) | | Bit Depth | Up to 24-Bit (AD/DA Conversion) | | | | OS Compatibility | Windows 7 or Later
macOS 10.7 or Later | | | | Power Requirements | USB Bus-Power | | | | Anti-Theft Features | None | | Dimensions | 7 x 5 x 2" / 17.78 x 12.7 x 5.08 cm | | Weight | 2.0 lb / 0.9 kg |
