Product description

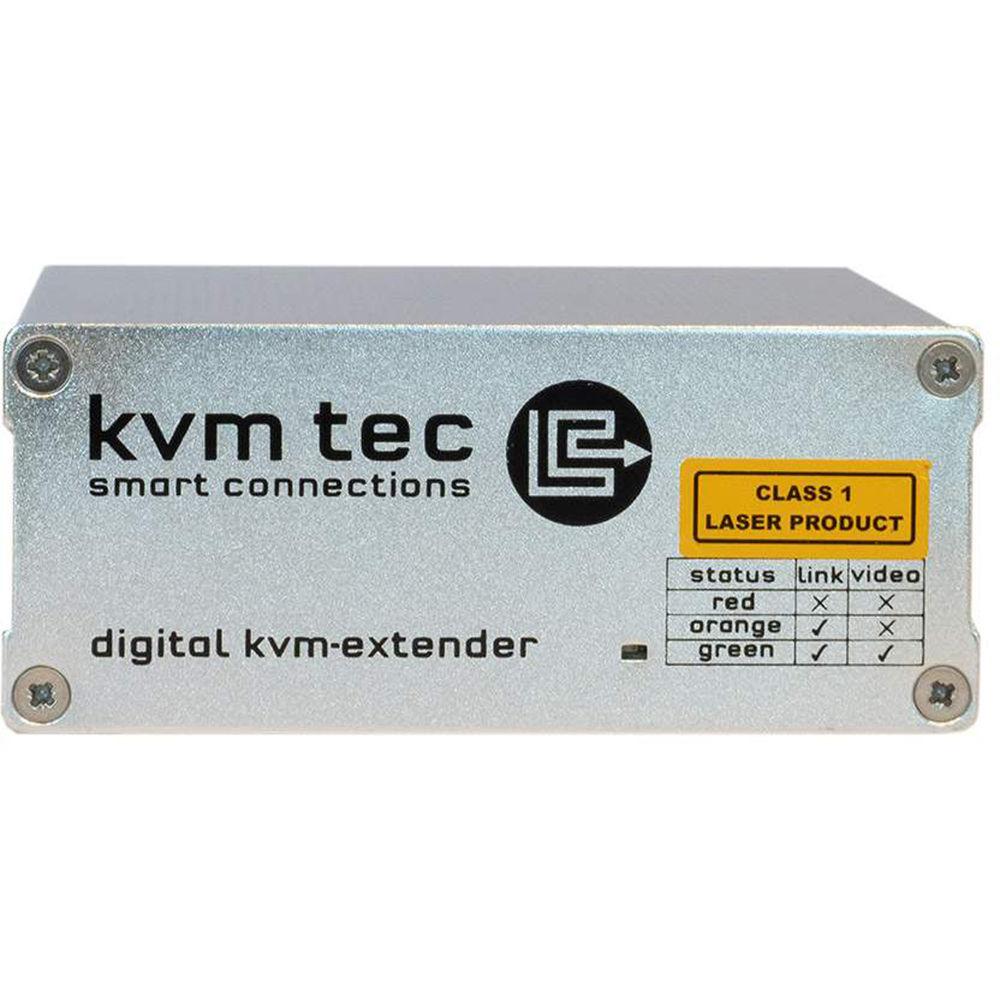

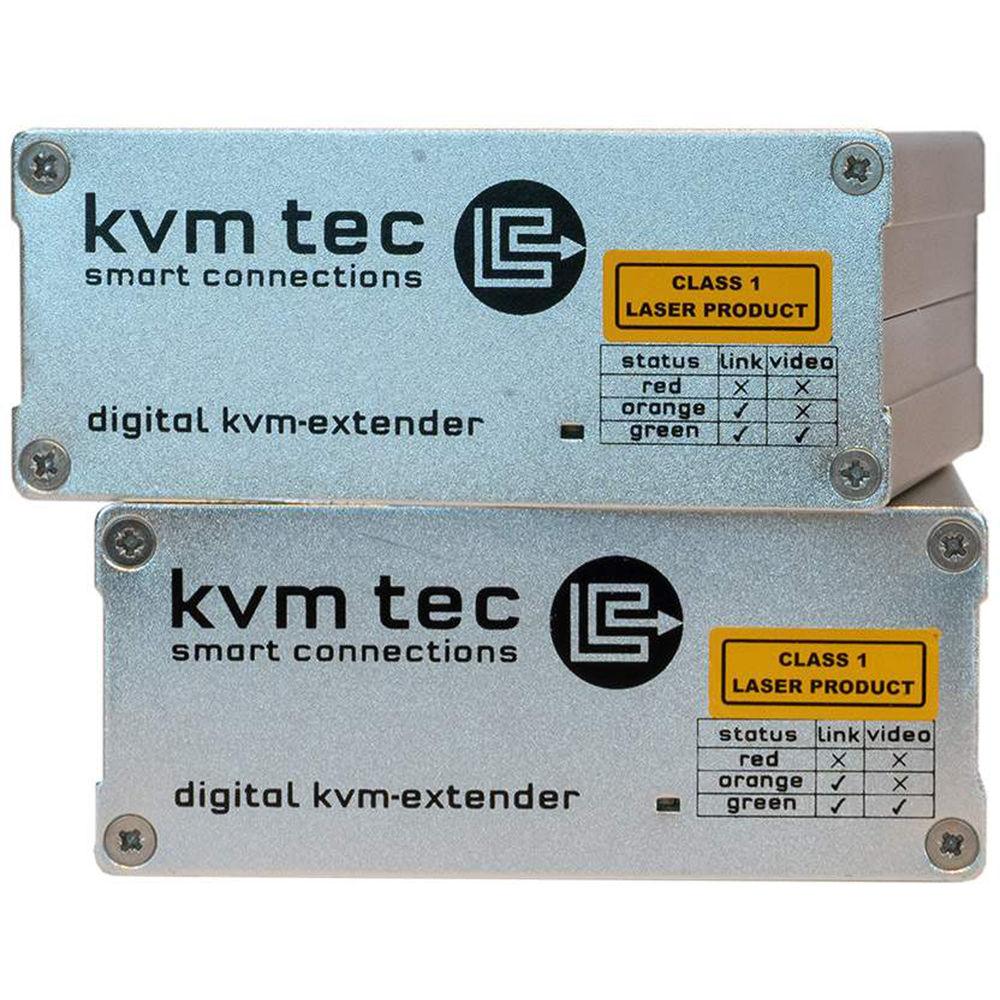

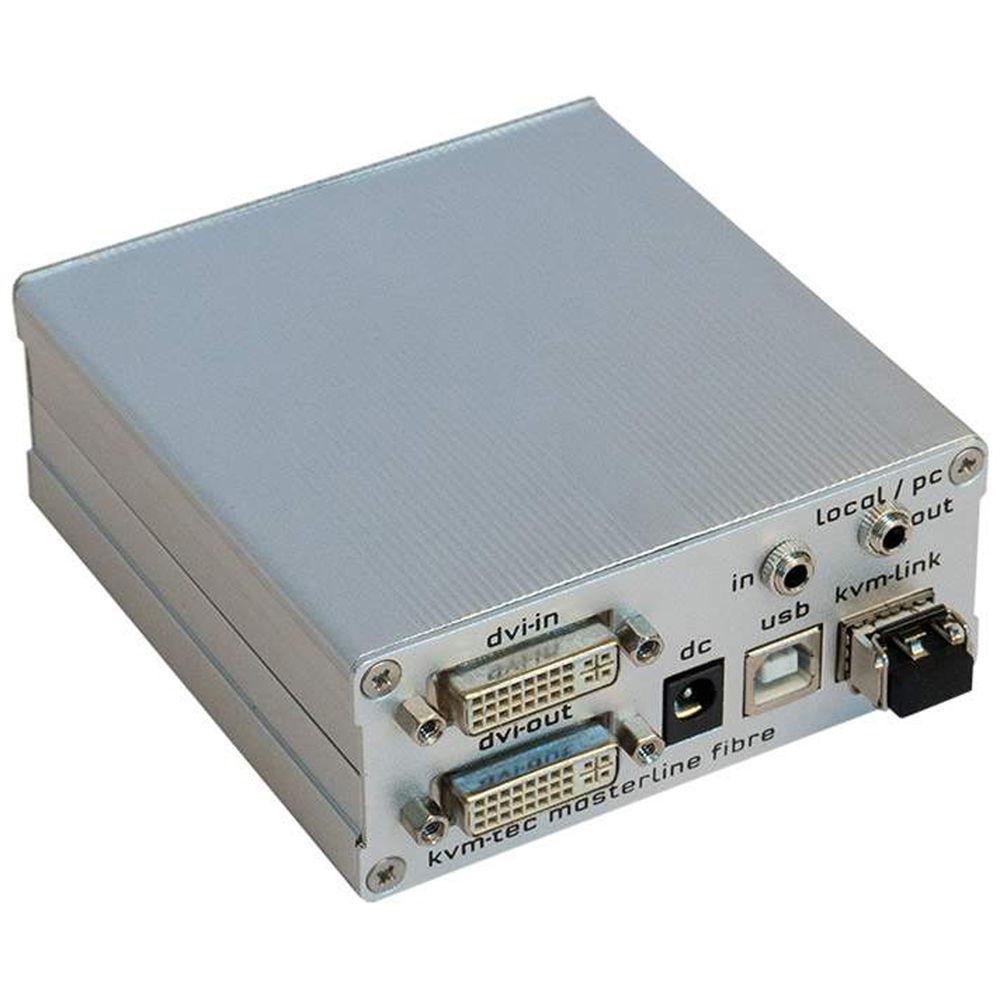

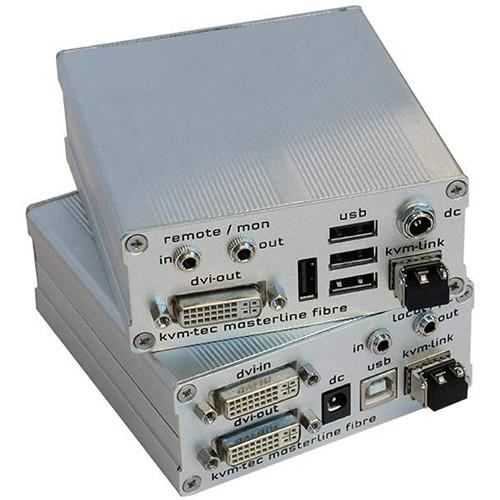

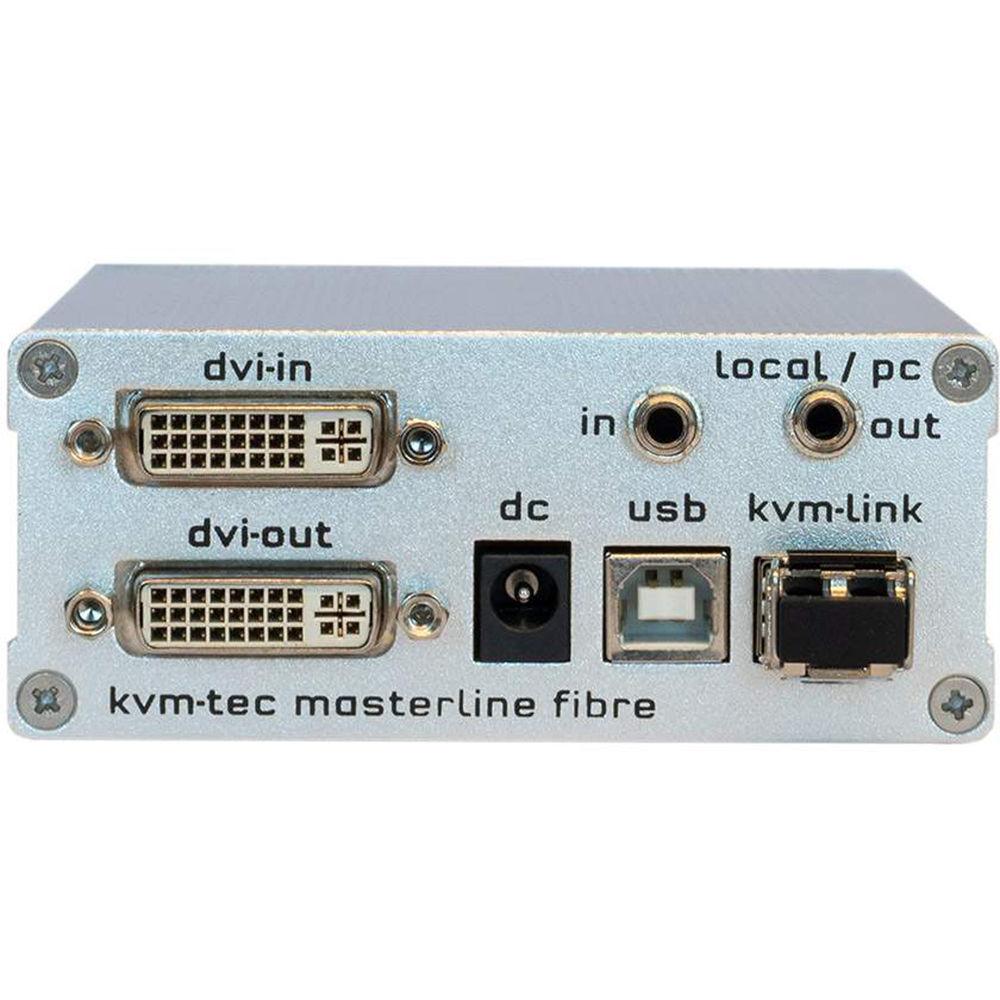

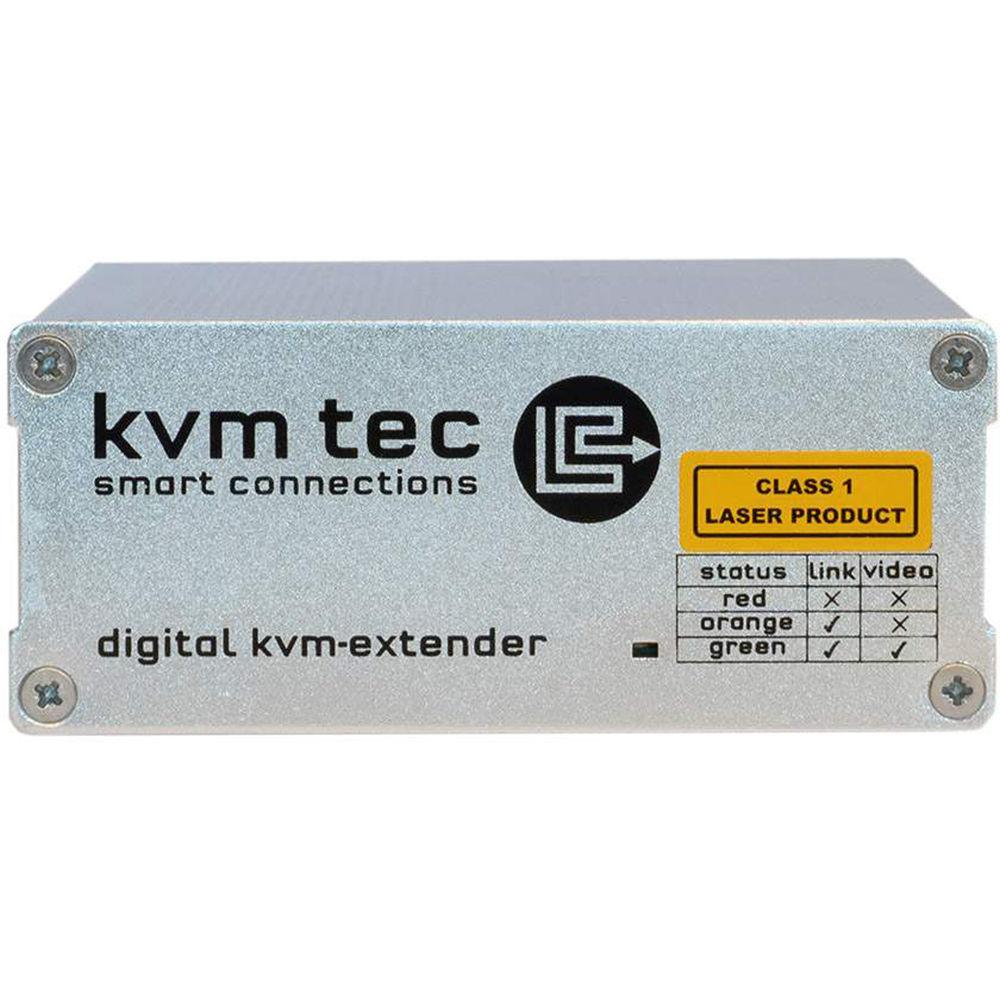

• MVX1-F Masterline Fiber Transmitter
  • BrandBOX Masterline MVX

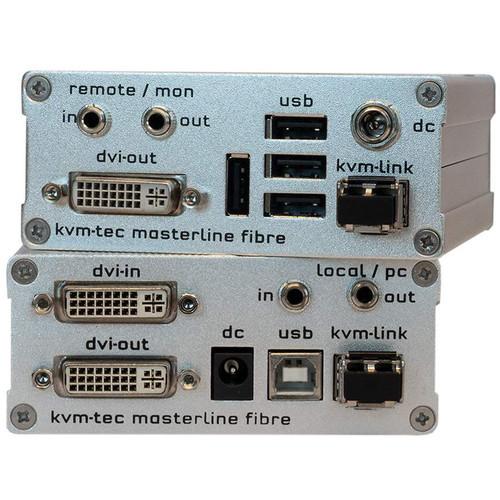

  The KVM-TEC MVX1-F Masterline Fiber Transmitter carries DVI and USB signals over multimode fiber up to 1640' to an optional receiver, without delay. HDMI signals are also supported via a DVI-to-HDMI adapter, sold separately, but without audio. The MVX1-F Masterline system supports resolutions up to 1920 x 1200 at 60 Hz. The transmitter includes an SPF multimode module that supports multimode fiber cables (class OM3 or better) with LC connectors, not included. Alternatively, optional single mode modules can be incorporated for much longer distances. Switches can also be integrated to allow delivery to up to 48 endpoints.
  Key Features
  • • DVI and USB signal transmission without delay
    • Includes SFP multimode module supporting up to 1640' distances
    • Up to 1920 x 1200/60 Hz resolution
    • Delivery to up to 48 endpoints with optional switch integration
    • Up to 480 Mb/s transmission rate
    • USB 2.0 transparent
    • Bidirectional CD-quality analog audio
    • "USB Save" feature blocks USB interface viruses by deactivating mass storage devices
    • Plug and play installation
    • Included VGA to DVD cable allows VGA signal transmission as DVI
    • Power/status LED
    • Up to four units fit in a 19" 1 RU rack

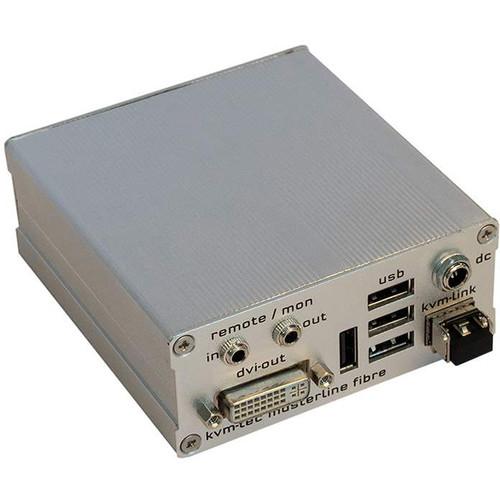

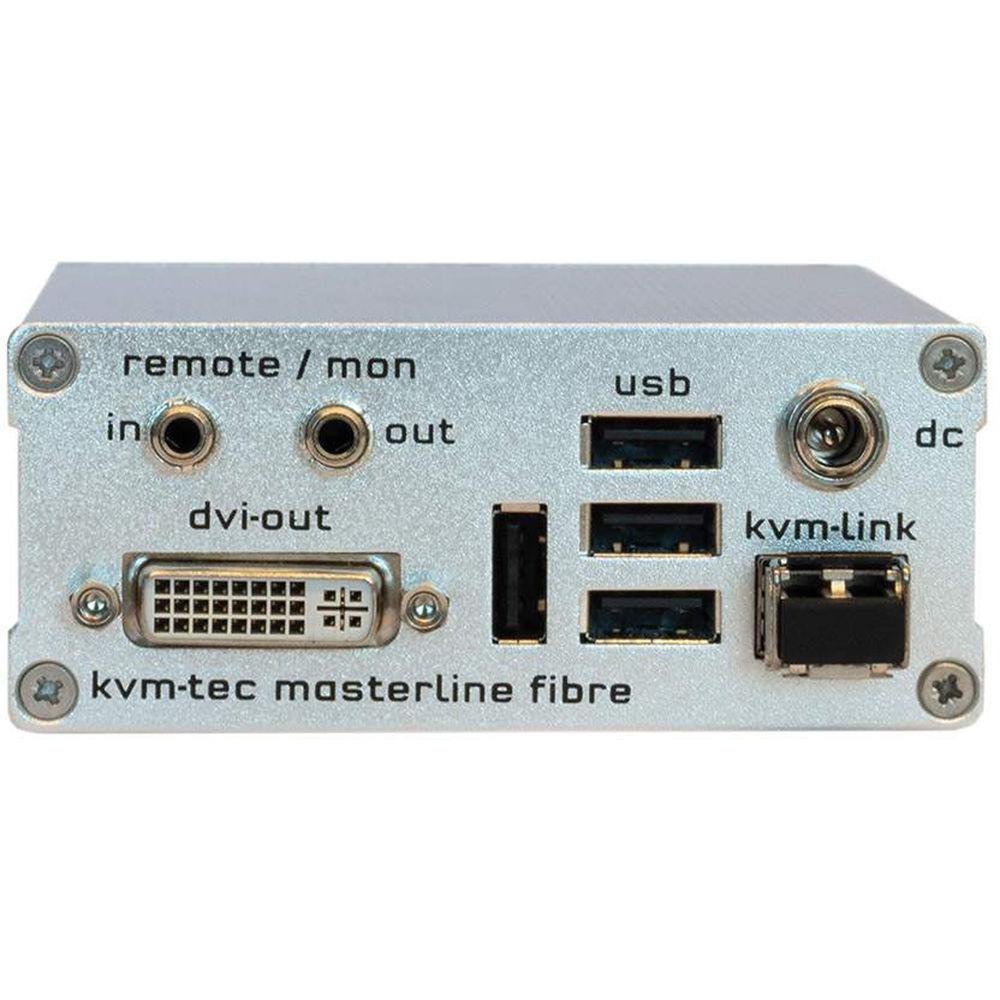

• MVX1-F Masterline Fiber Receiver The KVM-TEC MVX1-F Masterline Fiber Receiver accepts DVI and USB signals over multimode fiber from up to 1640' away from an optional transmitter, without delay. The MVX1-F Masterline system supports resolutions up to 1920 x 1200 at 60 Hz. The receiver includes an SPF multimode module that supports multimode fiber cables (class OM3 or better) with LC connectors, not included. Alternatively, the system supports optional single mode modules for much longer distances.
  Key Features
  • • Includes SFP multimode module supporting signals from up to 1640' away
    • DVI-D and four USB 2.0 type-A outputs
    • 3.5mm line in and speaker out jacks
    • Up to 1920 x 1200/60 Hz resolution
    • USB 2.0 transparent
    • Bidirectional CD-quality analog audio
    • Plug and play installation
    • Power/status LED
    • Up to four units fit in a 19" 1 RU rack

• Power Supply (12 VDC, 1A)

• DVI to DVI Cable (5.9')

• USB Cable (5.9')

• VGA to DVI Cable (5.9')

• 2 x Audio Cable

• SFP Multimode Module

• 4 x Rubber Feet

• 4 x Mounting Pads

• Limited 2-Year Warranty (Extendable to 5 Years)

• Power Supply (12V, 1A)

• SFP Multimode Module

• 4 x Rubber Feet

• 4 x Mounting Pads

• Limited 2-Year Warranty (Extendable to 5 Years)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MVX1-F Masterline Fiber Transmitter

  Input	1 x DVI (no HCDP) 1 x USB 2.0 type-B 1 x 3.5 mm line in jack
  Output	1 x SPF multimode fiber module included that supports multimode fiber cables up to 1640' 1 x DVI 1 x 3.5 mm line out jack
  Range	1640' / 500 m over included SPF multimode fiber module
  Supported Resolution	DVI-D: Up to 1920 x 1200 at 60 Hz
  Bit Depth	DVI-D: 24 bit
  Audio	Analog, 16-bit, 44 kHz, 2 channels
  Enclosure	Anodized aluminum
  Power Supply	12 VDC, 1 A (wall power supply unit included)
  Power Consumption	6 W
  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-13 to 176°F / -25 to 80°C
  Humidity	Operating/Storage: < 80%, non-condensing
  Cooling	Free air convection
  MTBF/Expected Product Life	82,820 calculated hours over approximately 10 years
  Compliance	CE, FCC
  Dimensions	3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm
  Weight	0.66 lb / 302 g

  Box Dimensions (LxWxH)	10.25 x 7.75 x 2.5"

• MVX1-F Masterline Fiber Receiver

  Input	1 x SPF multimode fiber module included that supports multimode fiber cables up to 1640' 1 x 3.5 mm line in
  Output	1 x DVI 4 x USB 2.0 type-A 1 x 3.5 mm jack for speaker
  Range	Accepts from up to 1640' / 500 m over included SPF multimode fiber module
  Supported Resolution	DVI-D: Up to 1920 x 1200 at 60 Hz
  Bit Depth	DVI-D: 24 bit
  Audio	Analog, 16-bit, 44 kHz, 2 channels
  Enclosure	Anodized aluminum
  Power Supply	6 VDC, 1 A (wall power supply unit included)
  Power Consumption	6 W without USB devices
  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-13 to 176°F / -25 to 80°C
  Humidity	Operating/Storage: < 80%, non-condensing
  Cooling	Free air convection
  MTBF/Expected Product Life	82,820 calculated hours over approximately 10 years
  Compliance	CE, FCC
  Dimensions	3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm
  Weight	0.64 lb / 291 g

  Box Dimensions (LxWxH)	10.3 x 7.8 x 2.5"
