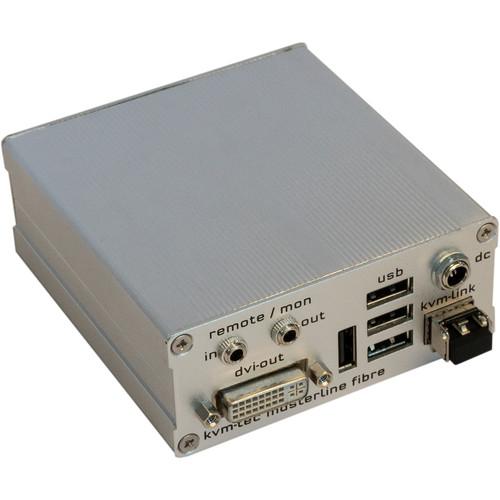

User Manual for KVM-TEC MVX1-F Masterline Fiber Receiver Click to enlarge the picture
Contents of the user manual for the KVM-TEC MVX1-F Masterline Fiber Receiver
- Product category: KVM Extenders KVM-TEC
- Brand: KVM-TEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KVM-TEC KVM Extenders
 |
User manual for the KVM-TEC MVX1-F Masterline Fiber Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KVM-TEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KVM-TEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KVM-TEC product will considerably shorten its lifespan!
|
Product description The KVM-TEC MVX1-F Masterline Fiber Receiver accepts DVI and USB signals over multimode fiber from up to 1640' away from an optional transmitter, without delay. The MVX1-F Masterline system supports resolutions up to 1920 x 1200 at 60 Hz. The receiver includes an SPF multimode module that supports multimode fiber cables (class OM3 or better) with LC connectors, not included. Alternatively, the system supports optional single mode modules for much longer distances. - Key Features
-
- Includes SFP multimode module supporting signals from up to 1640' away
- DVI-D and four USB 2.0 type-A outputs
- 3.5mm line in and speaker out jacks
- Up to 1920 x 1200/60 Hz resolution
- USB 2.0 transparent
- Bidirectional CD-quality analog audio
- Plug and play installation
- Power/status LED
- Up to four units fit in a 19" 1 RU rack
In the Box KVM-TEC MVX1-F Masterline Fiber Receiver Power Supply (12V, 1A) SFP Multimode Module 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty (Extendable to 5 Years) Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MVX1-F Masterline Fiber Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKVM-TEC Masterline MVX1-FR Specs | Input | 1 x SPF multimode fiber module included that supports multimode fiber cables up to 1640'
1 x 3.5 mm line in | | Output | 1 x DVI
4 x USB 2.0 type-A
1 x 3.5 mm jack for speaker | | Range | Accepts from up to 1640' / 500 m over included SPF multimode fiber module | | Supported Resolution | DVI-D:
Up to 1920 x 1200 at 60 Hz | | Bit Depth | DVI-D:
24 bit | | Audio | Analog, 16-bit, 44 kHz, 2 channels | | Enclosure | Anodized aluminum | | Power Supply | 6 VDC, 1 A (wall power supply unit included) | | Power Consumption | 6 W without USB devices | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Humidity | Operating/Storage: < 80%, non-condensing | | Cooling | Free air convection | | MTBF/Expected Product Life | 82,820 calculated hours over approximately 10 years | | Compliance | CE, FCC | | Dimensions | 3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm | | Weight | 0.64 lb / 291 g | | | | Package Weight | 1.345 lb | | Box Dimensions (LxWxH) | 10.3 x 7.8 x 2.5" |
