Product description The KVM-TEC MVX1-F Masterline Fiber Transmitter carries DVI and USB signals over multimode fiber up to 1640' to an optional receiver, without delay. HDMI signals are also supported via a DVI-to-HDMI adapter, sold separately, but without audio. The MVX1-F Masterline system supports resolutions up to 1920 x 1200 at 60 Hz. The transmitter includes an SPF multimode module that supports multimode fiber cables (class OM3 or better) with LC connectors, not included. Alternatively, optional single mode modules can be incorporated for much longer distances. Switches can also be integrated to allow delivery to up to 48 endpoints. - Key Features
-
- DVI and USB signal transmission without delay
- Includes SFP multimode module supporting up to 1640' distances
- Up to 1920 x 1200/60 Hz resolution

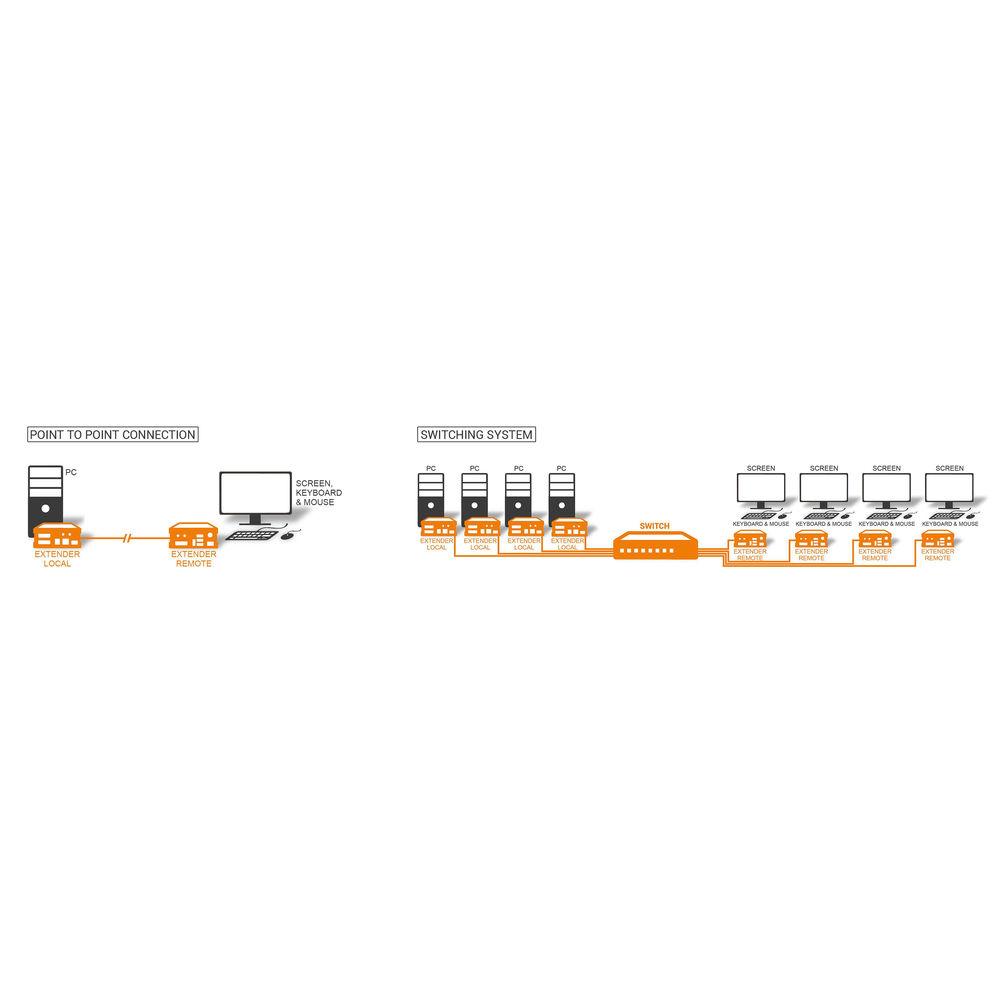

- Delivery to up to 48 endpoints with optional switch integration
- Up to 480 Mb/s transmission rate
- USB 2.0 transparent
- Bidirectional CD-quality analog audio
- "USB Save" feature blocks USB interface viruses by deactivating mass storage devices
- Plug and play installation
- Included VGA to DVD cable allows VGA signal transmission as DVI

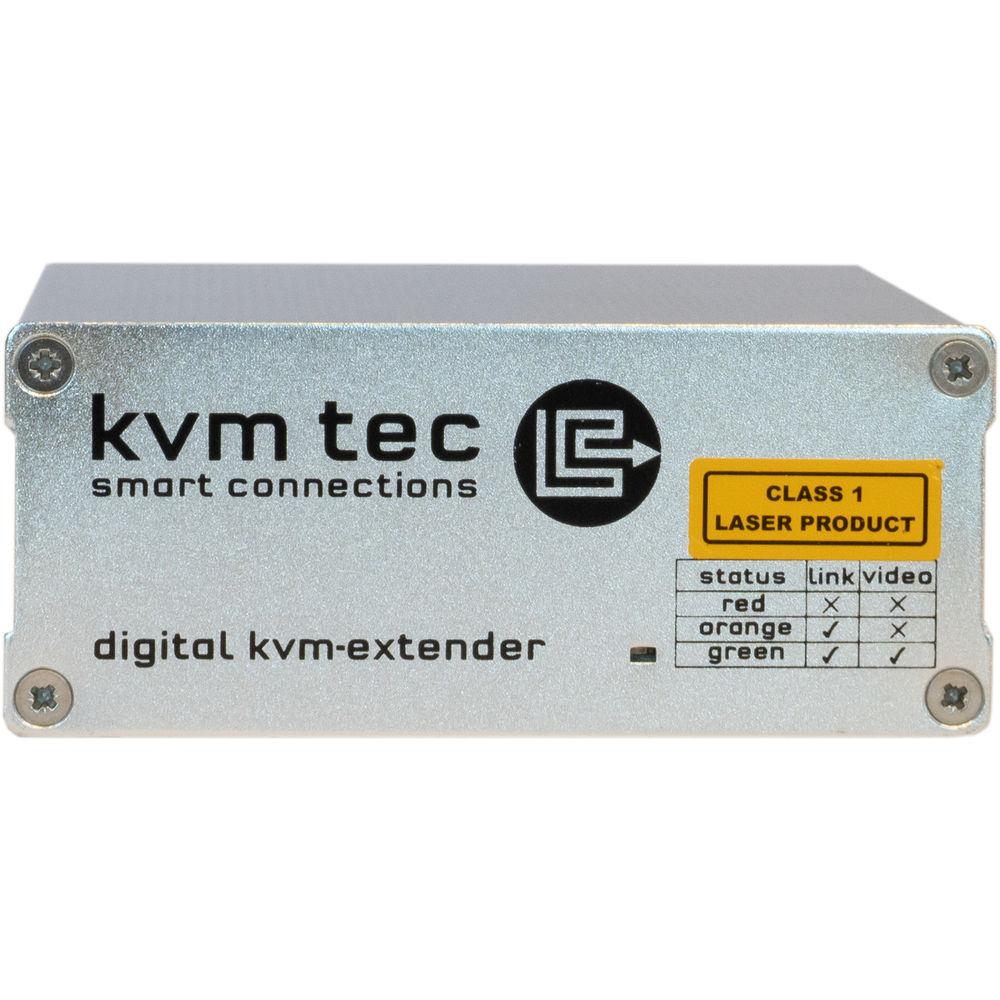

- Power/status LED
- Up to four units fit in a 19" 1 RU rack
In the Box KVM-TEC MVX1-F Masterline Fiber Transmitter Power Supply (12 VDC, 1A) DVI to DVI Cable (5.9') USB Cable (5.9') VGA to DVI Cable (5.9') 2 x Audio Cable SFP Multimode Module 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty (Extendable to 5 Years) Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MVX1-F Masterline Fiber Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

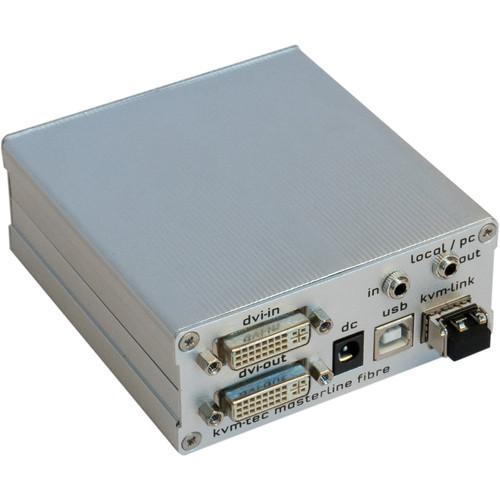

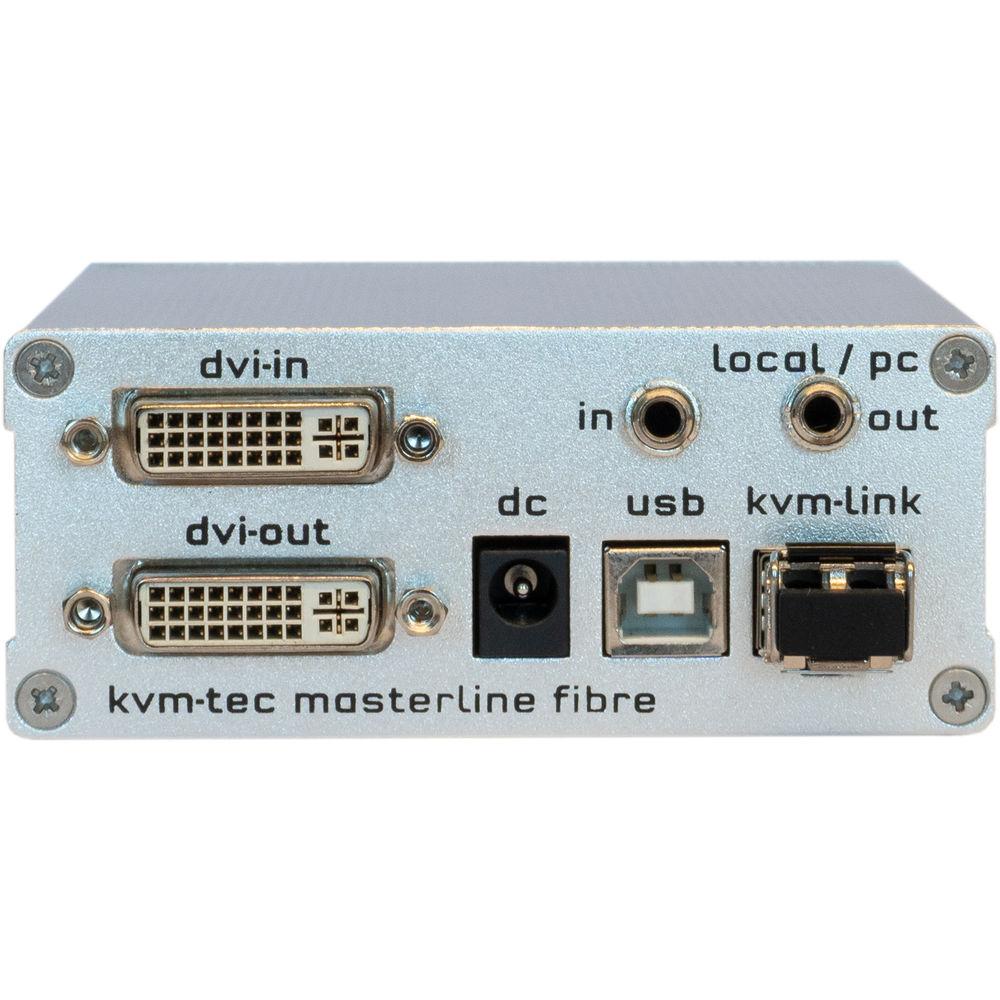

Technical parametersKVM-TEC Masterline MVX1-FL Specs | Input | 1 x DVI (no HCDP)
1 x USB 2.0 type-B
1 x 3.5 mm line in jack | | Output | 1 x SPF multimode fiber module included that supports multimode fiber cables up to 1640'
1 x DVI
1 x 3.5 mm line out jack | | Range | 1640' / 500 m over included SPF multimode fiber module | | Supported Resolution | DVI-D:
Up to 1920 x 1200 at 60 Hz | | Bit Depth | DVI-D:
24 bit | | Audio | Analog, 16-bit, 44 kHz, 2 channels | | Enclosure | Anodized aluminum | | Power Supply | 12 VDC, 1 A (wall power supply unit included) | | Power Consumption | 6 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Humidity | Operating/Storage: < 80%, non-condensing | | Cooling | Free air convection | | MTBF/Expected Product Life | 82,820 calculated hours over approximately 10 years | | Compliance | CE, FCC | | Dimensions | 3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm | | Weight | 0.66 lb / 302 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.25 x 7.75 x 2.5" |
