Product description The KVM-TEC MVX1 Masterline IP Receiver pairs with an optional transmitter and extends DVI and USB signals up to 492' over a single CAT5e/6/7 cable, sold separately. It accepts 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Four USB ports allow you to output keyboard, mouse, and USB hard drive and memory stick signals. (The receiver and corresponding transmitter must be upgraded to support hard drive capture. Please see the Accessories tab for all compatible software/hardware upgrade options.) The USB ports are USB 2.0 transparent, meaning they're backwards-compatible with USB 1.0 and also support USB 3.0 but at USB 2.0 speeds.

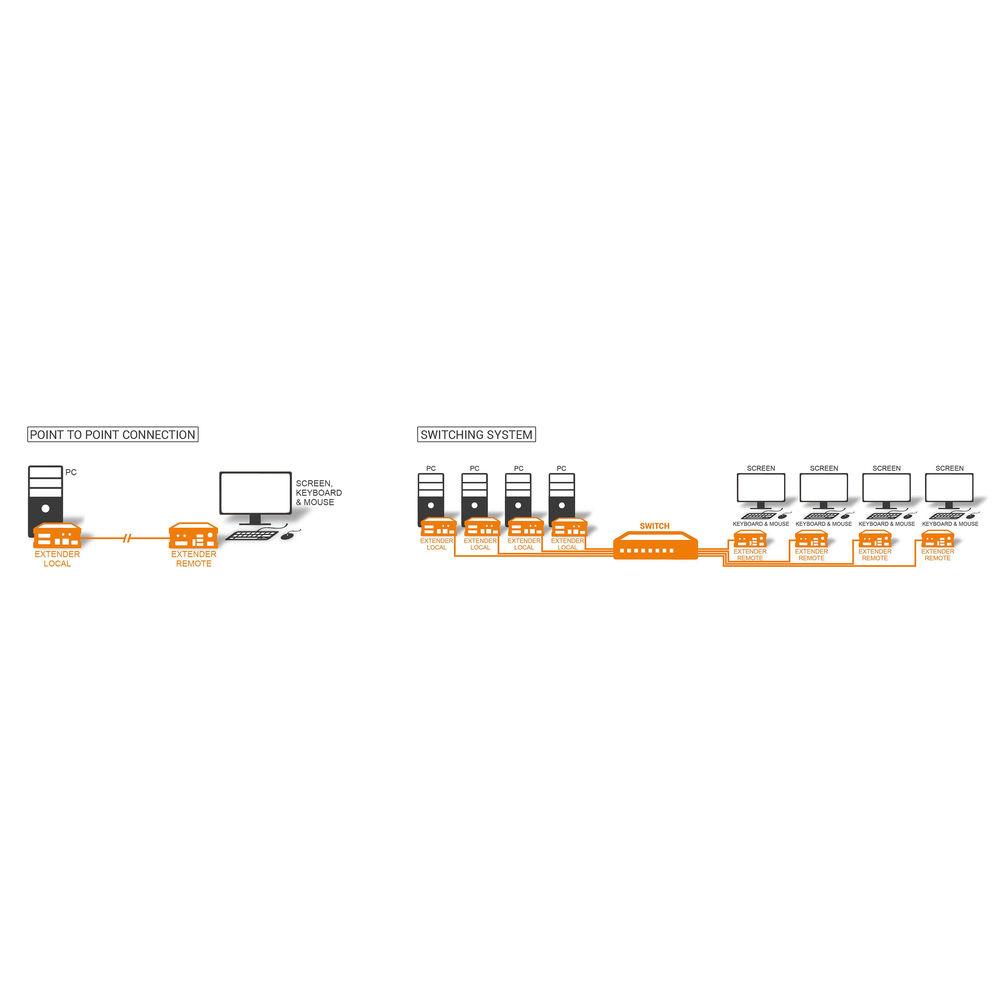

3.5mm line in and line out jacks allow local speaker and mic connectivity. Up to a total of 48-transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to four units can be installed in a 19" rack by using optional rackmount kits.
- Key Features
-
- Accepts DVI and USB signals from up to 492' over a single CAT5e/6/7 cable, sold separately
- Supports 1920 x 1200 at 60 Hz with less than 5ms latency, 1080p in real time
- Four USB 2.0 ports supporting keyboard, mouse, and USB hard drives and memory sticks (the receiver and corresponding transmitter must be upgraded to support hard drive/memory stick capture)
- USB 2.0 ports are backwards-compatible with USB 1.0 and also support USB 3.0 at USB 2.0 speeds
- Up to 480 Mb/s USB transmission rate
- 3.5mm audio line in and line out jacks
- Automatic plug-and-play operation
- Free air convection cooling
- Can be integrated into a 48-endpoint workflow via any standard network switch
- Four units are rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
In the Box KVM-TEC MVX1 Masterline IP Receiver Power Supply (12 VDC, 1 A) 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MVX1 Masterline IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

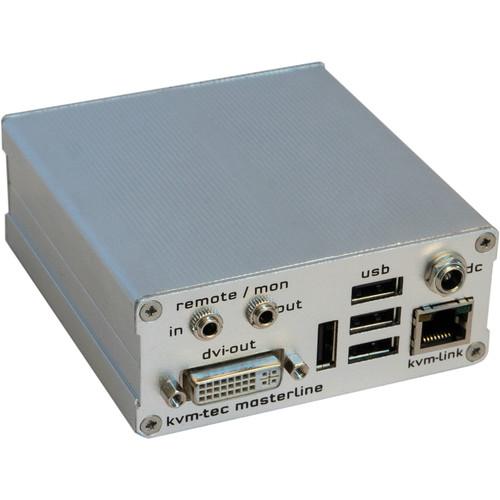

Technical parametersKVM-TEC Masterline MVX1R Specs | | | Ports | Receiver:
1 x DVI-D (Output)
4 x USB Type-A USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
1 x RJ45 (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1920 x 1080 | | Maximum Transmission Distance | 492' / 149.96 m | | Transmission Method | CAT5e/CAT6/CAT7 Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | | | DC Input Power | 12 VDC at 1 A | | Power Consumption | 6 W Without USB Devices | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 3.8 x 1.6 x 4.1" / 9.7 x 4.1 x 10.4 cm | | Weight | 0.6 lb / 291.0 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.5 x 7.6 x 2.5" |
