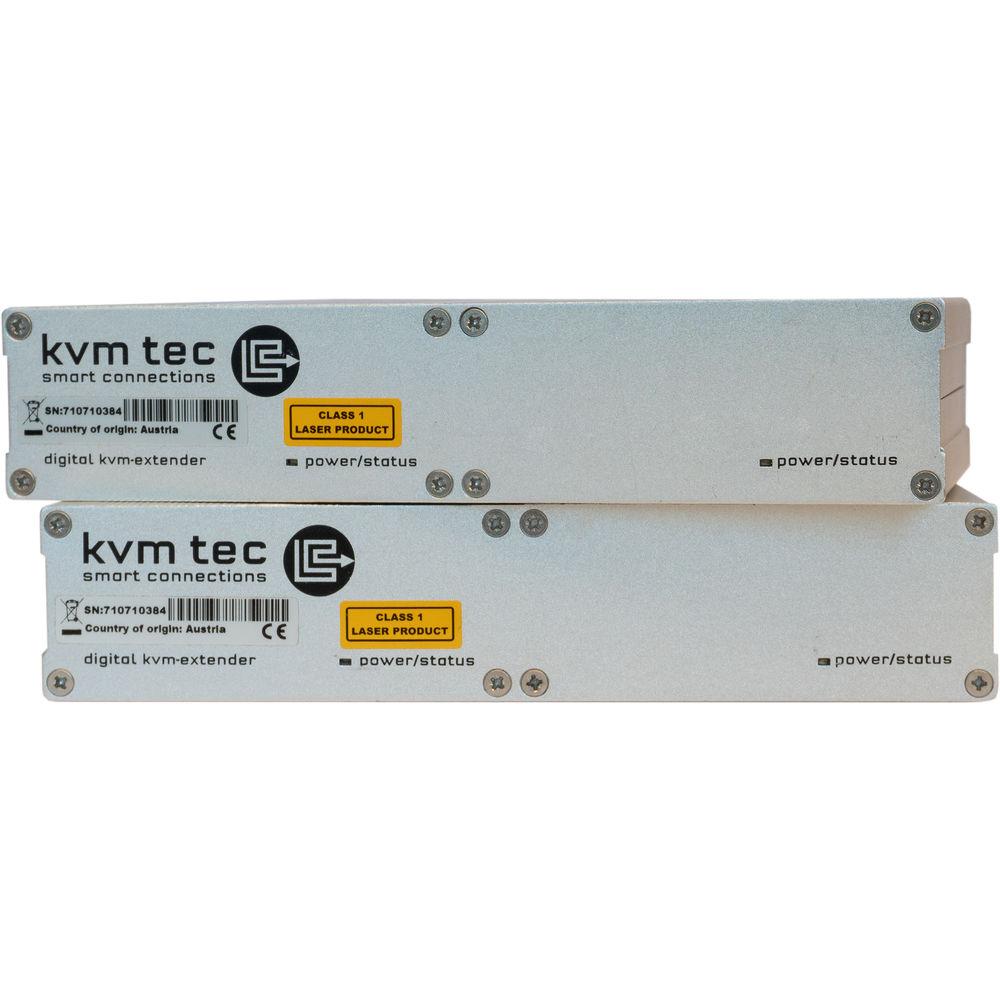

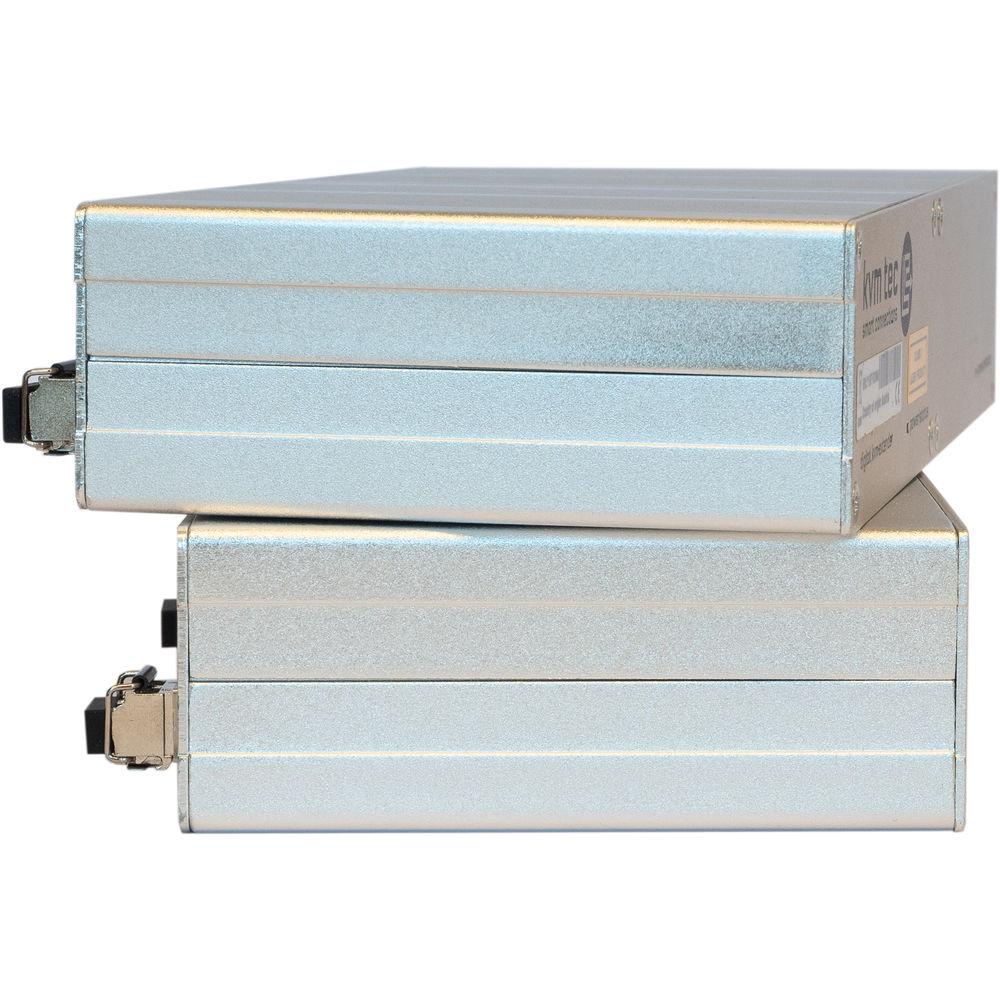

Product description

• MVX2-F Masterline Dual Fiber Transmitter
  • BrandBOX Masterline MVX
  The KVM-TEC MVX2-F Masterline Dual Fiber Transmitter pairs with an optional receiver and extends DVI and USB signals up to 1640' over two duplex multimode LC fiber cables, sold separately. It transmits 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Additionally, the included SFP modules can be replaced with separately sold single mode modules to allow a transmission distance up to 99 miles.

  This dual version transmitter is for users who have two computer screens. Two DVI inputs capture both screens and the signals are carried over two separate fiber cables. A single USB connection captures keyboard and mouse signals but can be upgraded via a software update to also capture USB hard drives and memory sticks. Please see the Accessories tab for all compatible software/hardware upgrade options. Separate local monitoring outputs are provided for both DVI connections. Independent audio can be transmitted as well as monitored locally via 3.5mm line in and line out jacks.

  The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds. Up to a total of 48 transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits.
  Key Features
  • • Transmits DVI and USB signals up to 1640' over two duplex multimode LC fiber cables, sold separately (optional single mode modules are supported for longer distances)
    • 1920 x 1200 at 60 Hz transmission with less than 5ms latency, 1080p transmission in real time
    • 2 x DVI inputs capture two separate screens
    • 2 x DVI local monitoring outputs
    • 1 x USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
    • 3.5mm audio line in and line out jacks
    • Upgradeable via a software option to capture USB hard drives and memory sticks
    • Up to 480 Mb/s USB transmission rate
    • Automatic plug-and-play operation
    • Free-air convection cooling
    • Can be integrated into a 48-endpoint workflows via any standard network switch
    • Rackmountable via optional rackmount kits
    • MTBF: 82.820 calculated hours over approximately 10 years
• MVX2-F Masterline Dual Fiber Receiver The KVM-TEC MVX2-F Masterline Dual Fiber Receiver pairs with an optional transmitter and extends DVI and USB signals up to 1640' over two duplex multimode LC fiber cables, sold separately. It accepts 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time.

  Two DVI ports output two monitor signals and four USB ports allow you to output keyboard, mouse, and USB hard drive and memory stick signals. (The receiver and corresponding transmitter must both be upgraded to support hard drive capture. Additionally, the included SFP modules can be replaced on both ends with separately sold single-mode modules to allow a transmission distance of up to 99 miles. Please see the Accessories tab for all compatible software/hardware upgrade options.) 3.5mm line in and line out jacks are provided for local speaker and mic connectivity.

  The USB ports are USB 2.0 transparent, meaning they're backwards-compatible with USB 1.0 and also support USB 3.0 but at USB 2.0 speeds. Up to 48 transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits.

  Key Features
  • • Accepts DVI and USB signals up to 1640' over two duplex multimode LC fiber cables, sold separately (optional single-mode modules are supported for longer distances)
    • Supports 1920 x 1200 at 60 Hz with less than 5ms latency, 1080p in real time
    • Two DVI ports output two monitor signals
    • Four USB 2.0 ports support keyboard, mouse, and USB hard drives and memory sticks (the receiver and corresponding transmitter must be upgraded to support hard drive/memory stick capture)
    • USB 2.0 ports are backwards-compatible with USB 1.0 and also support USB 3.0 at USB 2.0 speeds
    • Up to 480 Mb/s USB transmission rate
    • 3.5mm audio line in and line out jacks
    • Automatic plug-and-play operation
    • Free-air convection cooling
    • Can be integrated into a 48-endpoint workflow via any standard network switch
    • Rackmountable via optional rackmount kits
    • MTBF: 82.820 calculated hours over approximately 10 years

• Power Supply (12 VDC, 2 A)

• 2 x SFP Multimode Modules

• 2 x DVI to DVI Cables (6')

• USB Cable (6')

• 2 x VGA to DVI Cables (6')

• 2 x Audio Cables (6')

• 4 x Rubber Feet

• 4 x Mounting Pads

• Limited 2-Year Warranty

• Power Supply (12 VDC, 2 A)

• 2 x SFP Multimode Modules

• 4 x Rubber Feet

• 4 x Mounting Pads

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MVX2-F Masterline Dual Fiber Transmitter

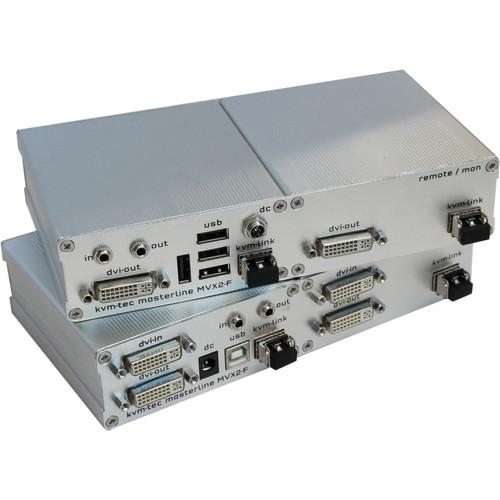

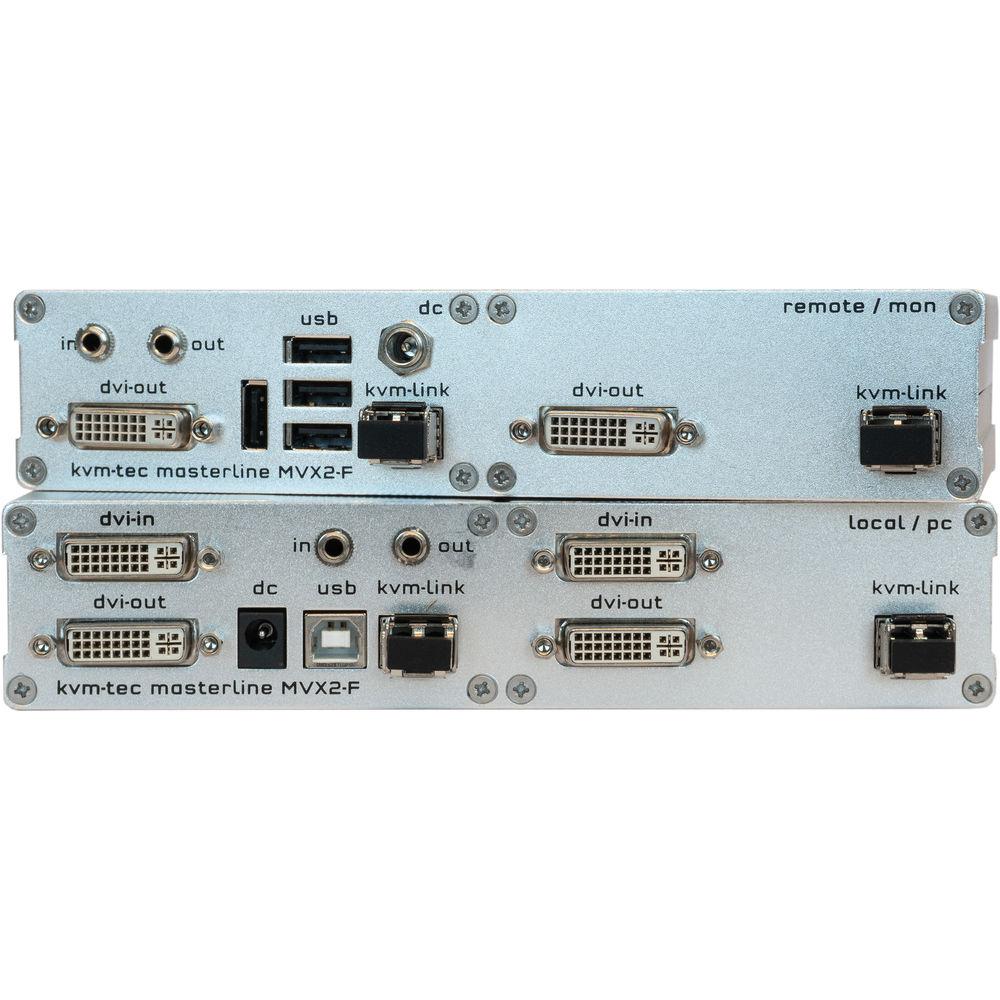

  Ports	Transmitter: 2 x DVI (Input) 2 x DVI (Output) 1 x USB Type-B USB 2.0 1 x 3.5 mm Audio (Input) 1 x 3.5 mm Audio (Output) 2 x LC Fiber (Output)
  Supported Resolutions	1920 x 1200 @ 60 Hz 1920 x 1080
  Maximum Transmission Distance	1640' / 499.87 m
  Transmission Method	Multimode Cable
  Color Depth	24-Bit
  Audio Channels Supported	2-Channel Stereo (16-Bit)

  DC Input Power	12 VDC at 2 A
  Power Consumption	12 W

  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-13 to 176°F / -25 to 80°C
  Operating Humidity	80%

  Certifications	CE, FCC, as per Manufacturer
  Material of Construction	Aluminum
  Dimensions	7.8 x 1.6 x 4.1" / 19.8 x 4.1 x 10.4 cm
  Weight	1.3 lb / 604.0 g

• MVX2-F Masterline Dual Fiber Receiver

  Ports	Receiver: 2 x DVI (Output) 4 x USB Type-A USB 2.0 1 x 3.5 mm Audio (Input) 1 x 3.5 mm Audio (Output) 2 x LC Fiber (Input)
  Supported Resolutions	1920 x 1200 @ 60 Hz 1920 x 1080
  Maximum Transmission Distance	1640' / 499.87 m
  Transmission Method	Multimode Cable
  Color Depth	24-Bit
  Audio Channels Supported	2-Channel Stereo (16-Bit)

  DC Input Power	12 VDC at 2 A
  Power Consumption	12 W Without USB Devices

  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-13 to 176°F / -25 to 80°C
  Operating Humidity	80%

  Certifications	CE, FCC, as per Manufacturer
  Material of Construction	Aluminum
  Dimensions	7.8 x 1.6 x 4.1" / 19.8 x 4.1 x 10.4 cm
  Weight	1.3 lb / 582.0 g
