User Manual for KVM-TEC MVX2-F Masterline Dual Fiber Transmitter Click to enlarge the picture
Contents of the user manual for the KVM-TEC MVX2-F Masterline Dual Fiber Transmitter
- Product category: KVM Extenders KVM-TEC
- Brand: KVM-TEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KVM-TEC KVM Extenders
 |
User manual for the KVM-TEC MVX2-F Masterline Dual Fiber Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KVM-TEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KVM-TEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KVM-TEC product will considerably shorten its lifespan!
|

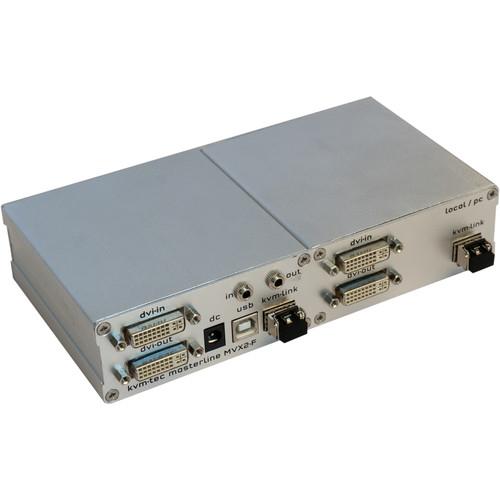

Product description The KVM-TEC MVX2-F Masterline Dual Fiber Transmitter pairs with an optional receiver and extends DVI and USB signals up to 1640' over two duplex multimode LC fiber cables, sold separately. It transmits 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Additionally, the included SFP modules can be replaced with separately sold single mode modules to allow a transmission distance up to 99 miles.
This dual version transmitter is for users who have two computer screens. Two DVI inputs capture both screens and the signals are carried over two separate fiber cables. A single USB connection captures keyboard and mouse signals but can be upgraded via a software update to also capture USB hard drives and memory sticks. Please see the Accessories tab for all compatible software/hardware upgrade options. Separate local monitoring outputs are provided for both DVI connections. Independent audio can be transmitted as well as monitored locally via 3.5mm line in and line out jacks.
The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds. Up to a total of 48 transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits. - Key Features
-
- Transmits DVI and USB signals up to 1640' over two duplex multimode LC fiber cables, sold separately (optional single mode modules are supported for longer distances)
- 1920 x 1200 at 60 Hz transmission with less than 5ms latency, 1080p transmission in real time
- 2 x DVI inputs capture two separate screens
- 2 x DVI local monitoring outputs
- 1 x USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
- 3.5mm audio line in and line out jacks
- Upgradeable via a software option to capture USB hard drives and memory sticks
- Up to 480 Mb/s USB transmission rate
- Automatic plug-and-play operation
- Free-air convection cooling
- Can be integrated into a 48-endpoint workflows via any standard network switch
- Rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
In the Box KVM-TEC MVX2-F Masterline Dual Fiber Transmitter Power Supply (12 VDC, 2 A) 2 x SFP Multimode Modules 2 x DVI to DVI Cables (6') USB Cable (6') 2 x VGA to DVI Cables (6') 2 x Audio Cables (6') 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MVX2-F Masterline Dual Fiber Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKVM-TEC Masterline MVX2-FL Specs | | | Ports | Transmitter:
2 x DVI (Input)
2 x DVI (Output)
1 x USB Type-B USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
2 x LC Fiber (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1920 x 1080 | | Maximum Transmission Distance | 1640' / 499.87 m | | Transmission Method | Multimode Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | | | DC Input Power | 12 VDC at 2 A | | Power Consumption | 12 W | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 7.8 x 1.6 x 4.1" / 19.8 x 4.1 x 10.4 cm | | Weight | 1.3 lb / 604.0 g |
