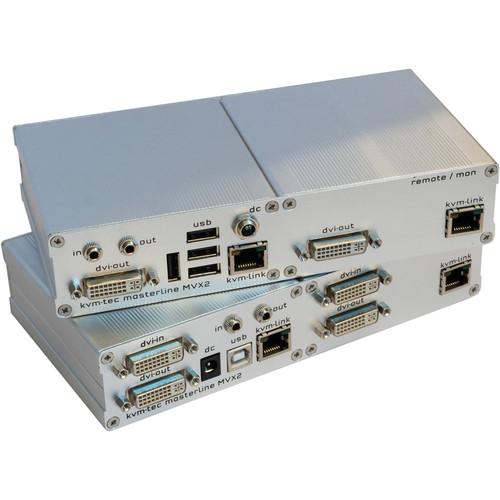

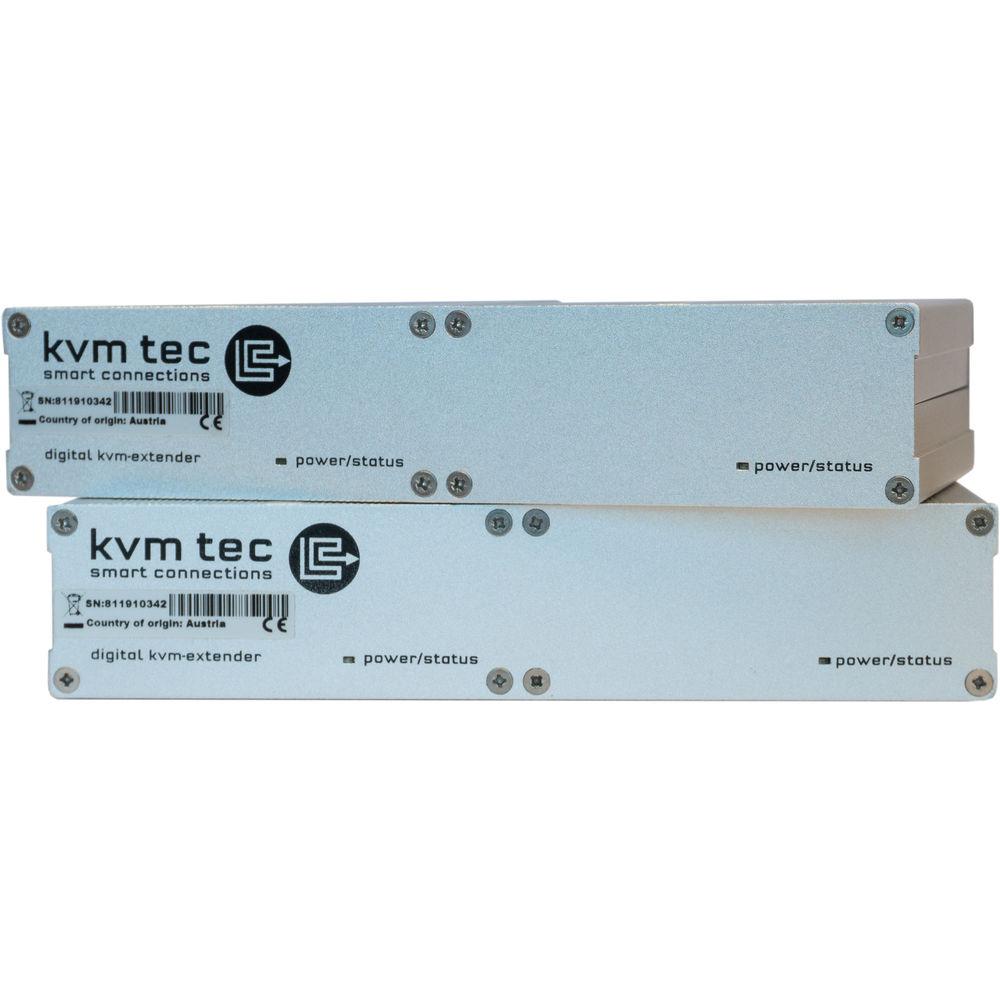

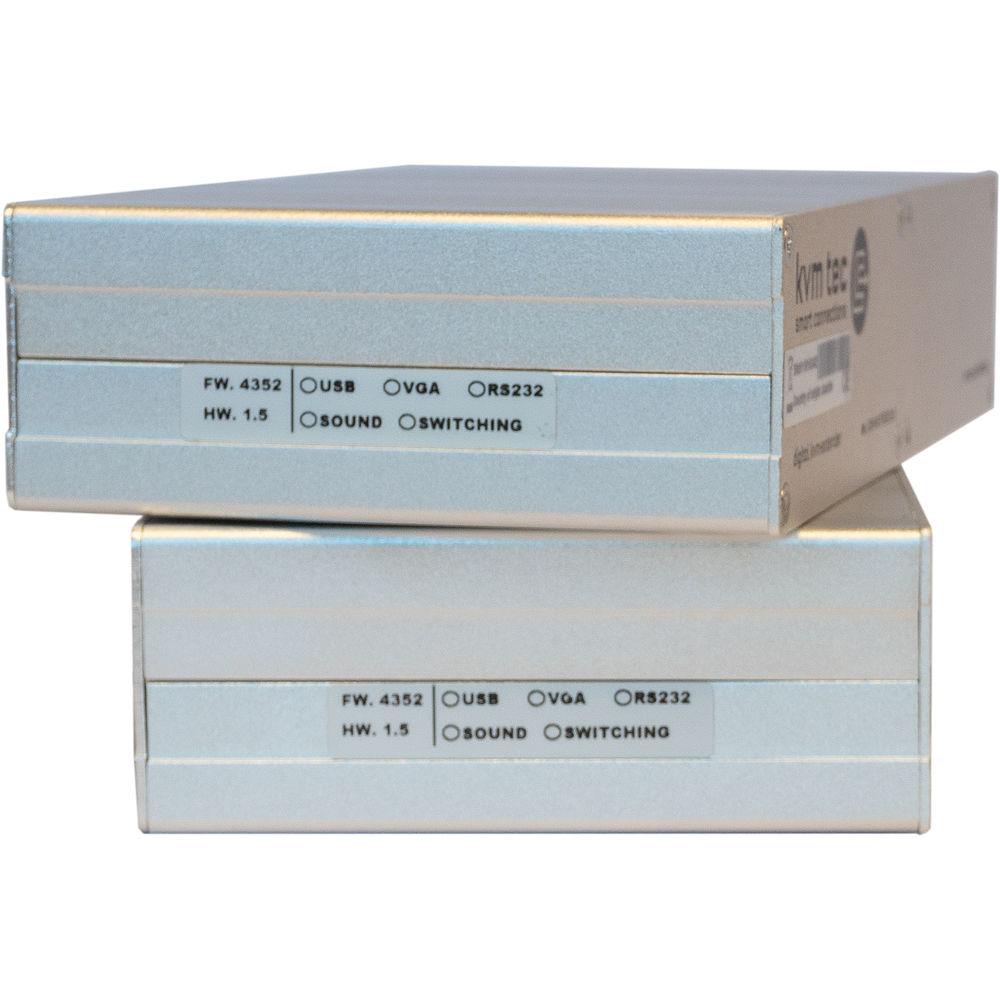

Product description The KVM-TEC MVX2 Masterline Dual IP Extender Set extends two DVI monitor signals and USB peripheral signals up to 492' over two CAT5e/6/7 cables, sold separately. The set carries 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. It supports keyboard and mouse signals and can be upgraded to also capture USB hard drive and memory stick signals. The receiver features four USB output ports. 3.5mm line in and line out jacks are provided on both ends. Up to 48 transmitter/receiver units can be integrated into a single workflow via connection to a network switch. Up to two units can be installed in a 19" rack using optional rackmount kits. - MVX2 Masterline Dual IP Transmitter The KVM-TEC MVX2 Masterline Dual IP Transmitter pairs with an optional receiver and extends DVI and USB signals up to 492' over CAT5e/6/7 cabling, sold separately. It transmits 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time.
This dual version transmitter is for users who have two computer screens. Two DVI inputs capture both screens and the signals are carried over two separate twisted pair cables. A single USB connection captures keyboard and mouse signals but can be upgraded via a software update to also capture USB hard drives and memory sticks. Please see the Accessories tab for all compatible software/hardware upgrade options. Separate local monitoring outputs are provided for both DVI connections. Independent audio can be transmitted as well as monitored locally via 3.5mm line in and line out jacks.
The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds. Up to a total of 48 transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits. - Key Features
-
- Transmits DVI and USB signals up to 492' over CAT5e/6/7
- 1920 x 1200 at 60 Hz transmission with less than 5ms latency, 1080p transmission in real time
- 2 x DVI inputs capture two separate screens
- 2 x DVI local monitoring outputs
- 1 x USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
- 3.5mm audio line in and line out jacks
- Upgradeable via a software option to capture USB hard drives and memory sticks
- Up to 480 Mb/s USB transmission rate
- Automatic plug-and-play operation
- Free air convection cooling
- Can be integrated into a 48-endpoint workflows via any standard network switch
- Rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
- MVX2 Masterline Dual IP Receiver The KVM-TEC MVX2 Masterline Dual IP Receiver pairs with an optional transmitter and extends DVI and USB signals up to 492' over two CAT5e/6/7 cables, sold separately. It accepts 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Two DVI ports output two monitor signals and four USB ports allow you to output keyboard, mouse, and USB hard drive and memory stick signals. (The receiver and corresponding transmitter must be upgraded to support hard drive capture. Please see the Accessories tab for all compatible software/hardware upgrade options.) 3.5mm line in and line out jacks allow local speaker and mic connectivity.
The USB ports are USB 2.0 transparent, meaning they're backwards-compatible with USB 1.0 and also support USB 3.0 but at USB 2.0 speeds. Up to a total of 48 transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits.
- Key Features
-
- Accepts DVI and USB signals up to 492' over two CAT5e/6/7 cables, sold separately
- Supports 1920 x 1200 at 60 Hz with less than 5ms latency, 1080p in real time
- Two DVI ports output two monitor signals
- Four USB 2.0 ports support keyboard, mouse, and USB hard drives and memory sticks (the receiver and corresponding transmitter must be upgraded to support hard drive/memory stick capture)
- USB 2.0 ports are backwards-compatible with USB 1.0 and also support USB 3.0 at USB 2.0 speeds
- Up to 480 Mb/s USB transmission rate
- 3.5mm audio line in and line out jacks
- Automatic plug-and-play operation
- Free air convection cooling
- Can be integrated into a 48-endpoint workflows via any standard network switch
- Rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
In the Box Bundle Items MVX2 Masterline Dual IP Transmitter tevzdcccxcdrrdcfxftyuusezyq - Power Supply (12 VDC, 2 A)
- 2 x DVI to DVI Cable (6')
- 2 x VGA to DVI Cable (6')
MVX2 Masterline Dual IP Receiver - Power Supply (12 VDC, 2 A)
Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MVX2 Masterline Dual IP Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MVX2 Masterline Dual IP Transmitter
| | | Ports | Transmitter:
2 x DVI (Input)
2 x DVI (Output)
1 x USB Type-B USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)

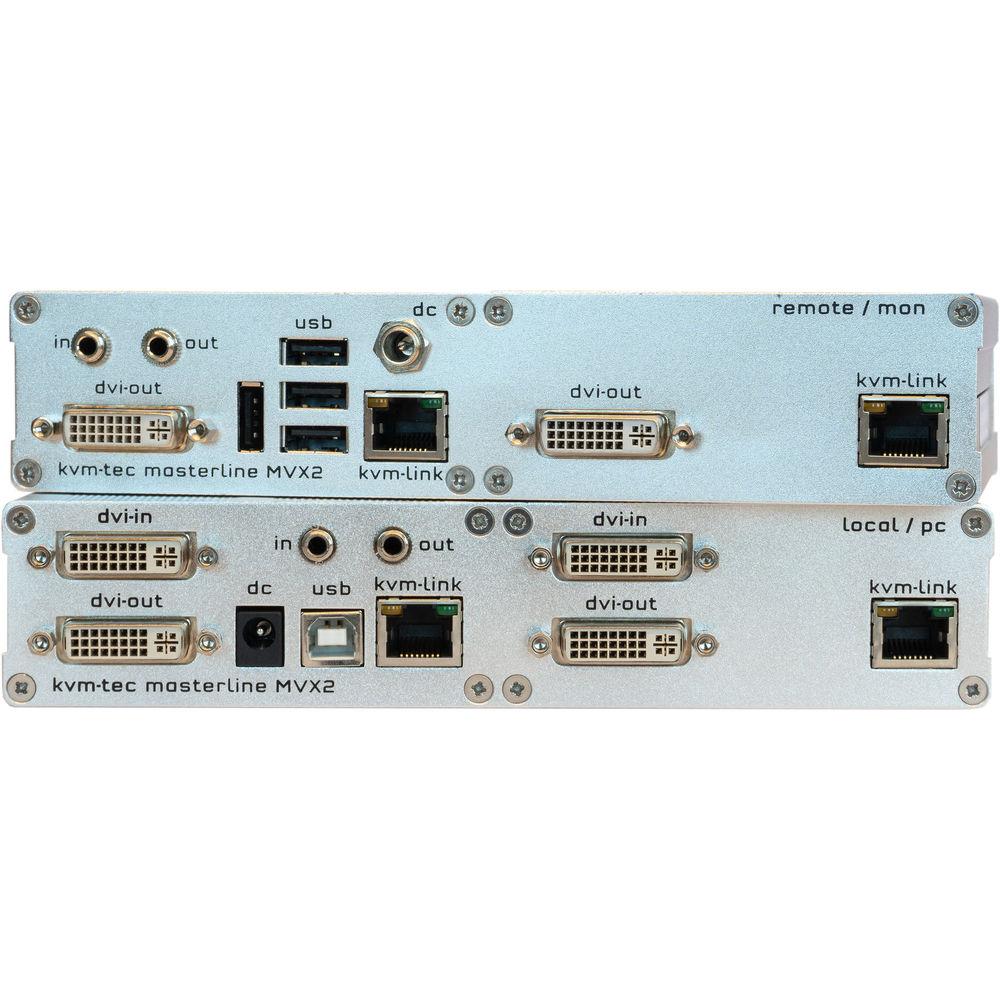

2 x RJ45 (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1920 x 1080 | | Maximum Transmission Distance | 492' / 149.96 m | | Transmission Method | CAT5e/CAT6/CAT7 Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | | | DC Input Power | 12 VDC at 2 A | | Power Consumption | 12 W | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 7.8 x 1.6 x 4.1" / 19.8 x 4.1 x 10.4 cm | | Weight | 1.3 lb / 604.0 g | - MVX2 Masterline Dual IP Receiver
| | | Ports | Transmitter:
2 x DVI (Output)
4 x USB Type-A USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
2 x RJ45 (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1920 x 1080 | | Maximum Transmission Distance | 492' / 149.96 m | | Transmission Method | CAT5e/CAT6/CAT7 Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | | | DC Input Power | 12 VDC at 2 A | | Power Consumption | 12 W Without USB Devices | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 7.8 x 1.6 x 4.1" / 19.8 x 4.1 x 10.4 cm | | Weight | 1.3 lb / 582.0 g |
