Product description

  • BrandBOX Masterline MVX

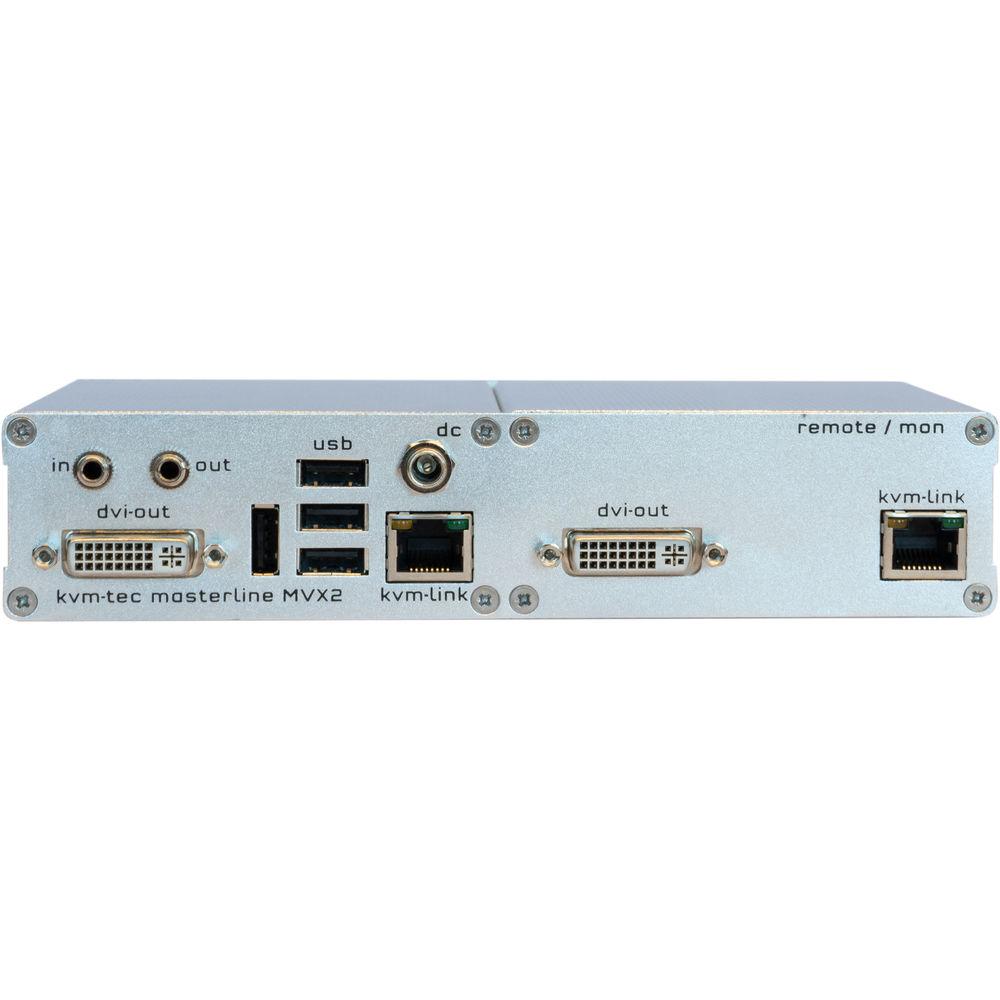

The KVM-TEC MVX2 Masterline Dual IP Receiver pairs with an optional transmitter and extends DVI and USB signals up to 492' over two CAT5e/6/7 cables, sold separately. It accepts 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Two DVI ports output two monitor signals and four USB ports allow you to output keyboard, mouse, and USB hard drive and memory stick signals. (The receiver and corresponding transmitter must be upgraded to support hard drive capture. Please see the Accessories tab for all compatible software/hardware upgrade options.) 3.5mm line in and line out jacks allow local speaker and mic connectivity.

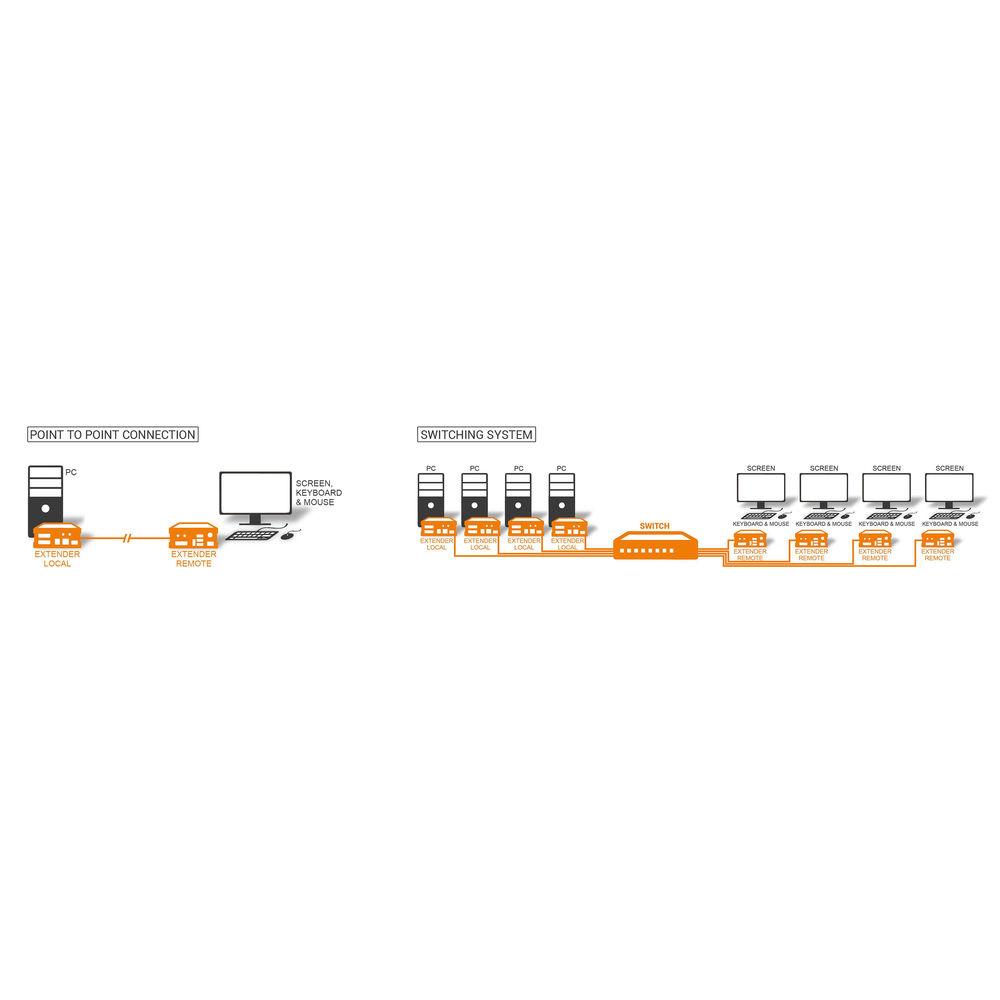

The USB ports are USB 2.0 transparent, meaning they're backwards-compatible with USB 1.0 and also support USB 3.0 but at USB 2.0 speeds. Up to a total of 48 transmitter and receiver units can be integrated into a single workflow by connecting them to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits.
    Key Features
    • Accepts DVI and USB signals up to 492' over two CAT5e/6/7 cables, sold separately
    • Supports 1920 x 1200 at 60 Hz with less than 5ms latency, 1080p in real time
    • Two DVI ports output two monitor signals
    • Four USB 2.0 ports support keyboard, mouse, and USB hard drives and memory sticks (the receiver and corresponding transmitter must be upgraded to support hard drive/memory stick capture)
    • USB 2.0 ports are backwards-compatible with USB 1.0 and also support USB 3.0 at USB 2.0 speeds
    • Up to 480 Mb/s USB transmission rate
    • 3.5mm audio line in and line out jacks
    • Automatic plug-and-play operation
    • Free air convection cooling
    • Can be integrated into a 48-endpoint workflows via any standard network switch
    • Rackmountable via optional rackmount kits
    • MTBF: 82.820 calculated hours over approximately 10 years
In the Box KVM-TEC MVX2 Masterline Dual IP Receiver
  • Power Supply (12 VDC, 2 A)
  • 4 x Rubber Feet
  • 4 x Mounting Pads
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the KVM-TEC MVX2 Masterline Dual IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    KVM-TEC Masterline MVX2R Specs

    Ports Transmitter:
    2 x DVI (Output)
    4 x USB Type-A USB 2.0
    1 x 3.5 mm Audio (Input)
    1 x 3.5 mm Audio (Output)
    2 x RJ45 (Input)
    Supported Resolutions 1920 x 1200 @ 60 Hz
    1920 x 1080
    Maximum Transmission Distance 492' / 149.96 m
    Transmission Method CAT5e/CAT6/CAT7 Cable
    Color Depth 24-Bit
    Audio Channels Supported 2-Channel Stereo (16-Bit)
    DC Input Power 12 VDC at 2 A
    Power Consumption 12 W Without USB Devices
    Operating Temperature 32 to 113°F / 0 to 45°C
    Storage Temperature -13 to 176°F / -25 to 80°C
    Operating Humidity 80%
    Certifications CE, FCC, as per Manufacturer
    Material of Construction Aluminum
    Dimensions 7.8 x 1.6 x 4.1" / 19.8 x 4.1 x 10.4 cm
    Weight 1.3 lb / 582.0 g
