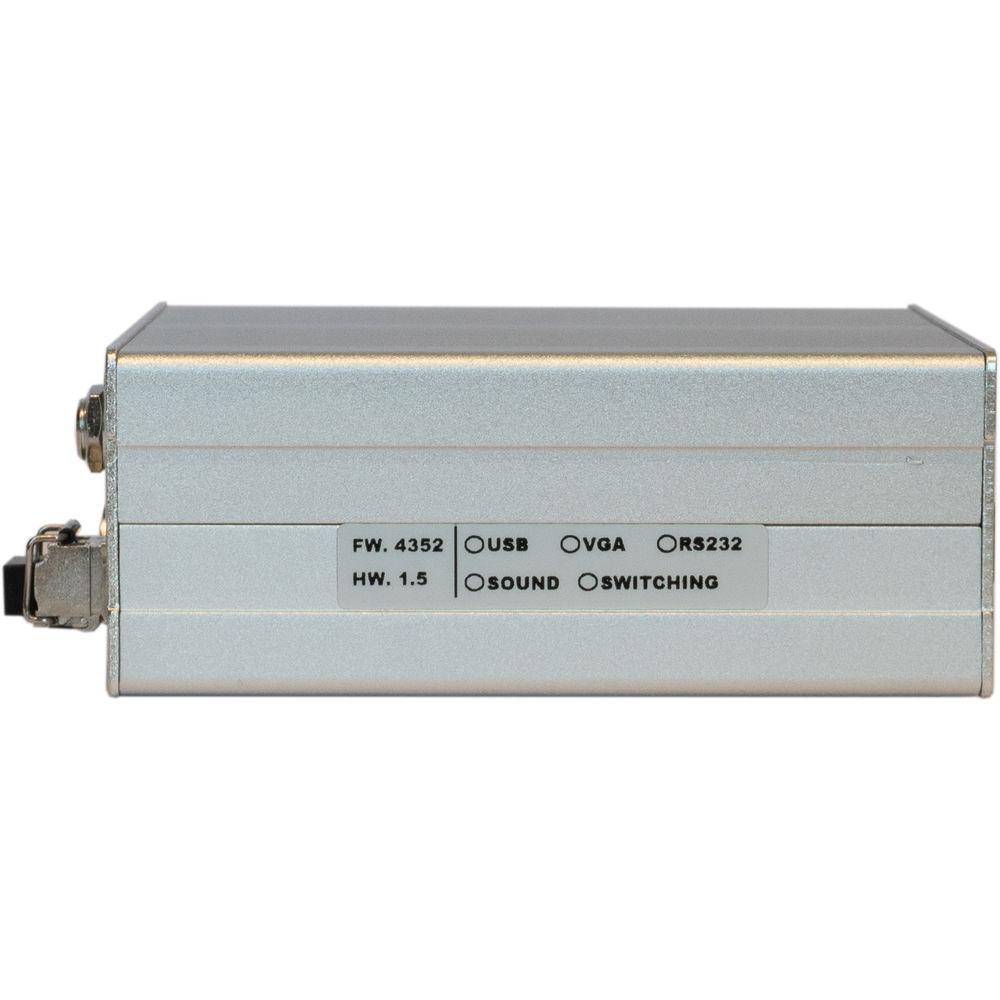

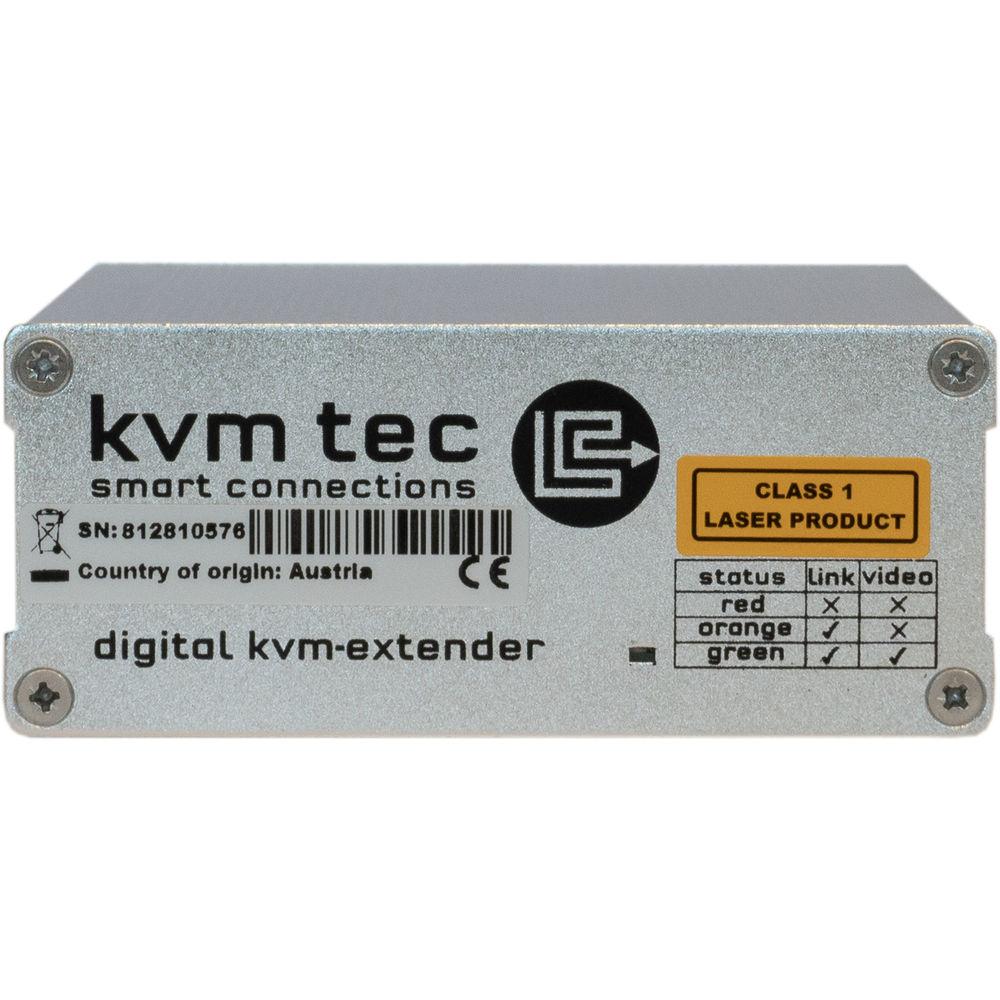

Product description The KVM-TEC MX 2000 Matrixline Fiber Receiver pairs with an optional transmitter and extends DVI and USB signals up to 1640' over a single duplex multimode LC fiber cable, sold separately. It accepts 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Four USB ports allow you to output keyboard and mouse signals as well as USB hard drives and memory sticks thanks to a built-in USB upgrade feature. Additionally, the included SFP module can be replaced with a separately sold single-mode module on both the transmitter and receiver ends to allow a transmission distance up to 99 miles.
An RS-232 port and 3.5mm line in and line out jacks are provided, and the device can be integrated into a workflow of up to 2000 transmitter/receiver units via connection to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to four units can be installed in a 19" rack using optional rackmount kits. The USB ports are USB 2.0 transparent, meaning they're backwards-compatible with USB 1.0 and also support USB 3.0 but at USB 2.0 speeds. - Key Features
-
- Accepts a DVI signal and USB keyboard, mouse, hard drive, and memory stick signals from up to 1640' over a single duplex multimode LC fiber cable, sold separately (an optional single-mode module is supported for longer distances)
- Supports 1920 x 1200 at 60 Hz with less than 5ms latency, 1080p in real time
- Four USB 2.0 ports
- RS-232 port
- Can be integrated into 2000-endpoint workflows via any standard network switch
- USB 2.0 ports are backwards-compatible with USB 1.0 and also support USB 3.0 at USB 2.0 speeds
- Up to 480 Mb/s USB transmission rate
- 3.5mm audio line in and line out jacks
- Automatic plug-and-play operation
- Free-air convection cooling
- Can be integrated into a 48-endpoint workflow via any standard network switch
- Four units are rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
In the Box KVM-TEC MX 2000 Matrixline Fiber Receiver Power Supply (12 VDC, 1 A) SFP Mulitmode Module RJ11 to D9 Adapter for RS-232 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MX 2000 Matrixline Fiber Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

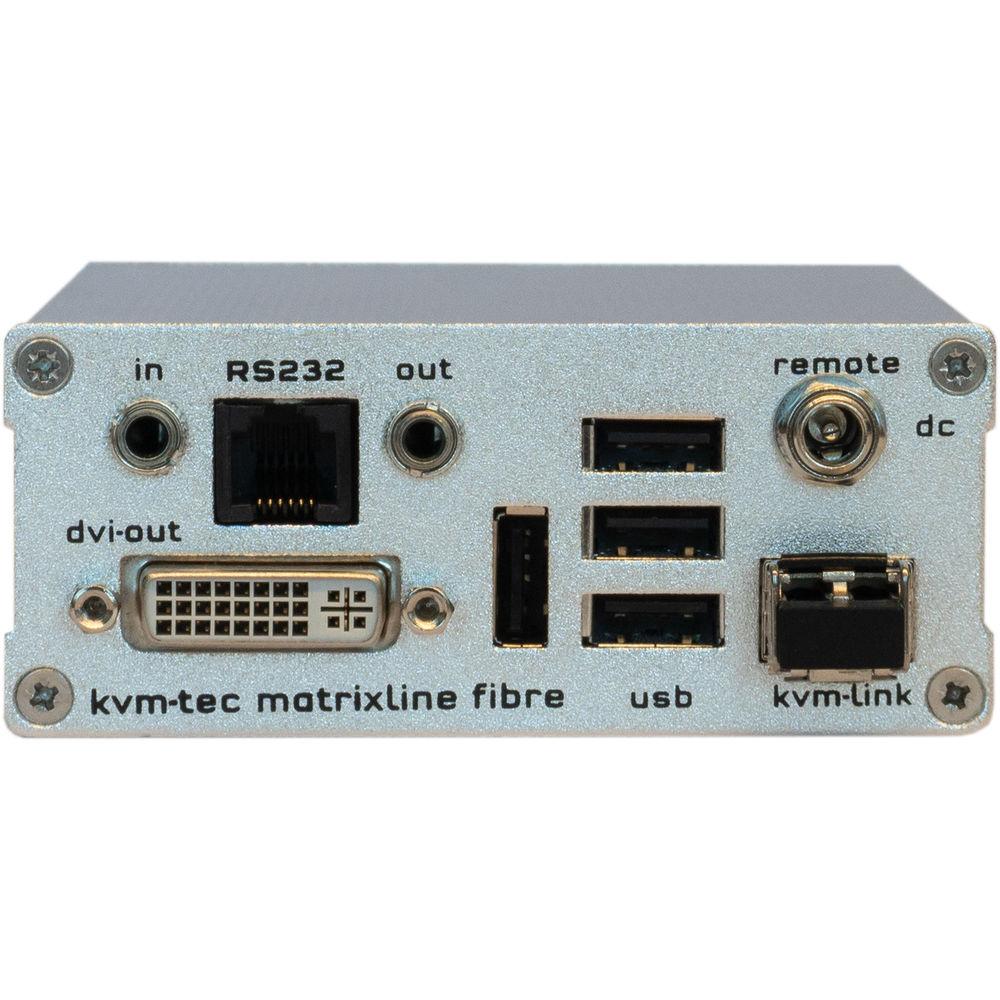

Technical parametersKVM-TEC 6811R Specs | | | Ports | Receiver:
1 x DVI-D (Output)
4 x USB Type-A USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
1 x RJ11 RS232
1 x LC Fiber (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1920 x 1080 | | Maximum Transmission Distance | 1640' / 499.87 m | | Transmission Method | Multimode Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | RS232 Data Rate | 230,400 bps | | | | DC Input Power | 12 VDC at 1 A | | Power Consumption | 6 W Without USB Devices | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 3.8 x 1.6 x 4.1" / 9.7 x 4.1 x 10.4 cm | | Weight | 0.6 lb / 291.0 g |
