KVM-TEC MX 2000 Matrixline Fiber Transmitter

Search your instruction manual in PDF to download

User Manual for KVM-TEC MX 2000 Matrixline Fiber Transmitter

Click to enlarge the picture
KVM-TEC MX 2000 Matrixline Fiber Transmitter Contents of the user manual for the KVM-TEC MX 2000 Matrixline Fiber Transmitter
  • Product category: KVM Extenders KVM-TEC
  • Brand: KVM-TEC
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for KVM-TEC KVM Extenders

KVM-TEC MX 2000 Matrixline Fiber Transmitter KVM-TEC MX 2000 Matrixline Fiber Transmitter KVM-TEC MX 2000 Matrixline Fiber Transmitter KVM-TEC MX 2000 Matrixline Fiber Transmitter KVM-TEC MX 2000 Matrixline Fiber Transmitter
User manual for the KVM-TEC MX 2000 Matrixline Fiber Transmitter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any KVM-TEC product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official KVM-TEC user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a KVM-TEC product will considerably shorten its lifespan!



Product description

  • BlueBOX Matrixline MX
The KVM-TEC MX 2000 Matrixline Fiber Transmitter pairs with an optional receiver and extends DVI and USB signals up to 1640' over a single duplex multimode LC fiber cable, sold separately. It transmits 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. A single USB connection captures keyboard and mouse signals as well as USB hard drives and memory sticks thanks to a built-in USB upgrade feature. The included SFP module can be replaced with a separately sold single-mode module to allow a transmission distance up to 99 miles.

An RS-232 port, DVI monitoring output, and 3.5mm line in and line out jacks are provided, and the device can be integrated into a workflow of up to 2000 transmitter/receiver units via connection to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to four units can be installed in a 19" rack using optional rackmount kits. The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds.
    Key Features
    • Transmits DVI signal and USB keyboard, mouse, hard drive, and memory stick signals up to 1640' over a single duplex multimode LC fiber cable, sold separately (an optional single-mode module is supported for longer distances)
    • 1920 x 1200 at 60 Hz transmission with less than 5ms latency, 1080p transmission in real time
    • RS-232 port
    • Can be integrated into 2000-endpoint workflows via any standard network switch
    • USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
    • Up to 480 Mb/s USB transmission rate
    • 3.5mm audio line in and line out jacks
    • DVI local monitoring output
    • Automatic plug-and-play operation
    • Free-air convection cooling
    • Four units are rackmountable via optional rackmount kits
    • MTBF: 82.820 calculated hours over approximately 10 years
In the Box KVM-TEC MX 2000 Matrixline Fiber Transmitter
  • Power Supply (12 VDC, 1 A)
  • SFP Mulitmode Module
  • DVI to DVI Cable (6')
  • USB Cable (6')
  • VGA to DVI Cable (6')
  • 2 x Audio Cables (6')
  • RJ11 to D9 Adapter for RS-232
  • RS-232 Extension Cable (6')
  • 4 x Rubber Feet
  • 4 x Mounting Pads
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the KVM-TEC MX 2000 Matrixline Fiber Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    KVM-TEC MX1-FL2000 Specs

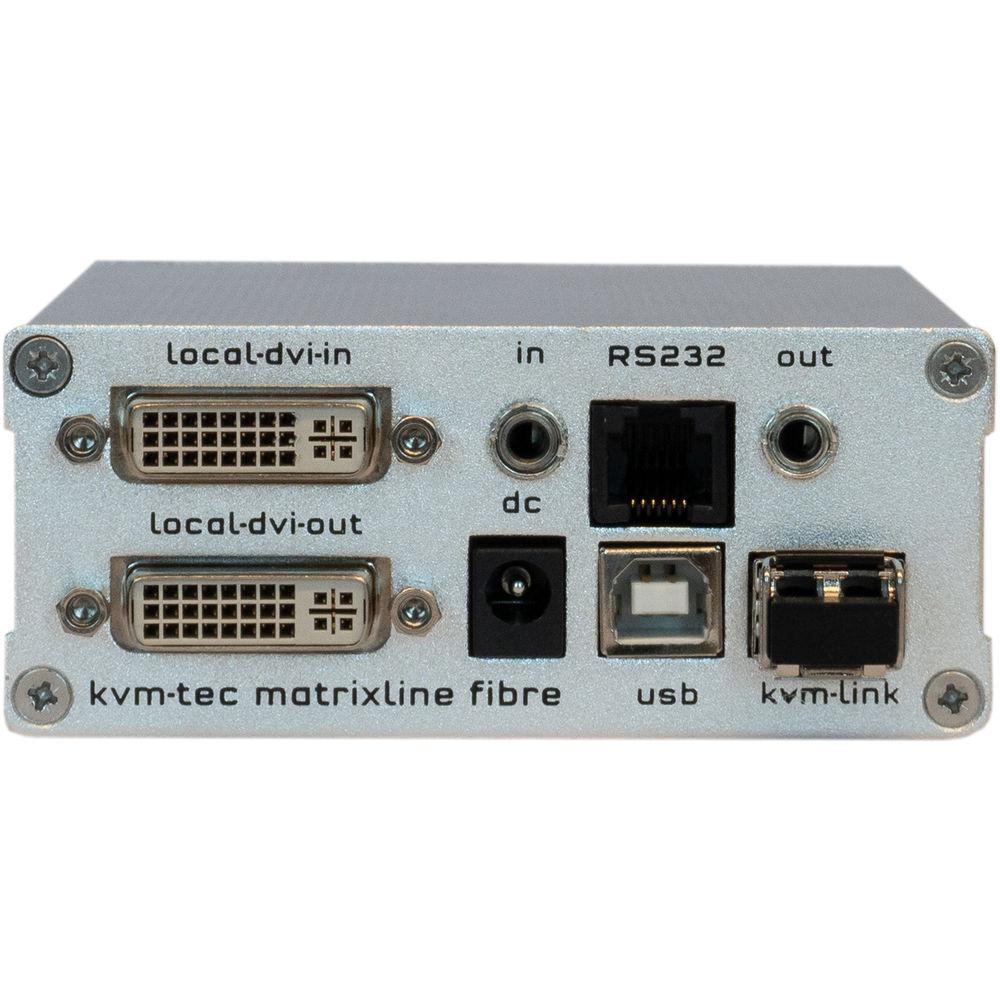

    Ports Transmitter:
    1 x DVI (Input)
    1 x DVI (Output)
    1 x USB Type-B USB 2.0
    1 x 3.5 mm Audio (Input)
    1 x 3.5 mm Audio (Output)
    1 x RJ11 RS232
    1 x LC Fiber (Output)
    Supported Resolutions 1920 x 1200 @ 60 Hz
    1920 x 1080
    Maximum Transmission Distance 1640' / 499.87 m
    Transmission Method Multimode Cable
    Color Depth 24-Bit
    Audio Channels Supported 2-Channel Stereo (16-Bit)
    RS232 Data Rate 230,400 bps
    DC Input Power 12 VDC at 1 A
    Power Consumption 6 W
    Operating Temperature 32 to 113°F / 0 to 45°C
    Storage Temperature -13 to 176°F / -25 to 80°C
    Operating Humidity 80%
    Certifications CE, FCC, as per Manufacturer
    Material of Construction Aluminum
    Dimensions 3.8 x 1.6 x 4.1" / 9.7 x 4.1 x 10.4 cm
    Weight 0.7 lb / 302.0 g

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 52 owners. Add your rating and experience with the product.
