User Manual for KVM-TEC MX 2000 Matrixline IP Receiver Click to enlarge the picture
Contents of the user manual for the KVM-TEC MX 2000 Matrixline IP Receiver
- Product category: KVM Extenders KVM-TEC
- Brand: KVM-TEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KVM-TEC KVM Extenders
 |
User manual for the KVM-TEC MX 2000 Matrixline IP Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KVM-TEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KVM-TEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KVM-TEC product will considerably shorten its lifespan!
|

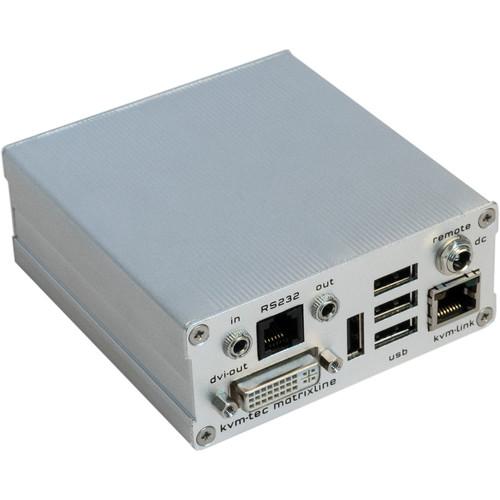

Product description The KVM-TEC MX 2000 Matrixline IP Receiver pairs with an optional transmitter and extends DVI and USB signals up to 492' over a single CAT5e/6/7 cable, sold separately. It accepts 1920 x 1200 at 60 Hz resolution video with less than 5ms latency and 1080p signals in real time. Four USB ports allow you to output keyboard and mouse signals as well as USB hard drives and memory sticks thanks to a built-in USB upgrade feature.

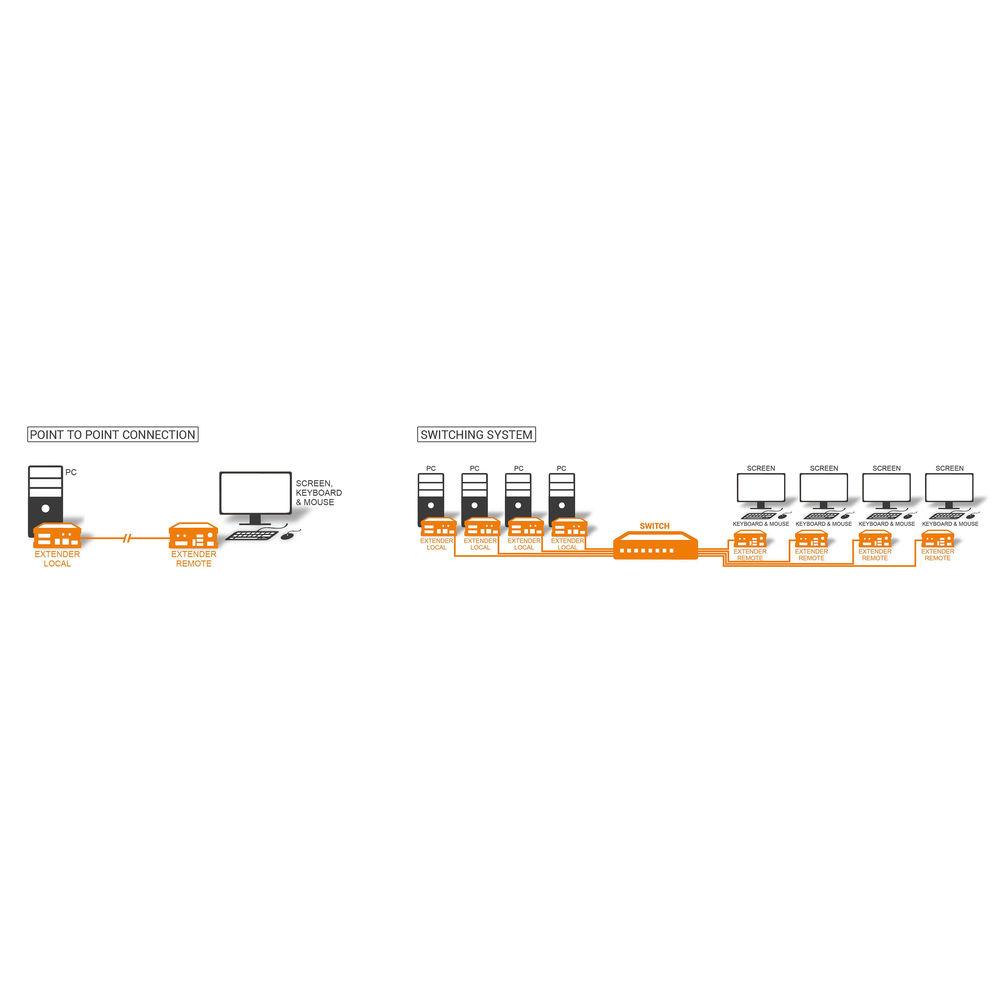

An RS-232 port and 3.5mm line in and line out jacks are provided, and the device can be integrated into a workflow of up to 2000 transmitter/receiver units via connection to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to four units can be installed in a 19" rack using optional rackmount kits. The USB ports are USB 2.0 transparent, meaning they're backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds. - Key Features
-
- Accepts a DVI signal and USB keyboard, mouse, hard drive, and memory stick signals over a single CAT5e/6/7 cable, sold separately
- Supports 1920 x 1200 at 60 Hz with less than 5ms latency, 1080p in real time
- Four USB 2.0 ports
- RS-232 port
- Can be integrated into 2000-endpoint workflows via any standard network switch
- USB 2.0 ports are backwards-compatible with USB 1.0 and also support USB 3.0 at USB 2.0 speeds
- Up to 480 Mb/s USB transmission rate
- 3.5mm audio line in and line out jacks
- Automatic plug-and-play operation
- Free air convection cooling
- Can be integrated into a 48-endpoint workflow via any standard network switch
- Four units are rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
In the Box KVM-TEC MX 2000 Matrixline IP Receiver Power Supply (12 VDC, 1 A) RJ11 to D9 Adapter for RS-232 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC MX 2000 Matrixline IP Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

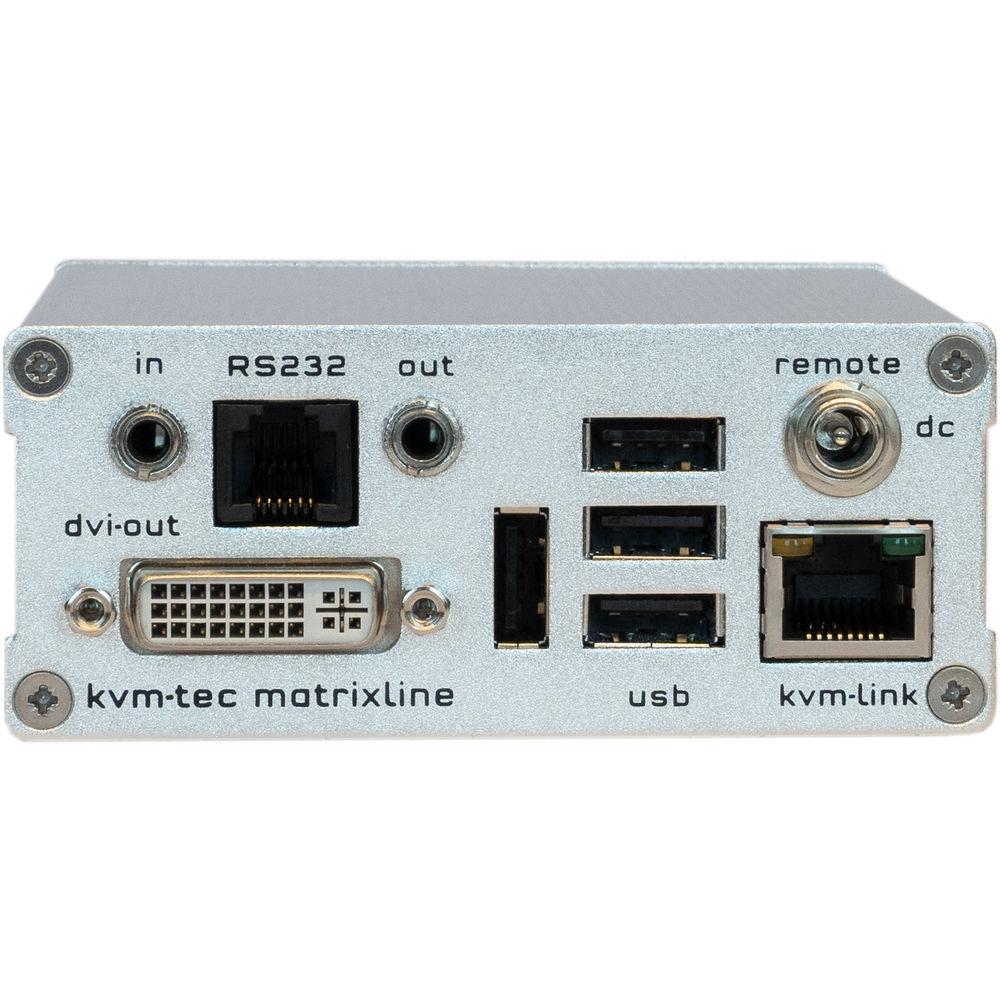

Technical parametersKVM-TEC MX1R2000 Specs | | | Ports | Receiver:
1 x DVI-D (Output)
4 x USB Type-A USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
1 x RJ11 RS232
1 x RJ45 (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1920 x 1080 | | Maximum Transmission Distance | 492' / 149.96 m | | Transmission Method | CAT5e/CAT6/CAT7 Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | RS232 Data Rate | 230,400 bps | | | | DC Input Power | 12 VDC at 1 A | | Power Consumption | 6 W Without USB Devices | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 3.8 x 1.6 x 4.1" / 9.7 x 4.1 x 10.4 cm | | Weight | 0.6 lb / 291.0 g |
