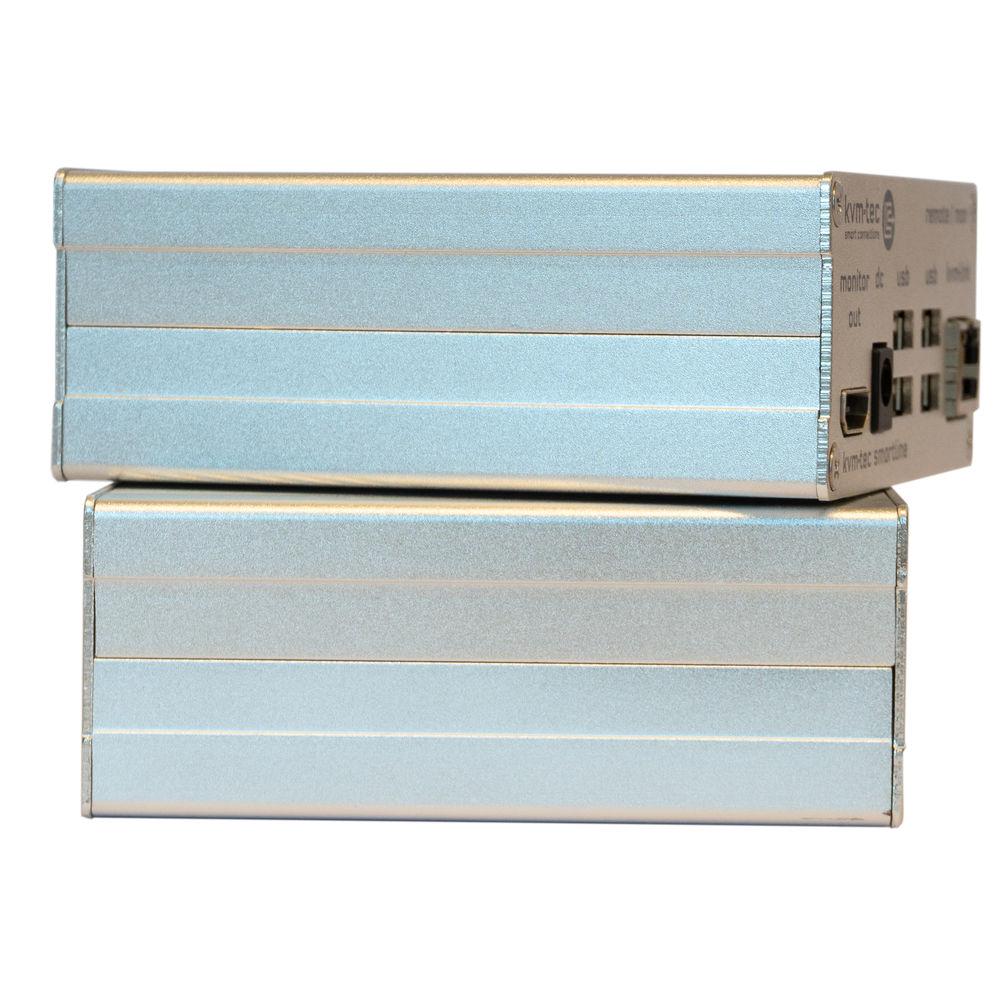

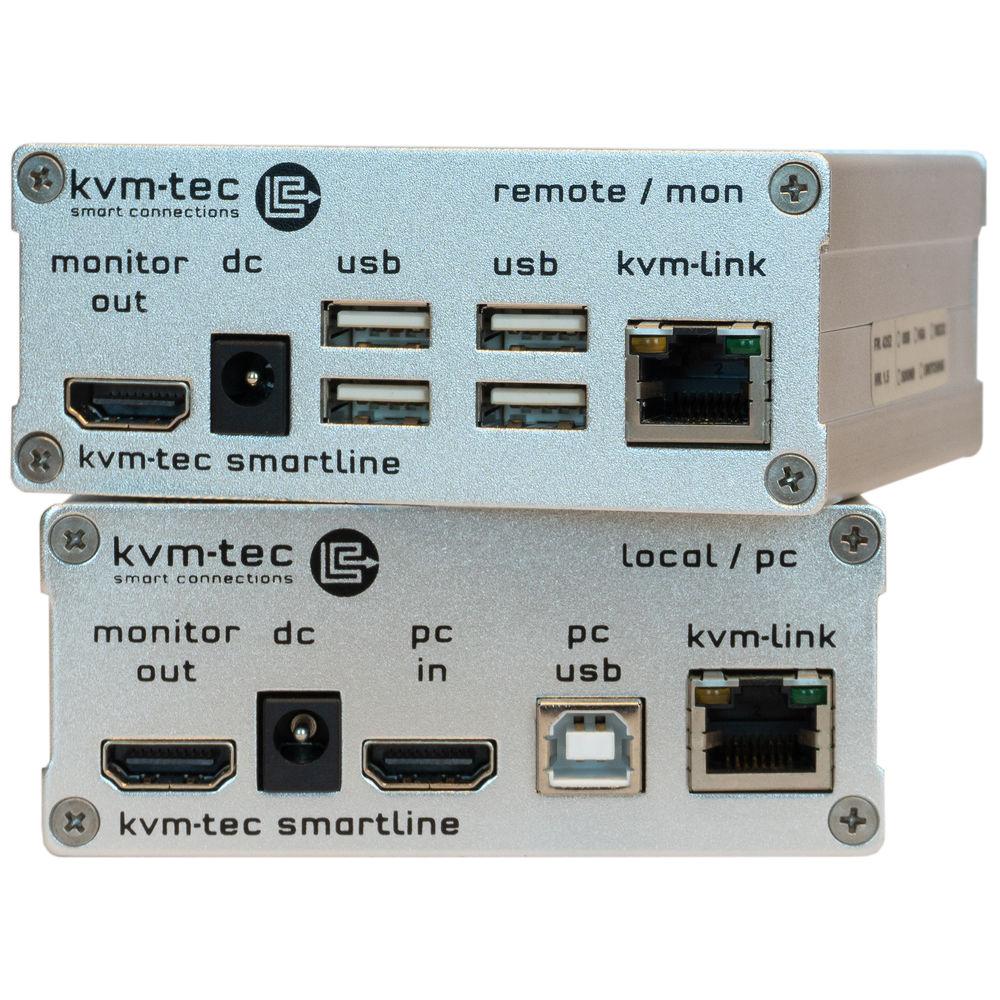

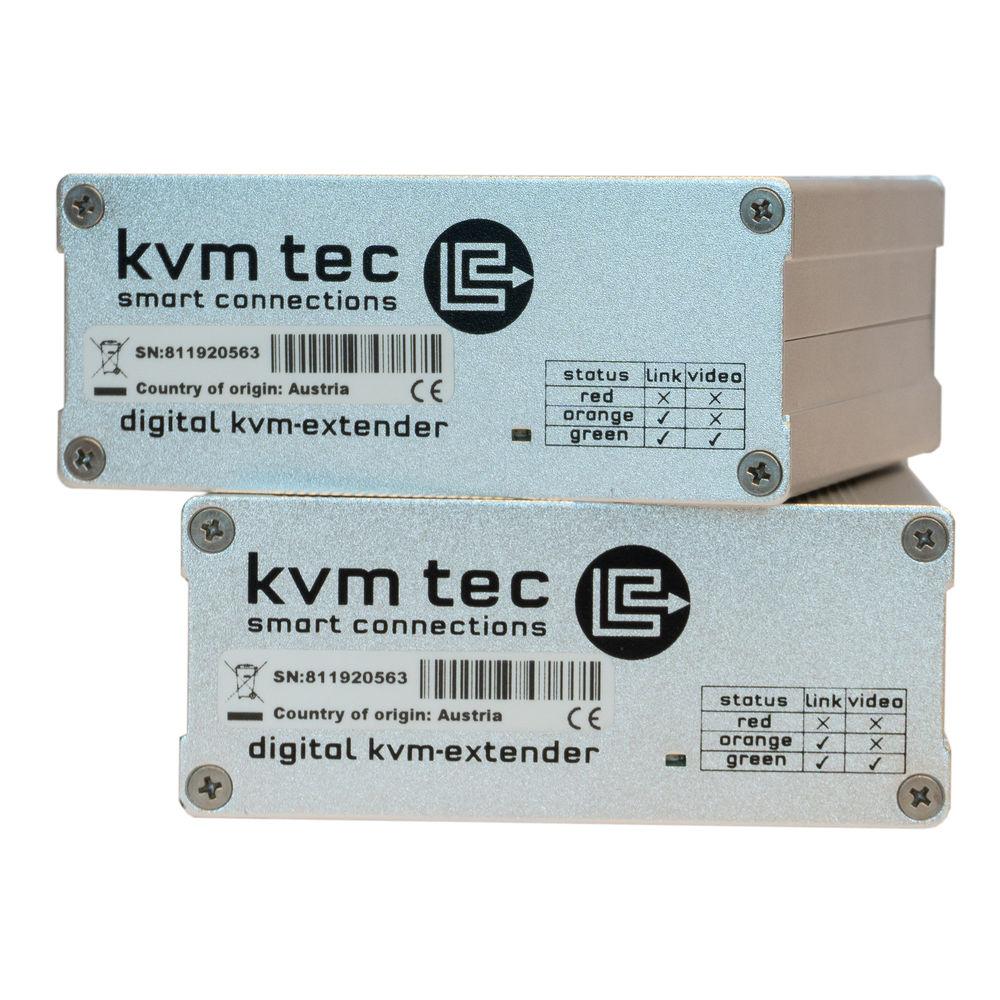

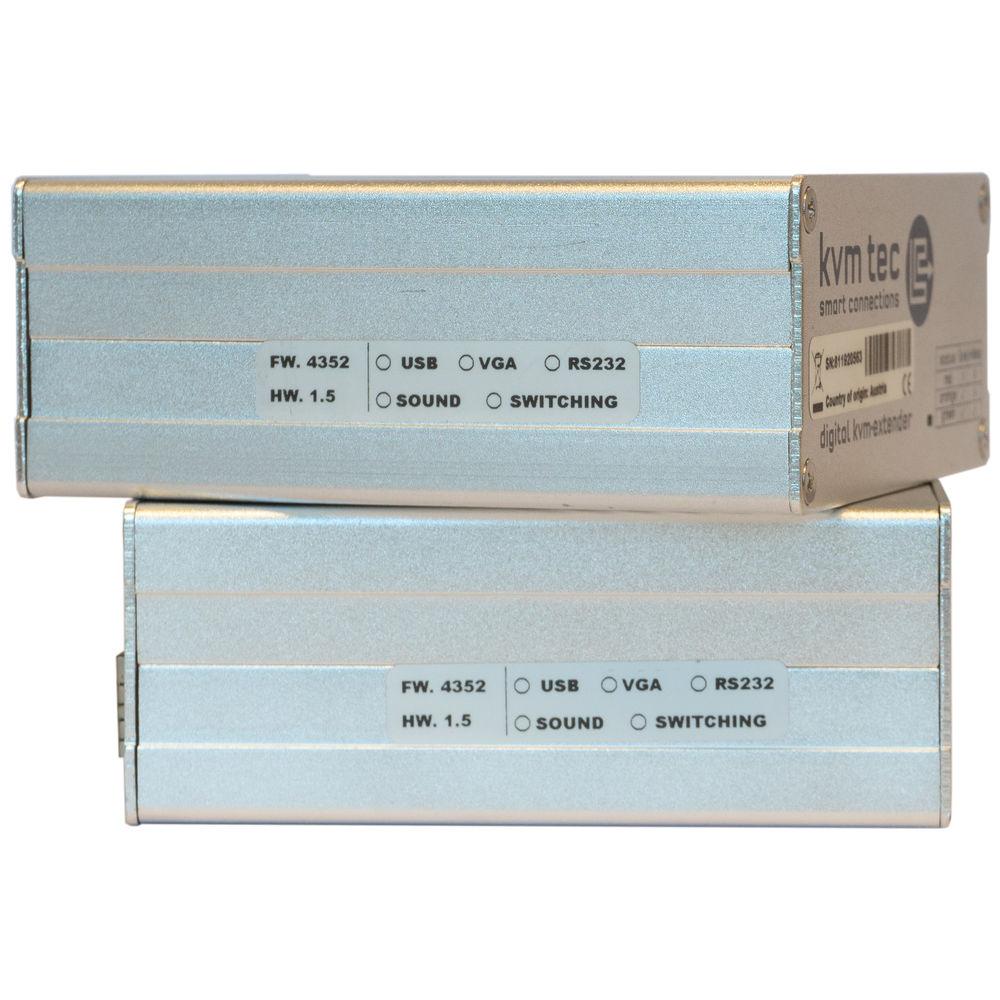

Product description The KVM-TEC SVX1 Smartline Cat 5e/6/7 Extender transmitter/receiver set carries DVI and USB signals over a single Cat 5e/6/7 cable up to 492' without delay. Both units feature an HDMI connector for DVI input/output via included adapter cables. These connectors do not carry embedded audio and are not designed to transmit HDMI signals. The transmitter offers two HDMI connectors, the second one being for monitor output. Only two adapter cables are included in total, so an additional one would be required to use this monitor port simultaneously with the other ones.
The SVX1 Smartline system supports resolutions up to 1920 x 1200 at 60 Hz. Switches can also be integrated to allow delivery to up to 48 endpoints. The transmitter and receiver have the same size and up to four units can be installed in a 19" 1 RU rack. - SVX1 Smartline Cat 5e/6/7 Transmitter The KVM-TEC SVX1 Smartline Cat 5e/6/7 Transmitter carries DVI and USB signals over a single Cat 5e/6/7 cable up to 492' to an optional receiver without delay. The transmitter features an HDMI connector for PC input but includes an HDMI to DVI adapter cable for connecting a DVI signal. The input does not carry embedded audio and does not support HDMI signals. There's similarly an HDMI connector for monitor output. A second adapter cable is not included. The SVX1 Smartline system supports resolutions up to 1920 x 1200 at 60 Hz. Switches can also be integrated to allow delivery to up to 48 endpoints.
- Key Features
-
- DVI signal transmission without delay using HDMI connector and included adapter cable
- Up to 492' transmission distance over a single Cat 5e/6/7 cable, sold separately
- Up to 1920 x 1200/60 Hz resolution
- Delivery to up to 48 endpoints with optional switch integration
- 480 Mb/s max transmission rate
- USB 2.0 transparent
- "USB Save" feature blocks USB interface viruses by deactivating mass storage devices
- Plug and play installation
- Power/status LED
- Up to four units fit in a 19" 1 RU rack
- SVX1 Smartline Cat 5e/6/7 Receiver The KVM-TEC SVX1 Smartline Cat 5e/6/7 Receiver accepts DVI and USB signals over a single Cat 5e/6/7 cable from up to 492' away, without delay. The receiver features an HDMI connector for monitor output but the connector carries a DVI-D signal from the optional transmitter, and an HDMI to DVI adapter cable is included for connecting the signal to a DVI monitor. The HDMI connector is not designed to support HDMI signals and does not carry embedded audio neither. The receiver also has four USB outputs for a comprehensive KVM workflow. The SVX1 Smartline system supports resolutions up to 1920 x 1200 at 60 Hz.
- Key Features
-
- DVI monitor output via HDMI connector and included adapter cable (no audio, no HDMI signals)
- Four USB outputs
- Supports signals from up to 492' away over a single Cat 5e/6/7 cable, sold separately
- Up to 1920 x 1200/60 Hz resolution
- USB 2.0 transparent
- Plug and play installation
- Power/status LED
- Up to four units fit in a 19" 1 RU rack
In the Box Bundle Items SVX1 Smartline Cat 5e/6/7 Transmitter - Power Supply (12 VDC, 1A)
- Limited 2-Year Warranty (Extendable to 5 Years)
SVX1 Smartline Cat 5e/6/7 Receiver ftsqdyrdvqycbebdvfxfztcxtaxwyx - Power Supply (12 VDC, 1A)
- Limited 2-Year Warranty (Extendable to 5 Years)
Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC SVX1 Smartline Cat 5e 6 7 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SVX1 Smartline Cat 5e/6/7 Transmitter
| Input | 1 x HDMI type A (for use with included HDMI to DVI adapter cable; does not support embedded audio, does not carry HDMI signals)
1 x USB 2.0 type-B | | Output | 1 x RJ45
1 x HDMI type A (for use with included HDMI to DVI adapter cable; does not support embedded audio, does not carry HDMI signals) | | Range | 492' / 150 m over Cat 5e/6/7 | | Supported Resolution | DVI-D:
Up to 1920 x 1200 at 60 Hz | | Bit Depth | DVI-D:
24 bit | | Enclosure | Anodized aluminum | | Power Supply | 12 VDC, 1 A (power supply unit included) | | Power Consumption | 6 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Humidity | Operating/Storage: < 80%, non-condensing | | Cooling | Free air convection | | MTBF/Expected Product Life | 82,820 calculated hours over approximately 10 years | | Compliance | CE, FCC | | Dimensions | 3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm | | Weight | 0.66 lb / 302 g | | | | Box Dimensions (LxWxH) | 10.75 x 7.6 x 2.5" | - SVX1 Smartline Cat 5e/6/7 Receiver
| Input | 1 x RJ45 | | Output | 1 x HDMI type A monitor output (for use with included HDMI to DVI adapter cable; does not support embedded audio, does not carry HDMI signals)
4 x USB type A | | Range | 492' / 150 m over Cat 5e/6/7 | | Supported Resolution | DVI-D:
Up to 1920 x 1200 at 60 Hz | | Bit Depth | DVI-D:
24 bit | | Enclosure | Anodized aluminum | | Power Supply | 12 VDC, 1 A (power supply unit included) | | Power Consumption | 6 W without USB devices | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Humidity | Operating/Storage: < 80%, non-condensing | | Cooling | Free air convection | | MTBF/Expected Product Life | 82,820 calculated hours over approximately 10 years | | Compliance | CE, FCC | | Dimensions | 3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm | | Weight | 0.64 lb / 302 g | | | | Box Dimensions (LxWxH) | 10.25 x 7.6 x 2.5" |
