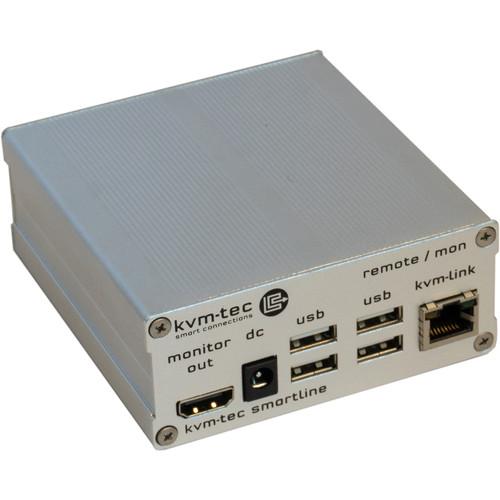

Product description The KVM-TEC SVX1 Smartline Cat 5e/6/7 Receiver accepts DVI and USB signals over a single Cat 5e/6/7 cable from up to 492' away, without delay. The receiver features an HDMI connector for monitor output but the connector carries a DVI-D signal from the optional transmitter, and an HDMI to DVI adapter cable is included for connecting the signal to a DVI monitor. The HDMI connector is not designed to support HDMI signals and does not carry embedded audio neither. The receiver also has four USB outputs for a comprehensive KVM workflow. The SVX1 Smartline system supports resolutions up to 1920 x 1200 at 60 Hz. - Key Features
-
- DVI monitor output via HDMI connector and included adapter cable (no audio, no HDMI signals)
- Four USB outputs
- Supports signals from up to 492' away over a single Cat 5e/6/7 cable, sold separately
- Up to 1920 x 1200/60 Hz resolution
- USB 2.0 transparent
- Plug and play installation

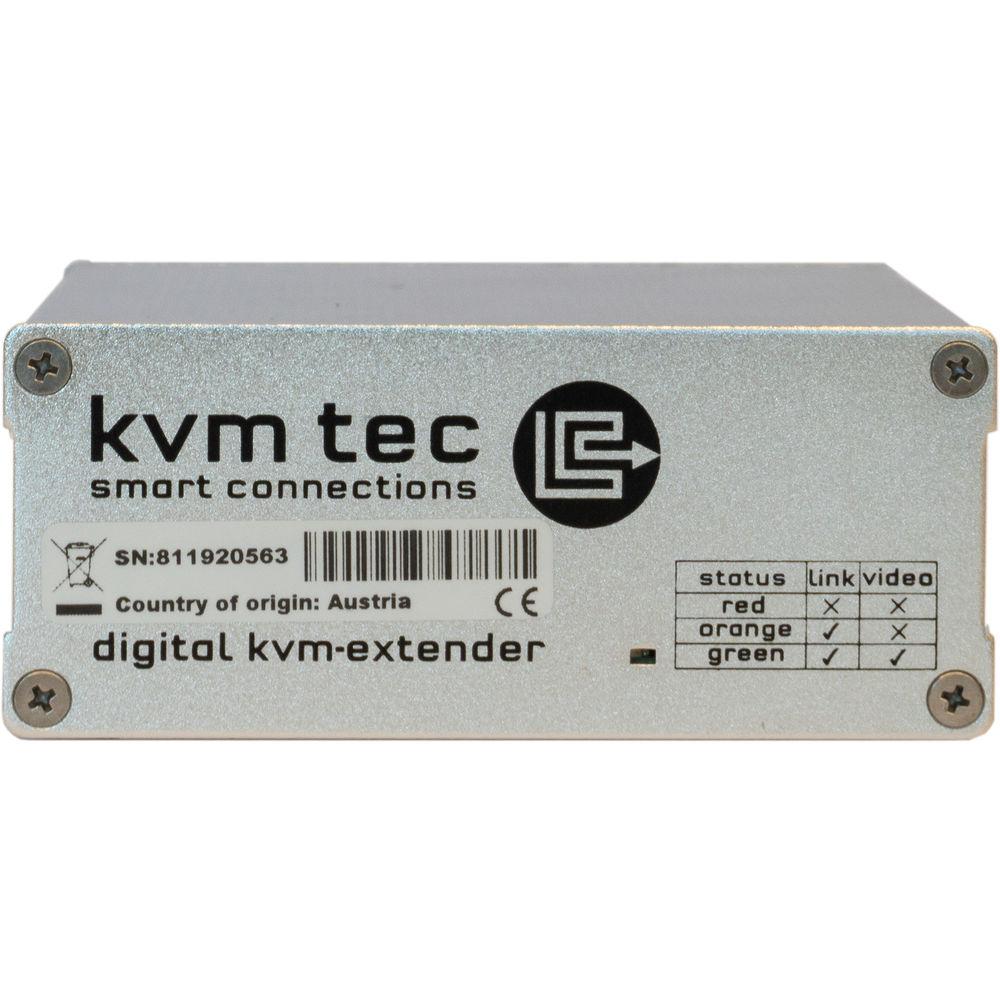

- Power/status LED
- Up to four units fit in a 19" 1 RU rack
In the Box KVM-TEC SVX1 Smartline Cat 5e/6/7 Receiver Power Supply (12 VDC, 1A) HDMI to DVI Cable (5.9') 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty (Extendable to 5 Years) Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC SVX1 Smartline Cat 5e 6 7 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

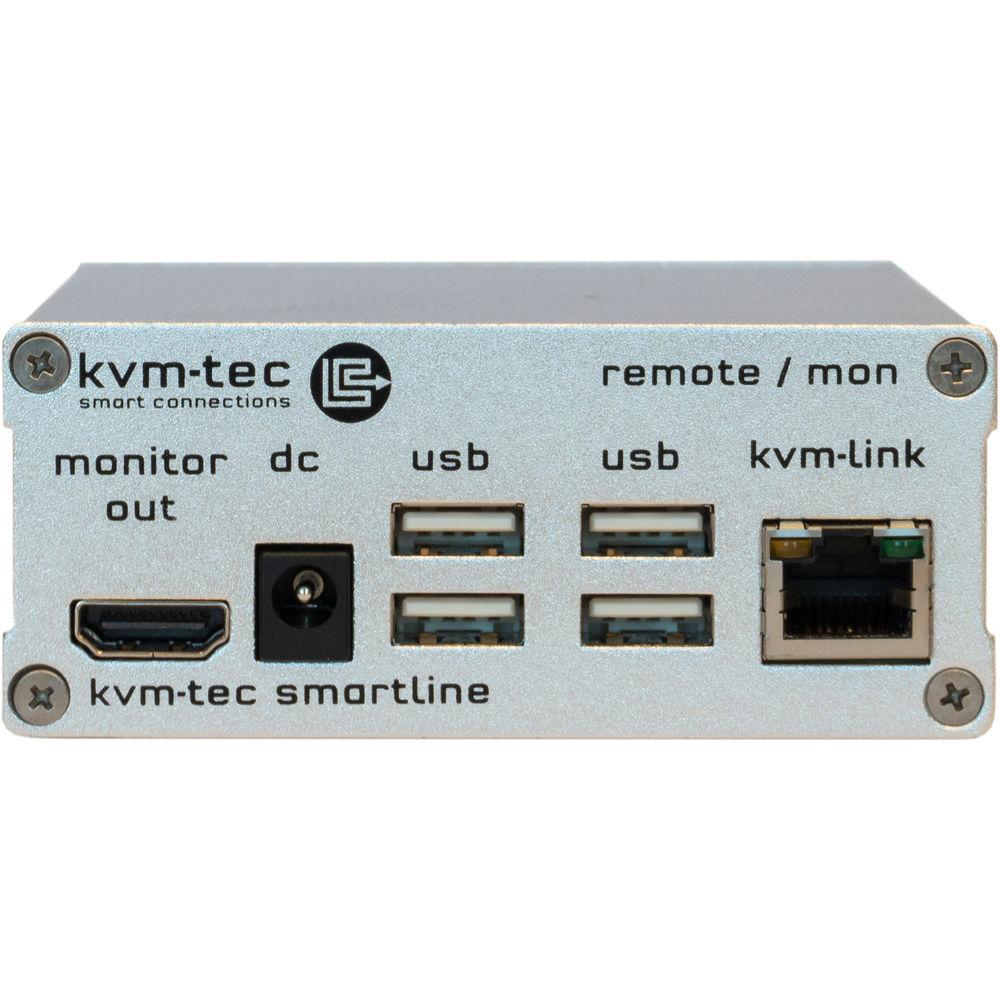

Technical parametersKVM-TEC SVX1R Specs | Input | 1 x RJ45 | | Output | 1 x HDMI type A monitor output (for use with included HDMI to DVI adapter cable; does not support embedded audio, does not carry HDMI signals)
4 x USB type A | | Range | 492' / 150 m over Cat 5e/6/7 | | Supported Resolution | DVI-D:
Up to 1920 x 1200 at 60 Hz | | Bit Depth | DVI-D:
24 bit | | Enclosure | Anodized aluminum | | Power Supply | 12 VDC, 1 A (power supply unit included) | | Power Consumption | 6 W without USB devices | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Humidity | Operating/Storage: < 80%, non-condensing | | Cooling | Free air convection | | MTBF/Expected Product Life | 82,820 calculated hours over approximately 10 years | | Compliance | CE, FCC | | Dimensions | 3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm | | Weight | 0.64 lb / 302 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.25 x 7.6 x 2.5" |
