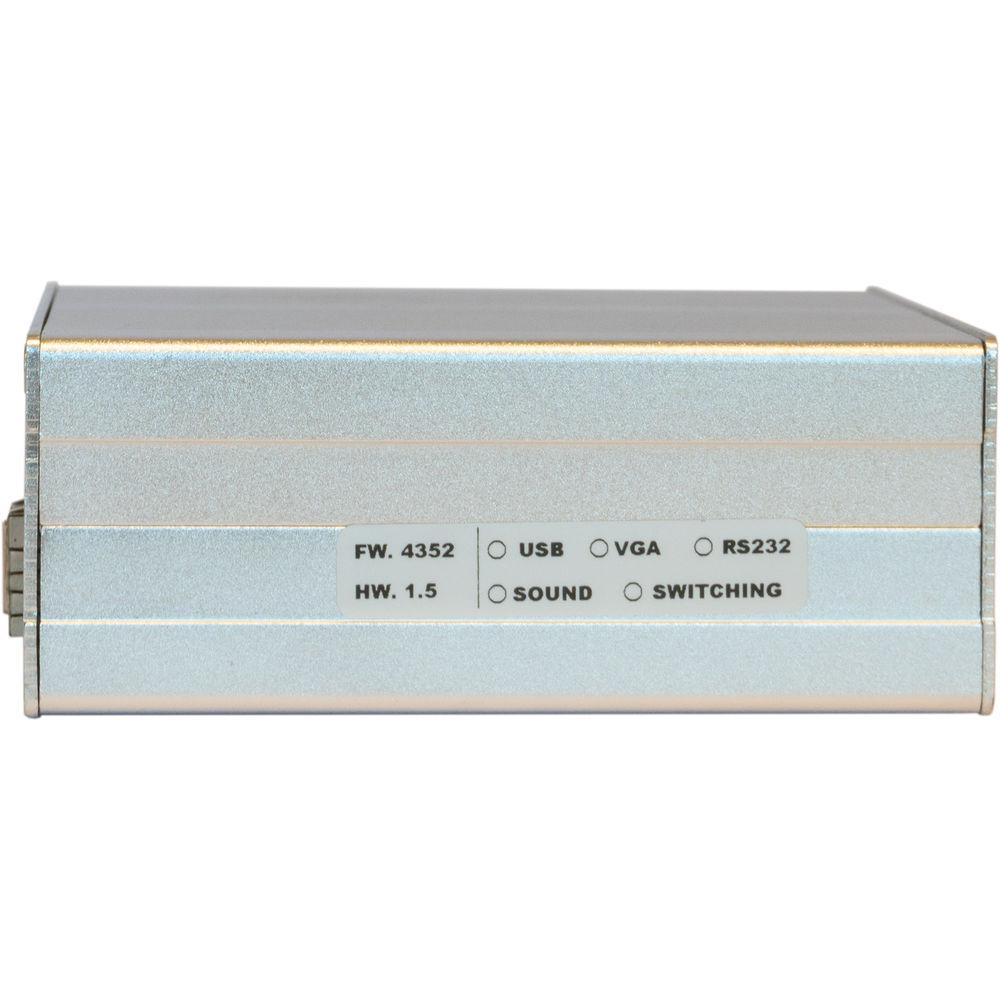

Product description The KVM-TEC SVX1 Smartline Cat 5e/6/7 Transmitter carries DVI and USB signals over a single Cat 5e/6/7 cable up to 492' to an optional receiver without delay. The transmitter features an HDMI connector for PC input but includes an HDMI to DVI adapter cable for connecting a DVI signal. The input does not carry embedded audio and does not support HDMI signals. There's similarly an HDMI connector for monitor output. A second adapter cable is not included. The SVX1 Smartline system supports resolutions up to 1920 x 1200 at 60 Hz. Switches can also be integrated to allow delivery to up to 48 endpoints. - Key Features
-
- DVI signal transmission without delay using HDMI connector and included adapter cable
- Up to 492' transmission distance over a single Cat 5e/6/7 cable, sold separately
- Up to 1920 x 1200/60 Hz resolution
- Delivery to up to 48 endpoints with optional switch integration
- 480 Mb/s max transmission rate
- USB 2.0 transparent
- "USB Save" feature blocks USB interface viruses by deactivating mass storage devices
- Plug and play installation

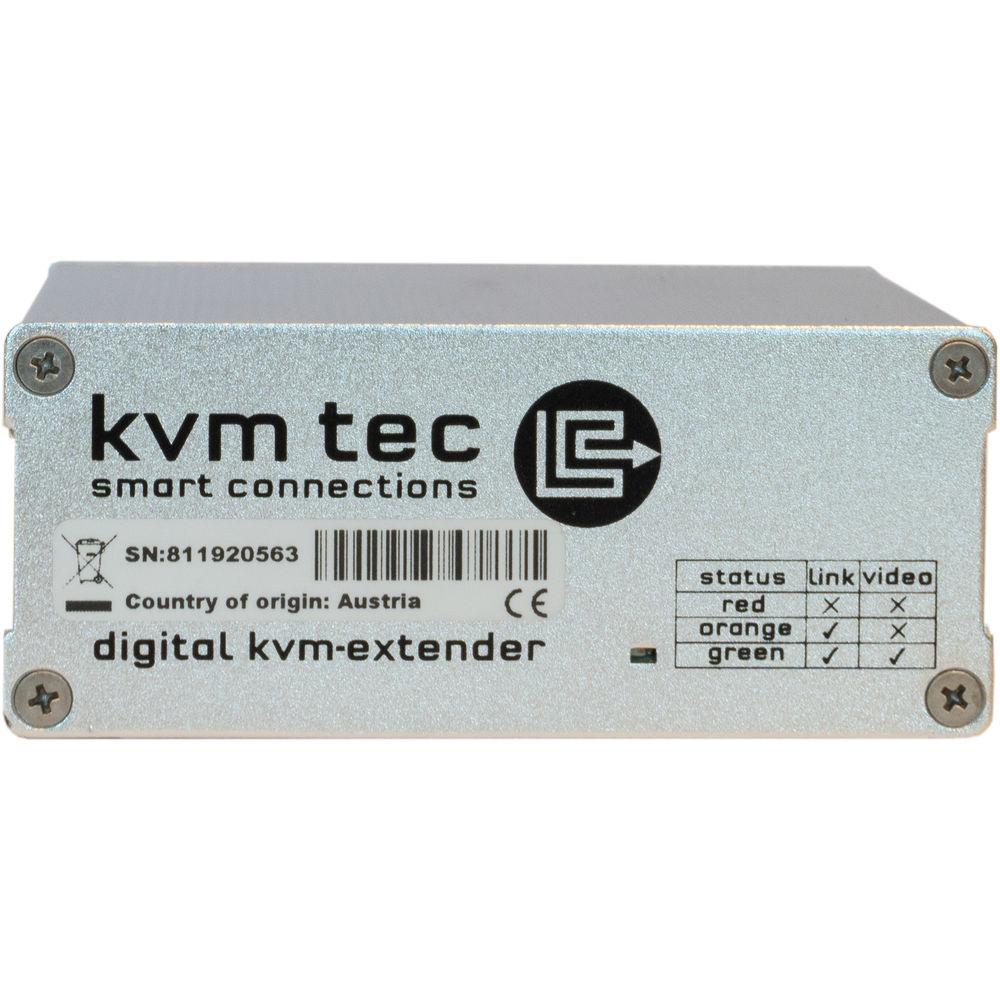

- Power/status LED
- Up to four units fit in a 19" 1 RU rack
In the Box KVM-TEC SVX1 Smartline Cat 5e/6/7 Transmitter Power Supply (12 VDC, 1A) HDMI to DVI Cable (5.9') USB Cable (5.9') 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty (Extendable to 5 Years) Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC SVX1 Smartline Cat 5e 6 7 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

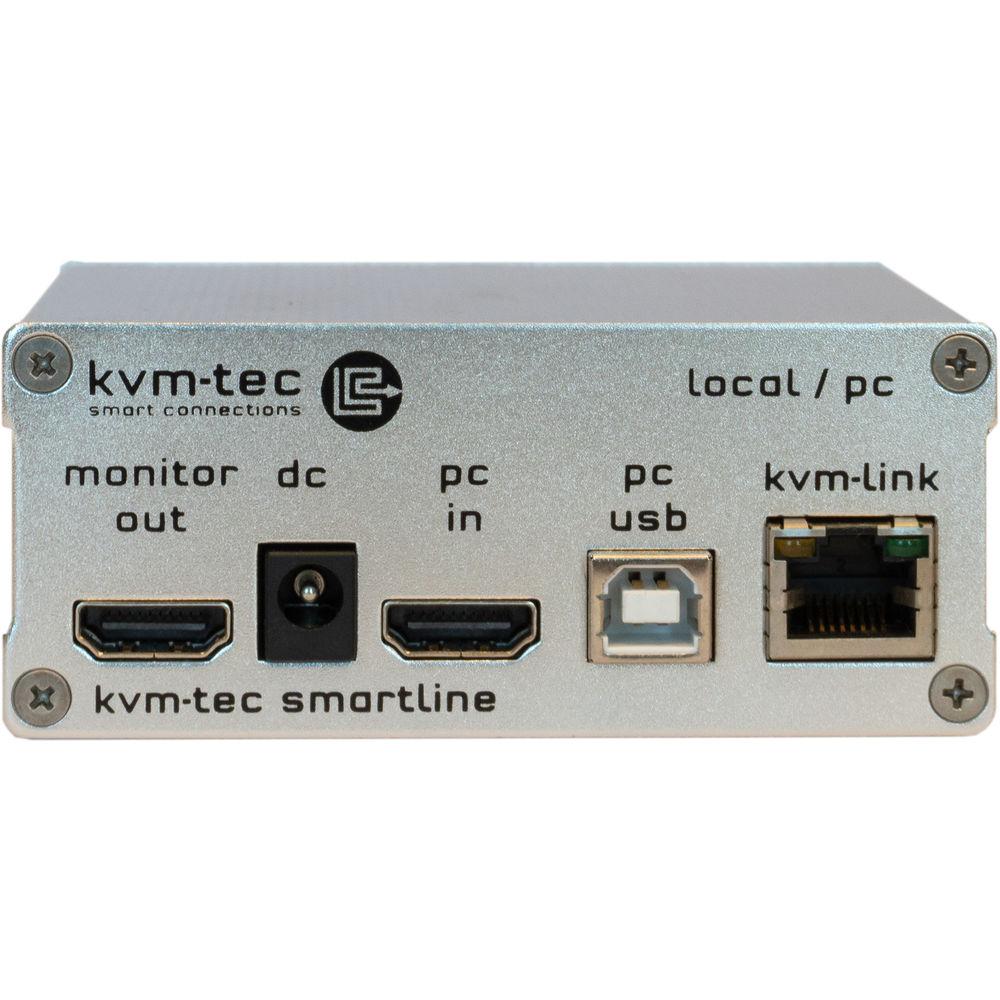

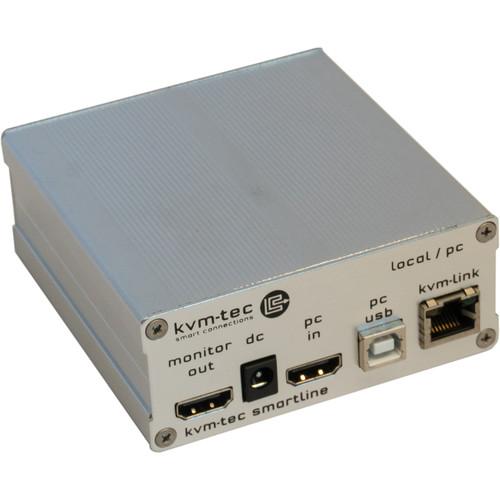

Technical parametersKVM-TEC 6501L Specs | Input | 1 x HDMI type A (for use with included HDMI to DVI adapter cable; does not support embedded audio, does not carry HDMI signals)
1 x USB 2.0 type-B | | Output | 1 x RJ45
1 x HDMI type A (for use with included HDMI to DVI adapter cable; does not support embedded audio, does not carry HDMI signals) | | Range | 492' / 150 m over Cat 5e/6/7 | | Supported Resolution | DVI-D:
Up to 1920 x 1200 at 60 Hz | | Bit Depth | DVI-D:
24 bit | | Enclosure | Anodized aluminum | | Power Supply | 12 VDC, 1 A (power supply unit included) | | Power Consumption | 6 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Humidity | Operating/Storage: < 80%, non-condensing | | Cooling | Free air convection | | MTBF/Expected Product Life | 82,820 calculated hours over approximately 10 years | | Compliance | CE, FCC | | Dimensions | 3.8 x 1.6 x 4.1" / 9.8 x 4 x 10.4 cm | | Weight | 0.66 lb / 302 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.75 x 7.6 x 2.5" |
