Product description

• UVX-F Ultraline 4K Fiber Transmitter
  • BlueBOX In the Box

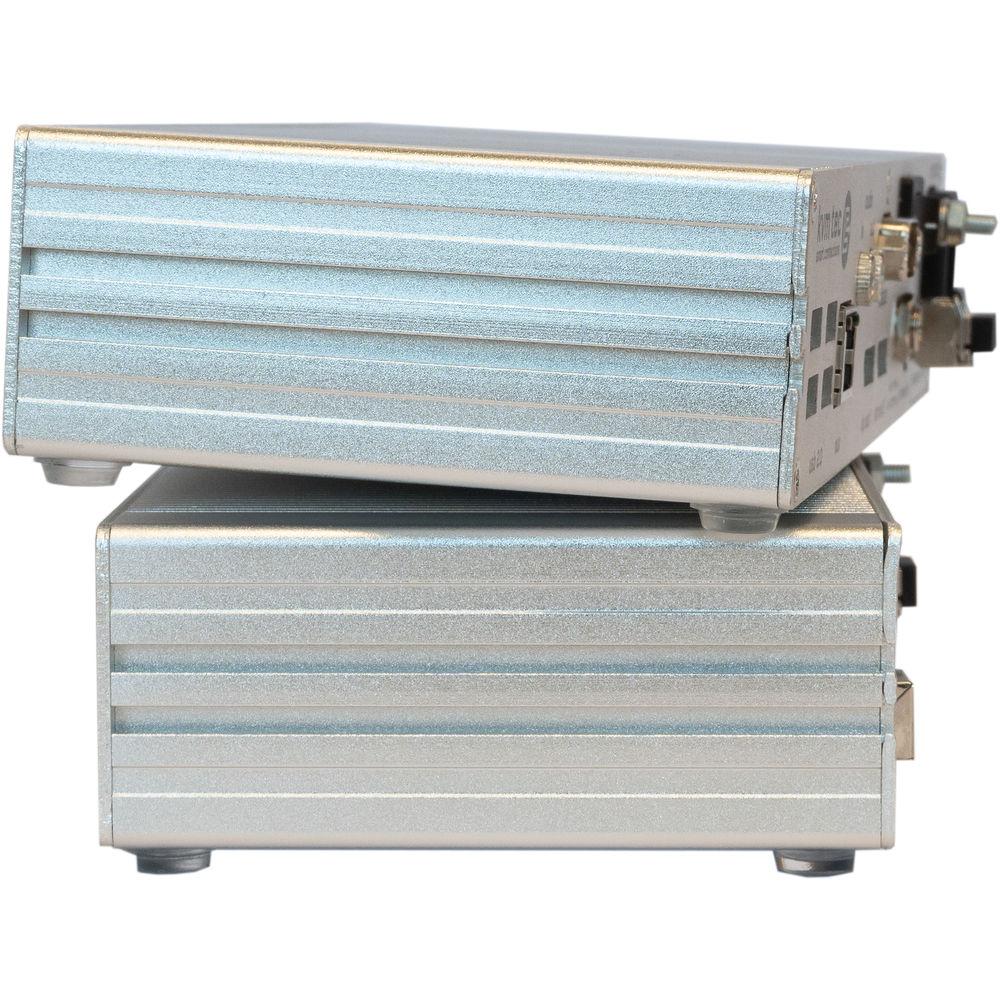

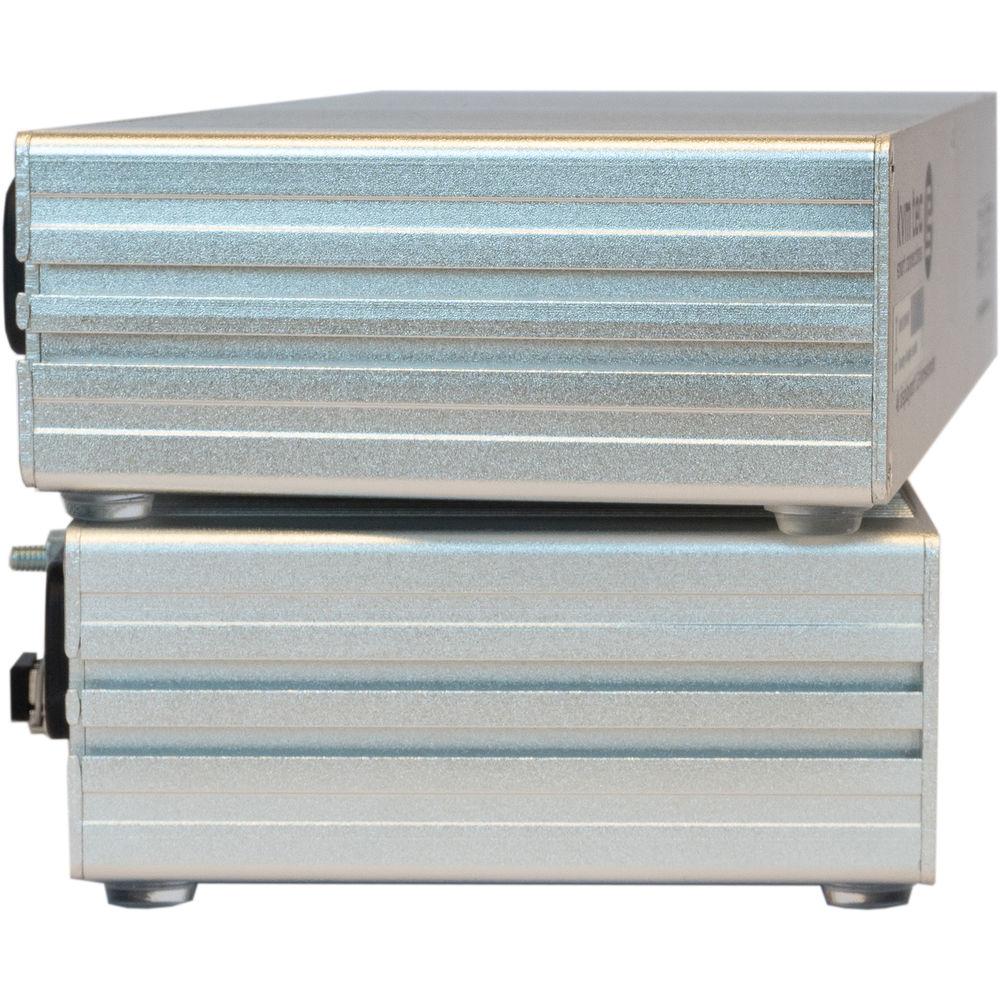

  The KVM-TEC UVX-F Ultraline 4K Fiber Transmitter pairs with an optional receiver and extends DisplayPort and USB signals up to 984' over a single duplex multimode LC fiber cable, sold separately. It transmits up to DCI 4K resolution at 60 Hz with 4:4:4 sampling at 8-bit in real time, while a single USB connection captures keyboard and mouse signals as well as USB hard drives and memory sticks thanks to a built-in USB upgrade feature.

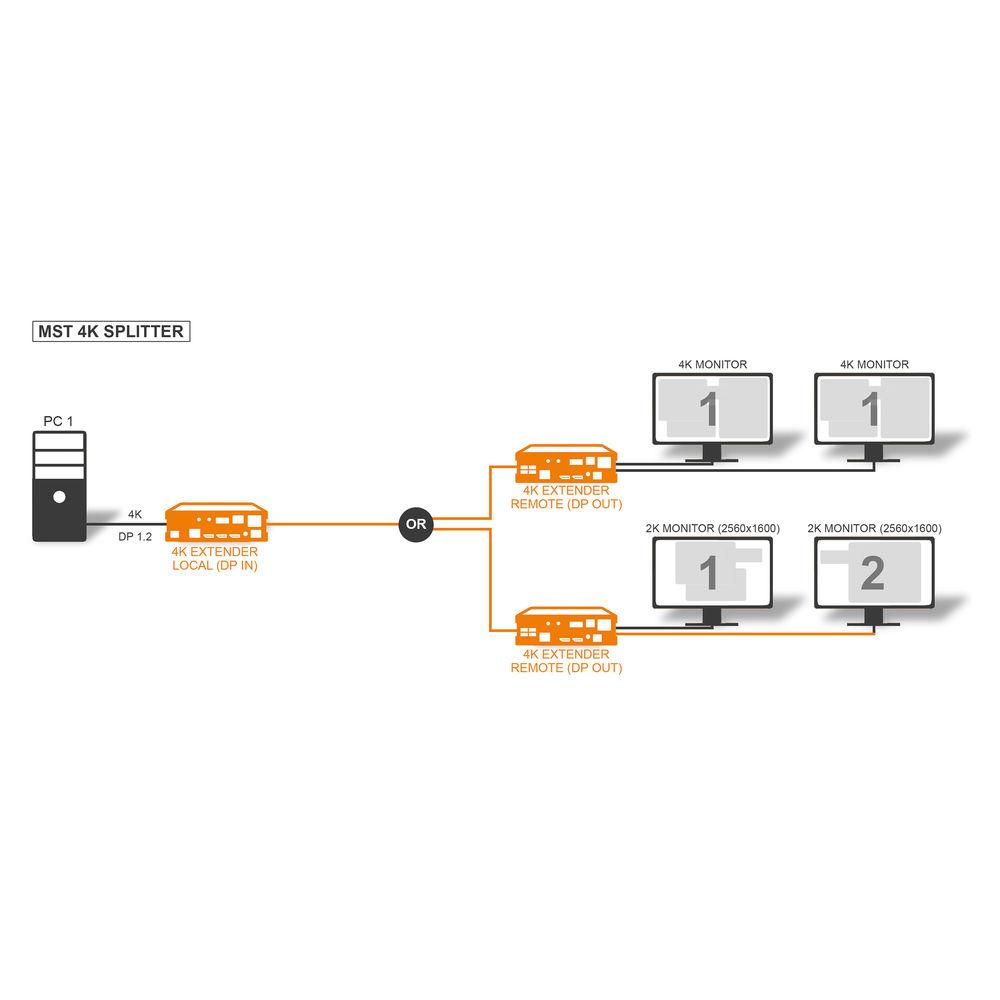

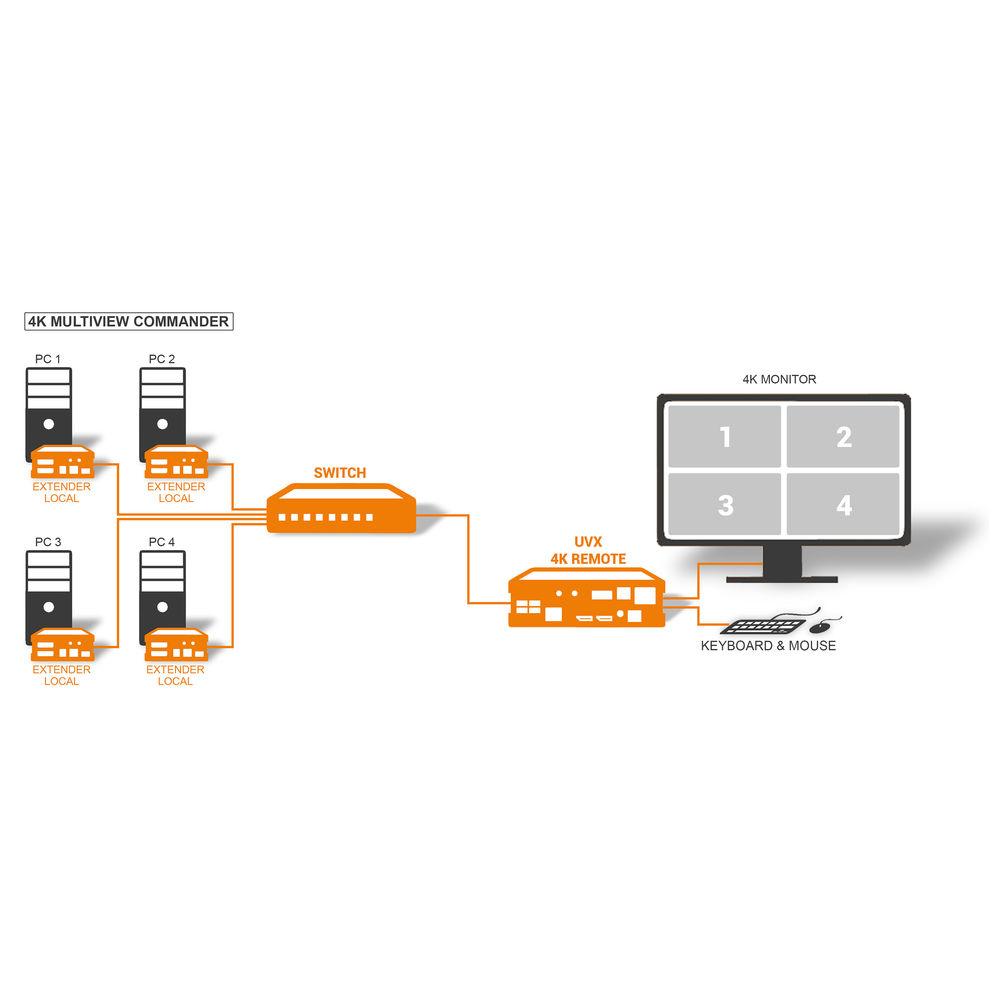

  DisplayPort local monitoring outputs lets you view the full 4K image. However, a built-in MST/HUB splitter allows the image to be monitored in 2560 x 1440 resolution on both the transmitter and receiver ends. Another key feature is a built-in Windows-compatible Switching Manager software which allows you to switch between computers in a multi-endpoint workflow from the receiver end. Switching Manager also enables the Mouse Glide & Switch feature, which lets you operate several PCs using one mouse and keyboard, and it also ensures the mouse movement is less than 5mm for a smoother, more accurate workflow.

  An RS-232 port and 3.5mm line in and line out jacks are provided, and the device can be integrated into a workflow of up to 2000 transmitter/receiver units via connection to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits. The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds.
  Key Features
  • • Transmits a DisplayPort signal and USB keyboard, mouse, hard drive, and memory stick signals up to 984' over a single duplex multimode LC fiber cable, sold separately
    • 4096 x 2160 at 60Hz 4:4:4 8-bit transmission in real time
    • DisplayPort 4K local monitoring output, or 2560 x 1440 mirror image monitoring on both the transmitter and receiver ends via a built-in MST/HUB splitter
    • Built-in Switching Manager software for Windows PC or tablet
    • Mouse Glide & Switch
    • RS-232 port
    • RJ45 AUX control port
    • Can be integrated into 2000-endpoint workflows via any standard network switch
    • USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
    • Up to 480 Mb/s USB transmission rate
    • 3.5mm audio line in and line out jacks
    • Automatic plug-and-play operation
    • Free air convection cooling
    • Two units are rackmountable via optional rackmount kits
    • MTBF: 82.820 calculated hours over approximately 10 years
    • Built-in power supply
• UVX-F Ultraline 4K Fiber Receiver The KVM-TEC UVX-F Ultraline 4K Fiber Receiver pairs with an optional transmitter and extends DisplayPort and USB signals up to 984' over a single duplex multimode LC fiber cable, sold separately. It accepts up to DCI 4K resolution at 60 Hz with 4:4:4 sampling at 8-bit in real time. Four USB ports allow you to output keyboard and mouse signals as well as USB hard drives and memory sticks thanks to a built-in USB upgrade feature.

  A built-in MST/HUB splitter allows the 4K monitoring output from the transmitter end to be viewed in 2560 x 1440 resolution on both the transmitter and receiver ends via DisplayPort outputs. Another key feature is a built-in Windows-compatible Switching Manager software which allows you to switch between computers in a multi-endpoint workflow from the receiver end. Switching Manager also enables the Mouse Glide & Switch feature, which lets you operate several PCs using one mouse and keyboard, and it also ensures the mouse movement is less than 5mm for a smoother, more accurate workflow.

  An RS-232 port and 3.5mm line in and line out jacks are provided, and the device can be integrated into a workflow of up to 2000 transmitter/receiver units via connection to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits. The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds.
  Key Features
  • • Accepts a DisplayPort signal and USB keyboard, mouse, hard drive, and memory stick signals from up to 984' over a single duplex multimode LC fiber cable, sold separately
    • 4096 x 2160 at 60Hz 4:4:4 8-bit transmission in real time
    • Two DisplayPort and four USB 2.0 outputs
    • 2560 x 1440 mirror image monitoring on both the transmitter and receiver ends via a built-in MST/HUB splitter
    • Built-in Switching Manager software for Windows PCs or tablets
    • Mouse Glide & Switch
    • RS-232 port
    • RJ45 AUX control port
    • Can be integrated into 2000-endpoint workflows via any standard network switch
    • USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
    • Up to 480 Mb/s USB transmission rate
    • 3.5mm audio line in and line out jacks
    • Automatic plug-and-play operation
    • Free air convection cooling
    • Two units are rackmountable via optional rackmount kits
    • MTBF: 82.820 calculated hours over approximately 10 years
    • Built-in power supply

• Power Cord IEC C13

• DisplayPort to DisplayPort Cable (6')

• USB Cable (6')

• 2 x Audio Cables (6')

• RS-232 Cable

• SFP Multimode Module

• 4 x Rubber Feet

• 4 x Mounting Pads

• Limited 2-Year Warranty

• Power Cord IEC C13

• SFP Multimode Module

• 4 x Rubber Feet

• 4 x Mounting Pads

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• UVX-F Ultraline 4K Fiber Transmitter

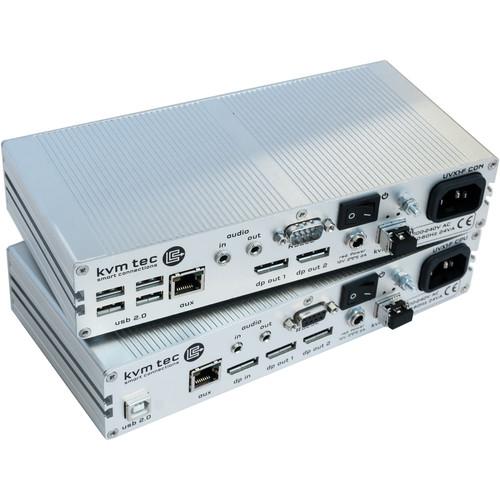

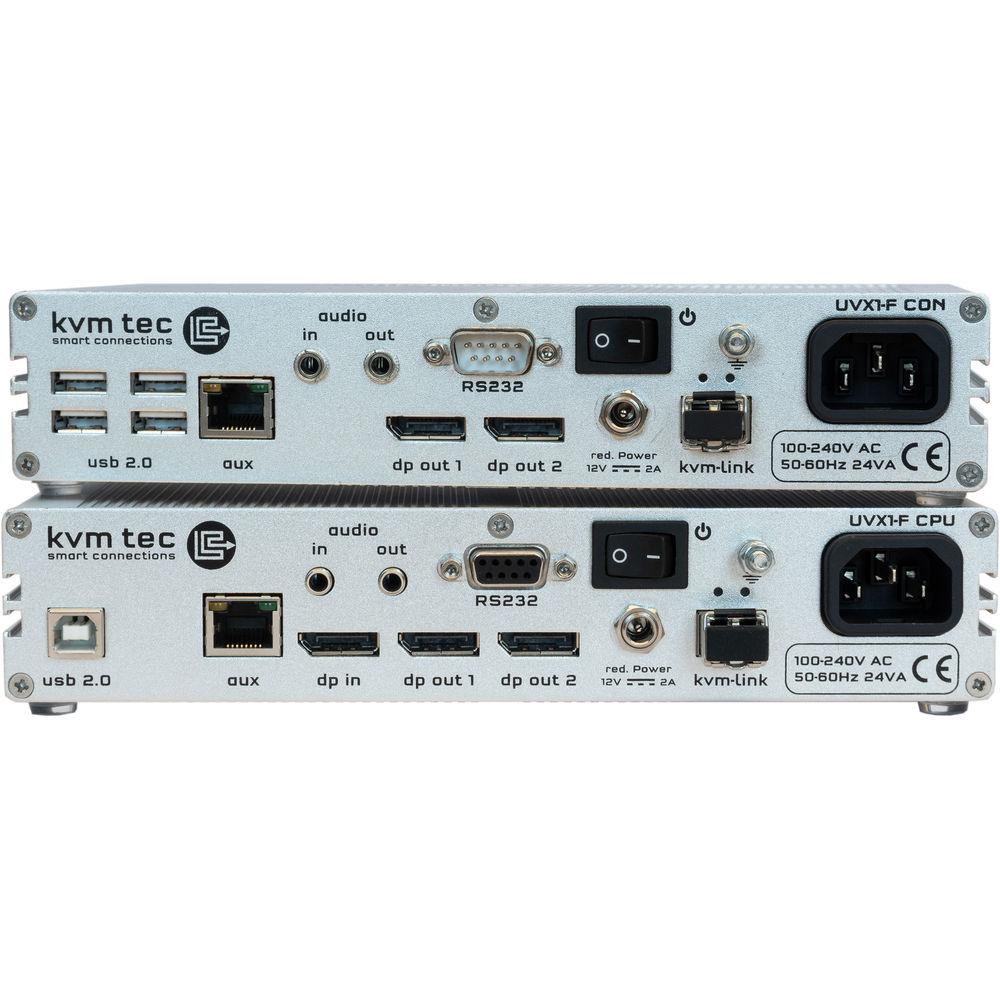

  Ports	Transmitter: 1 x DisplayPort 1.2 (Input) 2 x DisplayPort 1.2 (Output) 1 x USB Type-B USB 2.0 1 x 3.5 mm Audio (Input) 1 x 3.5 mm Audio (Output) 1 x DE-9/DB-9 RS232 1 x RJ45 Control 1 x LC Fiber (Output)
  Supported Resolutions	4096 x 2160 @ 60 Hz
  Maximum Transmission Distance	984' / 299.92 m
  Transmission Method	Multimode Cable
  Color Depth	24-Bit
  Audio Channels Supported	2-Channel Stereo (16-Bit)
  RS232 Data Rate	230,400 bps

  Power Consumption	15 W
  AC Input Power	90 to 240 VAC, 50 / 60 Hz

  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-13 to 176°F / -25 to 80°C
  Operating Humidity	80%

  Certifications	CE, FCC, as per Manufacturer
  Material of Construction	Aluminum
  Dimensions	8.6 x 1.7 x 4.1" / 21.8 x 4.3 x 10.4 cm
  Weight	1.5 lb / 0.7 kg (Transmitter)

• UVX-F Ultraline 4K Fiber Receiver

  Ports	Transmitter: 2 x DisplayPort 1.2 (Output) 4 x USB Type-A USB 2.0 1 x 3.5 mm Audio (Input) 1 x 3.5 mm Audio (Output) 1 x DE-9/DB-9 RS232 1 x RJ45 Control 1 x LC Fiber (Input)
  Supported Resolutions	4096 x 2160 @ 60 Hz
  Maximum Transmission Distance	984' / 299.92 m
  Transmission Method	Multimode Cable
  Color Depth	24-Bit
  Audio Channels Supported	2-Channel Stereo (16-Bit)
  RS232 Data Rate	230,400 bps

  Power Consumption	15 W Without USB Devices
  AC Input Power	90 to 240 VAC, 50 / 60 Hz

  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-13 to 176°F / -25 to 80°C
  Operating Humidity	80%

  Certifications	CE, FCC, as per Manufacturer
  Material of Construction	Aluminum
  Dimensions	8.6 x 1.7 x 4.1" / 21.8 x 4.3 x 10.4 cm
  Weight	1.6 lb / 707.0 g
