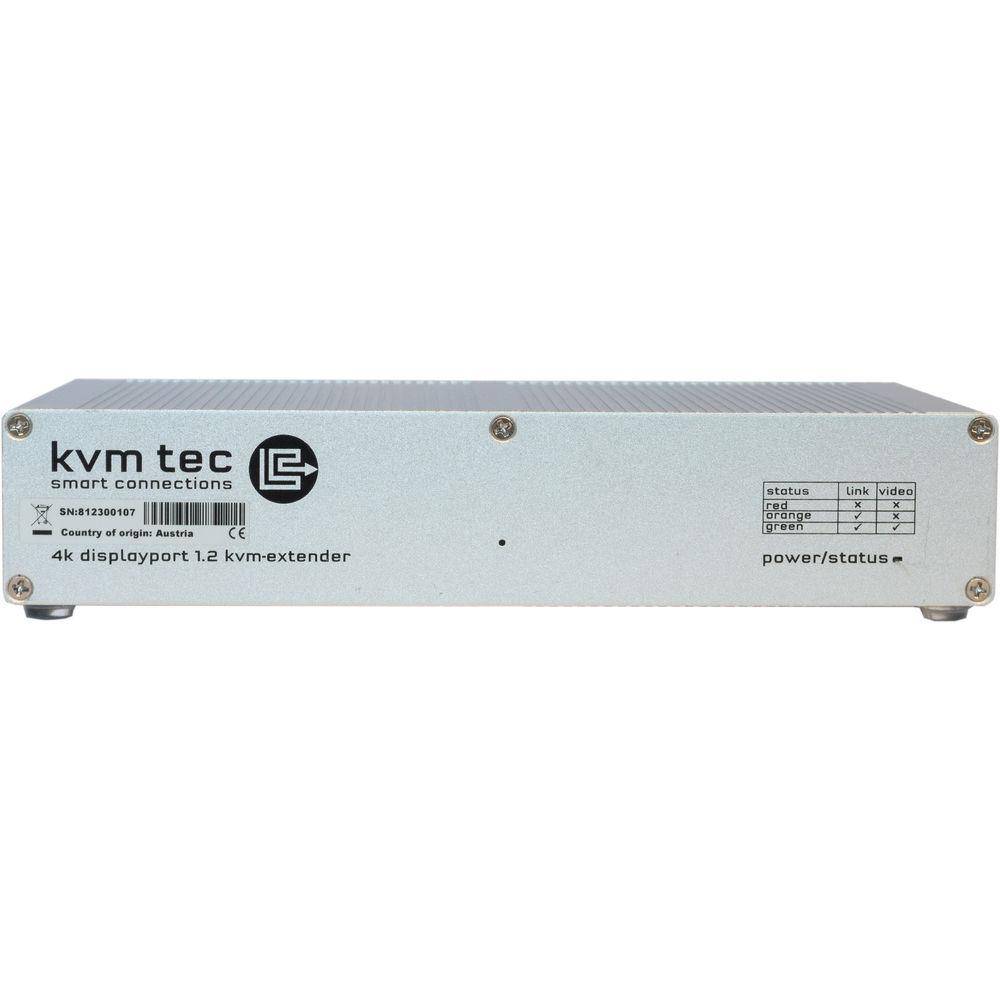

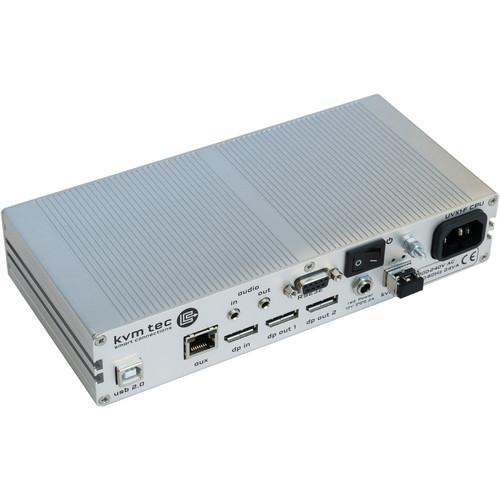

Product description The KVM-TEC UVX-F Ultraline 4K Fiber Transmitter pairs with an optional receiver and extends DisplayPort and USB signals up to 984' over a single duplex multimode LC fiber cable, sold separately. It transmits up to DCI 4K resolution at 60 Hz with 4:4:4 sampling at 8-bit in real time, while a single USB connection captures keyboard and mouse signals as well as USB hard drives and memory sticks thanks to a built-in USB upgrade feature.

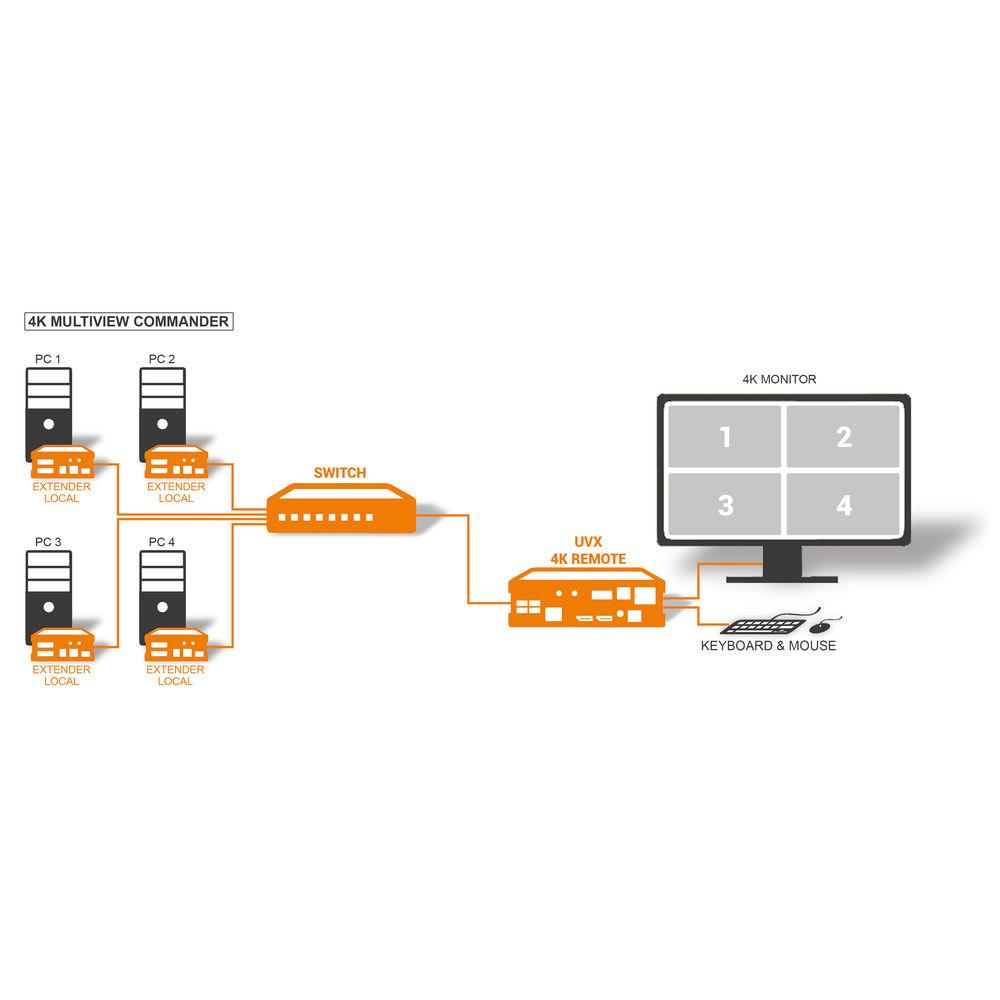

DisplayPort local monitoring outputs lets you view the full 4K image. However, a built-in MST/HUB splitter allows the image to be monitored in 2560 x 1440 resolution on both the transmitter and receiver ends. Another key feature is a built-in Windows-compatible Switching Manager software which allows you to switch between computers in a multi-endpoint workflow from the receiver end. Switching Manager also enables the Mouse Glide & Switch feature, which lets you operate several PCs using one mouse and keyboard, and it also ensures the mouse movement is less than 5mm for a smoother, more accurate workflow.
An RS-232 port and 3.5mm line in and line out jacks are provided, and the device can be integrated into a workflow of up to 2000 transmitter/receiver units via connection to an optional network switch. Any standard KVM-TEC or third-party switch is supported. Up to two units can be installed in a 19" rack using optional rackmount kits. The USB port is USB 2.0 transparent, meaning it's backwards-compatible with USB 1.0 and also supports USB 3.0 but at USB 2.0 speeds. - Key Features
-
- Transmits a DisplayPort signal and USB keyboard, mouse, hard drive, and memory stick signals up to 984' over a single duplex multimode LC fiber cable, sold separately
- 4096 x 2160 at 60Hz 4:4:4 8-bit transmission in real time

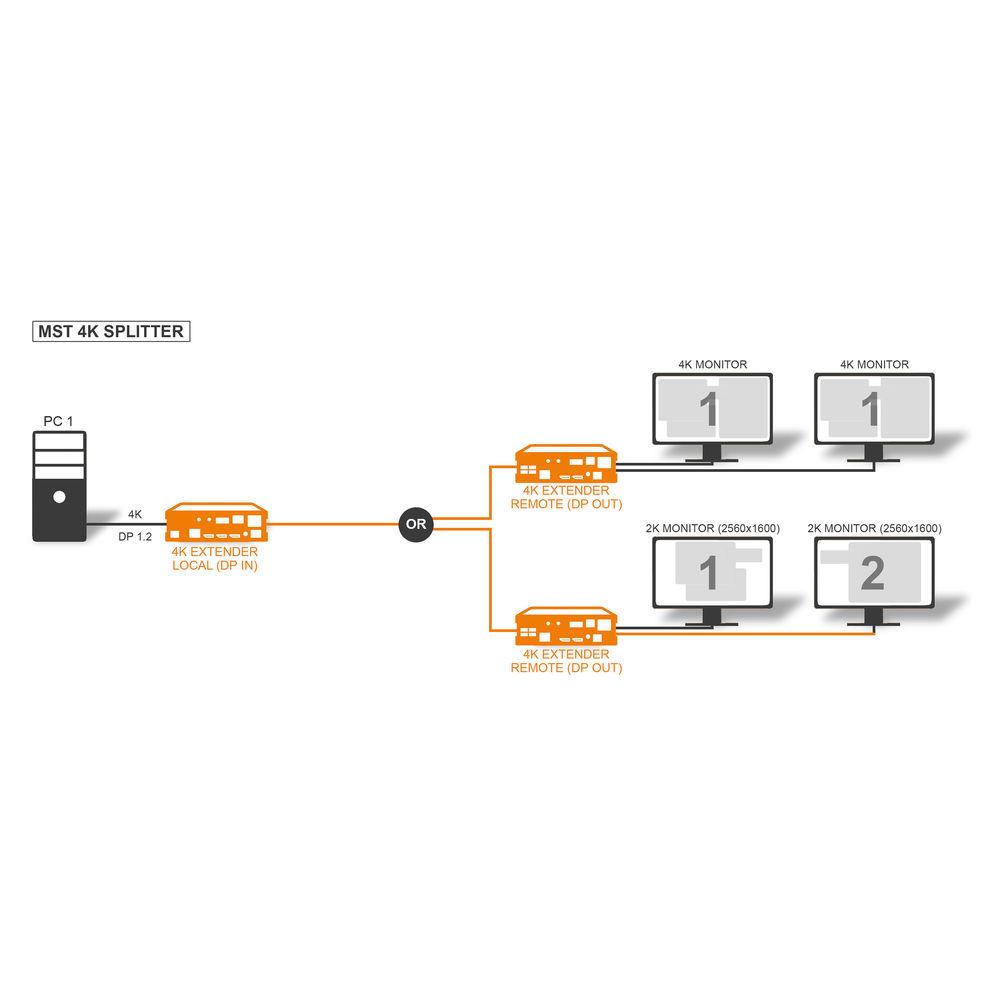

- DisplayPort 4K local monitoring output, or 2560 x 1440 mirror image monitoring on both the transmitter and receiver ends via a built-in MST/HUB splitter
- Built-in Switching Manager software for Windows PC or tablet
- Mouse Glide & Switch
- RS-232 port
- RJ45 AUX control port
- Can be integrated into 2000-endpoint workflows via any standard network switch
- USB 2.0 port is backwards-compatible with USB 1.0 and also supports USB 3.0 at USB 2.0 speeds
- Up to 480 Mb/s USB transmission rate
- 3.5mm audio line in and line out jacks
- Automatic plug-and-play operation
- Free air convection cooling
- Two units are rackmountable via optional rackmount kits
- MTBF: 82.820 calculated hours over approximately 10 years
- Built-in power supply
In the Box KVM-TEC UVX-F Ultraline 4K Fiber Transmitter Power Cord IEC C13 DisplayPort to DisplayPort Cable (6') USB Cable (6') 2 x Audio Cables (6') RS-232 Cable SFP Multimode Module 4 x Rubber Feet 4 x Mounting Pads Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KVM-TEC UVX-F Ultraline 4K Fiber Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

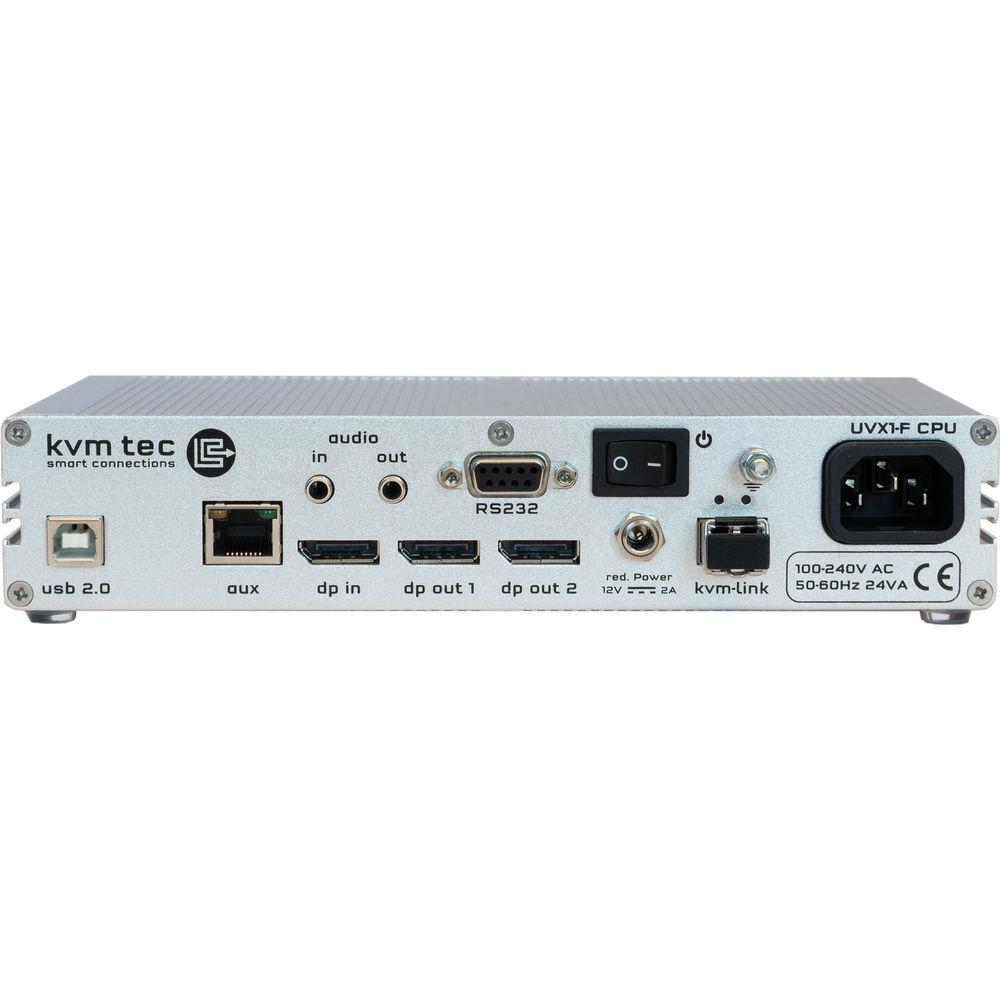

Technical parametersKVM-TEC UVX1-FL Specs | | | Ports | Transmitter:
1 x DisplayPort 1.2 (Input)
2 x DisplayPort 1.2 (Output)
1 x USB Type-B USB 2.0
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
1 x DE-9/DB-9 RS232
1 x RJ45 Control
1 x LC Fiber (Output) | | Supported Resolutions | 4096 x 2160 @ 60 Hz | | Maximum Transmission Distance | 984' / 299.92 m | | Transmission Method | Multimode Cable | | Color Depth | 24-Bit | | Audio Channels Supported | 2-Channel Stereo (16-Bit) | | RS232 Data Rate | 230,400 bps | | | | Power Consumption | 15 W | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -13 to 176°F / -25 to 80°C | | Operating Humidity | 80% | | | | Certifications | CE, FCC, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 8.6 x 1.7 x 4.1" / 21.8 x 4.3 x 10.4 cm | | Weight | 1.5 lb / 0.7 kg (Transmitter) |
