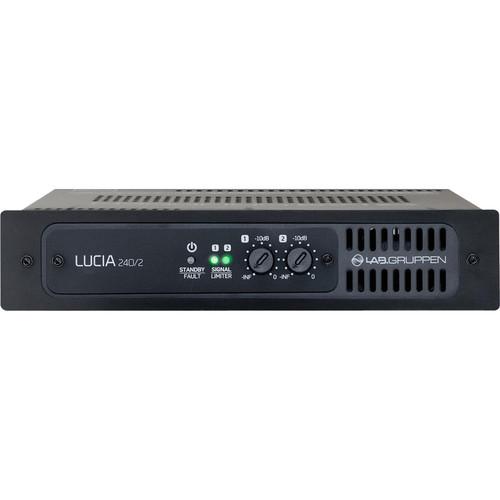

Product description The Lab.Gruppen LUCIA 240/2 is a compact, 2-channel 240W amplifier for A/V installation applications. Localized Utility Compact Intelligent Amplification (LUCIA) offers advanced audio performance and flexibility to a decentralized approach in AV systems design. Power, processing, control, and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistent performance, LUCIA offers a logical, cost-efficient, and scalable solution that often eliminates the complications and added expense of a centralized equipment room.
The half-rack space enclosure provides fast and easy installation. The supplied wall-mount bracket allows for deployment in discrete locations, such as behind video displays or next to a projector or podium. The Lab.Gruppen LUCIA 240/2 includes Euroblock input and output screw terminals, a power cord, and mounting hardware. -
- Compact amplifier which offers full output power across a range of loads with 2 x 120W into 8, 4, or 2 Ohms
- Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplify system design and commissioning
- Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
- Energy efficient with energy star certification for green credentials and low lifetime running costs
- Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
- Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor, and look-ahead limiter
- Optimized presets available for a wide range of loudspeaker models for fast configuration
- Enhanced bass profile for extended LF response with small loudspeakers
- Proprietary Auto Load Sense automatically sets voltage peak limiter (VPL) for optimum performance with any connected load
- Efficient Class-D amplifier with low distortion and minimal heat dissipation
- Compact form factor in a half-rack, 1-RU chassis with supplied bracket for discreet on-wall mounting
- Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control, and integration with paging systems
- Comprehensive circuit protection for fail-safe operation, including short circuit, thermal, and under-voltage protection
- Universal power supply supports 100 to 240 VAC at 50 or 60 Hz
- Intelligent fan control for silent operation at idle and at lower output levels
- Front panel power and fault indication as well as per-channel signal LED and attenuation knob
- Balanced high-quality analog inputs and amplifier outputs on detachable screw terminals
- Parallel analog input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
- Rackmount kit, pole-mount kit, and wall-panel kits available as accessories
- 10-year warranty program
In the Box Lab.Gruppen LUCIA 240/2 Compact Matrix Amplifier for Installations (2 x 120W) Power Cord Phoenix Input Connector GPI Phoenix Input / Output Connector Phoenix Speaker Output Wall-Mount Bracket Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lab.Gruppen LUCIA 240 2 Compact Matrix Amplifier for Installations in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLab.Gruppen 990670011 Specs | Number of Channels | 2 | | Total Output Power | 240 W | | Peak Output Voltage | 43.8 V peak | | Maximum Output Current | 7.8 Arms | | Maximum Output Power | 2 Ohms: 120 W
4 Ohms: 120 W
8 Ohms: 120 W
16 Ohms: 60 W | | THD | THD 20 Hz to 20 kHz at 1 W into 8 Ohms: <0.3%
THD at 1 kHz and 1 dB Below Clipping: <0.2% | | Signal to Noise Ratio | >101 dBA | | Crosstalk | Channel Separation (Crosstalk) at 1 kHz: >60 dBA | | Frequency Response | 5 Hz to 22 kHz | | Input Impedance | 10 kOhms | | CMR | Common Mode Rejection (CMR): 40 dB | | Limiter | VPL for 16 Ohm Mode: 43.8 Vpeak
VPL for 8 Ohm Mode: 43.8 Vpeak
VPL for 4 Ohm Mode: 31 Vpeak
VPL for 2 Ohm Mode: 22 Vpeak | | Sensitivity | Balanced Input: 4 dB / 1.23 Vrms
RCA Input: -2 dBu / 0.62 Vrms | | Headroom | Input Headroom for Clip (Balanced): 12 dBu / 3.09 Vrms
Input Headroom for Clip (RCA): 6 dBu / 1.55 Vrms | | Input Connector | Input Connectors (Per Channel): 3-pin detachable screw terminals, electronically balanced
Input Connectors (Channel 1 & 2): Unbalanced RCA type | | Output Connector | 2-pin detachable screw terminals | | GPI Control Inputs | GPI (Power Control Input): 2 x channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain | | GPO Output | GPO (Power State Output): Contact closure type, 2 pins in a detachable screw terminal. Default for external monitoring of fault/protection/power off | | RS232 | Can be controlled and monitored by third parties via RS232 using both the GPI pins | | USB | For firmware update and configuration for the application browser software | | Output Level Adjustment | Front panel potentiometer, detented from -inf to 0 dB | | Audio Processing Functions | Input Processing Block: 4 EQ sections per input
Mix Matrix Routing Block: 2 in - 2 out mix-matrix controllable from GPI
Output Processing Block: 4 EQ sections per output (presets available for many loudspeakers), User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation)
Latency from Any Input to Any Output: User adjustable from 9.15 to 137 ms | | Cooling | One fan, no filter required, front to rear airflow, temperature controlled speed
Can stay off if the sustained power average stays below 2 x 6 W and the ambient temperature is below 25 C | | Auto Mode | The power state is controlled automatically by the audio signal | | Finish | Black aluminum front and black steel chassis | | Approvals | CE, CSA, CCC, PSE, FCC, Energy Star | | Power | Nominal Voltage: 100 to 240 VAC
Operating Voltage: 85 to 265 VAC
Standby Consumption: <1 w
Mains Connector: IEC inlet | | Dimensions (W × H × D) | 8.50 x 1.73 x 11.02" / 216.0 x 44.0 x 280.0 mm | | Weight | 4.2 lb / 1.9 kg |
