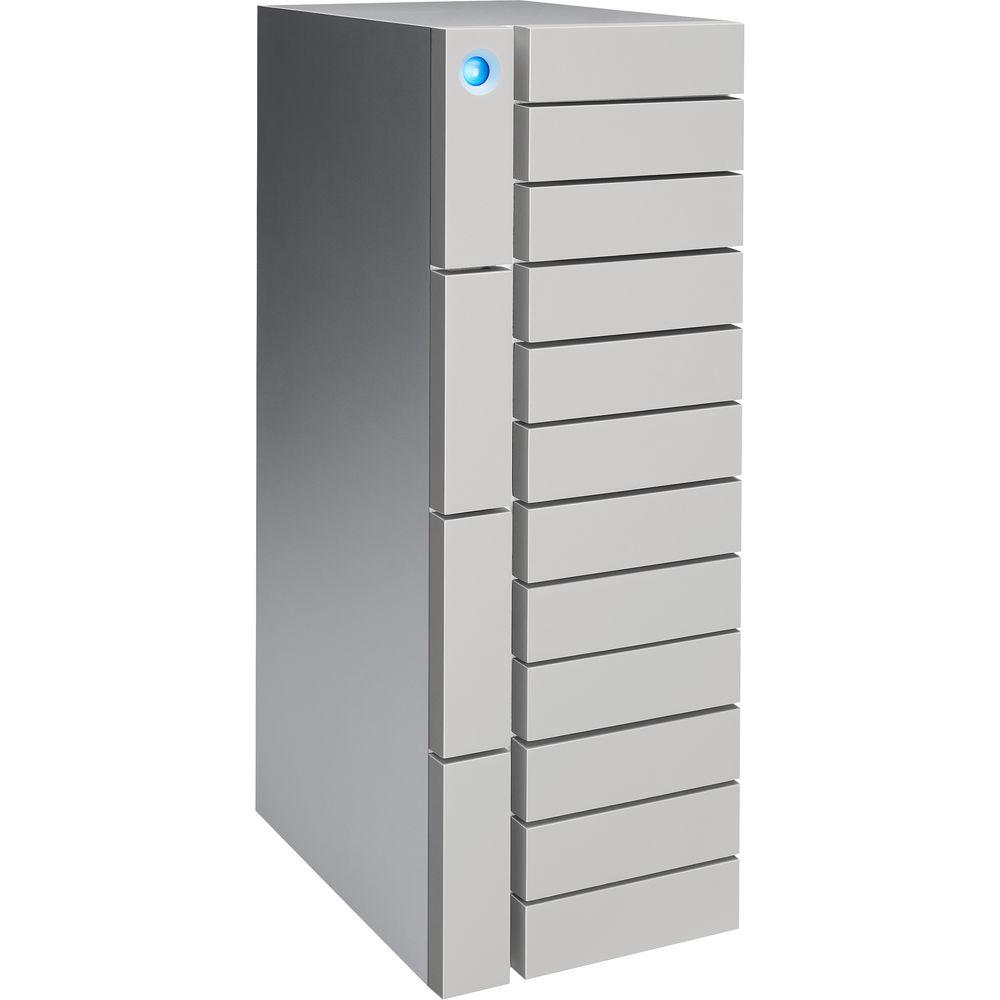

User Manual for LaCie 12big 168TB 12-Bay Thunderbolt 3 RAID Array Click to enlarge the picture
Contents of the user manual for the LaCie 12big 168TB 12-Bay Thunderbolt 3
- Product category: Hard Drive Arrays LaCie
- Brand: LaCie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LaCie Hard Drive Arrays
 |
User manual for the LaCie 12big 168TB 12-Bay Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LaCie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LaCie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LaCie product will considerably shorten its lifespan!
|

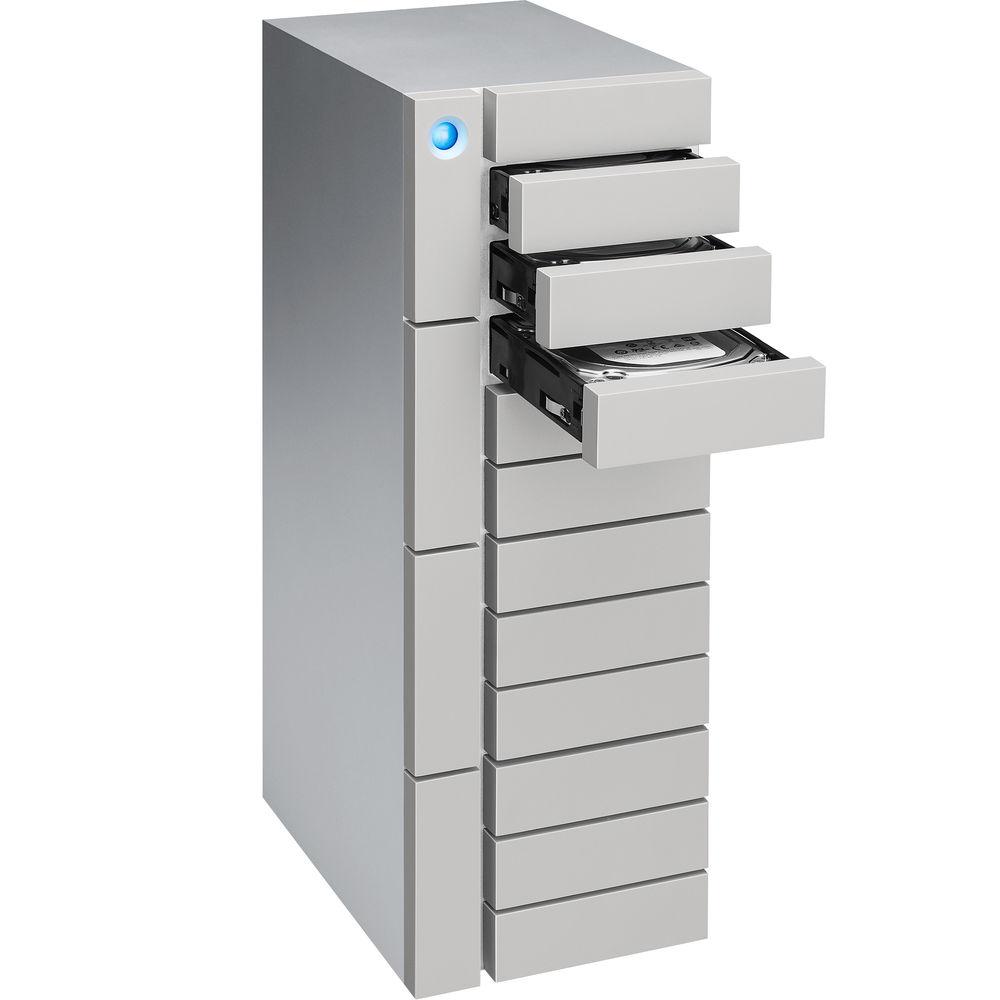

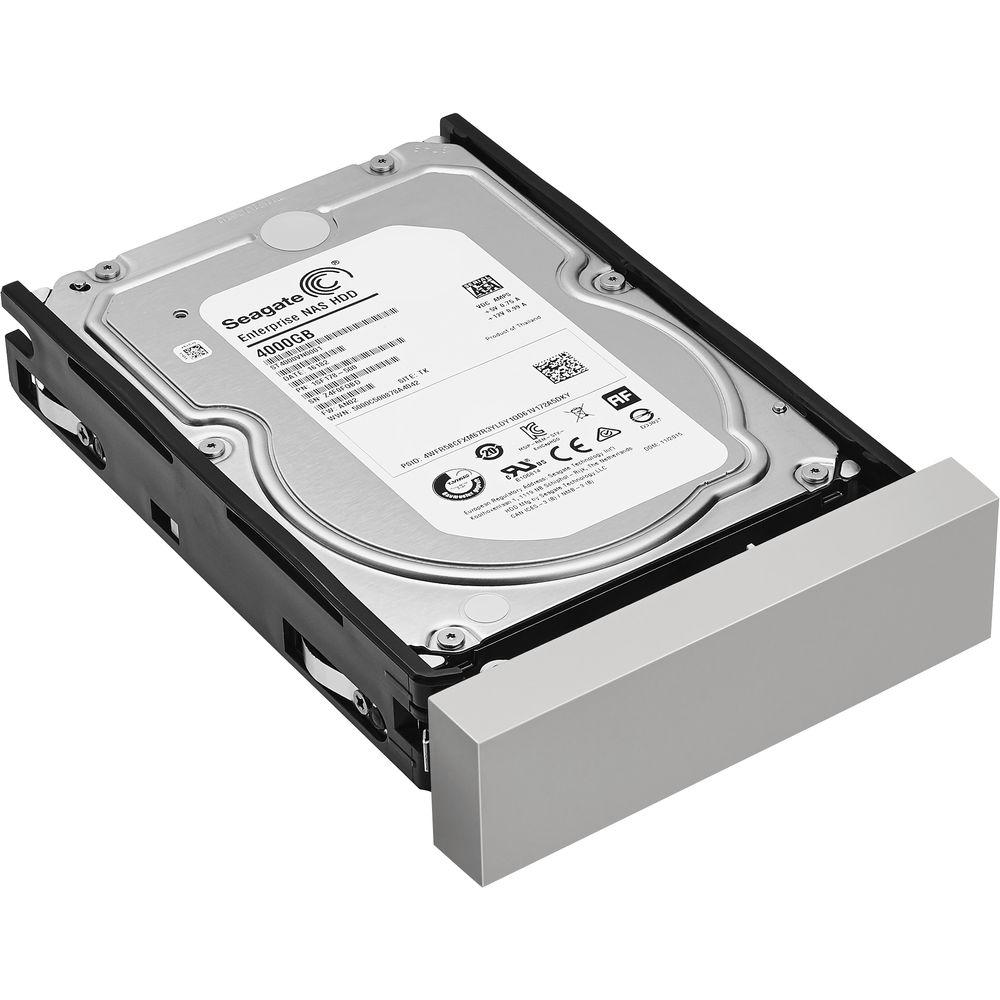

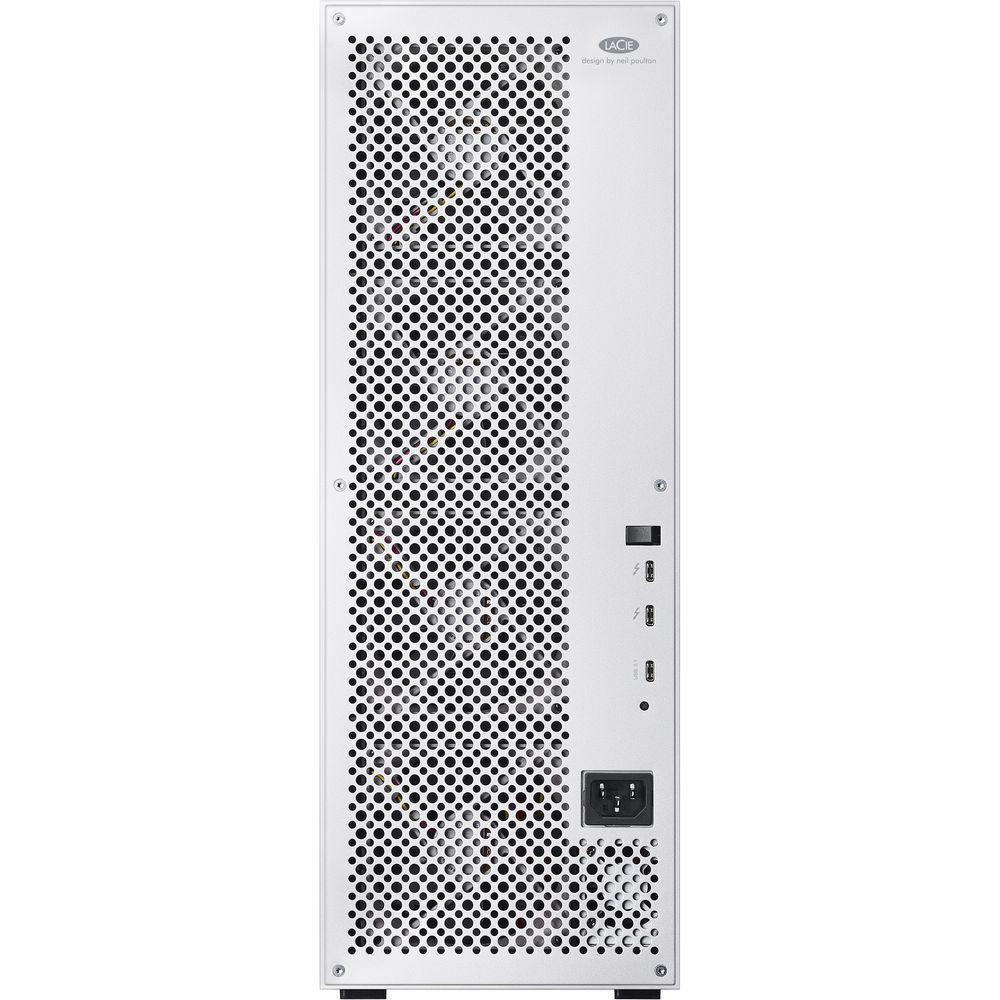

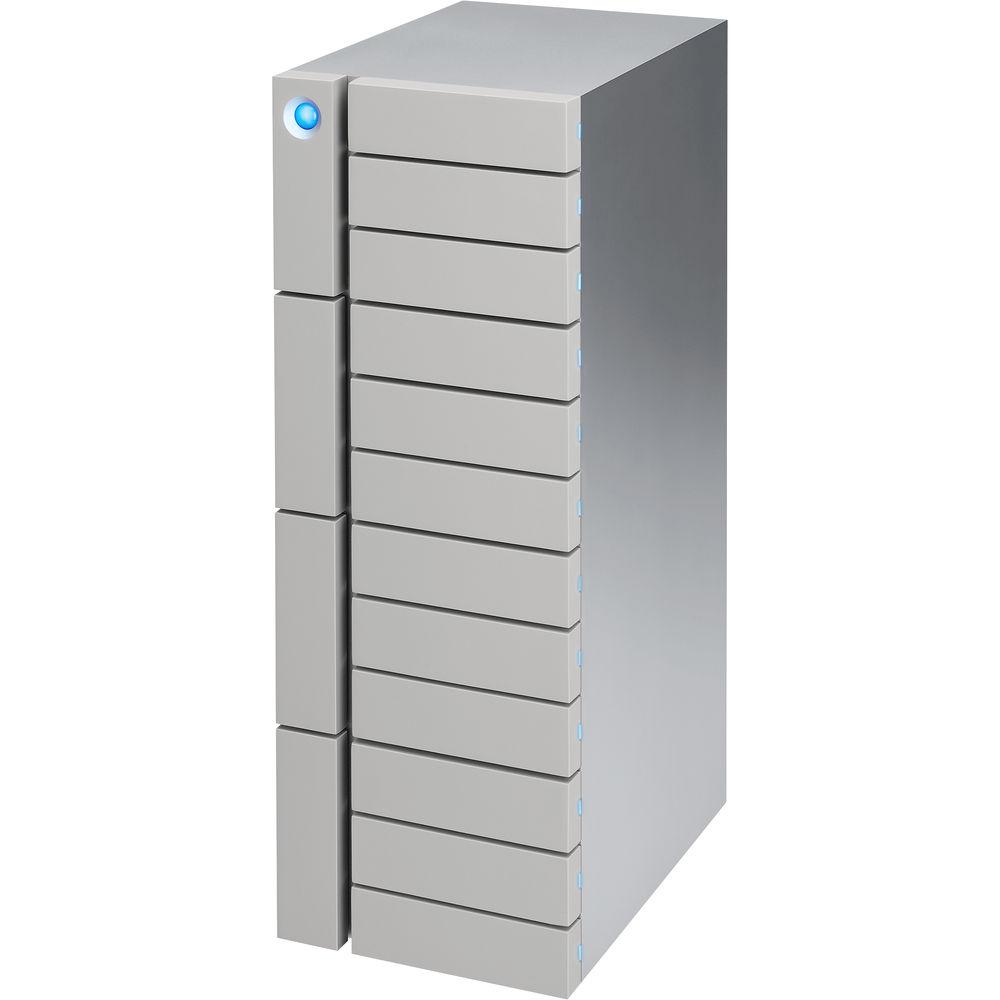

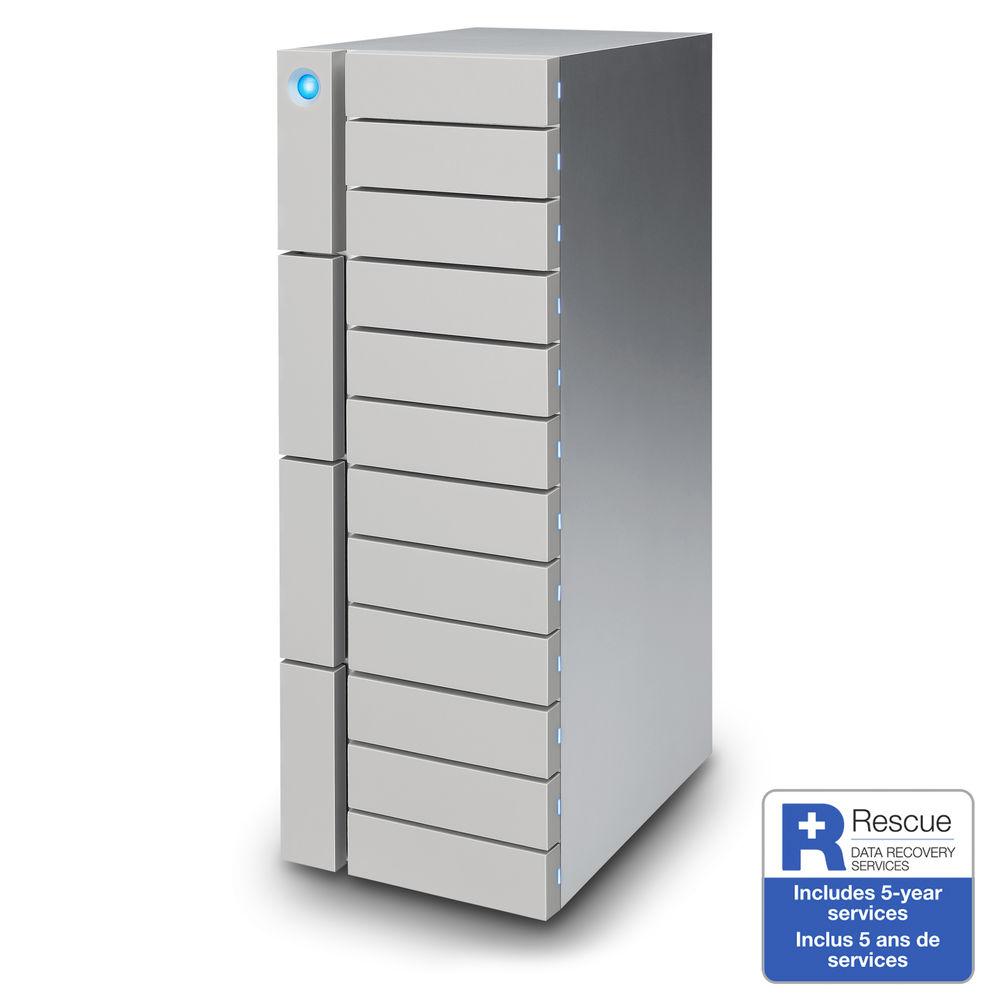

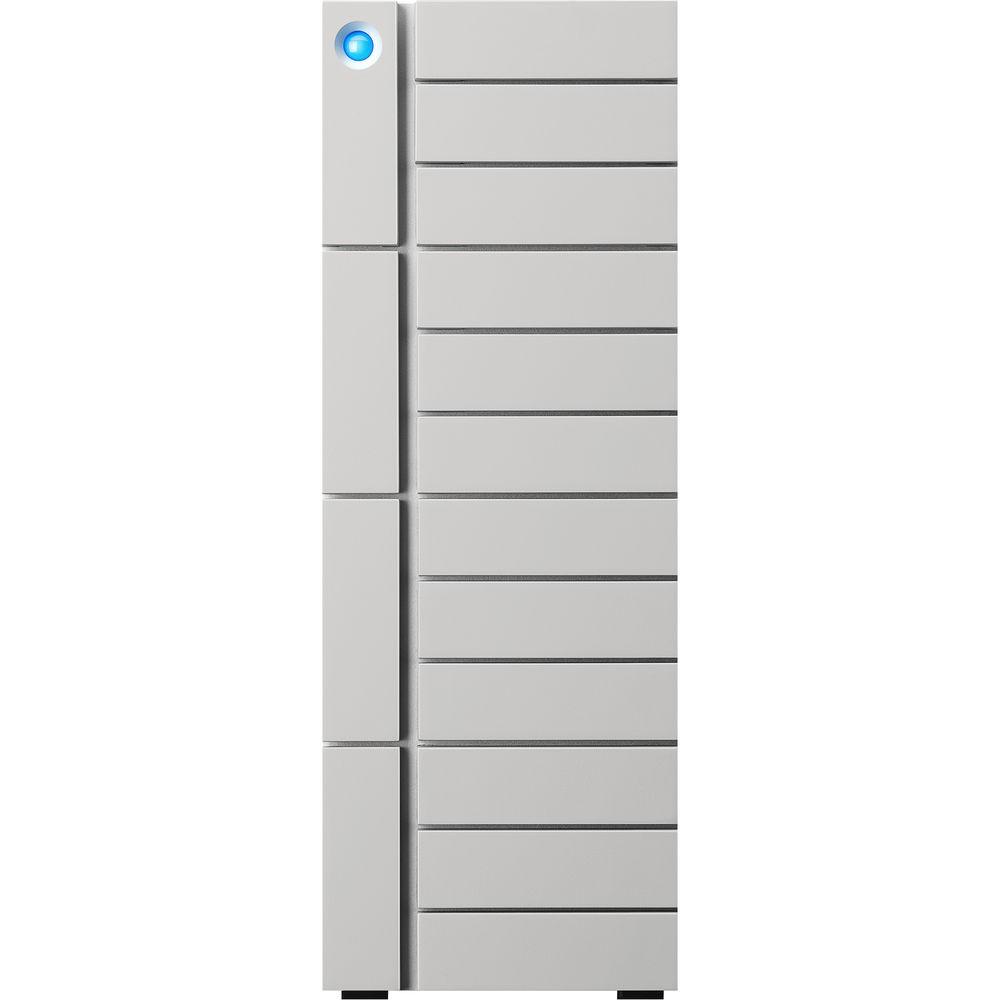

Product description RAID Arrays for Photography and Pro Video Read More Designed to protect immense amounts of hi-res footage, along with the speed to edit 4/5/6K video, the 12big 168TB 12-Bay Thunderbolt 3 RAID Array from LaCie offers up to 168TB of storage split over twelve hot-swappable 14TB 3.5" hard drives, each of which utilizes one of the array's SATA drive bays. Each drive is equipped with a minimum cache of 64MB and a rotational speed of 7200 rpm, both of which help to ensure uninterrupted data transfers. The array itself is equipped with two 40 Gb/s Thunderbolt 3 ports and one 10 Gb/s USB 3.1 port, each of which use USB Type-C connectivity. For those whose system does not have a USB Type-C port, the 12big is compatible with USB 3.0 and USB 2.0 via an included USB Type-C to Type-A adapter cable.
The 12big supports a variety of hardware-controlled RAID modes, including RAID 0, 1, 5, 6, 10, and 50, each of which offers speed, data redundancy, or a combination of both. Using Thunderbolt 3, RAID 0 supports read speeds up to 2,600 MB/s and write speeds up to 1,700 MB/s, while a RAID 5 configuration supports read speeds up to 2,400 MB/s and write speeds up to 1,200 MB/s. When using a USB 3.1 connection, RAID 0 reads and write speeds can go as high as 400 MB/s, while a RAID 5 configuration yields read and write speeds as high as 350 MB/s. Please bear in mind that actual data rates may vary depending on operating environment and other factors. Please be aware that RAID 0 does not support hot-swapping.
The 12big 168TB 12-Bay Thunderbolt 3 RAID Array operates using a 100-240V 400W power supply at 50/60 Hz, can be used in 24x7 operating environments, and via daisy-chaining, supports storage expansion up to 576TB. The array also supports one 5K display or, via daisy-chaining, dual 4K displays. Its processing and display power will allow users to edit multiple streams of ProRes 422 HQ, ProRes 444 XQ, and uncompressed 10/12-bit HD video. Included with this RAID array is a power cable and a USB Type-C cable. Protection is provided by a limited 5-year warranty.
Note: In order to take advantage of the 1-month membership to Adobe Creative Cloud, customers will need to register this drive on Seagate.com once it has been received. Upon registration, they will then receive an email with code redemption instructions for one complimentary month of all Adobe Creative Cloud apps, including Lightroom CC, Photoshop CC, Illustrator CC, Adobe XD CC, Premiere Pro, Dreamweaver, 100GB of cloud storage, and more. This offer is stackable with existing Adobe Creative Cloud memberships and expires July 21, 2020. It is not available in all countries, so please check eligibility.
For any LaCie product purchased on or after April 1, 2018 that does not contain the Adobe activation code flyer in the box, please contact Customer Support at https://support2.lacie.com/ with a valid proof of purchase for your code. General Features - Fast I/O
- For the 12big, LaCie harnessed the performance potential of the Thunderbolt 3 I/O and its fast data transfer rates. They added a hardware RAID controller and 7200 rpm drives, resulting in read speeds of up to 2,600 MB/s in RAID 0 and 2,400 MB/s in RAID 5
- For Lightning-Fast Video Workflows
- Thunderbolt 3 can slash time off nearly every task in a post-production workflow. Ingest hours of raw footage from a Blackmagic Cinema Camera into Adobe Premiere and edit multiple streams of PreRes 422 HQ, ProRes 444 XQ, and uncompressed 10-bit and 12-bit HD video. For big projects packed with high-def clips, thumbnail and preview rendering becomes much more responsive
- For Your Smartest Workspace
- With double the video bandwidth of its predecessor, Thunderbolt 3 lets you daisy-chain dual 4K displays or a single 5K display to the LaCie 12big. With two 4K displays, you can spread out your workspace by dedicating one display to your timeline and the other to previewing 4K footage. It's even possible to power a compatible laptop through the Thunderbolt 3 connection, which delivers up to 45W via port A or 15W via port B to compatible laptops.
Please note that because Thunderbolt 3's 40 Gb/s of bandwidth is shared, daisy-chaining a display will affect the maximum read and write speeds of the 12big - Organize
- Divide your storage into multiple volumes according to your workflow. Create one safe volume for backing up source media, another for ingesting transcoded clips and current projects, and another for archiving final footage
- Daisy-Chain Expansion up to 576TB
- Thunderbolt 3 lets you daisy-chain up to six devices to your computer using a single cable, allowing users to connect up to six LaCie 12big RAIDs for a total capacity of 576TB
- Enterprise-Class Drives
- Designed to operate 24x7 on 16-bay racks (instead of 8x5 operations for traditional hard drives), these HDDs are rated for up to 8,760 hours of operation per year
- Limited 5-Year Warranty
- The LaCie 12big with Enterprise-class drives also comes with a limited 5-year warranty that covers drives, enclosure, and spare parts - helping to ensure a solid, long-term investment

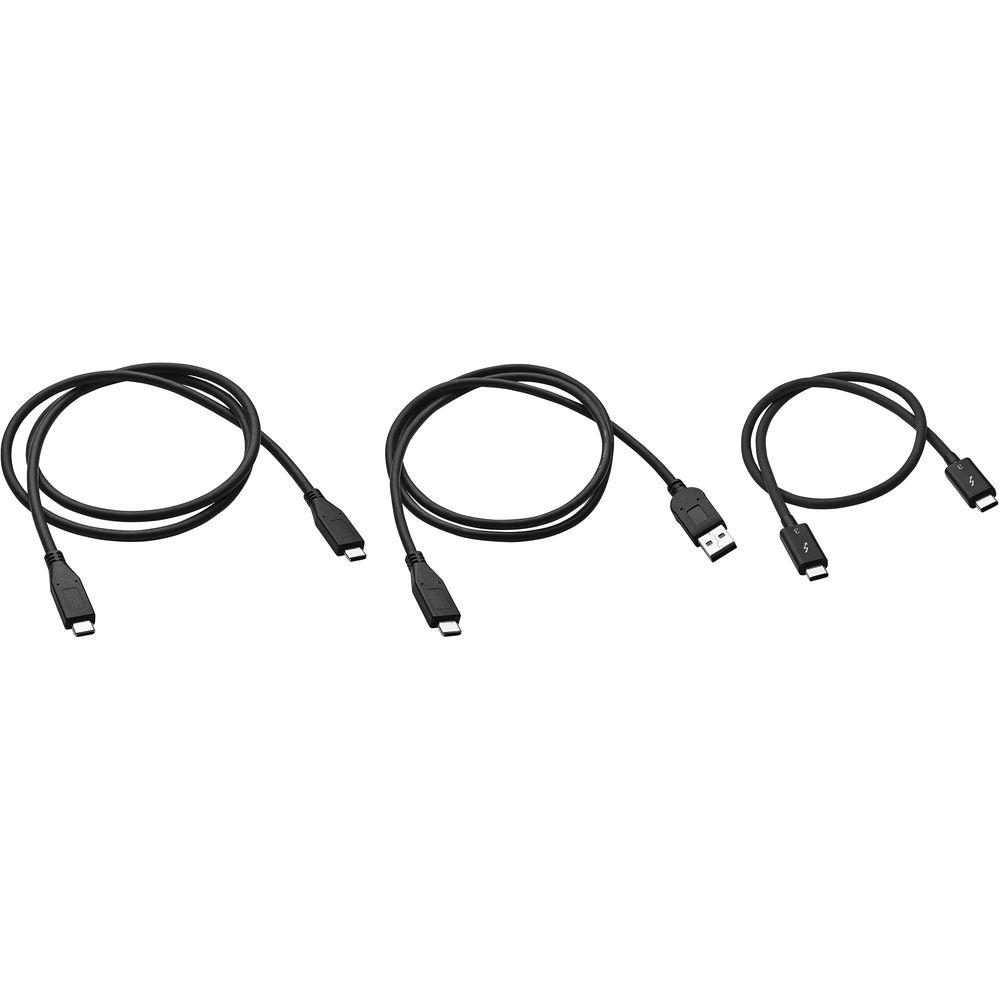

In the Box LaCie 12big 168TB 12-Bay Thunderbolt 3 RAID Array (12 x 14TB) Power Cable USB Type-C Cable (40 Gb/s Thunderbolt 3 or 10 Gb/s USB 3.1) USB Type-C to USB Type-A Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LaCie 12big 168TB 12-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaCie 12Big Specs | | | Number of Bays | 12 x 3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 2600 MB/s (Read in RAID 0)
1700 MB/s (Write in RAID 0)
2400 MB/s (Read in RAID 5)
1200 MB/s (Write in RAID 5) | | RAID Modes | RAID 0, 1, 10, 5, 50, 6, 60 | | Hot-Swap Support | Yes | | OS Compatibility | Windows 8 or Later
macOS 10.10 or Later | | | | Total Raw Capacity | 168 TB (12 x 14 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Cache Memory per Drive | 128 MB | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 400 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | | | Material of Construction | Aluminum | | Cooling | 4 x Fans | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 6.3 x 17.6 x 9.3" / 161.0 x 447.0 x 237.0 mm | | Weight | 38.9 lb / 17.6 kg |
