User Manual for LaCie 2big 12TB 2-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the LaCie 2big 12TB 2-Bay Thunderbolt 2
- Product category: Hard Drive Arrays LaCie
- Brand: LaCie
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LaCie Hard Drive Arrays
|
User manual for the LaCie 2big 12TB 2-Bay Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LaCie product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LaCie user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LaCie product will considerably shorten its lifespan!
|

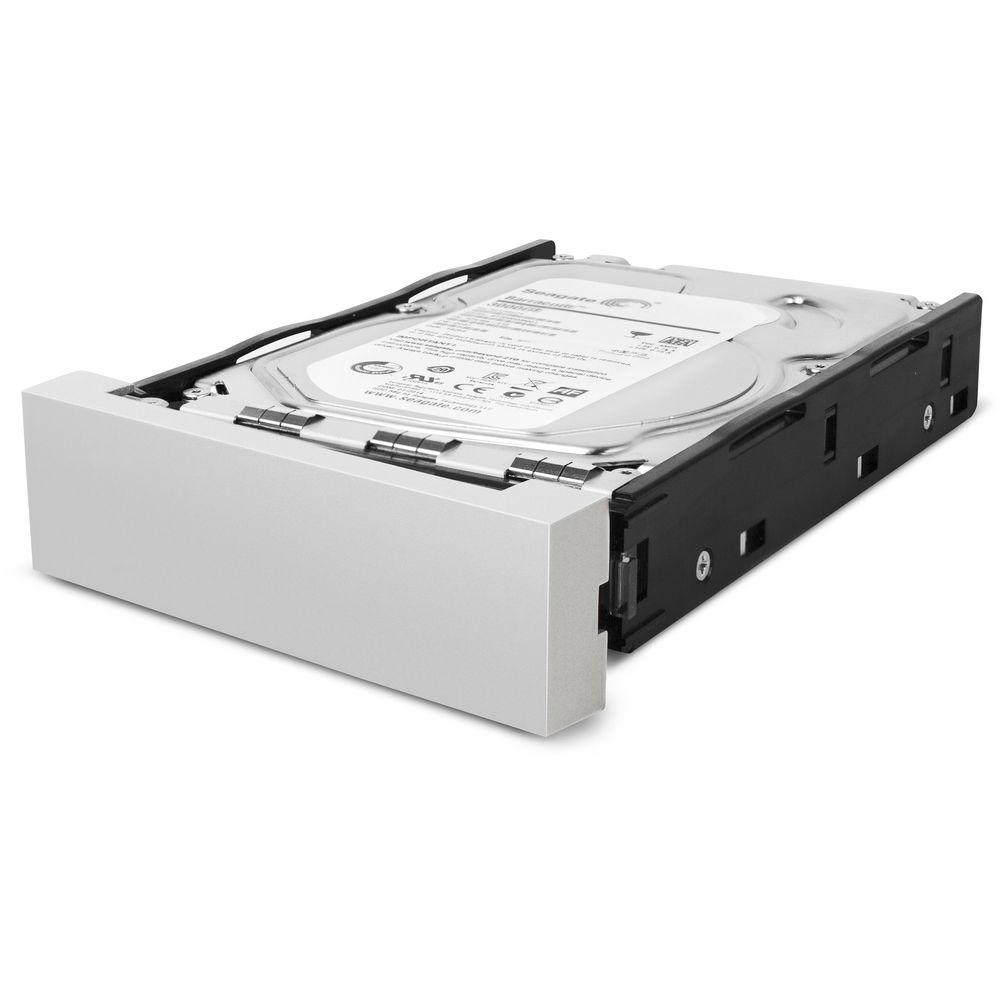

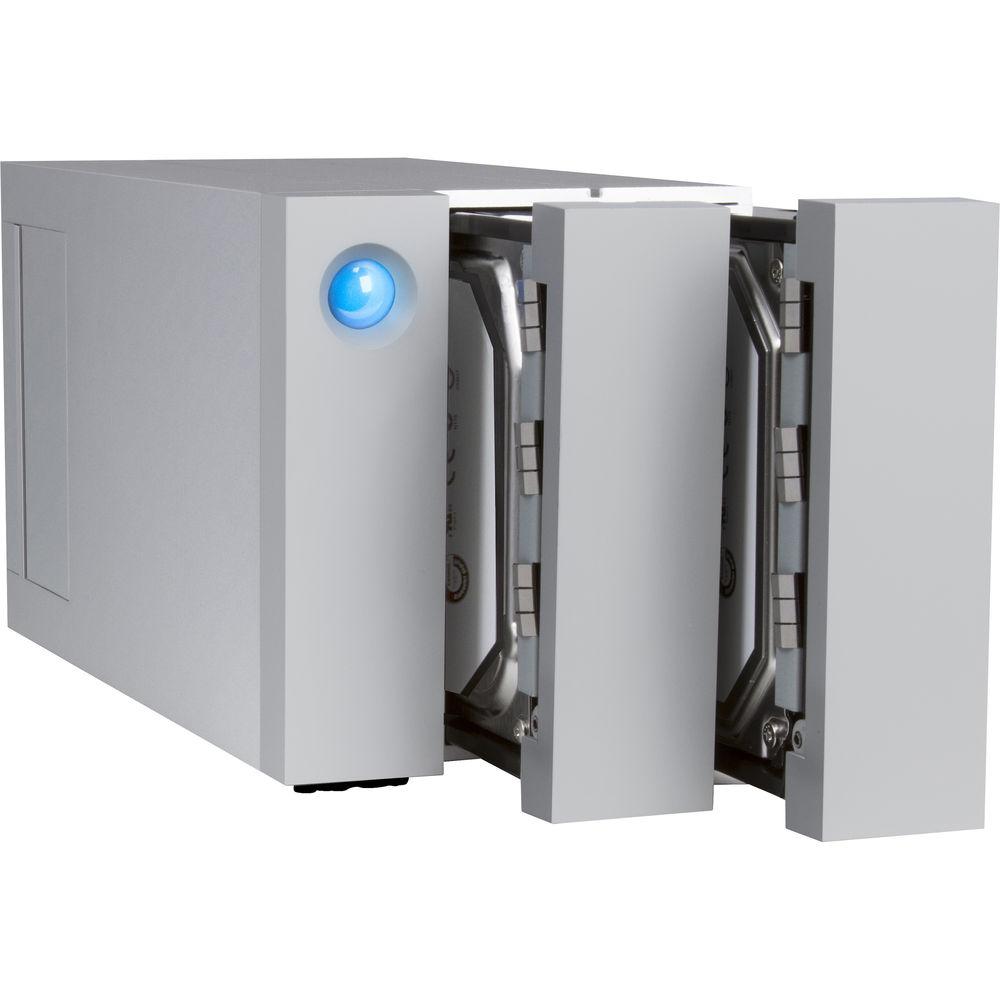

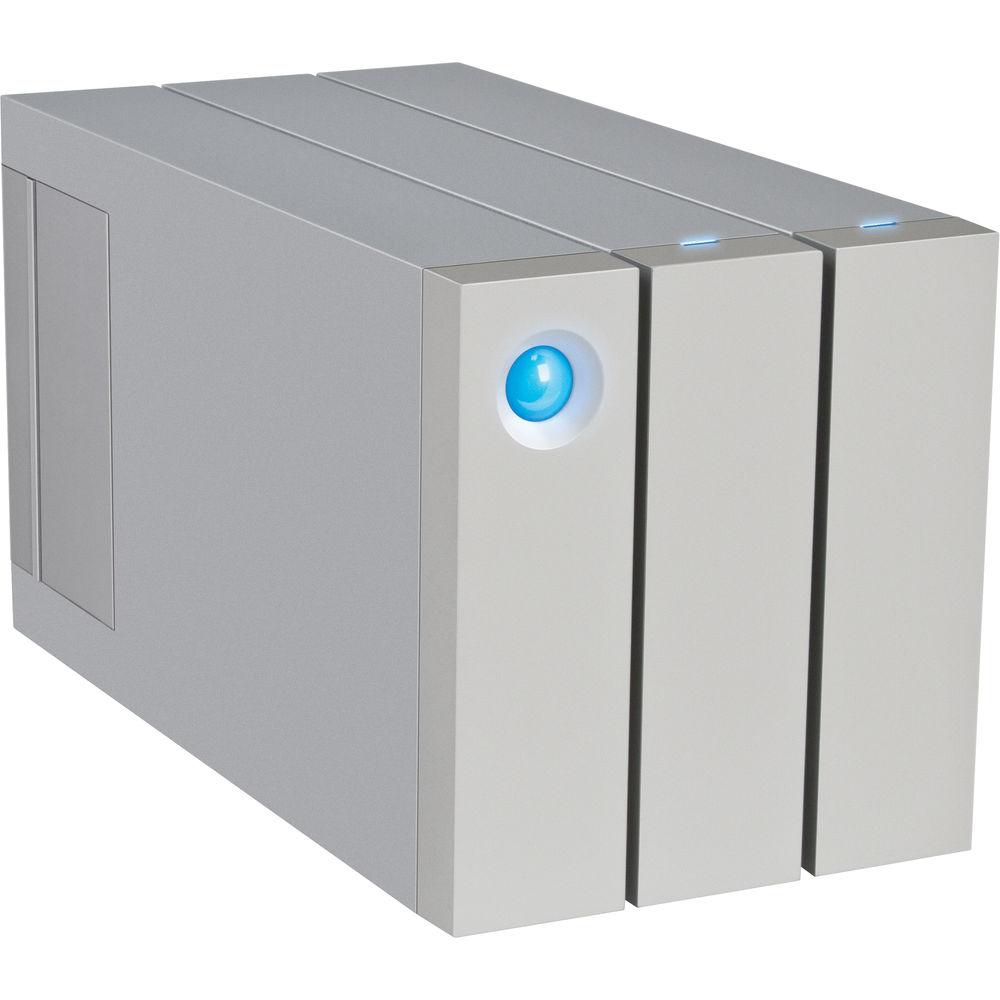

Product description RAID Arrays for Photography and Pro Video Read More The LaCie 2big 2-Bay Thunderbolt 2 RAID Array has two hot-swappable bays that each contain a 6TB 7200 rpm hard drive for a total storage capacity of 12TB. For connectivity, the 2big has a USB 3.0 port as well as two Thunderbolt 2 ports, so you can daisy chain it with other Thunderbolt 2 devices. The drives are preconfigured in HFS+ for Mac systems and in RAID 0 for performance up to a max speed of 420 MB/s. For security, it's compatible with Kensington locks, and is cooled thanks to a built-in fan. - Included Software
- Intego Backup Manager Pro for Mac
Genie Backup Manager Pro for PC LaCie RAID Manager (provides system monitoring and email alerts for temperature or RAID events). - Thunderbolt 2

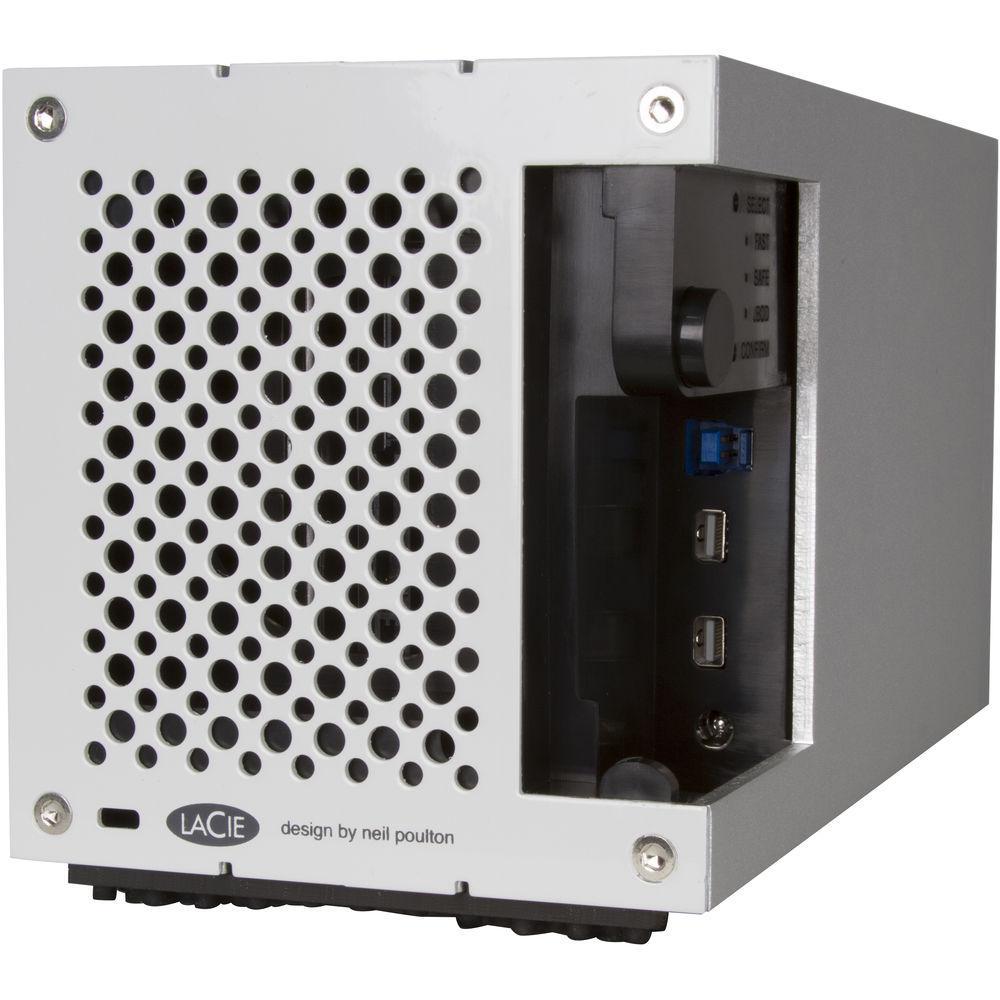

- Two onboard Thunderbolt 2 ports each deliver 20 Gb/s bandwidth as well as daisy-chaining capabilities for up to six Thunderbolt-equipped devices via a single cable. With DisplayPort 1.2 support, this interface can connect to higher-resolution displays such as 4K monitors. Additionally, Thunderbolt 2 is backwards compatible and uses the same cables and connectors as first-generation Thunderbolt devices and computers.
- Versatility
- With USB 3.0 Type-A and Thunderbolt 2 interfaces, the LaCie 2big can deliver fast transfer speeds with Thunderbolt 2 devices, while offering compatibility with most systems via USB Type-A.
- RAID for Speed or Security
- Hardware RAID delivers sustained performance and better reliability. You can leave it in RAID 0 to maximize speed, change it to RAID 1 for data protection, or JBOD, which lets you use each disk independently.
UPC: 763649121528 In the Box LaCie 2big 12TB 2-Bay Thunderbolt 2 RAID Array (2 x 6TB) External Power Supply USB 3.0 Type-A Cable Thunderbolt Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LaCie 2big 12TB 2-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaCie STEY12000400 Specs Capacity | 12TB | Internal Drives | 2 x 6TB 7200 rpm | Interface | 2 x Thunderbolt 2 1 x USB 3.0 Type-A | Interface Transfer Rate | Thunderbolt 2: 20 Gb/s USB 3.0: 5 Gb/s | Data Transfer Rate (max) | Up to 420 MB/s | RAID | RAID 0/1/JBOD | Security | Kensington lock compatible Integrated cable lock | Cooling | Aluminum enclosure for heat dissipation Thermoregulated Noctua quiet cooling fan | System Requirements | An available Thunderbolt 2 or USB 3.0 Type-A port | Dimensions (L x W x D) | 8.5 x 4.2 x 5.1" / 217 x 109 x 130 mm | Weight | 5.9 lb / 2.7 kg | | Package Weight | 10.75 lb | Box Dimensions (LxWxH) | 12.0 x 9.5 x 8.2" |
