User Manual for Laird Digital Cinema BNC to BNC 12G-SDI 4K UHD Single-Link RG59 Cable Click to enlarge the picture
Contents of the user manual for the Laird Digital Cinema BNC to BNC
- Product category: BNC to BNC Cables Laird Digital Cinema
- Brand: Laird Digital Cinema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laird Digital Cinema BNC to BNC Cables
|
User manual for the Laird Digital Cinema BNC to BNC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laird Digital Cinema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laird Digital Cinema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laird Digital Cinema product will considerably shorten its lifespan!
|

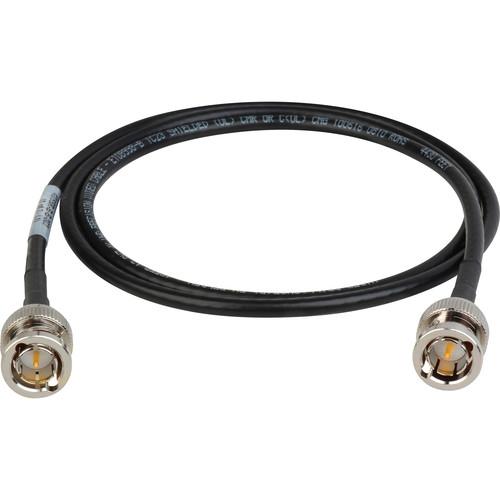

Product description Provided by third party: Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure.
Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver plated copper center conductor and a low profile diameter of less than 1/8" making it the ideal choice for patch bays and OB trucks.
- Key Features
-
- Designed for UHD and 4K video transport
- 12 GHz, 4K UHD precision 75-Ohm video cable
- Single link BNC simplifies installations
- Optimized transmission distance for UHDTV
Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema BNC to BNC 12G-SDI 4K UHD Single-Link RG59 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema 4855R-B-B-BK-010 Specs | | | Cable Type | Video / audio cable - riser | | Interface Supported | 12G-SDI | | Technology | Coaxial | | Jacket Material | PVC | | Shielding Material | Duofoil with tinned copper braid | | Impedance | 75 Ohm | | Compliant Standards | RG-59/SMPTE 424M/SMPTE ST 2081-1/SMPTE ST 2082-1 | | Length | 10 ft | | Features | Gas injected dielectric, Silver Plated Copper, High Density Foam Polyethylene insulation | | Color | Black | | | | CONNECTOR | BNC - male | | Connector (Second End) | BNC - male | | | | Compliant Standards | UL, cUL, RoHS, NEC-CMG, CMR | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.1 x 2.0 x 0.2" |
