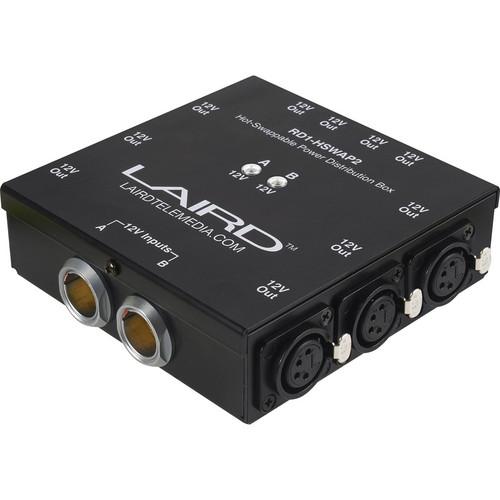

User Manual for Laird Digital Cinema HSWAP-2 12V Hot Swap Power Distribution Box

Click to enlarge the picture
Laird Digital Cinema HSWAP-2 12V Hot Swap Power Distribution Box Contents of the user manual for the Laird Digital Cinema HSWAP-2 12V Hot
  • Product category: Other Power Accessories Laird Digital Cinema
  • Brand: Laird Digital Cinema
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Laird Digital Cinema Other Power Accessories

User manual for the Laird Digital Cinema HSWAP-2 12V Hot contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Laird Digital Cinema product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Laird Digital Cinema user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Laird Digital Cinema product will considerably shorten its lifespan!



Product description

The Laird Telemedia HSWAP-2 12V Hot Swap Power Distribution Box takes two battery inputs and distributes steady power to a cine camera and to all the camera's accessories, accessories such as a lens control system. Moreover, very importantly, you can also (or alternatively) connect an AC to DC wall power source instead of a battery. So, in effect, you can have a battery and a wall power source plugged in as your two inputs. Both input ports are 3B 8-pin Lemos, and both accept 12 volt sources.

What the HSWAP does is select the source that at any time has the most life left in it, and with that source it powers your outputs -- your camera and its accessories. One of the benefits of such auto-switching is the ability to seamlessly interchange batteries. As you pull one out to replace with a new one, that one which you leave behind will automatically get switched to, and none of your outputs will lose any power in the process. The ten ports for the outputs consist of six 12V XLRs and four 12V Lemos of different configurations. (Please see the "Specifications" tab for all configurations.)

As for mounting, the HSWAP features on its bottom a metal V-plate by which it snaps into any V-mount receiver. Additionally, the same bottom has a flushed 1/4"-20 screw-hole by which you can attach the HSWAP to anything that accepts a 1/4"-20 screw; (and a 1/4"-20 thumbscrew comes included).

The HSWAP is 4.5 x 4.5" and comes in a high-quality rugged aluminum housing. Compatible cameras include the RED and Alexa line-ups, SONY's F65 and F3, and Canon's C300/500. Compatible batteries are Anton Bauer's VCLX, Panavision's Genesis, those from IDX, and others with industry standard power cables.
    Steady Power for Your Rig
    • Takes two battery and / or AC power sources via 12 volt input ports
    • Distributes power to a cine camera and all its accessories (and to 3D rigs)
    • Selects / switches to the input power source with the most life / voltage left in it
    • Features ten output ports for cameras and accessories: 6 12V XLRs / 4 12V Lemos
    • Snaps by V-mount plate onto any V-mount receiver / mounts also by 1/4"-20 screw-hole
In the Box Laird Digital Cinema HSWAP-2 12V Hot Swap Power Distribution Box
  • 1-4"-20 Thumbscrew
  • 90-Day Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Laird Digital Cinema HSWAP-2 12V Hot Swap Power Distribution Box in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Laird Digital Cinema RD1-HSWAP2 Specs

    Inputs 2x 3B 8-pin Lemo 12V
    Outputs 6x 4-pin XLR 12V
    2x 6-pin Lemo 12V
    2x 3-pin Lemo split-gender 12V

    All ten outputs feature self-resetting fuses
    The auto-switching capability is on the input side only
    Mount Type Metal V-mount plate on the underside
    1/4"-20 screw-hole
    Housing High-quality rugged aluminum
    Dimensions 4.5 x 4.5 x 1.5" (11.5 x 11.5 x 3.8 cm)
    Package Weight 1.6 lb
    Box Dimensions (LxWxH) 10.6 x 7.9 x 4.2"
