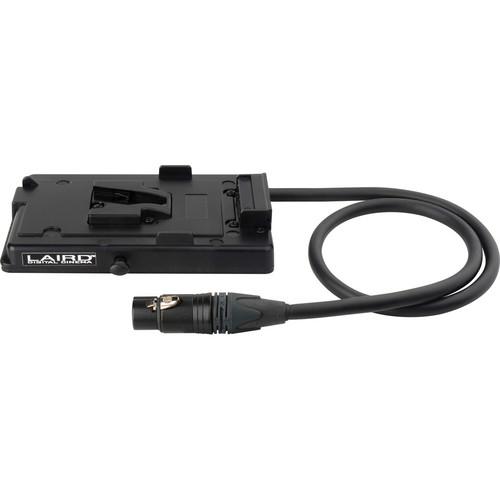

Product description The Laird LDC-PV-XL4F IDX Style V-Mount Battery Plate is a rugged V-Plate to convert cameras without a rear V-Mount battery connection, so that any of the V-Mount ENDURA batteries among others can be easily attached, and this custom version adds a 4 pin 12 VDC 20" (50.8 cm) XLR pig-tail output lead. It is designed with multiple mounting holes to fit virtually all professional video cameras, with the added advantage of a built-in 2-pin D-Tap DC output as well. This can also be used as the V-Mount adaptor for many manufactures' monitors, displays, test instruments, and more. - IDX Style Battery Plate with Permanent 20" (50.8 cm) 12 VDC 4 Pin XLR Cable Lead
- 20" (50.8 cm) cable extends to reach additional modules
- High Quality Locking 4-pin XLR with Gold Contacts
- The attached power output cable allows you to plug directly into 4-pin XLR powered equipment like cameras without using up the D-Tap output of the V- Mount, which will now be accessible for powering auxiliary accessories (70 W max)
- Multiple mounting holes for universal camera connection
- Digi-View data connector provided as well. Digital battery capacity data from the ENDURA ELITE, E-10 and E-7 can be transferred through the connector to compatible viewfinders found in most cameras. For accuracy and detail, remaining capacity is shown in steps of 1%
- Precise tooling and high-grade components enhance a design that offers a secure lock onto the battery for an exact fit connecting the mount's power terminals
- Pre-wired power connectors are standard, eliminating the need for manual screw connection
In the Box Laird Digital Cinema LDC-PV-XL4F IDX Style V-Mount Battery Plate Screws to Mount on Sony, JVC, & Panasonic Cameras 90-Day Warranty on Parts & Labor Table of Contents
|
