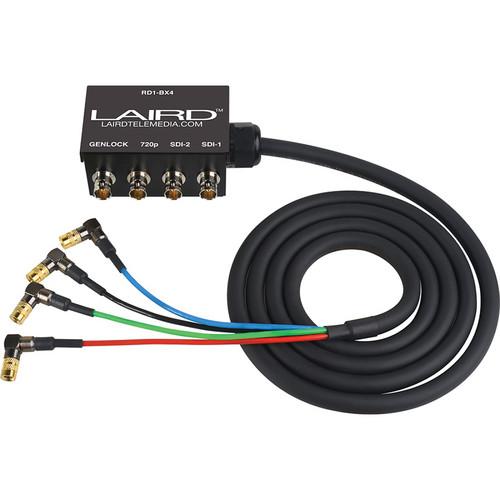

Product description Laird Telemedia's MINI-Coax DIN to BNC Breakout Box for RED One converts the camera's four small MINI-Coax DIN connectors to more robust BNC connectors. Each BNC connection is labeled with its specific purpose: HD-SDI (1), HD-SDI (2), 720P Preview and Genlock. With its machined aluminum construction, this unit is designed to withstand the rigors of a non-stop production environment. A 5-foot interface cable reduces stress on the camera's inputs, and a steel belt clip and 1/4-20 threaded insert provide a variety of mounting options. - Converts the RED One's MINI-Coax DIN connectors to BNC Outputs
- Right-angle Black & Gold DIN 1.0/2.3 connectors for a more tidy camera rig
- Lightweight, yet durable machined aluminum box with four BNC connections
- 5' interface cable with four MINI-Coax DIN connectors
- Belt Clip and 1/4-20 Insert for mounting options
In the Box Laird Digital Cinema MINI-Coax DIN to BNC Breakout Box for RED One 90 Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema MINI-Coax DIN to BNC Breakout Box for RED One in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema RD1-BX4 Specs | Outputs | Right-angle Black & Gold DIN 1.0/2.3 connectors (x4) | | Inputs | 75 Ohm BNC connectors (x4) | | Dimensions | Box: 3 x 2 x 1.5" (7.62 x 5.08 x 3.81 cm)
Cable: 5' (1.52 m) | | Weight | 1.84 lb (0.83 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.6 x 7.9 x 4.1" |
