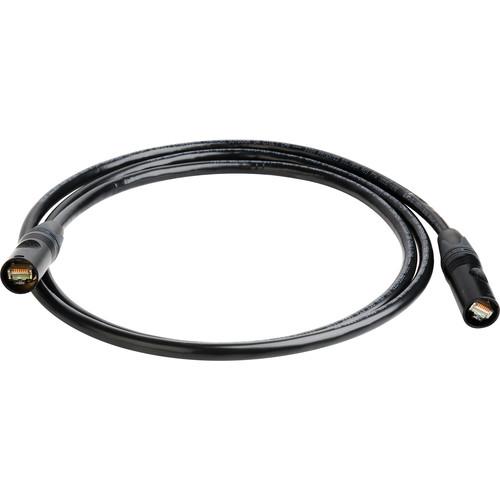

User Manual for Laird Digital Cinema Neutrik RJ45 EtherCON to Neutrik RJ45 EtherCON Extreme CAT6 Belden DataTuff Cable Click to enlarge the picture
Contents of the user manual for the Laird Digital Cinema Neutrik RJ45 EtherCON
- Product category: Ethernet Cables Laird Digital Cinema
- Brand: Laird Digital Cinema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laird Digital Cinema Ethernet Cables
|
User manual for the Laird Digital Cinema Neutrik RJ45 EtherCON contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laird Digital Cinema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laird Digital Cinema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laird Digital Cinema product will considerably shorten its lifespan!
|
Product description Provided by third party: Laird's CAT6XTRM series CAT6A cables are assembled with rugged Belden 7953A DataTuff Cable and Neutrik NE8MX6-B RJ45 heavy duty cable end housings. High quality cable assemblies are critical for demanding applications where data transmission interruptions can lead to lost data and costly downtime. These assemblies are built for peak electrical performance in harsh settings providing less attenuation and greater resistance to EMI/RFI.
CAT6XTRM assemblies are ideal for HD video baluns & Dante field applications where extenders require CAT6 shielded cable. Perfect for premise horizontal cable, gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155 ATM, and 622 ATM.
The NE8MX6-B connector delivers a rugged metal shell, proven Neutrik chuck-type strain relief and IP 65 level protection when mated with NE8FDX-P6-W or NE8FDX-Y6-W chassis connections. Note!:Does not inter-mate with NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.
- Key Features
-
- Industrial grade sunlight & oil resistant
- Robust cabling and connector infrastructure
- Less attenuation and greater resistance to EMI/RFI
- Heavy duty locking connector ensures safe power connection
Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema Neutrik RJ45 EtherCON to Neutrik RJ45 EtherCON Extreme CAT6 Belden DataTuff Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema CAT6XTRM-100 Specs | | | Network Cable Type | Network cable - CAT 6 | | Technology | STP | | Jacket Material | PVC | | American Wire Gauge (AWG) | 23 | | Features | Solid, oil-resistant, sunlight-resistant, strain relief, length indication, rugged plug, metal housing, RFI/EMI shielding, FRFPE spline center member | | Length | 100 ft | | | | CONNECTOR | RJ-45 (Neutrik) - male | | Connector (Second End) | RJ-45 (Neutrik) - male |
