User Manual for Laird Digital Cinema Premium HD15 to XLR Female Analog Audio I O Breakout Cable for Ensemble Designs BrightEye 23 25 Click to enlarge the picture
Contents of the user manual for the Laird Digital Cinema Premium HD15 to
- Product category: Accessories for Converters Laird Digital Cinema
- Brand: Laird Digital Cinema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laird Digital Cinema Accessories for Converters
|
User manual for the Laird Digital Cinema Premium HD15 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laird Digital Cinema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laird Digital Cinema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laird Digital Cinema product will considerably shorten its lifespan!
|

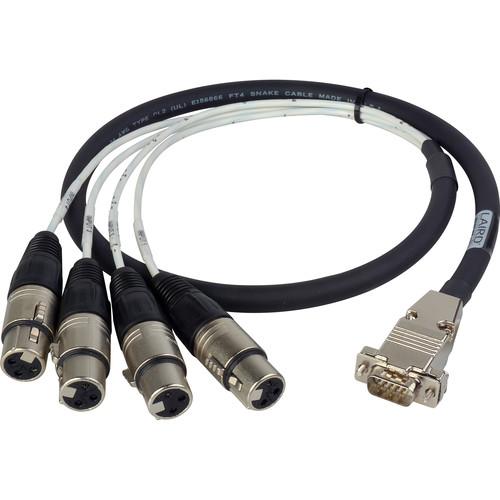

Product description Provided by third party: The Laird ED-BE-4XF-003 HD15 to XLR Female Analog Audio I/O Breakout Cable for Ensemble Designs BrightEye 23/25 is designed for superior connectivity with high quality 4-channel audio cable and XLR connectors. Cables are built with 24AWG stranded bare copper and are polypropylene insulated, individually shielded and jacketed with an overall heavy duty CL2 PVC jacket.
The 12-inch fan out includes Neutrik 3-Pin XLR connectors which feature a durable zinc die cast shell, fiberglass reinforced hard plastic insert, and chuck type strain relief for secure clamping of all cables. Designed by Laird for the Bright Eye BE 23/25 models.
- Key Features
-
- 4 Neutrik NC3FX female 3-pin XLR connector
- 15 pin HD
- Industry standard AMP DSub cable hood
- High quality 24AWG audio cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema Premium HD15 to XLR Female Analog Audio I O Breakout Cable for Ensemble Designs BrightEye 23 25 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema ED-BE-4XF-003 Specs | | | Cable Type | Audio cable - stranded | | Technology | Shielded | | American Wire Gauge (AWG) | 24 | | Jacket Material | PVC | | Impedance | 60 Ohm | | Length | 3 ft | | Features | CL2/FT4 rated outer jacket, polypropylene insulation, zinc die-cast plugs, NEUTRIK connectors, bare copper conductors, chuck type strain relief, fiberglass reinforced plastic insert, heavy-duty jacket | | | | CONNECTOR | 4 x 3 pin XLR (Neutrik) - female (input) | | Connector (Second End) | 15 pin HD D-Sub (HD-15) - male (output) |
