User Manual for Laird Digital Cinema RD1-PV-1B6F 4K IDX Style V-Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Laird Digital Cinema RD1-PV-1B6F 4K IDX
- Product category: Battery Mounting Plates Laird Digital Cinema
- Brand: Laird Digital Cinema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laird Digital Cinema Battery Mounting Plates
|
User manual for the Laird Digital Cinema RD1-PV-1B6F 4K IDX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laird Digital Cinema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laird Digital Cinema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laird Digital Cinema product will considerably shorten its lifespan!
|

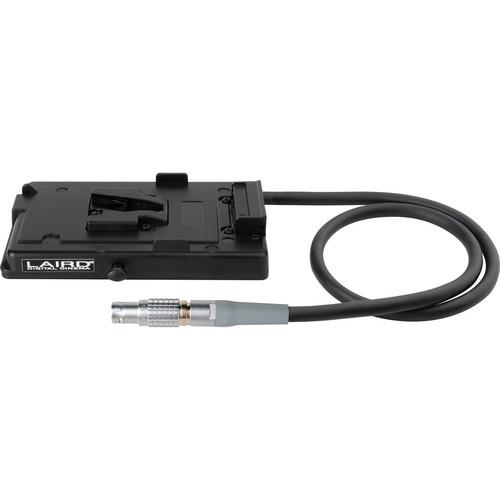

Product description The Laird RD1-PV-1B6F 4K IDX Style V-Mount Battery Plate is designed with a Direct LEMO 1B 12 VDC 20" (508mm) cable lead. It is manufactured especially for RED ONE Epic and Scarlet digital cinema cameras, and works well with many other cameras and equipment. This is a rugged V-Plate to convert cameras without a rear V-Mount battery connection so that any of the V-Mount ENDURA batteries among others can be easily attached. It has multiple mounting holes to fit virtually all professional video cameras. It features a built-in 2-pin D-Tap DC output. The RD1-PV-1B6F battery plate can also be used as the V-Mount adaptor for monitors, displays, and test instruments from different manufacturers. - IDX Style V-Mount battery plate with permanent 20" (508mm) Epic/Scarlet LEMO 1B cable lead
- 20" (508mm) cable extends to reach additional modules
- High quality locking LEMO 1B cable lead with gold contacts
- The attached power output cable allows you to plug directly into the RED Epic or Scarlet camera or any 12 VDC LEMO 1B connectorized equipment without using up the P-Tap output of the battery plate, which can then be available for powering other gear
- D-Tap connection for auxiliary accessories (70 W maximum) is not used for the LEMO 1B cable output and therefore available for powering other gear
- IDX or other V-Mount batteries sold separately
- Multiple mounting holes for universal camera connection
- Digi-View data connectors are fitted as standard on both models. Digital battery capacity data from ENDURA ELITE, E-10, and E-7 can be transferred through P-V2 and P-VS2 to compatible viewfinders found in most cameras. For accuracy and detail, remaining capacity is shown in steps of 1%
- Precise tooling and high-grade components enhance its design, thus offering a secure lock onto the battery for an exact fit connecting the mount's power terminals
- Pre-wired power connectors fitted as standard, eliminating the need for manual screw connection
- 50 W 2-pin D-Tap connector uses battery voltage to power an onboard camera light or broadcast accessory
In the Box Laird Digital Cinema RD1-PV-1B6F 4K IDX Style V-Mount Battery Plate 90-Day Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema RD1-PV-1B6F 4K IDX Style V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema RD1-PV-1B6F Specs | Weight | 0.32 lb (0.145 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.7 x 4.5 x 3.4" |
