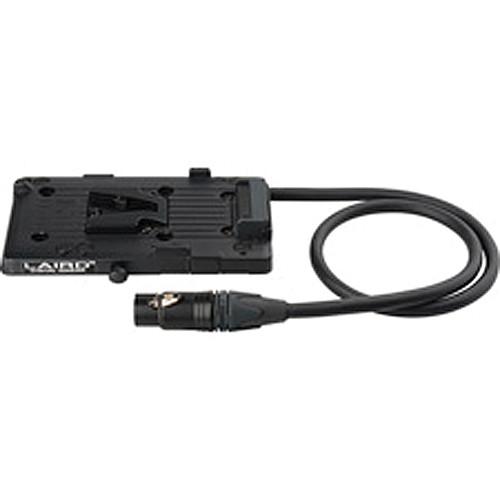

Product description The Laird Telemedia RD1-PV-XL4F Style V-Mount Battery Plate (Black) is a rugged V-Plate to convert cameras without a rear V-Mount battery connection so that any of the V-Mount ENDURA batteries among others can be easily attached, and this custom version adds a 4-pin 12 VDC 20" (508mm) XLR pig-tail output lead. This plate is designed with multiple mounting holes to fit virtually all professional video cameras, with the added advantage of a built-in 2-pin D-Tap DC output as well. P-V2 can also be used as the V-Mount adapter for many manufacturers' monitors, displays, test instruments, and more. - IDX Battery Plate with permanent 20" (508mm) 12 VDC 4 Pin XLR Cable Lead
- 20" (508mm) cable extends to reach additional modules
- High quality locking 4-pin XLR with gold contacts
- The attached power output cable allows you to plug directly into 4-pin XLR-powered equipment like cameras without using up the P-Tap output of the gold mount, which can then be accessible for powering other gear
- D-Tap connection for auxiliary accessories (70 W maximum) is not used for the XLR cable output and is therefore available for powering other gear
- IDX or other V-Mount batteries are sold separately
- Multiple mounting holes for universal camera connection
- Digital-view data connectors are fitted as standard on both models. Digital battery capacity data from ENDURA ELITE, E-10, and E-7 can be transferred through P-V2 and P-VS2 to compatible viewfinders found in most cameras. For accuracy and detail, remaining capacity is shown in steps of 1%
- Precise tooling and high-grade components enhance a design that offers a secure lock onto the battery for an exact fit connecting the mount's power terminals
- Pre-wired power connectors fitted as standard, eliminating the need for manual screw connection
- 50 W 2-pin D-Tap connector uses battery voltage to power an onboard camera light or broadcast accessory
In the Box Laird Digital Cinema RD1-PV-XL4F Style V-Mount Battery Plate (Black) 90-Day Warranty on Parts & Labor Table of Contents
|
