User Manual for Laird Digital Cinema UHD BNC to UHD BNC 4K 8K 18 AWG RG6 Digital Coaxial Cable Click to enlarge the picture
Contents of the user manual for the Laird Digital Cinema UHD BNC to
- Product category: BNC to BNC Cables Laird Digital Cinema
- Brand: Laird Digital Cinema
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Laird Digital Cinema BNC to BNC Cables
|
User manual for the Laird Digital Cinema UHD BNC to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Laird Digital Cinema product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Laird Digital Cinema user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Laird Digital Cinema product will considerably shorten its lifespan!
|

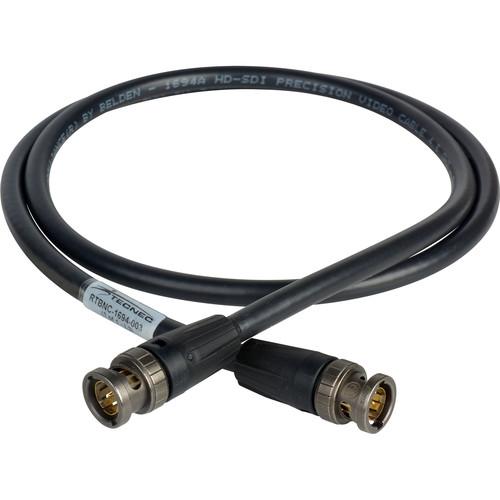

Product description The 3' UHD BNC to UHD BNC 4K/8K 18 AWG RG6 Digital Coaxial Cable from Laird Digital Cinema features Neutrik's rearTWIST UHD BNC connectors and Belden RG6 Cable. Designed for extended bandwidth for 4K and 8K video applications. Neutrik's rearTWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface.
The 18 AWG Belden digital coaxial cable features a solid 0.023" bare copper conductor, gas-injected foam HDPE insulation, Duofoil and tinned copper braid shield (95% coverage), and a PVC jacket. - High frequency optimized contact pin and insulator for UHD transmissions
- Fully compatible with conventional BNC chassis connectors
In the Box Laird Digital Cinema UHD BNC to UHD BNC 4K/8K 18 AWG RG6 Digital Coaxial Cable (3') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Laird Digital Cinema UHD BNC to UHD BNC 4K 8K 18 AWG RG6 Digital Coaxial Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLaird Digital Cinema RTBNC-1694-003 Specs | Cable Length | 3' / 0.9 m | | Shielding | 95% Copper Braid | | Wire Gauge | 18 AWG | | Coaxial Type | RG-6 | | Maximum Impedance | 75 Ohms | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 8.0 x 6.4 x 0.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
